Rotary Switches
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Number of Positions | Index Stops | Number of Decks | Number of Poles per Deck | Circuit per Deck | Contact Timing | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Actuator Length | Angle of Throw | Contact Material | Contact Finish | Mounting Type | Termination Style | Features | Depth Behind Panel |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
D2C0205NSWITCH ROTARY 2-5POS 250MA 115V Electroswitch |
4,546 | 208.88 |
|
Datasheet |
D2 | Bulk | Active | 2 ~ 5 | Adjustable | 1 | 2 | DP5T | Non-Shorting (BBM) | 250mA (AC), 550mA (DC) | 115 V | 28 V | Round (3.17mm Dia) | 25.40mm | 30° | Brass | Silver | Panel Mount | Solder Lug | - | 12.19mm |
|

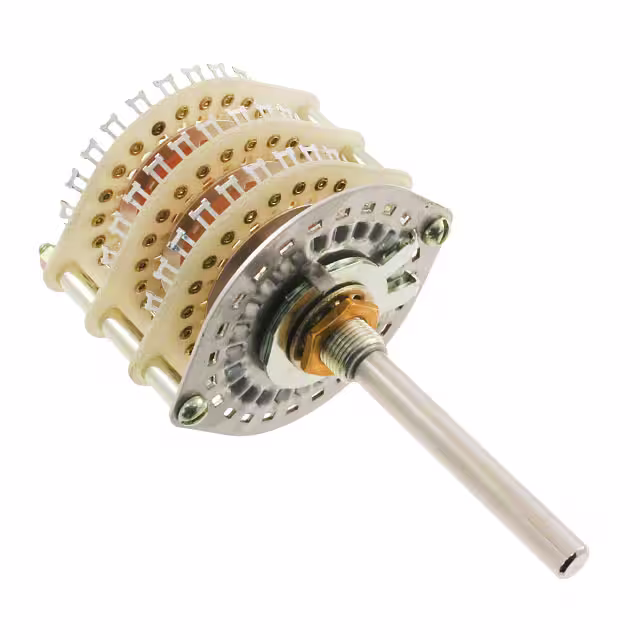

D9G0323NSWITCH ROTARY 2-23POS 250MA 115V Electroswitch |
2,904 | 166.48 |
|
Datasheet |
D9 | Bulk | Active | 2 ~ 23 | Adjustable | 3 | 1 | SP23T | Non-Shorting (BBM) | 250mA (AC), 1.5A (DC) | 115 V | 28 V | Round (6.35mm Dia) | 47.63mm | 15° | Brass | Silver | Panel Mount | Solder Lug | - | 39.17mm |
|
|
D3C0211SSWITCH ROTARY 2-11POS 500MA 115V Electroswitch |
2,298 | 0.00 |
|
- |
D3 | Bulk | Active | 2 ~ 11 | Adjustable | 2 | 1 | SP11T | Shorting (MBB) | 500mA (AC), 1.5A (DC) | 115 V | 28 V | Round (6.35mm Dia) | 47.62mm | 30° | Silver Alloy | - | Panel Mount | Solder Lug | - | 25.65mm |
|
|
D3C0405SSWITCH ROTARY 2-5POS 500MA 115V Electroswitch |
3,171 | 0.00 |
|
- |
D3 | Bulk | Active | 2 ~ 5 | Adjustable | 2 | 2 | DP5T | Shorting (MBB) | 500mA (AC), 1.5A (DC) | 115 V | 28 V | Round (6.35mm Dia) | 47.62mm | 30° | Silver Alloy | - | Panel Mount | Solder Lug | - | 25.65mm |
|
|
E4C0117NSWITCH ROTARY 2-17POS 9A 115V Electroswitch |
3,527 | 173.32 |
|
Datasheet |
E4 | Bulk | Active | 2 ~ 17 | Adjustable | 1 | 1 | SP17T | Non-Shorting (BBM) | 9A (AC), 11A (DC) | 115 V | 28 V | Flatted (6.35mm Dia) | 47.63mm | 20° | Silver (Ag) | - | Panel Mount | Solder Lug | - | 31.06mm |
|
|
D3C0603SSWITCH ROTARY 2-3POS 500MA 115V Electroswitch |
2,031 | 0.00 |
|
- |
D3 | Bulk | Active | 2 ~ 3 | Adjustable | 2 | 3 | 3P3T | Shorting (MBB) | 500mA (AC), 1.5A (DC) | 115 V | 28 V | Round (6.35mm Dia) | 47.62mm | 30° | Silver Alloy | - | Panel Mount | Solder Lug | - | 25.65mm |
|
|
D8G0417SSWITCH ROTARY 2-17POS 1A 115V Electroswitch |
4,946 | 178.65 |
|
Datasheet |
D8 | Bulk | Active | 2 ~ 17 | Adjustable | 4 | 1 | SP17T | Shorting (MBB) | 1A (AC), 2.25A (DC) | 115 V | 28 V | Round (6.35mm Dia) | 47.63mm | 20° | Brass | Silver | Panel Mount | Solder Lug | - | 51.87mm |
|
|
D7G0611SSWITCH ROTARY 2-11POS 1A 115V Electroswitch |
3,104 | 211.81 |
|
Datasheet |
D7 | Bulk | Active | 2 ~ 11 | Adjustable | 6 | 1 | SP11T | Shorting (MBB) | 1A (AC), 2.25A (DC) | 115 V | 28 V | Round (6.35mm Dia) | 47.63mm | 30° | Brass | Silver | Panel Mount | Solder Lug | - | 151.64mm |
|
|
E4C0208NSWITCH ROTARY 2-8POS 9A 115V Electroswitch |
1,402 | 185.48 |
|
Datasheet |
E4 | Bulk | Active | 2 ~ 8 | Adjustable | 1 | 2 | DP8T | Non-Shorting (BBM) | 9A (AC), 11A (DC) | 115 V | 28 V | Flatted (6.35mm Dia) | 47.63mm | 20° | Silver (Ag) | - | Panel Mount | Solder Lug | - | 31.06mm |
|
|
D6D0612NSWITCH ROTARY 2-12POS 500MA 115V Electroswitch |
3,896 | 185.98 |
|
Datasheet |
D6 | Bulk | Active | 2 ~ 12 | Adjustable | 6 | 1 | SP12T | Non-Shorting (BBM) | 500mA (AC), 1.5A (DC) | 115 V | 28 V | Round (6.35mm Dia) | 47.63mm | 30° | Brass | Silver | Panel Mount | Solder Lug | - | 90.96mm |
