Rotary Switches
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Number of Positions | Index Stops | Number of Decks | Number of Poles per Deck | Circuit per Deck | Contact Timing | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Actuator Length | Angle of Throw | Contact Material | Contact Finish | Mounting Type | Termination Style | Features | Depth Behind Panel |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
M5D0206N-ASWITCH ROTARY 2-6POS 2.5A 120V Electroswitch |
3,458 | 90.82 |
|
Datasheet |
M5 | Bulk | Active | 2 ~ 6 | Adjustable | 1 | 2 | DP6T | Non-Shorting (BBM) | 2.5A (AC), 2A (DC) | 120 V | 28 V | Flatted (6.35mm Dia) | 11.11mm | 30° | Copper Alloy | Silver | Panel Mount | Solder Lug | - | 23.37mm |
|
|
D7G0605NSWITCH ROTARY 2-5POS 1A 115V Electroswitch |
4,406 | 102.49 |
|
Datasheet |
D7 | Bulk | Active | 2 ~ 5 | Adjustable | 3 | 2 | DP5T | Non-Shorting (BBM) | 1A (AC), 2.25A (DC) | 115 V | 28 V | Round (6.35mm Dia) | 47.63mm | 30° | Brass | Silver | Panel Mount | Solder Lug | - | 70.71mm |
|
|
D7G0605SSWITCH ROTARY 2-5POS 1A 115V Electroswitch |
1,612 | 102.49 |
|
Datasheet |
D7 | Bulk | Active | 2 ~ 5 | Adjustable | 3 | 2 | DP5T | Shorting (MBB) | 1A (AC), 2.25A (DC) | 115 V | 28 V | Round (6.35mm Dia) | 47.63mm | 30° | Brass | Silver | Panel Mount | Solder Lug | - | 70.71mm |
|
|
D3C0111SSWITCH ROTARY 2-11POS 500MA 115V Electroswitch |
4,338 | 0.00 |
|
- |
D3 | Bulk | Active | 2 ~ 11 | Adjustable | 1 | 1 | SP11T | Shorting (MBB) | 500mA (AC), 1.5A (DC) | 115 V | 28 V | Round (6.35mm Dia) | 47.62mm | 30° | Silver Alloy | - | Panel Mount | Solder Lug | - | 12.95mm |
|
|
D9G0223SSWITCH ROTARY 2-23POS 250MA 115V Electroswitch |
2,725 | 105.82 |
|
Datasheet |
D9 | Bulk | Active | 2 ~ 23 | Adjustable | 2 | 1 | SP23T | Shorting (MBB) | 250mA (AC), 1.5A (DC) | 115 V | 28 V | Round (6.35mm Dia) | 47.63mm | 15° | Brass | Silver | Panel Mount | Solder Lug | - | 26.47mm |
|
|
D7G0903NSWITCH ROTARY 2-3POS 1A 115V Electroswitch |
2,797 | 106.16 |
|
Datasheet |
D7 | Bulk | Active | 2 ~ 3 | Adjustable | 3 | 3 | 3P3T | Non-Shorting (BBM) | 1A (AC), 2.25A (DC) | 115 V | 28 V | Round (6.35mm Dia) | 47.63mm | 30° | Brass | Silver | Panel Mount | Solder Lug | - | 70.71mm |
|
|
D7C0405NSWITCH ROTARY 2-5POS 1A 115V Electroswitch |
2,601 | 106.16 |
|
Datasheet |
D7 | Bulk | Active | 2 ~ 5 | Adjustable | 2 | 2 | DP5T | Non-Shorting (BBM) | 1A (AC), 2.25A (DC) | 115 V | 28 V | Round (6.35mm Dia) | 47.63mm | 30° | Brass | Silver | Panel Mount | Solder Lug | - | 47.32mm |
|

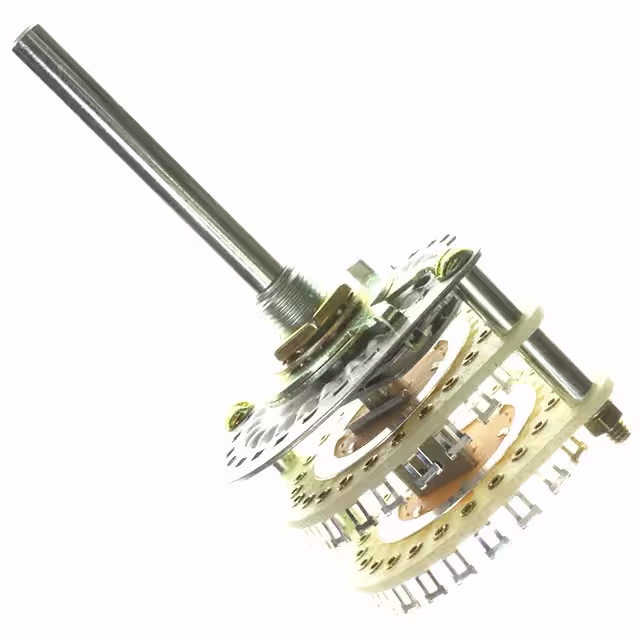

D9G0223NSWITCH ROTARY 2-23POS 250MA 115V Electroswitch |
3,808 | 106.66 |
|
Datasheet |
D9 | Bulk | Active | 2 ~ 23 | Adjustable | 2 | 1 | SP23T | Non-Shorting (BBM) | 250mA (AC), 1.5A (DC) | 115 V | 28 V | Round (6.35mm Dia) | 47.63mm | 15° | Brass | Silver | Panel Mount | Solder Lug | - | 26.47mm |
|
|
D4G1205NSWITCH ROTARY 2-5POS 500MA 115V Electroswitch |
2,899 | 136.07 |
|
- |
D4 | Bulk | Active | 2 ~ 5 | Adjustable | 6 | 2 | DP5T | Non-Shorting (BBM) | 500mA (AC), 1.5A (DC) | 115 V | 28 V | Round (6.35mm Dia) | 47.63mm | 30° | Brass | Silver | Panel Mount | Solder Lug | - | 85.65mm |
|
|
D7C0603NSWITCH ROTARY 2-3POS 1A 115V Electroswitch |
1,919 | 108.16 |
|
Datasheet |
D7 | Bulk | Active | 2 ~ 3 | Adjustable | 2 | 3 | 3P3T | Non-Shorting (BBM) | 1A (AC), 2.25A (DC) | 115 V | 28 V | Round (6.35mm Dia) | 47.63mm | 30° | Brass | Silver | Panel Mount | Solder Lug | - | 47.32mm |
