Rotary Switches
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Number of Positions | Index Stops | Number of Decks | Number of Poles per Deck | Circuit per Deck | Contact Timing | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Actuator Length | Angle of Throw | Contact Material | Contact Finish | Mounting Type | Termination Style | Features | Depth Behind Panel |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
D4C0605SSWITCH ROTARY 2-5POS 500MA 115V Electroswitch |
2,465 | 92.16 |
|
Datasheet |
D4 | Bulk | Active | 2 ~ 5 | Adjustable | 2 | 3 | 3P5T | Shorting (MBB) | 500mA (AC), 1.5A (DC) | 115 V | 28 V | Round (6.35mm Dia) | 47.63mm | 30° | Brass | Silver | Panel Mount | Solder Lug | - | 30.00mm |
|
|
D3C0205NSWITCH ROTARY 2-5POS 500MA 115V Electroswitch |
4,428 | 92.49 |
|
Datasheet |
D3 | Bulk | Active | 2 ~ 5 | Adjustable | 1 | 2 | DP5T | Non-Shorting (BBM) | 500mA (AC), 1.5A (DC) | 115 V | 28 V | Round (6.35mm Dia) | 47.63mm | 30° | Silver Alloy | - | Panel Mount | Solder Lug | - | 12.17mm |
|
|
M5D0206S-ASWITCH ROTARY 2-6POS 2.5A 120V Electroswitch |
3,462 | 92.99 |
|
Datasheet |
M5 | Bulk | Active | 2 ~ 6 | Adjustable | 1 | 2 | DP6T | Shorting (MBB) | 2.5A (AC), 2A (DC) | 120 V | 28 V | Flatted (6.35mm Dia) | 11.11mm | 30° | Copper Alloy | Silver | Panel Mount | Solder Lug | - | 23.37mm |
|
|
D3C0303NSWITCH ROTARY 2-3POS 500MA 115V Electroswitch |
2,997 | 93.82 |
|
Datasheet |
D3 | Bulk | Active | 2 ~ 3 | Adjustable | 1 | 3 | 3P3T | Non-Shorting (BBM) | 500mA (AC), 1.5A (DC) | 115 V | 28 V | Round (6.35mm Dia) | 47.63mm | 30° | Silver Alloy | - | Panel Mount | Solder Lug | - | 12.17mm |
|
|
M5D0112N-ASWITCH ROTARY 2-12POS 2.5A 120V Electroswitch |
3,662 | 94.49 |
|
Datasheet |
M5 | Bulk | Active | 2 ~ 12 | Adjustable | 1 | 1 | SP12T | Non-Shorting (BBM) | 2.5A (AC), 2A (DC) | 120 V | 28 V | Flatted (6.35mm Dia) | 11.11mm | 30° | Copper Alloy | Silver | Panel Mount | Solder Lug | - | 23.37mm |
|
|
D6D0412SSWITCH ROTARY 2-12POS 500MA 115V Electroswitch |
4,506 | 121.69 |
|
Datasheet |
D6 | Bulk | Active | 2 ~ 12 | Adjustable | 4 | 1 | SP12T | Shorting (MBB) | 500mA (AC), 1.5A (DC) | 115 V | 28 V | Round (6.35mm Dia) | 47.63mm | 30° | Brass | Silver | Panel Mount | Solder Lug | - | 60.48mm |
|
|
D7C0211NSWITCH ROTARY 2-11POS 1A 115V Electroswitch |
2,906 | 96.49 |
|
Datasheet |
D7 | Bulk | Active | 2 ~ 11 | Adjustable | 2 | 1 | SP11T | Non-Shorting (BBM) | 1A (AC), 2.25A (DC) | 115 V | 28 V | Round (6.35mm Dia) | 47.63mm | 30° | Brass | Silver | Panel Mount | Solder Lug | - | 47.32mm |
|
|
D7C0211SSWITCH ROTARY 2-11POS 1A 115V Electroswitch |
4,011 | 96.49 |
|
Datasheet |
D7 | Bulk | Active | 2 ~ 11 | Adjustable | 2 | 1 | SP11T | Shorting (MBB) | 1A (AC), 2.25A (DC) | 115 V | 28 V | Round (6.35mm Dia) | 47.63mm | 30° | Brass | Silver | Panel Mount | Solder Lug | - | 47.32mm |
|
|
D7G0311NSWITCH ROTARY 2-11POS 1A 115V Electroswitch |
2,669 | 96.99 |
|
Datasheet |
D7 | Bulk | Active | 2 ~ 11 | Adjustable | 3 | 1 | SP11T | Non-Shorting (BBM) | 1A (AC), 2.25A (DC) | 115 V | 28 V | Round (6.35mm Dia) | 47.63mm | 30° | Brass | Silver | Panel Mount | Solder Lug | - | 70.71mm |
|

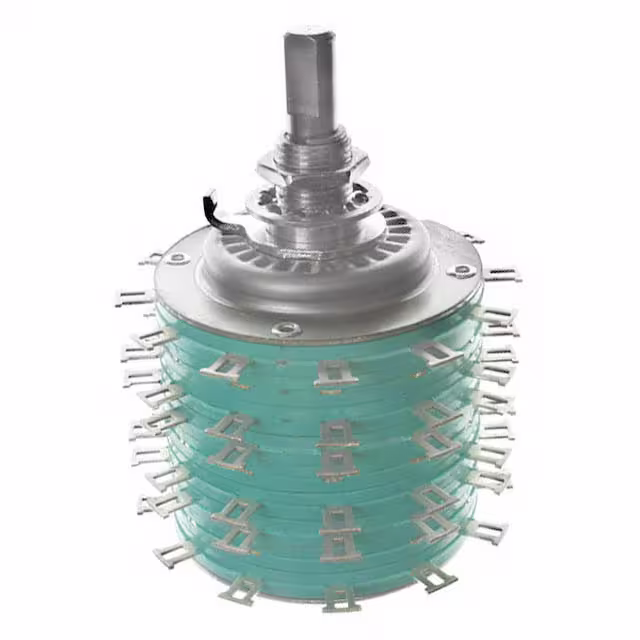

C7D0323NSWITCH ROTARY 23POS 500MA 125V Electroswitch |
1,325 | 96.99 |
|
Datasheet |
C7 | Bulk | Active | 23 | Fixed | 3 | 1 | SP23T | Non-Shorting (BBM) | 500mA (AC), 1A (DC) | 125 V | 28 V | Flatted (6.35mm Dia) | 14.29mm | 15° | Brass | Silver | Panel Mount | Solder Lug | - | 44.38mm |
