Rotary Switches
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Number of Positions | Index Stops | Number of Decks | Number of Poles per Deck | Circuit per Deck | Contact Timing | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Actuator Length | Angle of Throw | Contact Material | Contact Finish | Mounting Type | Termination Style | Features | Depth Behind Panel |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
C1D0306S-VASWITCH ROTARY 2-6POS 100MA 125V Electroswitch |
4,018 | 48.02 |
|
Datasheet |
C1 | Bulk | Active | 2 ~ 6 | Adjustable | 3 | 1 | SP6T | Shorting (MBB) | 100mA (AC), 250mA (DC) | 125 V | 28 V | Flatted (3.17mm Dia) | 9.52mm | 30° | Brass | Silver | Panel Mount, Through Hole, Right Angle | PC Pin | - | 30.76mm |
|
|
D7G0205SSWITCH ROTARY 2-5POS 1A 115V Electroswitch |
2,836 | 48.02 |
|
Datasheet |
D7 | Bulk | Active | 2 ~ 5 | Adjustable | 1 | 2 | DP5T | Shorting (MBB) | 1A (AC), 2.25A (DC) | 115 V | 28 V | Round (6.35mm Dia) | 47.63mm | 30° | Brass | Silver | Panel Mount | Solder Lug | - | 16.76mm |
|
|
D7G0205NSWITCH ROTARY 2-5POS 1A 115V Electroswitch |
3,651 | 48.39 |
|
Datasheet |
D7 | Bulk | Active | 2 ~ 5 | Adjustable | 1 | 2 | DP5T | Non-Shorting (BBM) | 1A (AC), 2.25A (DC) | 115 V | 28 V | Round (6.35mm Dia) | 47.63mm | 30° | Brass | Silver | Panel Mount | Solder Lug | - | 16.76mm |
|
|
C1D0606S-ASWITCH ROTARY 2-6POS 100MA 125V Electroswitch |
3,497 | 48.39 |
|
Datasheet |
C1 | Bulk | Active | 2 ~ 6 | Adjustable | 3 | 2 | DP6T | Shorting (MBB) | 100mA (AC), 250mA (DC) | 125 V | 28 V | Flatted (3.17mm Dia) | 9.52mm | 30° | Brass | Silver | Panel Mount | Solder Lug | - | 30.76mm |
|
|
C1D0312N-VASWITCH ROTARY 2-12POS 100MA 125V Electroswitch |
4,307 | 62.09 |
|
Datasheet |
C1 | Bulk | Active | 2 ~ 12 | Adjustable | 3 | 1 | SP12T | Non-Shorting (BBM) | 100mA (AC), 250mA (DC) | 125 V | 28 V | Flatted (3.17mm Dia) | 9.52mm | 30° | Brass | Silver | Panel Mount, Through Hole, Right Angle | PC Pin | - | 30.76mm |
|

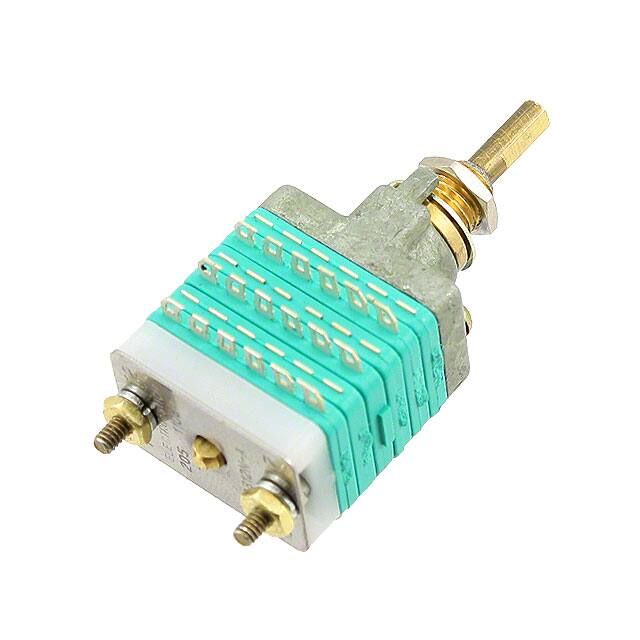

C1D0312N-ASWITCH ROTARY 2-12POS 100MA 125V Electroswitch |
4,361 | 48.95 |
|
Datasheet |
C1 | Bulk | Active | 2 ~ 12 | Adjustable | 3 | 1 | SP12T | Non-Shorting (BBM) | 100mA (AC), 250mA (DC) | 125 V | 28 V | Flatted (3.17mm Dia) | 9.52mm | 30° | Brass | Silver | Panel Mount | Solder Lug | - | 30.76mm |
|
|
C4D0312S-ASWITCH ROTARY 2-12POS 300MA 125V Electroswitch |
2,002 | 49.33 |
|
Datasheet |
C4 | Bulk | Active | 2 ~ 12 | Adjustable | 3 | 1 | SP12T | Shorting (MBB) | 300mA (AC), 500mA (DC) | 125 V | 28 V | Flatted (6.35mm Dia) | 12.70mm | 30° | Brass | Silver | Panel Mount | Solder Lug | - | 34.54mm |
|
|
C2P0308S-ASWITCH ROTARY 2-8POS 100MA 125V Electroswitch |
1,290 | 49.70 |
|
Datasheet |
C2 | Bulk | Active | 2 ~ 8 | Adjustable | 3 | 1 | SP8T | Shorting (MBB) | 100mA (AC), 250mA (DC) | 125 V | 28 V | Flatted (3.17mm Dia) | 9.52mm | 30° | Brass | Silver | Panel Mount, Through Hole, Right Angle | PC Pin | - | 37.62mm |
|
|
D2D0112SSWITCH ROTARY 2-12POS 250MA 115V Electroswitch |
3,738 | 49.70 |
|
Datasheet |
D2 | Bulk | Active | 2 ~ 12 | Adjustable | 1 | 1 | SP12T | Shorting (MBB) | 250mA (AC), 550mA (DC) | 115 V | 28 V | Round (6.35mm Dia) | 25.40mm | 30° | Brass | Silver | Panel Mount | Solder Lug | - | 11.99mm |
|
|
D4G0405SSWITCH ROTARY 2-5POS 500MA 115V Electroswitch |
1,821 | 49.70 |
|
Datasheet |
D4 | Bulk | Active | 2 ~ 5 | Adjustable | 2 | 2 | DP5T | Shorting (MBB) | 500mA (AC), 1.5A (DC) | 115 V | 28 V | Round (6.35mm Dia) | 47.63mm | 30° | Brass | Silver | Panel Mount | Solder Lug | - | 28.55mm |
