Rotary Switches
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Number of Positions | Index Stops | Number of Decks | Number of Poles per Deck | Circuit per Deck | Contact Timing | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Actuator Length | Angle of Throw | Contact Material | Contact Finish | Mounting Type | Termination Style | Features | Depth Behind Panel |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
C3P0604S-ASWITCH ROTARY 2-4POS 100MA 125V Electroswitch |
1,070 | 47.87 |
|
Datasheet |
C3 | Bulk | Active | 2 ~ 4 | Adjustable | 2 | 3 | 3P4T | Shorting (MBB) | 100mA (AC), 250mA (DC) | 125 V | 28 V | Flatted (3.17mm Dia) | 9.52mm | 30° | Brass | Silver | Panel Mount, Through Hole, Right Angle | PC Pin | - | 30.00mm |
|
|
C2P0404N-ASWITCH ROTARY 2-4POS 100MA 125V Electroswitch |
1,324 | 48.28 |
|
Datasheet |
C2 | Bulk | Active | 2 ~ 4 | Adjustable | 2 | 2 | DP4T | Non-Shorting (BBM) | 100mA (AC), 250mA (DC) | 125 V | 28 V | Flatted (3.17mm Dia) | 9.52mm | 30° | Brass | Silver | Panel Mount, Through Hole, Right Angle | PC Pin | - | 30.00mm |
|
|
E2G0402NSWITCH ROTARY 2POS 500MA 115V Electroswitch |
4,834 | 48.88 |
|
Datasheet |
E2 | Bulk | Active | 2 | Fixed | 1 | 4 | 4PDT | Non-Shorting (BBM) | 500mA (AC), 1.5A (DC) | 115 V | 28 V | Lever | 16.27mm | 30° | Brass | Silver | Panel Mount | Solder Lug | - | 33.34mm |
|

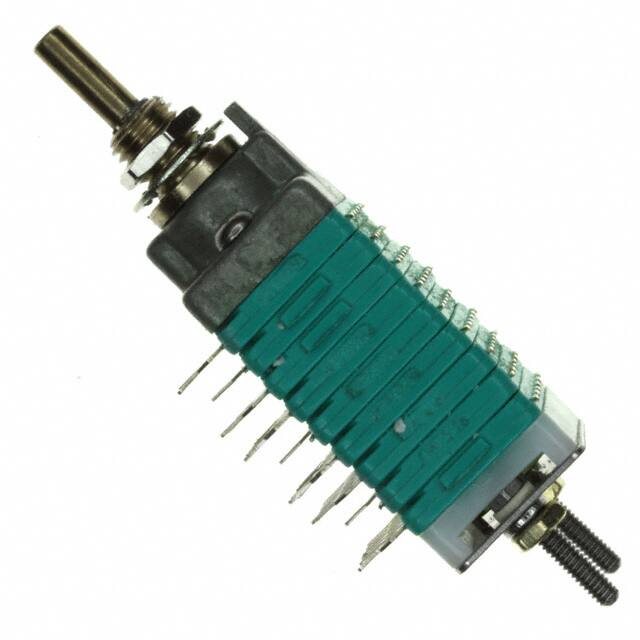

C1D0312S-VASWITCH ROTARY 2-12POS 100MA 125V Electroswitch |
1,675 | 58.13 |
|
Datasheet |
C1 | Bulk | Active | 2 ~ 12 | Adjustable | 3 | 1 | SP12T | Shorting (MBB) | 100mA (AC), 250mA (DC) | 125 V | 28 V | Flatted (3.17mm Dia) | 9.52mm | 30° | Brass | Silver | Panel Mount, Through Hole, Right Angle | PC Pin | - | 30.76mm |
|
|
D2D0206SSWITCH ROTARY 2-6POS 250MA 115V Electroswitch |
4,713 | 49.89 |
|
Datasheet |
D2 | Bulk | Active | 2 ~ 6 | Adjustable | 1 | 2 | DP6T | Shorting (MBB) | 250mA (AC), 550mA (DC) | 115 V | 28 V | Round (6.35mm Dia) | 25.40mm | 30° | Brass | Silver | Panel Mount | Solder Lug | - | 11.99mm |
|
|
D6D0112NSWITCH ROTARY 2-12POS 500MA 115V Electroswitch |
4,996 | 51.31 |
|
Datasheet |
D6 | Bulk | Active | 2 ~ 12 | Adjustable | 1 | 1 | SP12T | Non-Shorting (BBM) | 500mA (AC), 1.5A (DC) | 115 V | 28 V | Round (6.35mm Dia) | 47.63mm | 30° | Brass | Silver | Panel Mount | Solder Lug | - | 14.76mm |
|
|
D6D0112SSWITCH ROTARY 2-12POS 500MA 115V Electroswitch |
4,418 | 51.31 |
|
Datasheet |
D6 | Bulk | Active | 2 ~ 12 | Adjustable | 1 | 1 | SP12T | Shorting (MBB) | 500mA (AC), 1.5A (DC) | 115 V | 28 V | Round (6.35mm Dia) | 47.63mm | 30° | Brass | Silver | Panel Mount | Solder Lug | - | 14.76mm |
|
|
D7G0111NSWITCH ROTARY 2-11POS 1A 115V Electroswitch |
1,658 | 47.83 |
|
Datasheet |
D7 | Bulk | Active | 2 ~ 11 | Adjustable | 1 | 1 | SP11T | Non-Shorting (BBM) | 1A (AC), 2.25A (DC) | 115 V | 28 V | Round (6.35mm Dia) | 47.63mm | 30° | Brass | Silver | Panel Mount | Solder Lug | - | 16.76mm |
|
|
C1D0306N-VASWITCH ROTARY 2-6POS 100MA 125V Electroswitch |
2,511 | 47.83 |
|
Datasheet |
C1 | Bulk | Active | 2 ~ 6 | Adjustable | 3 | 1 | SP6T | Non-Shorting (BBM) | 100mA (AC), 250mA (DC) | 125 V | 28 V | Flatted (3.17mm Dia) | 9.52mm | 30° | Brass | Silver | Panel Mount, Through Hole, Right Angle | PC Pin | - | 30.76mm |
|
|
D7G0111SSWITCH ROTARY 2-11POS 1A 115V Electroswitch |
2,582 | 47.83 |
|
Datasheet |
D7 | Bulk | Active | 2 ~ 11 | Adjustable | 1 | 1 | SP11T | Shorting (MBB) | 1A (AC), 2.25A (DC) | 115 V | 28 V | Round (6.35mm Dia) | 47.63mm | 30° | Brass | Silver | Panel Mount | Solder Lug | - | 16.76mm |
