Reed Relays
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Coil Voltage | Contact Form | Contact Rating (Current) | Switching Voltage | Coil Current | Coil Type | Features | Termination Style | Seal Rating | Must Operate Voltage | Must Release Voltage | Operate Time | Release Time | Operating Temperature | Contact Material |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

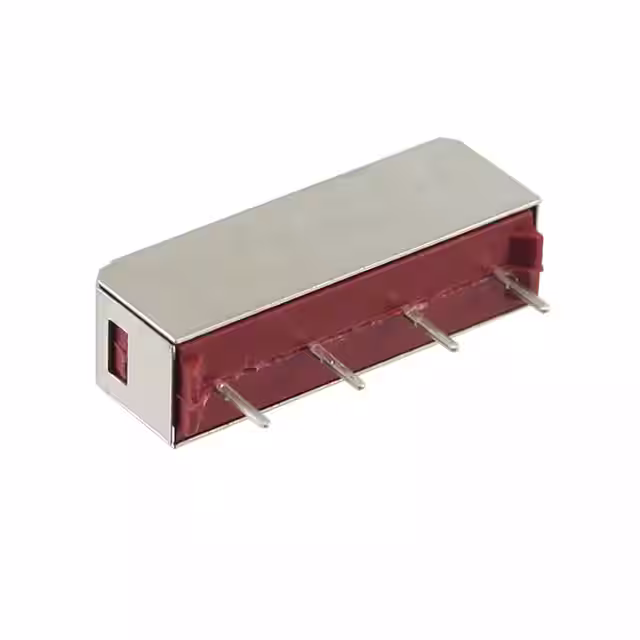

9001-05-10RELAY REED SPST 500MA 5V Coto Technology |
3,861 | 3.46 |
|
Datasheet |
9000 | Tube | Active | Through Hole | 5VDC | SPST-NO (1 Form A) | 500 mA | 200VAC, 200VDC - Max | 10 mA | Non Latching | EMI Shielded | PC Pin | - | 3.75 VDC | 0.4 VDC | 0.35 ms | 0.1 ms | -20°C ~ 85°C | - |
|
9001-12-11RELAY REED SPST 500MA 12V Coto Technology |
4,774 | 3.69 |
|
Datasheet |
9000 | Tube | Active | Through Hole | 12VDC | SPST-NO (1 Form A) | 500 mA | 200VAC, 200VDC - Max | 12 mA | Non Latching | Diode, EMI Shielded | PC Pin | - | 9 VDC | 1 VDC | 0.35 ms | 0.1 ms | -20°C ~ 85°C | - |
|
8L02-12-10RELAY REED DPST 500MA 12V Coto Technology |
2,896 | 6.67 |
|
Datasheet |
8L | Tube | Active | Through Hole | 12VDC | DPST-NO (2 Form A) | 500 mA | 200VAC, 200VDC - Max | 24 mA | Non Latching | Electrostatic Shield | PC Pin | - | 9.6 VDC | 1 VDC | 0.5 ms | 0.5 ms | -20°C ~ 85°C | - |
|
9091-12-10RELAY REED SPST 500MA 12V Coto Technology |
4,025 | 4.84 |
|
Datasheet |
9091 | Tube | Active | Through Hole | 12VDC | SPST-NO (1 Form A) | 500 mA | 200VAC, 200VDC - Max | 12 mA | Non Latching | EMI Shielded | PC Pin | - | 9 VDC | 1 VDC | 0.5 ms | 0.3 ms | -20°C ~ 85°C | - |
|
|
9001-05-12RELAY 9000S Coto Technology |
1,268 | 0.00 |
|
- |
- | Tube | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
9091-12-11RELAY REED SPST 500MA 12V Coto Technology |
3,958 | 5.40 |
|
Datasheet |
9091 | Tube | Active | Through Hole | 12VDC | SPST-NO (1 Form A) | 500 mA | 200VAC, 200VDC - Max | 12 mA | Non Latching | Diode, EMI Shielded | PC Pin | - | 9 VDC | 1 VDC | 0.5 ms | 0.3 ms | -20°C ~ 85°C | - |
|
|
9401-05-20TRRELAY COTO STANDARD CD REV. 00 B Coto Technology |
1,692 | 0.00 |
|
- |
9400 | Tape & Reel (TR) | Active | Surface Mount | 5VDC | SPST-NO (1 Form A) | 500 mA | 200VAC, 200VDC - Max | 25 mA | Non Latching | - | J Lead | Sealed - Hermetically | 3.75 VDC | 0.4 VDC | 400 µs | 200 µs | -20°C ~ 85°C | - |
|
|
9201-12-00RELAY REED SPST 500MA 12V Coto Technology |
4,639 | 5.51 |
|
Datasheet |
9200 | Tube | Active | Surface Mount | 12VDC | SPST-NO (1 Form A) | 500 mA | 200VAC, 200VDC - Max | 18.5 mA | Non Latching | - | Gull Wing | Sealed - Hermetically | 9 VDC | 1 VDC | 0.4 ms | 0.1 ms | -20°C ~ 85°C | - |
|
|
8L02-24-10RELAY REED DPST 500MA 24V Coto Technology |
4,015 | 4.01 |
|
Datasheet |
8L | Tube | Active | Through Hole | 24VDC | DPST-NO (2 Form A) | 500 mA | 200VAC, 200VDC - Max | 12 mA | Non Latching | Electrostatic Shield | PC Pin | - | 19.2 VDC | 2 VDC | 0.5 ms | 0.5 ms | -20°C ~ 85°C | - |
|
|
8L41-24-011RELAY REED SPDT 250MA 24V Coto Technology |
1,070 | 6.65 |
|
Datasheet |
8L | Tube | Active | Through Hole | 24VDC | SPDT (1 Form C) | 250 mA | 100VAC, 100VDC - Max | 12 mA | Non Latching | Diode | PC Pin | - | 19.2 VDC | 2 VDC | 1 ms | 1 ms | -20°C ~ 85°C | - |
