Reed Relays
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Coil Voltage | Contact Form | Contact Rating (Current) | Switching Voltage | Coil Current | Coil Type | Features | Termination Style | Seal Rating | Must Operate Voltage | Must Release Voltage | Operate Time | Release Time | Operating Temperature | Contact Material |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
7202-12-1100RELAY REED DPST 1A 12V Coto Technology |
4,637 | 48.66 |
|
Datasheet |
7000 | Tube | Obsolete | Through Hole | 12VDC | DPST-NO (2 Form A) | 1 A | 500VAC, 500VDC - Max | 35.2 mA | Non Latching | - | PC Pin | - | 9 VDC | 1 VDC | 2 ms | 1 ms | -20°C ~ 85°C | - |
|
9401-05-20RELAY REED SPST 500MA 5V Coto Technology |
2,652 | 9.45 |
|
Datasheet |
9400 | Tube | Active | Surface Mount | 5VDC | SPST-NO (1 Form A) | 500 mA | 200VAC, 200VDC - Max | 25 mA | Non Latching | - | J Lead | - | 3.75 VDC | 0.4 VDC | 0.4 ms | 0.2 ms | -20°C ~ 85°C | - |
|

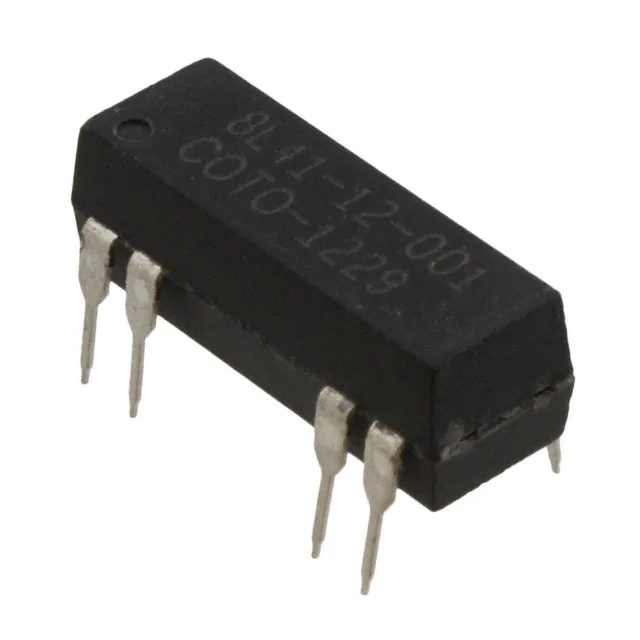

8L41-12-001RELAY REED SPDT 250MA 12V Coto Technology |
4,805 | 10.16 |
|
Datasheet |
8L | Tube | Active | Through Hole | 12VDC | SPDT (1 Form C) | 250 mA | 100VAC, 100VDC - Max | 24 mA | Non Latching | - | PC Pin | - | 9.6 VDC | 1 VDC | 1 ms | 1 ms | -20°C ~ 85°C | - |
|
7302-24-1010RELAY REED DPST 500MA 24V Coto Technology |
3,973 | 21.74 |
|
Datasheet |
7000 | Tube | Not For New Designs | Through Hole | 24VDC | DPST-NO (2 Form A) | 500 mA | 500VAC, 500VDC - Max | 9.8 mA | Non Latching | Electrostatic Shield | PC Pin | - | 18 VDC | 2 VDC | 1 ms | 0.1 ms | -20°C ~ 85°C | - |
|
7143-05-1100RELAY REED 3PDT 250MA 5V Coto Technology |
4,472 | 24.47 |
|
Datasheet |
7000 | Bulk | Active | Through Hole | 5VDC | 3PDT (3 Form C) | 250 mA | 150VAC, 150VDC - Max | 90.9 mA | Non Latching | - | PC Pin | - | 3.75 VDC | 0.4 VDC | 2 ms | 2.5 ms | -20°C ~ 85°C | - |
|
|
9007-05-10RELAY REED SPST 500MA 5V Coto Technology |
1,403 | 2.19 |
|
Datasheet |
9007, Spartan | Tube | Active | Through Hole | 5VDC | SPST-NO (1 Form A) | 500 mA | 200VAC, 200VDC - Max | 10 mA | Non Latching | EMI Shielded | PC Pin | - | 3.75 VDC | 0.4 VDC | 0.5 ms | 0.2 ms | -20°C ~ 85°C | - |
|
|
9007-12-10RELAY REED SPST 500MA 12V Coto Technology |
2,676 | 2.26 |
|
Datasheet |
9007, Spartan | Tube | Active | Through Hole | 12VDC | SPST-NO (1 Form A) | 500 mA | 200VAC, 200VDC - Max | 12 mA | Non Latching | EMI Shielded | PC Pin | - | 9 VDC | 1 VDC | 0.5 ms | 0.2 ms | -20°C ~ 85°C | - |
|
9007-05-11RELAY REED SPST 500MA 5V Coto Technology |
3,175 | 0.00 |
|
Datasheet |
9007, Spartan | Tube | Active | Through Hole | 5VDC | SPST-NO (1 Form A) | 500 mA | 200VAC, 200VDC - Max | 10 mA | Non Latching | Diode, EMI Shielded | PC Pin | - | 3.75 VDC | 0.4 VDC | 0.5 ms | 0.2 ms | -20°C ~ 85°C | - |
|

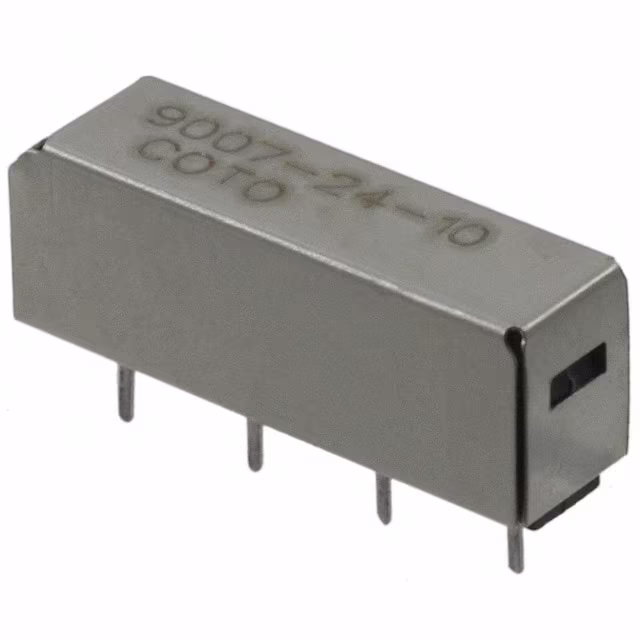

9007-24-10RELAY REED SPST 500MA 24V Coto Technology |
1,955 | 2.40 |
|
Datasheet |
9007, Spartan | Tube | Not For New Designs | Through Hole | 24VDC | SPST-NO (1 Form A) | 500 mA | 200VAC, 200VDC - Max | 12 mA | Non Latching | EMI Shielded | PC Pin | - | 18 VDC | 2 VDC | 0.5 ms | 0.2 ms | -20°C ~ 85°C | - |
|
9091-12-00RELAY REED SPST 500MA 12V Coto Technology |
2,408 | 3.10 |
|
Datasheet |
9091 | Tube | Active | Through Hole | 12VDC | SPST-NO (1 Form A) | 500 mA | 200VAC, 200VDC - Max | 12 mA | Non Latching | - | PC Pin | - | 9 VDC | 1 VDC | 0.5 ms | 0.3 ms | -20°C ~ 85°C | - |
