Logic Output Optoisolators
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Number of Channels | Inputs - Side 1/Side 2 | Voltage - Isolation | Common Mode Transient Immunity (Min) | Input Type | Output Type | Current - Output / Channel | Data Rate | Propagation Delay tpLH / tpHL (Max) | Rise / Fall Time (Typ) | Voltage - Forward (Vf) (Typ) | Current - DC Forward (If) (Max) | Voltage - Supply | Grade | Qualification | Operating Temperature | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
PS9122-V-AXSO-5 Renesas Electronics Corporation |
2,050 | 5.45 |
|
Datasheet |
- | 6-SOIC (0.173", 4.40mm Width), 5 Leads | Strip | Active | 1 | 1/0 | 3750Vrms | 15kV/µs | DC | Open Collector | 20 mA | 1Mbps | 700ns, 500ns | 60ns, 70ns | 1.6V | 25mA | 7V | - | - | -40°C ~ 100°C | Surface Mount | 5-SO |
|
|
PS9124-AXSO-5 Renesas Electronics Corporation |
930 | 4.09 |
|
Datasheet |
- | 6-SOIC (0.173", 4.40mm Width), 5 Leads | Strip | Active | 1 | 1/0 | 3750Vrms | 10kV/µs | DC | Open Collector | 25 mA | 10Mbps | 75ns, 75ns | 20ns, 5ns | 1.55V | 25mA | 2.7V ~ 3.6V, 4.5V ~ 5.5V | - | - | -40°C ~ 110°C | Surface Mount | 5-SO |
|
|
PS9513L2-V-AXHI-SPD OPTOCPLR 8-PIN DIP Renesas Electronics Corporation |
750 | 4.09 |
|
Datasheet |
- | 8-SMD, Gull Wing | Tube | Active | 1 | 1/0 | 5000Vrms | 15kV/µs | DC | Open Collector | 15 mA | 1Mbps | 750ns, 500ns | - | 1.65V | 25mA | 4.5V ~ 20V | - | - | -40°C ~ 100°C | Surface Mount | 8-SMD |
|
PS9513-AXOPTOISO 5KV OPEN COLLECTOR 8DIP Renesas Electronics Corporation |
720 | 4.09 |
|
Datasheet |
- | 8-DIP (0.300", 7.62mm) | Tube | Active | 1 | 1/0 | 5000Vrms | 15kV/µs | DC | Open Collector | 15 mA | 1Mbps | 750ns, 500ns | - | 1.65V | 25mA | 4.5V ~ 20V | - | - | -40°C ~ 100°C | Through Hole | 8-DIP |
|
PS9513L2-AXOPTOISO 5KV OPEN COLL 8DIP GW Renesas Electronics Corporation |
270 | 4.09 |
|
Datasheet |
- | 8-SMD, Gull Wing | Tube | Active | 1 | 1/0 | 5000Vrms | 15kV/µs | DC | Open Collector | 15 mA | 1Mbps | 750ns, 500ns | - | 1.65V | 25mA | 4.5V ~ 20V | - | - | -40°C ~ 100°C | Surface Mount | 8-DIP Gull Wing |
|
PS9851-1-F3-AXOPTOISO 2.5KV PUSH PULL 8SSOP Renesas Electronics Corporation |
2,323 | 4.16 |
|
Datasheet |
NEPOC | 8-SOIC (0.154", 3.90mm Width) | Tape & Reel (TR) | Active | 1 | 1/0 | 2500Vrms | 10kV/µs | DC | Push-Pull, Totem Pole | 2 mA | 15Mbps | 60ns, 60ns | 4ns, 4ns | 1.6V | 20mA | 4.5V ~ 5.5V | - | - | -40°C ~ 100°C | Surface Mount | 8-SSOP |
|
|
PS9513-V-AXOPTOISO 5KV OPEN COLLECTOR 8DIP Renesas Electronics Corporation |
650 | 4.16 |
|
Datasheet |
- | 8-DIP (0.300", 7.62mm) | Tube | Active | 1 | 1/0 | 5000Vrms | 15kV/µs | DC | Open Collector | 15 mA | 1Mbps | 750ns, 500ns | - | 1.65V | 25mA | 4.5V ~ 20V | - | - | -40°C ~ 100°C | Through Hole | 8-DIP |
|
|
PS9587-V-AXHI-SPD OPTOCPLR 8-PIN DIP Renesas Electronics Corporation |
3,533 | 4.16 |
|
Datasheet |
NEPOC | 8-DIP (0.300", 7.62mm) | Tube | Active | 1 | 1/0 | 5000Vrms | 15kV/µs | DC | Open Collector | 25 mA | 10Mbps | 75ns, 75ns | 20ns, 10ns | 1.65V | 30mA | 4.5V ~ 5.5V | - | - | -40°C ~ 85°C | Through Hole | 8-DIP |
|
|
PS9587L3-V-AXHI-SPD OPTOCPLR 8-PIN DIP Renesas Electronics Corporation |
826 | 4.19 |
|
Datasheet |
NEPOC | 8-SMD, Gull Wing | Tube | Active | 1 | 1/0 | 5000Vrms | 15kV/µs | DC | Open Collector | 25 mA | 10Mbps | 75ns, 75ns | 20ns, 10ns | 1.65V | 30mA | 4.5V ~ 5.5V | - | - | -40°C ~ 85°C | Surface Mount | 8-SMD |
|

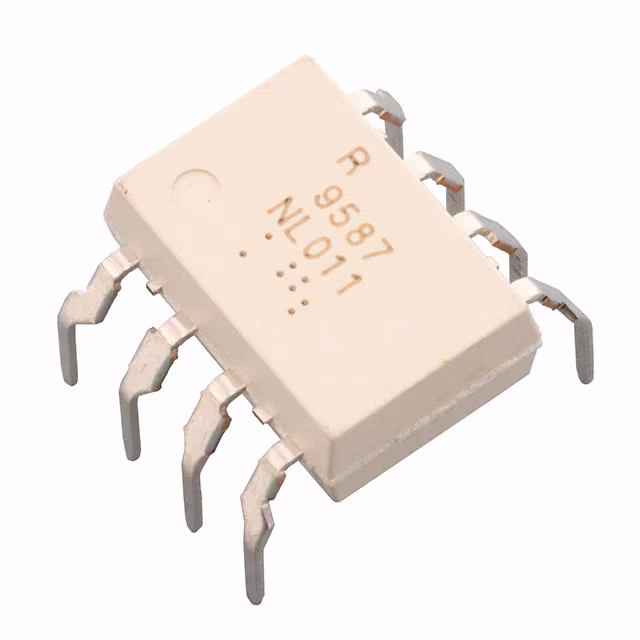

PS9587L1-V-AXHI-SPD OPTOCPLR 8-PIN DIP Renesas Electronics Corporation |
1,465 | 4.19 |
|
Datasheet |
NEPOC | 8-DIP (0.400", 10.16mm) | Tube | Active | 1 | 1/0 | 5000Vrms | 15kV/µs | DC | Open Collector | 25 mA | 10Mbps | 75ns, 75ns | 20ns, 10ns | 1.65V | 30mA | 4.5V ~ 5.5V | - | - | -40°C ~ 85°C | Through Hole | 8-DIP |
