Logic Output Optoisolators
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Number of Channels | Inputs - Side 1/Side 2 | Voltage - Isolation | Common Mode Transient Immunity (Min) | Input Type | Output Type | Current - Output / Channel | Data Rate | Propagation Delay tpLH / tpHL (Max) | Rise / Fall Time (Typ) | Voltage - Forward (Vf) (Typ) | Current - DC Forward (If) (Max) | Voltage - Supply | Grade | Qualification | Operating Temperature | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
PS9117A-AXOPTOISO 3.75KV OPN COLLECTOR 5SO Renesas Electronics Corporation |
325 | 5.32 |
|
Datasheet |
NEPOC | 6-SOIC (0.173", 4.40mm Width), 5 Leads | Strip | Active | 1 | 1/0 | 3750Vrms | 15kV/µs | DC | Open Collector | 25 mA | 10Mbps | 75ns, 75ns | 20ns, 5ns | 1.65V | 30mA | 4.5V ~ 5.5V | - | - | -40°C ~ 85°C | Surface Mount | 5-SO |
|
PS9009-Y-AXLSO-5 Renesas Electronics Corporation |
1,715 | 5.67 |
|
Datasheet |
- | 6-SOIC (0.295", 7.50mm Width), 5 Leads | Strip | Active | 1 | 1/0 | 5000Vrms | 50kV/µs | DC | Push-Pull, Totem Pole | 25 mA | - | 200ns, 200ns | 25ns, 4.6ns | 1.56V | 25mA | 4.5V ~ 20V | - | - | -40°C ~ 125°C | Surface Mount | 5-LSOP |
|
|
PS9009-Y-V-AXLSO-5 Renesas Electronics Corporation |
1,645 | 5.67 |
|
Datasheet |
- | 6-SOIC (0.295", 7.50mm Width), 5 Leads | Strip | Active | 1 | 1/0 | 5000Vrms | 50kV/µs | DC | Push-Pull, Totem Pole | 25 mA | - | 200ns, 200ns | 25ns, 4.6ns | 1.56V | 25mA | 4.5V ~ 20V | - | - | -40°C ~ 125°C | Surface Mount | 5-LSOP |
|
PS9817A-2-AXOPTOISO 2.5KV 2CH OPEN COL 8SSOP Renesas Electronics Corporation |
760 | 9.33 |
|
Datasheet |
NEPOC | 8-SOIC (0.154", 3.90mm Width) | Bulk | Not For New Designs | 2 | 2/0 | 2500Vrms | 15kV/µs | DC | Open Collector | 25 mA | 10Mbps | 75ns, 75ns | 20ns, 5ns | 1.65V | 15mA | 4.5V ~ 5.5V | - | - | -40°C ~ 85°C | Surface Mount | 8-SSOP |
|
RV1S9960ACCSP-10YC#SC0HI-SPEED OPTOCPLR 8PIN LSDIP Renesas Electronics Corporation |
240 | 10.80 |
|
Datasheet |
- | 8-SOIC (0.543", 13.80mm Width) | Strip | Active | 1 | 1/0 | 7500Vrms | 50kV/µs | - | CMOS | 10 mA | 15Mbps | 60ns, 60ns | 5ns, 5ns | 1.55V | 6mA | 2.7V ~ 5.5V | - | - | -40°C ~ 110°C | Surface Mount | 8-LSDIP |
|
RV1S9213ACCSP-10YV#SC0OPTO COUPLER IN 5PIN SSOP Renesas Electronics Corporation |
2,819 | 3.81 |
|
Datasheet |
- | 5-SMD, Gull Wing | Strip | Active | 1 | 1/0 | 5000Vrms | 50kV/µs | DC | Open Collector, Schottky Clamped | 15 mA | 1Mbps | 750ns, 500ns | - | 1.56V | 20mA | 4.5V ~ 25V | - | - | -40°C ~ 125°C | Surface Mount | 5-LSSO |
|
|

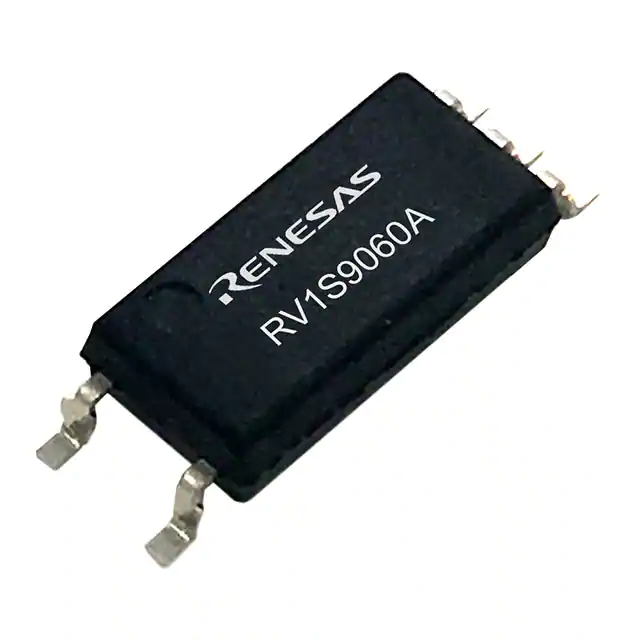

RV1S9060ACCSP-10YC#SC0HI-SPEED OPTOCPLR LSO-5 Renesas Electronics Corporation |
2,102 | 5.07 |
|
Datasheet |
- | 6-SOIC (0.295", 7.50mm Width), 5 Leads | Strip | Active | 1 | 1/0 | 5000Vrms | 50kV/µs | - | CMOS | 10 mA | 15Mbps | 60ns, 60ns | 5ns, 5ns | 1.55V | 6mA | 6V | - | - | -40°C ~ 125°C | Surface Mount | 5-LSO |
|
RV1S9184QKCSP-1000#SC0PS23 Renesas Electronics Corporation |
2,662 | 5.18 |
|
- |
* | - | Strip | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
RV1S9209ACCSP-10YC#SC0IPM DRIVER (ACTIVE HIGH OUTPUT), Renesas Electronics Corporation |
840 | 0.00 |
|
Datasheet |
- | 5-SMD, Gull Wing | Strip | Active | 1 | 1/0 | 5000Vrms | 50kV/µs | DC | Push-Pull, Totem Pole | 25 mA | - | 200ns, 200ns | 25ns, 5ns | 1.56V | 20mA | 4.5V ~ 20V | - | - | -40°C ~ 125°C | Surface Mount | 5-LSSO |
|

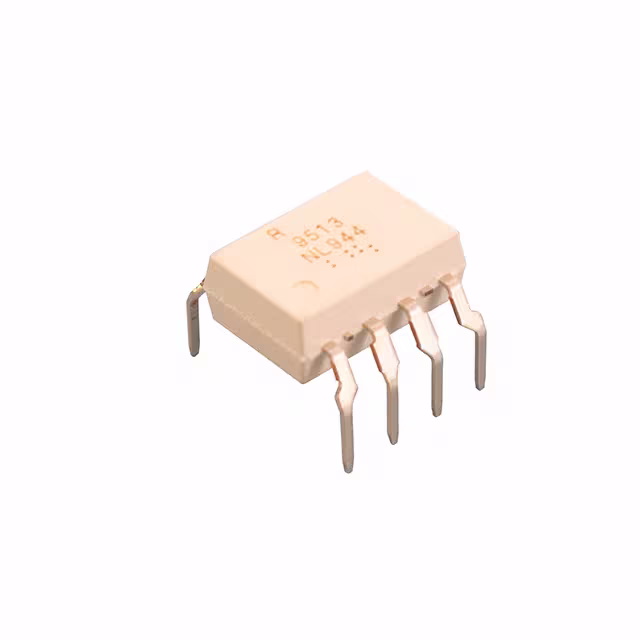

PS9513L1-V-AXHI-SPD OPTOCPLR 8-PIN DIP Renesas Electronics Corporation |
780 | 4.09 |
|
Datasheet |
- | 8-DIP (0.400", 10.16mm) | Tube | Active | 1 | 1/0 | 5000Vrms | 15kV/µs | DC | Open Collector | 15 mA | 1Mbps | 750ns, 500ns | - | 1.65V | 25mA | 4.5V ~ 20V | - | - | -40°C ~ 100°C | Through Hole | 8-DIP |
