DC Brushless Fans (BLDC)
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Voltage - Rated | Size / Dimension | Width | Air Flow | Static Pressure | Bearing Type | Fan Type | Features | Noise | Power (Watts) | RPM | Termination | Ingress Protection | Operating Temperature | Approval Agency | Weight |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
3212JH4FAN AXIAL 92X38MM 12VDC WIRE |
256 | 103.69 |
|
Datasheet |
3200J | Box | Active | 12VDC | Square - 92mm L x 92mm H | 38.00mm | 165.0 CFM (4.62m³/min) | - | Ball | Tubeaxial | - | 73.0dB(A) | 50 W | 13000 RPM | 2 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | CSA, UL, VDE | 0.617 lb (279.87 g) |
|
109E1724H501FAN AXIAL 172X51MM 24VDC WIRE |
329 | 115.08 |
|
Datasheet |
San Ace 172 | Box | Active | 24VDC | Round - 172mm Dia | 51.00mm | 226.0 CFM (6.33m³/min) | 0.551 in H2O (137.2 Pa) | Ball | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 47.0dB(A) | 13.92 W | 3050 RPM | 3 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | CSA, TUV, UL | 1.7 lbs (780.0 g) |
|
3214JH4FAN AXIAL 92X38MM 24VDC WIRE |
695 | 102.11 |
|
Datasheet |
3200J | Box | Active | 24VDC | Square - 92mm L x 92mm H | 38.00mm | 165.0 CFM (4.62m³/min) | - | Ball | Tubeaxial | - | 73.0dB(A) | 50 W | 13000 RPM | 2 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | CSA, UL, VDE | 0.617 lb (279.87 g) |
|
OD172SAP-24HBIP69KFAN AXIAL 172X51MM 24VDC WIRE |
157 | 108.45 |
|
Datasheet |
OD172SAP-IP69K | Box | Active | 24VDC | Rectangular/Rounded - 172mm L x 150mm H | 51.00mm | 235.0 CFM (6.58m³/min) | 0.790 in H2O (196.8 Pa) | Ball | Tubeaxial | Auto Restart | 52.0dB(A) | 24 W | 3300 RPM | 2 Wire Leads | IP69K - Dust Tight, Water Resistant, Waterproof | -4 ~ 149°F (-20 ~ 65°C) | CE, cURus, TUV, UR | - |
|
17001197AFAN AXIAL 24VDC PQD24U3E2X-E3 |
2,059 | 111.15 |
|
Datasheet |
Patriot | Bulk | Active | 24VDC | Round - 171.4mm Dia | 50.80mm | 332.0 CFM (9.30m³/min) | - | Ball | Tubeaxial | Auto Restart, Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 64.0dB(A) | 40.8 W | 4830 RPM | 4 Wire Leads | IP68 - Dust Tight, Waterproof | 14 ~ 158°F (-10 ~ 70°C) | CE, cUL, UL | - |
|
6448HFAN AXIAL 172X50.8MM 48VDC WIRE |
1,899 | 116.88 |
|
Datasheet |
6400 | Box | Active | 48VDC | Rectangular/Rounded - 172mm L x 150mm H | 50.80mm | 282.5 CFM (7.91m³/min) | - | Ball | Tubeaxial | - | 63.0dB(A) | 26 W | 4000 RPM | 2 Wire Leads | - | -4 ~ 131°F (-20 ~ 55°C) | - | 1.7 lbs (771.1 g) |
|
DV5214NFAN AXIAL 127X38MM 24VDC WIRE |
3,886 | 116.88 |
|
Datasheet |
DV5200 | Bulk | Active | 24VDC | Square - 127mm L x 127mm H | 38.00mm | 158.9 CFM (4.45m³/min) | - | Ball | Tubeaxial | - | 56.0dB(A) | 19 W | 5000 RPM | 2 Wire Leads | - | -4 ~ 149°F (-20 ~ 65°C) | CE, CSA, UL, VDE | 0.915 lb (415.04 g) |
|
QG030-353/12FAN BLOWER CF 413X47.5MM 12VDC |
148 | 139.36 |
|
Datasheet |
QG030 | Bulk | Active | 12VDC | Rectangular - 413mm L x 50mm H | 47.50mm | 91.0 CFM (2.55m³/min) | - | Ball | Blower, Cross Flow | - | 51.0dB(A) | 9.6 W | - | 2 Wire Leads | - | -4 ~ 140°F (-20 ~ 60°C) | CE, CSA, UL, VDE | 0.915 lb (415.04 g) |
|
|
6424MFAN AXIAL 172X50.8MM 24VDC TERM |
154 | 119.03 |
|
Datasheet |
6400 | Bulk | Active | 24VDC | Rectangular/Rounded - 172mm L x 150mm H | 50.80mm | 206.0 CFM (5.77m³/min) | - | Ball | Tubeaxial | - | 52.0dB(A) | 12 W | 2850 RPM | 2 Terminals | - | -4 ~ 162°F (-20 ~ 72°C) | - | 1.7 lbs (771.1 g) |
|
|
6448FAN AXIAL 172X50.8MM 48VDC TERM |
4,770 | 114.50 |
|
Datasheet |
6400 | Bulk | Active | 48VDC | Rectangular/Rounded - 172mm L x 150mm H | 50.80mm | 241.3 CFM (6.76m³/min) | - | Ball | Tubeaxial | - | 57.0dB(A) | 17 W | 3400 RPM | 2 Terminals | - | -4 ~ 162°F (-20 ~ 72°C) | - | 1.7 lbs (771.1 g) |
|
7214NFAN AXIAL 150X55MM 24VDC WIRE |
192 | 121.36 |
|
Datasheet |
7200N | Bulk | Active | 24VDC | Round - 150mm Dia | 55.00mm | 212.0 CFM (5.94m³/min) | - | Ball | Tubeaxial | - | 53.0dB(A) | 12 W | 3050 RPM | 2 Wire Leads | - | -13 ~ 162°F (-25 ~ 72°C) | CE, CSA, UL, VDE | 1.6 lbs (725.7 g) |
|
3212J/2NU-343FAN AXIAL 92X38MM 12VDC WIRE |
4,959 | 113.86 |
|
Datasheet |
3200JU | Bulk | Active | 12VDC | Square - 92mm L x 92mm H | 38.00mm | 76.5 CFM (2.14m³/min) | - | Ball | Tubeaxial | - | 51.0dB(A) | 8.1 W | 6000 RPM | 2 Wire Leads | IP68 - Dust Tight, Waterproof | -4 ~ 140°F (-20 ~ 60°C) | UL | 0.529 lb (239.95 g) |
|
6424R-343FAN AXL 171.5X50.8MM 24VDC TERM |
503 | 125.34 |
|
Datasheet |
6200 | Box | Active | 24VDC | Rectangular/Rounded - 171.5mm L x 150.4mm H | 50.80mm | 241.0 CFM (6.75m³/min) | - | Ball | Tubeaxial | - | 57.0dB(A) | 18 W | - | 2 Terminals | - | - | - | 1.8 lbs (816.5 g) |
_Series.JPG)
|
6248N/2FAN AXL 171.5X50.8MM 48VDC TERM |
1,393 | 120.19 |
|
Datasheet |
6200N | Box | Active | 48VDC | Round - 171.5mm Dia | 50.80mm | 241.3 CFM (6.76m³/min) | - | Ball | Tubeaxial | Speed Sensor (Tach) | 55.0dB(A) | 17 W | 3400 RPM | 3 Terminals | - | 14 ~ 162°F (-10 ~ 72°C) | - | 1.8 lbs (816.5 g) |
|

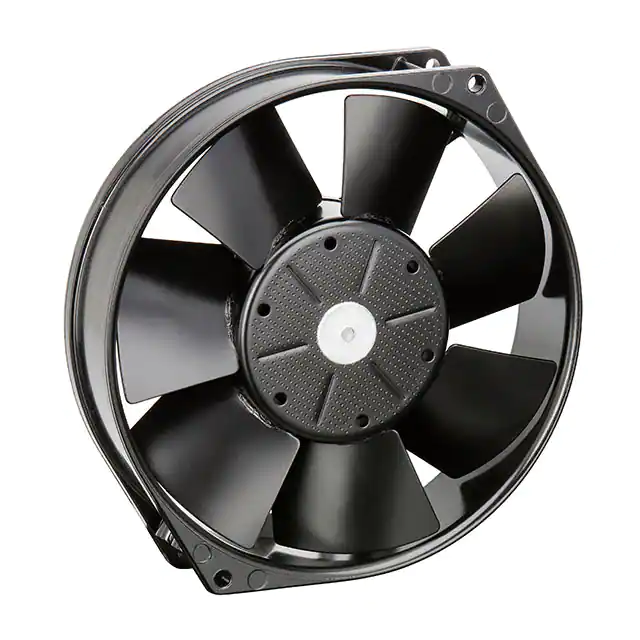

7112NFAN AXIAL 150X38MM 12VDC WIRE |
185 | 149.89 |
|
Datasheet |
7100N | Bulk | Active | 12VDC | Round - 150mm Dia | 38.00mm | 212.0 CFM (5.94m³/min) | - | Ball | Tubeaxial | - | 55.0dB(A) | 12 W | 2850 RPM | 2 Wire Leads | - | -13 ~ 162°F (-25 ~ 72°C) | CE, CSA, UL, VDE | 1.4 lbs (635.0 g) |
|
109E1724K502FAN AXIAL 172X51MM 24VDC WIRE |
2,590 | 101.89 |
|
Datasheet |
San Ace 172 | Box | Active | 24VDC | Round - 172mm Dia | 51.00mm | 300.0 CFM (8.40m³/min) | 0.976 in H2O (243.0 Pa) | Ball | Tubeaxial | Locked Rotor Protection | 55.0dB(A) | 31.2 W | 4100 RPM | 2 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | CSA, TUV, UL | 1.7 lbs (780.0 g) |
|
109E5724K501FAN AXIAL 172X51MM 24VDC WIRE |
3,634 | 86.05 |
|
Datasheet |
San Ace 172 | Box | Active | 24VDC | Rectangular/Rounded - 172mm L x 150mm H | 51.00mm | 300.0 CFM (8.40m³/min) | 0.976 in H2O (243.0 Pa) | Ball | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 60.0dB(A) | 31.2 W | 4100 RPM | 3 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | CSA, TUV, UL | 1.7 lbs (760.0 g) |
|
|
6224NHFAN AXL 171.5X50.8MM 24VDC TERM |
183 | 138.03 |
|
Datasheet |
6200N | Bulk | Active | 24VDC | Round - 171.5mm Dia | 50.80mm | 282.5 CFM (7.91m³/min) | - | Ball | Tubeaxial | - | 61.0dB(A) | 26 W | 4000 RPM | 2 Terminals | - | -4 ~ 131°F (-20 ~ 55°C) | CE, CSA, UL, VDE | 1.8 lbs (816.5 g) |
|

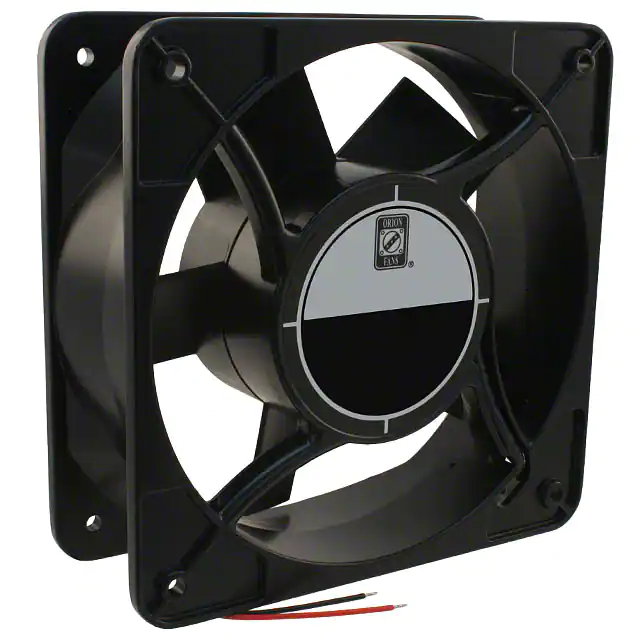

OD180APL-24HBFAN AXIAL 180X65MM 24VDC WIRE |
2,423 | 130.48 |
|
Datasheet |
OD180APL | Box | Active | 24VDC | Square - 180mm L x 180mm H | 65.00mm | 470.0 CFM (13.16m³/min) | 1.200 in H2O (298.9 Pa) | Ball | Tubeaxial | Auto Restart, Locked Rotor Protection | 65.0dB | 50.4 W | 3500 RPM | 2 Wire Leads | - | -4 ~ 149°F (-20 ~ 65°C) | cURus, TUV | - |
|
9W1BM12P2H001FAN BLOWER 97.1X33MM 12VDC WIRE |
3,117 | 125.88 |
|
Datasheet |
San Ace 97W | Box | Active | 12VDC | Rectangular/Rounded - 97.1mm L x 95mm H | 33.00mm | 38.6 CFM (1.08m³/min) | 2.160 in H2O (540.0 Pa) | Ball | Blower | PWM Control, Speed Sensor (Tach) | 58.0dB(A) | 15.6 W | 4800 RPM | 4 Wire Leads | IP68 - Dust Tight, Waterproof | -4 ~ 158°F (-20 ~ 70°C) | cURus, TUV | 0.529 lb (240.00 g) |
