DC Brushless Fans (BLDC)
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Voltage - Rated | Size / Dimension | Width | Air Flow | Static Pressure | Bearing Type | Fan Type | Features | Noise | Power (Watts) | RPM | Termination | Ingress Protection | Operating Temperature | Approval Agency | Weight |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
EFB1548HGFAN AXIAL 172X50.8MM 48VDC WIRE |
2,634 | 54.10 |
|
Datasheet |
EFB | Bulk | Active | 48VDC | Rectangular/Rounded - 172mm L x 150mm H | 50.80mm | 251.8 CFM (7.05m³/min) | 0.689 in H2O (171.6 Pa) | Ball | Tubeaxial | Locked Rotor Protection | 55.0dB(A) | 14.88 W | 3350 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CSA, UL, VDE | 1.9 lbs (861.8 g) |
|
RL65-21/14FAN BLOWER 97X33MM 24VDC WIRE |
175 | 70.65 |
|
Datasheet |
RL65 | Box | Active | 24VDC | Rectangular/Rounded - 97mm L x 93.5mm H | 33.00mm | 32.9 CFM (0.921m³/min) | - | Ball | Blower | - | 62.0dB(A) | 14 W | 4500 RPM | 2 Wire Leads | - | - | - | 0.37 lb (167.83 g) |
|

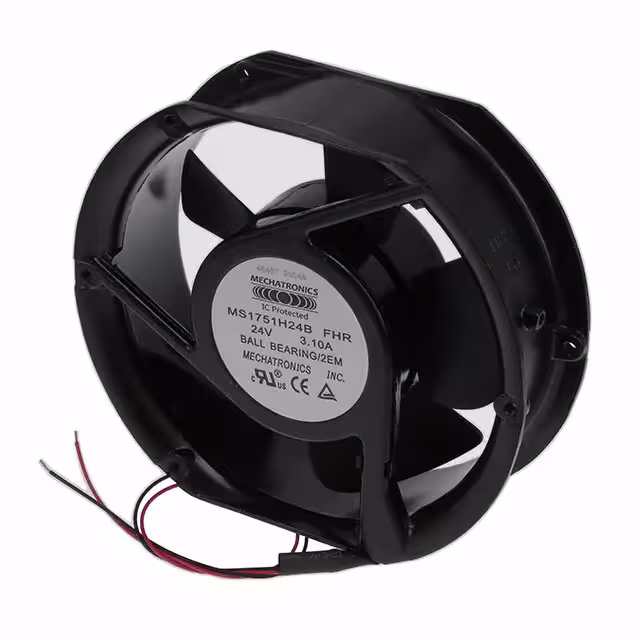

MS1751H24B-FHR-2EMFAN AXIAL 171X51.5MM 24VDC WIRE |
119 | 58.92 |
|
Datasheet |
MS1751-H | Bulk | Active | 24VDC | Rectangular/Rounded - 171mm L x 153mm H | 51.50mm | 418.0 CFM (11.70m³/min) | 1.640 in H2O (408.5 Pa) | Ball | Tubeaxial | Auto Restart | 71.0dB(A) | - | 5500 RPM | 2 Wire Leads | IP68 - Dust Tight, Waterproof | - | - | 1.5 lbs (670.0 g) |
|
9HVB0812P1G001FAN AXIAL 80X38MM 12VDC WIRE |
130 | 61.25 |
|
Datasheet |
San Ace 80 | Box | Active | 12VDC | Square - 80mm L x 80mm H | 38.00mm | 141.3 CFM (3.96m³/min) | 6.420 in H2O (1599.2 Pa) | Ball | Tubeaxial | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 75.0dB(A) | 57.6 W | 18300 RPM | 4 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | - | 0.508 lb (230.42 g) |
|
|
12038ME-48R-GK-01120X120X38MM, 48VDC, 9,000 RPM, |
132 | 0.00 |
|
Datasheet |
12038ME | Box | Active | 48VDC | Square - 120mm L x 120mm H | 38.00mm | 185.0 CFM (5.18m³/min) | 2.970 in H2O (740.0 Pa) | Ball | Tubeaxial | Auto Restart, PWM Control, Speed Sensor (Tach) | 72.0dB | 39.36 W | 9000 RPM | 4 Wire Leads | IP68 - Dust Tight, Waterproof | 14 ~ 158°F (-10 ~ 70°C) | cURus, VDE | - |
|
9GA1212S4001FAN AXIAL 120X25.4MM 12VDC WIRE |
4,545 | 49.26 |
|
Datasheet |
San Ace 120 | Bulk | Active | 12VDC | Square - 120mm L x 120mm H | 25.40mm | 113.1 CFM (3.17m³/min) | 1.044 in H2O (260.0 Pa) | Ball | Tubeaxial | Speed Sensor (Tach) | 54.0dB(A) | 7.32 W | 5400 RPM | 3 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | cURus, TUV | 0.617 lb (280.00 g) |
|
|
9WPA0912P4G001FAN AXIAL 92X25.2MM 12VDC WIRE |
560 | 67.00 |
|
Datasheet |
San Ace 92W | Box | Active | 12VDC | Square - 92mm L x 92mm H | 25.20mm | 86.5 CFM (2.42m³/min) | 0.510 in H2O (127.0 Pa) | Ball | Tubeaxial | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 47.0dB(A) | 6 W | 5700 RPM | 4 Wire Leads | IP68 - Dust Tight, Waterproof | -4 ~ 158°F (-20 ~ 70°C) | - | - |
|
9LG0612P4S001FAN AXIAL 60X25MM 12VDC WIRE |
1,238 | 67.09 |
|
Datasheet |
San Ace 60L | Box | Active | 12VDC | Square - 60mm L x 60mm H | 25.00mm | 49.4 CFM (1.38m³/min) | 1.204 in H2O (299.9 Pa) | Ball | Tubeaxial | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 53.0dB(A) | 8.04 W | 11000 RPM | 4 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | CSA, TUV, UL | 0.222 lb (100.7 g) |
|
9LG0924P4J001FAN AXIAL 92X25MM 24VDC WIRE |
2,205 | 67.93 |
|
Datasheet |
San Ace 92L | Box | Active | 24VDC | Square - 92mm L x 92mm H | 25.00mm | 77.7 CFM (2.18m³/min) | 0.420 in H2O (104.6 Pa) | Ball | Tubeaxial | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 44.2dB(A) | 5.04 W | 5000 RPM | 4 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | CSA, TUV, UL | 0.331 lb (150.14 g) |
|

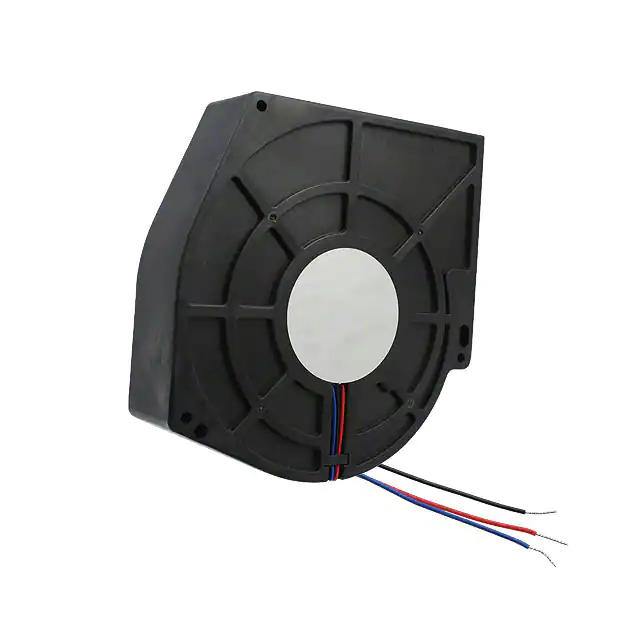

BFB1624H-F00FAN BLOWER 159X40MM 24VDC WIRE |
470 | 66.30 |
|
Datasheet |
BFB | Bulk | Active | 24VDC | Rectangular/Rounded - 159mm L x 165mm H | 40.00mm | 61.8 CFM (1.73m³/min) | 1.387 in H2O (345.5 Pa) | Ball | Blower | Locked Rotor Protection, Speed Sensor (Tach) | 56.5dB(A) | 17.16 W | 2200 RPM | 3 Wire Leads | - | 14 ~ 140°F (-10 ~ 60°C) | CE, CSA, UL, VDE | 1.3 lbs (589.7 g) |
|
632NUFAN AXIAL 60X25.4MM 12VDC WIRE |
428 | 69.15 |
|
Datasheet |
630U | Bulk | Active | 12VDC | Square - 60mm L x 60mm H | 25.40mm | 23.5 CFM (0.658m³/min) | - | Ball | Tubeaxial | - | 34.0dB(A) | 1.8 W | 5900 RPM | 2 Wire Leads | IP68 - Dust Tight, Waterproof | -4 ~ 158°F (-20 ~ 70°C) | UL | 0.154 lb (69.85 g) |
|
|
9GA1212P4G001FAN AXIAL 120X25.4MM 12VDC WIRE |
1,195 | 51.35 |
|
Datasheet |
San Ace 120 | Bulk | Active | 12VDC | Square - 120mm L x 120mm H | 25.40mm | 134.3 CFM (3.76m³/min) | 1.470 in H2O (366.2 Pa) | Ball | Tubeaxial | PWM Control, Speed Sensor (Tach) | 57.0dB(A) | 11.16 W | 6400 RPM | 4 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | cURus, TUV | 0.617 lb (280.00 g) |
|
|
9GA1224P4S001FAN AXIAL 120X25.4MM 24VDC WIRE |
1,114 | 53.31 |
|
Datasheet |
San Ace 120 | Bulk | Active | 24VDC | Square - 120mm L x 120mm H | 25.40mm | 113.1 CFM (3.17m³/min) | 1.044 in H2O (260.0 Pa) | Ball | Tubeaxial | PWM Control, Speed Sensor (Tach) | 54.0dB(A) | 7.44 W | 5400 RPM | 4 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | cURus, TUV | 0.617 lb (280.00 g) |
|
612JHFAN AXIAL 60X32MM 12VDC WIRE |
308 | 77.79 |
|
Datasheet |
600J | Bulk | Active | 12VDC | Square - 60mm L x 60mm H | 32.00mm | 41.2 CFM (1.15m³/min) | - | Ball | Tubeaxial | Locked Rotor Protection | 53.0dB(A) | 7.7 W | 11700 RPM | 2 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | CE | 0.22 lb (99.79 g) |
|
|
15050VA-24N-EA-00FAN AXIAL 172.7X50.8MM 24VDC |
4,240 | 71.18 |
|
Datasheet |
15050VA | Bulk | Active | 24VDC | Rectangular/Rounded - 172.7mm L x 150mm H | 50.80mm | 261.3 CFM (7.32m³/min) | 0.735 in H2O (183.1 Pa) | Ball | Tubeaxial | Auto Restart | 60.0dB | 21.6 W | 3500 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | - | - |
|
4312/17TFAN AXIAL 119X32MM 12VDC WIRE |
4,442 | 71.88 |
|
Datasheet |
4300 | Bulk | Active | 12VDC | Square - 119mm L x 119mm H | 32.00mm | 100.1 CFM (2.80m³/min) | 0.313 in H2O (78.0 Pa) | Ball | Tubeaxial | - | 45.0dB(A) | 5 W | 2800 RPM | 4 Wire Leads | - | -4 ~ 149°F (-20 ~ 65°C) | CE, CSA, EAC, UL, VDE | - |
|
|
4318/17TFAN AXIAL 119X32MM 48VDC WIRE |
2,844 | 72.60 |
|
Datasheet |
4300 | Bulk | Active | 48VDC | Square - 119mm L x 119mm H | 32.00mm | 100.1 CFM (2.80m³/min) | 0.313 in H2O (78.0 Pa) | Ball | Tubeaxial | - | 45.0dB(A) | 5.3 W | 2800 RPM | 4 Wire Leads | - | -4 ~ 151°F (-20 ~ 66°C) | CCC, CE, CSA, UL, VDE | - |
|
5214NMFAN AXIAL 127X38MM 24VDC WIRE |
4,176 | 72.32 |
|
Datasheet |
5200N | Bulk | Active | 24VDC | Square - 127mm L x 127mm H | 38.00mm | 110.0 CFM (3.08m³/min) | - | Ball | Tubeaxial | - | 43.0dB(A) | 4.6 W | 2750 RPM | 2 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | CE, CSA, UL, VDE | 0.683 lb (309.8 g) |
|

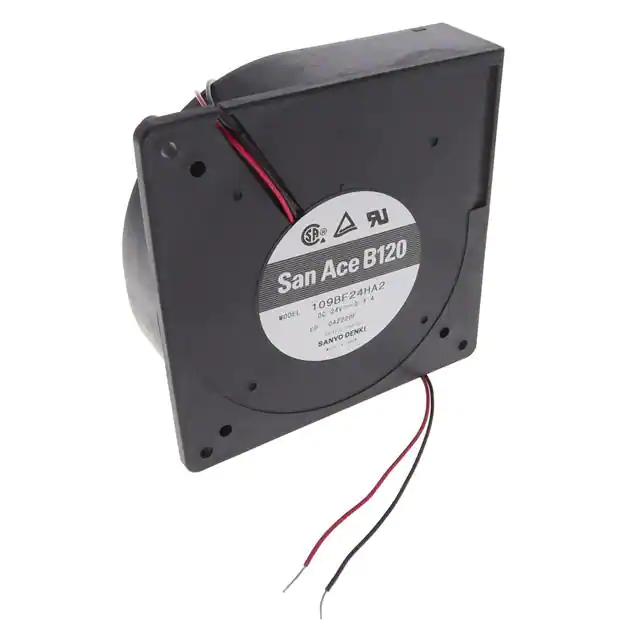

109BF24HA2FAN BLOWER 120X32MM 24VDC WIRE |
4,272 | 46.65 |
|
Datasheet |
San Ace B120 | Box | Active | 24VDC | Square/Rounded - 120mm L x 120mm H | 32.00mm | 27.5 CFM (0.770m³/min) | 0.704 in H2O (175.4 Pa) | Ball | Blower | - | 52.0dB(A) | 7.2 W | 2400 RPM | 2 Wire Leads | - | -4 ~ 140°F (-20 ~ 60°C) | CSA, TUV, UL | 0.604 lb (273.97 g) |
|
19031089AFAN AXIAL 171.5X50.8MM JQ12B4 |
619 | 93.37 |
|
Datasheet |
Major | Bulk | Active | 12VDC | Rectangular/Rounded - 171.5mm L x 150.4mm H | 50.80mm | 235.0 CFM (6.58m³/min) | 0.812 in H2O (202.3 Pa) | Ball | Tubeaxial | Auto Restart, Locked Rotor Protection | 54.3dB(A) | 25.2 W | 3400 RPM | 2 Terminals | - | 14 ~ 158°F (-10 ~ 70°C) | CE, UL | 1.9 lbs (861.8 g) |
