DC Brushless Fans (BLDC)
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Voltage - Rated | Size / Dimension | Width | Air Flow | Static Pressure | Bearing Type | Fan Type | Features | Noise | Power (Watts) | RPM | Termination | Ingress Protection | Operating Temperature | Approval Agency | Weight |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
AFB0624H-AR00FAN AXIAL 60X25.4MM 24VDC WIRE |
3,540 | 9.88 |
|
Datasheet |
AFB | Bulk | Active | 24VDC | Square - 60mm L x 60mm H | 25.40mm | 23.4 CFM (0.655m³/min) | 0.211 in H2O (52.6 Pa) | Ball | Tubeaxial | Locked Rotor Sensor | 34.0dB(A) | 2.16 W | 4250 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CSA, UL, VDE | 0.176 lb (80.00 g) |
|
|
AFB0612EH-AF00FAN AXIAL 60X25.4MM 12VDC WIRE |
4,641 | 9.88 |
|
Datasheet |
AFB | Bulk | Active | 12VDC | Square - 60mm L x 60mm H | 25.40mm | 38.4 CFM (1.08m³/min) | 0.544 in H2O (135.5 Pa) | Ball | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 46.5dB(A) | 4.56 W | 6800 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CSA, UL, VDE | 0.176 lb (80.00 g) |
|
MS2006E12D1-RSRFAN AXIAL 20X6.5MM 12VDC WIRE |
3,585 | 10.97 |
|
Datasheet |
MS2006 | Box | Active | 12VDC | Square - 20mm L x 20mm H | 6.50mm | 1.1 CFM (0.031m³/min) | 0.110 in H2O (27.4 Pa) | Sleeve | Tubeaxial | Speed Sensor (Tach) | 31.0dB(A) | - | 12000 RPM | 3 Wire Leads | - | - | CE, cUL, TUV, UL | 0.007 lb (3.18 g) |
|
|
MS2006M05D1-RSRFAN AXIAL 20X6.5MM 12VDC WIRE |
3,002 | 10.97 |
|
Datasheet |
MS2006 | Box | Active | 12VDC | Square - 20mm L x 20mm H | 6.50mm | 0.780 CFM (0.022m³/min) | 0.080 in H2O (20.0 Pa) | Sleeve | Tubeaxial | Speed Sensor (Tach) | 21.0dB(A) | - | 8000 RPM | 3 Wire Leads | - | - | CE, cUL, TUV, UL | 0.007 lb (3.18 g) |
|

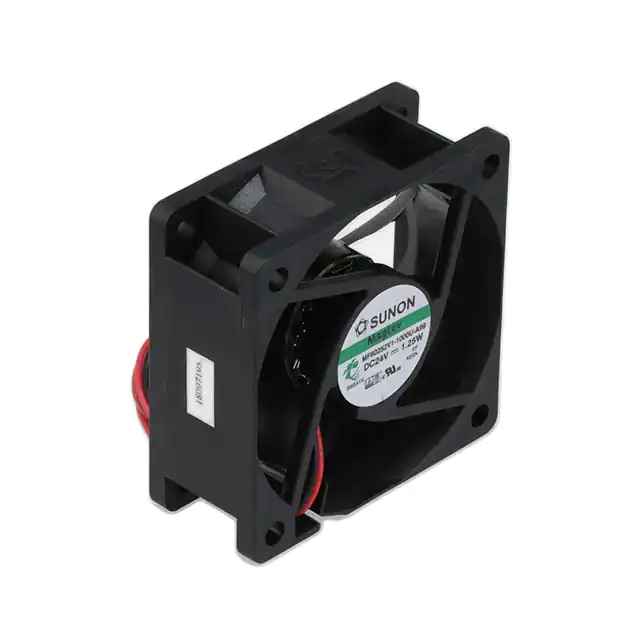

4148/MF60252V1-1000U-A99FAN AXIAL 60X25MM VAPO 24VDC |
3,258 | 8.89 |
|
Datasheet |
MagLev® MF | Bulk | Active | 24VDC | Square - 60mm L x 60mm H | 25.00mm | 23.5 CFM (0.658m³/min) | 0.210 in H2O (52.3 Pa) | Vapo-Bearing™ | Tubeaxial | Auto Restart | 27.0dB(A) | 1.2 W | 4500 RPM | 2 Position Rectangular Connector | - | 14 ~ 158°F (-10 ~ 70°C) | cURus, TUV | 0.101 lb (45.81 g) |
|
|
MD4028H12B1-RSRFAN AXIAL 40X28MM 12VDC WIRE |
2,285 | 10.98 |
|
Datasheet |
MD4028 | Bulk | Active | 12VDC | Square - 40mm L x 40mm H | 28.00mm | 13.6 CFM (0.381m³/min) | 0.533 in H2O (132.8 Pa) | Ball | Tubeaxial | Speed Sensor (Tach), Thermal Overload Protector (TOP) | 41.0dB(A) | - | 9200 RPM | 3 Wire Leads | - | - | cUL, TUV, UL | 0.111 lb (50.35 g) |
|
|
MD4028U12B1-RSRFAN AXIAL 40X28MM 12VDC WIRE |
4,649 | 10.98 |
|
Datasheet |
MD4028 | Bulk | Active | 12VDC | Square - 40mm L x 40mm H | 28.00mm | 21.1 CFM (0.591m³/min) | 0.906 in H2O (225.6 Pa) | Ball | Tubeaxial | Speed Sensor (Tach), Thermal Overload Protector (TOP) | 50.0dB(A) | - | 13000 RPM | 3 Wire Leads | - | - | cUL, TUV, UL | 0.111 lb (50.35 g) |
|
|
DC0922548U2B-BT0FAN 92X25MM 48VDC PWM/TACH |
3,392 | 0.00 |
|
Datasheet |
- | Bulk | Active | 48VDC | Square - 92mm L x 92mm H | 25.00mm | 69.2 CFM (1.94m³/min) | 0.280 in H2O (69.7 Pa) | Ball | Tubeaxial | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 45.0dB(A) | 14.4 W | 3800 RPM | 4 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus | - |
|
|
DC0351012W2B-3T3FAN 35X10MM 12VDC TACH MOLEX 22- |
2,014 | 0.00 |
|
Datasheet |
- | Bulk | Active | 12VDC | Square - 35mm L x 35mm H | 10.00mm | 6.3 CFM (0.176m³/min) | 0.220 in H2O (54.8 Pa) | Ball | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 28.0dB(A) | 840 mW | 9000 RPM | 3 Position Rectangular Connector | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | - |
|
|
03828DA-12R-AT-00DC AXIAL FAN |
2,895 | 0.00 |
|
Datasheet |
03828DA | Box | Active | 12VDC | Square - 38mm L x 38mm H | 28.00mm | 21.8 CFM (0.610m³/min) | 2.610 in H2O (650.1 Pa) | Ball | Tubeaxial | Auto Restart, Speed Sensor (Tach) | 58.0dB | 7.56 W | 22000 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | - | - |
|
|
03828DA-12R-AL-00DC AXIAL FAN |
3,433 | 0.00 |
|
Datasheet |
03828DA | Box | Active | 12VDC | Square - 38mm L x 38mm H | 28.00mm | 21.8 CFM (0.610m³/min) | 2.610 in H2O (650.1 Pa) | Ball | Tubeaxial | Auto Restart, Locked Rotor Sensor | 58.0dB | 7.56 W | 22000 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | - | - |
|
|
DC0602512J2B-3T3FAN 60X25MM 12VDC TACH MOLEX 22- |
3,479 | 0.00 |
|
Datasheet |
- | Bulk | Active | 12VDC | Square - 60mm L x 60mm H | 25.00mm | 17.1 CFM (0.479m³/min) | 0.120 in H2O (29.9 Pa) | Ball | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 26.0dB(A) | 960 mW | 3100 RPM | 3 Position Rectangular Connector | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | - |
|
|
DC0602512L2B-3T3FAN 60X25MM 12VDC TACH MOLEX 22- |
2,097 | 0.00 |
|
Datasheet |
- | Bulk | Active | 12VDC | Square - 60mm L x 60mm H | 25.00mm | 21.5 CFM (0.602m³/min) | 0.160 in H2O (39.8 Pa) | Ball | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 31.0dB(A) | 1.44 W | 3600 RPM | 3 Position Rectangular Connector | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | - |
|
|
DC0602512M2B-3T3FAN 60X25MM 12VDC TACH MOLEX 22- |
3,051 | 0.00 |
|
Datasheet |
- | Bulk | Active | 12VDC | Square - 60mm L x 60mm H | 25.00mm | 24.0 CFM (0.672m³/min) | 0.220 in H2O (54.8 Pa) | Ball | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 34.0dB(A) | 1.8 W | 4250 RPM | 3 Position Rectangular Connector | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | - |
|
|
DC0602512H2B-3T3FAN 60X25MM 12VDC TACH MOLEX 22- |
3,961 | 0.00 |
|
Datasheet |
- | Bulk | Active | 12VDC | Square - 60mm L x 60mm H | 25.00mm | 33.6 CFM (0.941m³/min) | 0.250 in H2O (62.3 Pa) | Ball | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 40.0dB(A) | 3.36 W | 5000 RPM | 3 Position Rectangular Connector | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | - |
|
|
9A0912F4D01FAN AXIAL 92X25MM 12VDC WIRE |
1,653 | 11.28 |
|
Datasheet |
San Cooler 92 | Box | Active | 12VDC | Square - 92mm L x 92mm H | 25.00mm | 43.8 CFM (1.23m³/min) | 0.129 in H2O (32.1 Pa) | Ball | Tubeaxial | Locked Rotor Sensor | 34.0dB(A) | 1.68 W | 2650 RPM | 3 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | CSA, TUV, UL | 0.222 lb (100.7 g) |
|
|
9A0912G4D01FAN AXIAL 92X25MM 12VDC WIRE |
3,384 | 11.28 |
|
Datasheet |
San Cooler 92 | Box | Active | 12VDC | Square - 92mm L x 92mm H | 25.00mm | 62.1 CFM (1.74m³/min) | 0.267 in H2O (66.5 Pa) | Ball | Tubeaxial | Locked Rotor Sensor | 43.0dB(A) | 4.68 W | 3900 RPM | 3 Wire Leads | - | -4 ~ 140°F (-20 ~ 60°C) | CSA, TUV, UL | 0.222 lb (100.7 g) |
|
|
9A0912F4D011FAN AXIAL 92X25MM 12VDC WIRE |
2,959 | 11.28 |
|
Datasheet |
San Cooler 92 | Box | Active | 12VDC | Square - 92mm L x 92mm H | 25.00mm | 43.8 CFM (1.23m³/min) | 0.129 in H2O (32.1 Pa) | Ball | Tubeaxial | Locked Rotor Sensor | 30.0dB(A) | 1.68 W | 2650 RPM | 3 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | CSA, TUV, UL | 0.222 lb (100.7 g) |
|
|
9A0912H4D011FAN AXIAL 92X25MM 12VDC WIRE |
3,645 | 11.28 |
|
Datasheet |
San Cooler 92 | Box | Active | 12VDC | Square - 92mm L x 92mm H | 25.00mm | 51.2 CFM (1.43m³/min) | 0.177 in H2O (44.1 Pa) | Ball | Tubeaxial | Locked Rotor Sensor | 33.0dB(A) | 2.52 W | 3150 RPM | 3 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | CSA, TUV, UL | 0.222 lb (100.7 g) |
|
|
9A0912L4D01FAN AXIAL 92X25MM 12VDC WIRE |
4,348 | 11.28 |
|
Datasheet |
San Cooler 92 | Box | Active | 12VDC | Square - 92mm L x 92mm H | 25.00mm | 28.2 CFM (0.790m³/min) | 0.054 in H2O (13.4 Pa) | Ball | Tubeaxial | Locked Rotor Sensor | 23.0dB(A) | 840 mW | 1750 RPM | 3 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | CSA, TUV, UL | 0.222 lb (100.7 g) |
