DC Brushless Fans (BLDC)
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Voltage - Rated | Size / Dimension | Width | Air Flow | Static Pressure | Bearing Type | Fan Type | Features | Noise | Power (Watts) | RPM | Termination | Ingress Protection | Operating Temperature | Approval Agency | Weight |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
3610VL-05W-B40-E00FAN AXIAL 92X25MM 24VDC WIRE |
3,137 | 0.00 |
|
Datasheet |
09225VA | Box | Obsolete | 24VDC | Square - 92mm L x 92mm H | 25.00mm | 68.1 CFM (1.91m³/min) | 0.321 in H2O (80.0 Pa) | Ball | Tubeaxial | - | 42.0dB(A) | 4.08 W | 4000 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, UL, VDE | 0.298 lb (135.17 g) |
|
3610VL-04W-B69-B50FAN AXIAL 92X25MM 12VDC WIRE |
4,039 | 0.00 |
|
Datasheet |
09225VA | Box | Obsolete | 12VDC | Square - 92mm L x 92mm H | 25.00mm | 85.8 CFM (2.40m³/min) | 0.480 in H2O (119.6 Pa) | Ball | Tubeaxial | Speed Sensor (Tach) | 48.0dB(A) | 6.24 W | 5000 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, UL, VDE | 0.298 lb (135.17 g) |
|
109P0405M902FAN AXIAL 40X10MM BALL 5VDC WIRE |
1,786 | 12.00 |
|
Datasheet |
San Ace 40 | Box | Active | 5VDC | Square - 40mm L x 40mm H | 10.00mm | 4.2 CFM (0.118m³/min) | 0.108 in H2O (27.0 Pa) | Ball | Tubeaxial | Locked Rotor Protection | 21.0dB(A) | 550 mW | 5000 RPM | 2 Wire Leads | - | 14 ~ 140°F (-10 ~ 60°C) | CSA, TUV, UL | 0.042 lb (19.05 g) |
|
|
109P0412M902FAN AXIAL 40X10MM 12VDC WIRE |
3,815 | 12.00 |
|
Datasheet |
San Ace 40 | Box | Active | 12VDC | Square - 40mm L x 40mm H | 10.00mm | 4.2 CFM (0.118m³/min) | 0.108 in H2O (27.0 Pa) | Ball | Tubeaxial | Locked Rotor Protection | 21.0dB(A) | 720 mW | 5000 RPM | 2 Wire Leads | - | 14 ~ 140°F (-10 ~ 60°C) | CSA, TUV, UL | 0.042 lb (19.05 g) |
|

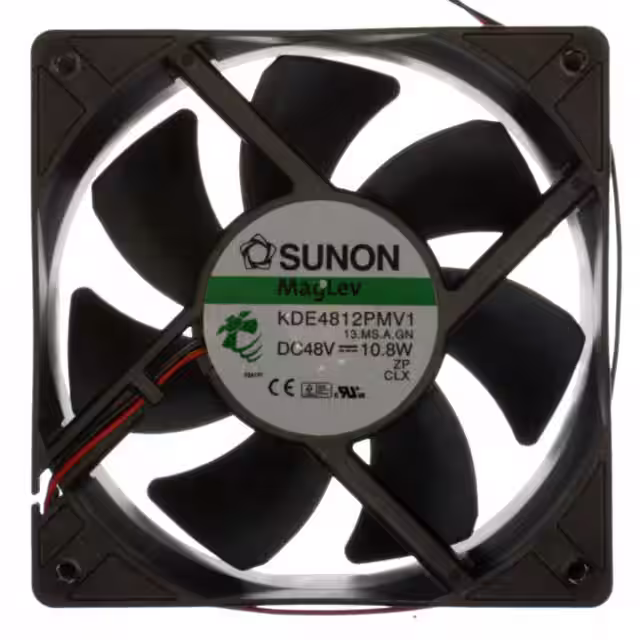

KDE4812PMV1.13.MS.A.GNFAN AXIAL 120X38MM 48VDC WIRE |
4,718 | 0.00 |
|
Datasheet |
MagLev® KDE | Box | Obsolete | 48VDC | Square - 120mm L x 120mm H | 38.00mm | 145.0 CFM (4.06m³/min) | 0.320 in H2O (79.7 Pa) | Vapo-Bearing™ | Tubeaxial | - | 50.0dB(A) | 10.8 W | 3000 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CUR, TUV, UL | 0.683 lb (309.8 g) |
|
|
DC0251005H2B-2T2FAN 25X10MM 5VDC MOLEX 22-01-102 |
3,146 | 0.00 |
|
Datasheet |
- | Bulk | Active | 5VDC | Square - 25mm L x 25mm H | 10.00mm | 2.4 CFM (0.067m³/min) | 0.290 in H2O (72.2 Pa) | Ball | Tubeaxial | Locked Rotor Protection | 28.0dB(A) | 400 mW | 13000 RPM | 2 Position Rectangular Connector | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus | - |
|
|
CFM-6025BG-235-253-22DC AXIAL FAN, 60 MM SQUARE, 25 M |
4,574 | 0.00 |
|
Datasheet |
CFM-60BG | Box | Active | 24VDC | Square - 60mm L x 60mm H | 25.00mm | 14.7 CFM (0.412m³/min) | 0.150 in H2O (37.4 Pa) | Ball | Tubeaxial | Auto Restart, PWM Control, Speed Sensor (Tach) | 25.3dB(A) | 0.96 W | 3500 RPM | 4 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | - |
|
|
DC0251012M2B-3T3FAN 25X10MM 12VDC TACH MOLEX 22- |
4,435 | 0.00 |
|
Datasheet |
- | Bulk | Active | 12VDC | Square - 25mm L x 25mm H | 10.00mm | 1.9 CFM (0.053m³/min) | 0.170 in H2O (42.3 Pa) | Ball | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 24.0dB(A) | 720 mW | 10000 RPM | 3 Position Rectangular Connector | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | - |
|
|
DC0251012L2B-3T3FAN 25X10MM 12VDC TACH MOLEX 22- |
3,452 | 0.00 |
|
Datasheet |
- | Bulk | Active | 12VDC | Square - 25mm L x 25mm H | 10.00mm | 1.3 CFM (0.036m³/min) | 0.070 in H2O (17.4 Pa) | Ball | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 20.0dB(A) | 600 mW | 7000 RPM | 3 Position Rectangular Connector | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | - |
|
|
DC0351012U2B-BT4FAN 35X10MM 12VDC PWM/TACH MOLEX |
2,955 | 0.00 |
|
Datasheet |
- | Bulk | Active | 12VDC | Square - 35mm L x 35mm H | 10.00mm | 4.4 CFM (0.123m³/min) | 0.140 in H2O (34.9 Pa) | Ball | Tubeaxial | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 23.0dB(A) | 360 mW | 7000 RPM | 4 Position Rectangular Connector | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | - |
|
|
DC0351012V2B-BT4FAN 35X10MM 12VDC PWM/TACH MOLEX |
3,419 | 0.00 |
|
Datasheet |
- | Bulk | Active | 12VDC | Square - 35mm L x 35mm H | 10.00mm | 5.5 CFM (0.154m³/min) | 0.180 in H2O (44.8 Pa) | Ball | Tubeaxial | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 25.0dB(A) | 480 mW | 8000 RPM | 4 Position Rectangular Connector | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | - |
|
|
G4028H12B-RSFAN AXIAL 40X28MM 12VDC WIRE |
3,232 | 11.68 |
|
Datasheet |
G4028 | Bulk | Obsolete | 12VDC | Square - 40mm L x 40mm H | 28.00mm | 16.0 CFM (0.448m³/min) | 0.570 in H2O (142.0 Pa) | Ball | Tubeaxial | Thermal Overload Protector (TOP) | 41.0dB(A) | - | 10000 RPM | 2 Wire Leads | - | - | CE, cUL, TUV, UL | 0.111 lb (50.35 g) |
|
|
GB0535ADV3-8FAN BLOWER 34.8X7.3MM 5VDC WIRE |
4,902 | 0.00 |
|
Datasheet |
GB | - | Obsolete | 5VDC | Square - 34.8mm L x 34.8mm H | 7.30mm | 0.812 CFM (0.023m³/min) | 0.130 in H2O (32.4 Pa) | Vapo-Bearing™ | Blower | - | 19.5dB(A) | 250 mW | 5000 RPM | 2 Wire Leads | - | 14 ~ 194°F (-10 ~ 90°C) | CE, CUR, TUV, UL | 0.026 lb (11.79 g) |
|
CBM-979433B-230-507-22FAN BLOWER 97.68X32.7MM 24VDC |
1,815 | 11.43 |
|
Datasheet |
CBM-97B-2 | Box | Active | 24VDC | Rectangular/Rounded - 97.68mm L x 94.18mm H | 32.70mm | 20.5 CFM (0.574m³/min) | 0.660 in H2O (164.4 Pa) | Ball | Blower | Auto Restart, PWM Control, Speed Sensor (Tach) | 50.7dB(A) | 8.4 W | 3000 RPM | 4 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | - |
|
E9225E24B1-FSRFAN AXIAL 92X25MM 24VDC WIRE |
1,368 | 10.94 |
|
Datasheet |
E9225 | Bulk | Active | 24VDC | Square - 92mm L x 92mm H | 25.00mm | 56.0 CFM (1.57m³/min) | 0.280 in H2O (69.7 Pa) | Ball | Tubeaxial | Speed Sensor (Tach), Thermal Overload Protector (TOP) | 39.0dB(A) | - | 3600 RPM | 3 Wire Leads | - | - | CE, cUL, TUV, UL | 0.245 lb (111.13 g) |
|
|
E9225E24B1-FSR-TTLFAN AXIAL 92X25MM 24VDC WIRE |
4,396 | 10.94 |
|
Datasheet |
E9225 | Bulk | Active | 24VDC | Square - 92mm L x 92mm H | 25.00mm | 56.0 CFM (1.57m³/min) | 0.280 in H2O (69.7 Pa) | Ball | Tubeaxial | Speed Sensor (Tach), Thermal Overload Protector (TOP) | 39.0dB(A) | - | 3600 RPM | 3 Wire Leads | - | - | CE, cUL, TUV, UL | 0.245 lb (111.13 g) |
|
|
E9225E24B2-FSRFAN AXIAL 92X25MM 24VDC WIRE |
4,878 | 10.94 |
|
Datasheet |
E9225 | Bulk | Active | 24VDC | Square - 92mm L x 92mm H | 25.00mm | 56.0 CFM (1.57m³/min) | 0.280 in H2O (69.7 Pa) | Ball | Tubeaxial | Locked Rotor Sensor, Thermal Overload Protector (TOP) | 39.0dB(A) | - | 3600 RPM | 3 Wire Leads | - | - | CE, cUL, TUV, UL | 0.245 lb (111.13 g) |
|
|
E9225H12B1-FSRFAN AXIAL 92X25MM 12VDC WIRE |
2,203 | 10.94 |
|
Datasheet |
E9225 | Bulk | Active | 12VDC | Square - 92mm L x 92mm H | 25.00mm | 51.0 CFM (1.43m³/min) | 0.240 in H2O (59.8 Pa) | Ball | Tubeaxial | Speed Sensor (Tach), Thermal Overload Protector (TOP) | 36.0dB(A) | - | 3200 RPM | 3 Wire Leads | - | - | CE, cUL, TUV, UL | 0.245 lb (111.13 g) |
|
|
E9225H12B1-FSR-TTLFAN AXIAL 92X25MM 12VDC WIRE |
3,382 | 10.94 |
|
Datasheet |
E9225 | Bulk | Active | 12VDC | Square - 92mm L x 92mm H | 25.00mm | 51.0 CFM (1.43m³/min) | 0.240 in H2O (59.8 Pa) | Ball | Tubeaxial | Speed Sensor (Tach), Thermal Overload Protector (TOP) | 36.0dB(A) | - | 3200 RPM | 3 Wire Leads | - | - | CE, cUL, TUV, UL | 0.245 lb (111.13 g) |
|
|
E9225H12B2-FSRFAN AXIAL 92X25MM 12VDC WIRE |
1,301 | 10.94 |
|
Datasheet |
E9225 | Bulk | Active | 12VDC | Square - 92mm L x 92mm H | 25.00mm | 51.0 CFM (1.43m³/min) | 0.240 in H2O (59.8 Pa) | Ball | Tubeaxial | Locked Rotor Sensor, Thermal Overload Protector (TOP) | 36.0dB(A) | - | 3200 RPM | 3 Wire Leads | - | - | CE, cUL, TUV, UL | 0.245 lb (111.13 g) |
