DC Brushless Fans (BLDC)
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Voltage - Rated | Size / Dimension | Width | Air Flow | Static Pressure | Bearing Type | Fan Type | Features | Noise | Power (Watts) | RPM | Termination | Ingress Protection | Operating Temperature | Approval Agency | Weight |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
109P0424H6D01FAN AXIAL 40X20MM 24VDC WIRE |
6,741 | 14.53 |
|
Datasheet |
San Ace 40 | Box | Active | 24VDC | Square - 40mm L x 40mm H | 20.00mm | 8.2 CFM (0.230m³/min) | 0.280 in H2O (69.7 Pa) | Ball | Tubeaxial | Locked Rotor Sensor | 35.0dB(A) | 1.68 W | 8300 RPM | 3 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | CSA, TUV, UL | 0.101 lb (45.81 g) |
|
|
109P0412H601FAN AXIAL 40X20MM 12VDC WIRE |
326 | 14.53 |
|
Datasheet |
San Ace 40 | Box | Active | 12VDC | Square - 40mm L x 40mm H | 20.00mm | 8.0 CFM (0.224m³/min) | 0.264 in H2O (65.7 Pa) | Ball | Tubeaxial | Speed Sensor (Tach) | 33.0dB(A) | 1.32 W | 8000 RPM | 3 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | CSA, TUV, UL | 0.101 lb (45.81 g) |
|

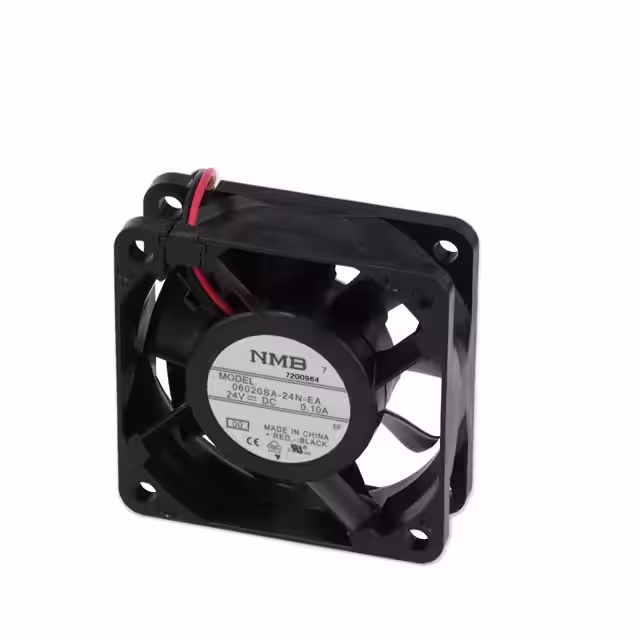

06020SA-24N-EA-00FAN AXIAL 60X20MM 24VDC WIRE |
142 | 11.94 |
|
Datasheet |
06020SA | Box | Active | 24VDC | Square - 60mm L x 60mm H | 20.00mm | 20.5 CFM (0.574m³/min) | 0.200 in H2O (49.8 Pa) | Ball | Tubeaxial | Auto Restart | 30.5dB | 1.68 W | 4400 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | - | - |
|

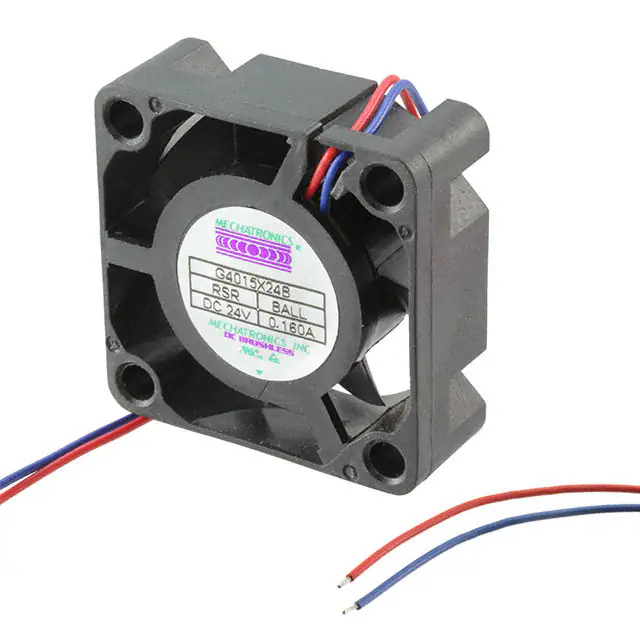

G4015X24B-RSRFAN AXIAL 40X15MM 24VDC WIRE |
213 | 11.18 |
|
Datasheet |
G4015 | Bulk | Active | 24VDC | Square - 40mm L x 40mm H | 15.00mm | 12.0 CFM (0.336m³/min) | 0.600 in H2O (149.5 Pa) | Ball | Tubeaxial | Thermal Overload Protector (TOP) | 39.0dB(A) | - | 12000 RPM | 2 Wire Leads | - | - | CE, cUL, TUV, UL | 0.051 lb (23.13 g) |
|

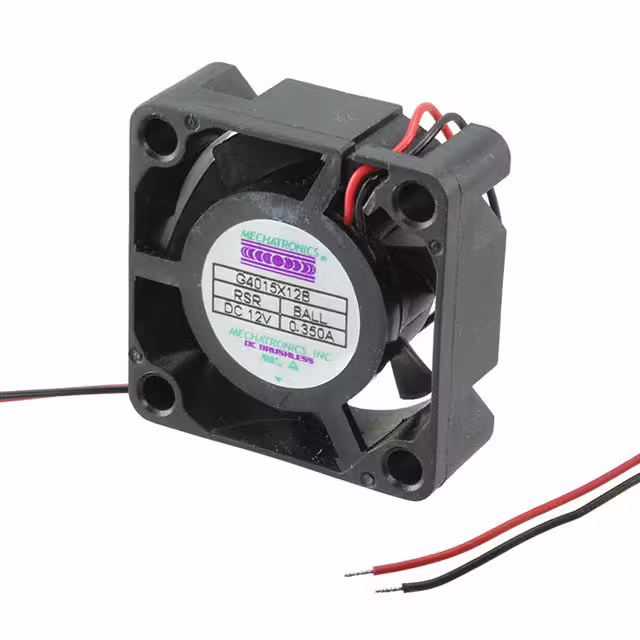

G4015X12B-RSRFAN AXIAL 40X15MM 12VDC WIRE |
121 | 11.18 |
|
Datasheet |
G4015 | Bulk | Active | 12VDC | Square - 40mm L x 40mm H | 15.00mm | 12.0 CFM (0.336m³/min) | 0.600 in H2O (149.5 Pa) | Ball | Tubeaxial | Thermal Overload Protector (TOP) | 39.0dB(A) | - | 12000 RPM | 2 Wire Leads | - | - | CE, cUL, TUV, UL | 0.051 lb (23.13 g) |
|

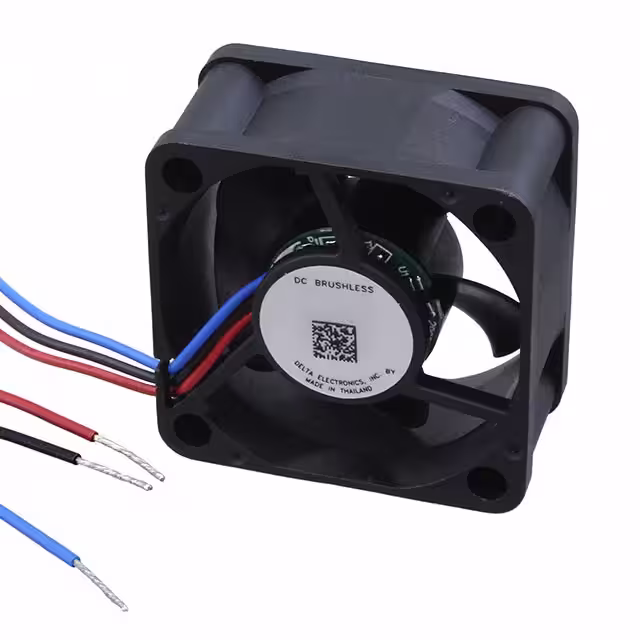

AUB0405VD-00FAN AXIAL 40X20MM 5VDC WIRE |
687 | 10.34 |
|
Datasheet |
AUB | Box | Active | 5VDC | Square - 40mm L x 40mm H | 20.00mm | 9.6 CFM (0.269m³/min) | 0.236 in H2O (58.8 Pa) | Sleeve | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 26.5dB(A) | 750 mW | 7500 RPM | 3 Wire Leads | - | -4 ~ 194°F (-20 ~ 90°C) | - | 0.058 lb (26.31 g) |
|
AFB0924HFAN AXIAL 92X25.4MM 24VDC WIRE |
276 | 14.32 |
|
Datasheet |
AFB | Tray | Active | 24VDC | Square - 92mm L x 92mm H | 25.40mm | 51.2 CFM (1.43m³/min) | 0.177 in H2O (44.1 Pa) | Ball | Tubeaxial | Locked Rotor Protection | 34.0dB(A) | 2.4 W | 2850 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CSA, UL, VDE | 0.219 lb (99.34 g) |
|
G8015H24B-RGRFAN AXIAL 80X15.3MM 24VDC WIRE |
200 | 11.37 |
|
Datasheet |
G8015-G | Bulk | Active | 24VDC | Square - 80mm L x 80mm H | 15.30mm | 37.0 CFM (1.04m³/min) | 0.170 in H2O (42.3 Pa) | Ball | Tubeaxial | Thermal Overload Protector (TOP) | 36.0dB(A) | - | 4000 RPM | 2 Wire Leads | - | - | CE, cUL, TUV, UL | 0.128 lb (58.06 g) |
|
CFM-4015B-2135-415-20DC AXIAL FAN, 40 MM SQUARE, 15 M |
256 | 0.00 |
|
Datasheet |
CFM-40B | Box | Active | 24VDC | Square - 40mm L x 40mm H | 15.10mm | 15.8 CFM (0.442m³/min) | 0.920 in H2O (229.2 Pa) | Ball | Tubeaxial | Auto Restart, Speed Sensor (Tach) | 41.5dB(A) | 3.84 W | 13500 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | - |
|
|
06015VA-24L-AT-00FAN AXIAL 60X15MM 24VDC WIRE |
2,497 | 0.00 |
|
Datasheet |
06015VA | Bulk | Active | 24VDC | Square - 60mm L x 60mm H | 15.00mm | 14.5 CFM (0.406m³/min) | 0.160 in H2O (39.8 Pa) | Ball | Tubeaxial | Auto Restart, Speed Sensor (Tach) | 28.5dB | 1 W | 4100 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | - | - |
|
CFM-A238V-131-480-20FAN AXIAL 120X38MM 12VDC WIRE |
1,126 | 15.49 |
|
Datasheet |
CFM-120V | Tray | Active | 12VDC | Square - 120mm L x 120mm H | 38.00mm | 138.0 CFM (3.86m³/min) | 0.360 in H2O (89.7 Pa) | omniCOOL™ Magnetic Sleeve | Tubeaxial | Auto Restart, Speed Sensor (Tach) | 48.0dB(A) | 11.5 W | 3100 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | 0.481 lb (218.18 g) |
|
E1225E12B-FSRFAN AXIAL 120X25MM 12VDC WIRE |
786 | 15.52 |
|
Datasheet |
E1225 | Bulk | Active | 12VDC | Square - 120mm L x 120mm H | 25.00mm | 93.0 CFM (2.60m³/min) | 0.280 in H2O (69.7 Pa) | Ball | Tubeaxial | Thermal Overload Protector (TOP) | 44.0dB(A) | - | 3000 RPM | 2 Wire Leads | - | - | CE, cUL, TUV, UL | 0.434 lb (196.86 g) |
|
DC0401012V2B-3T0FAN AXIAL 40X10MM 12VDC WIRE |
365 | 7.55 |
|
Datasheet |
- | Box | Active | 12VDC | Square - 40mm L x 40mm H | 10.00mm | 12.2 CFM (0.342m³/min) | 0.330 in H2O (82.2 Pa) | Ball | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 39.0dB(A) | 2.04 W | 10000 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | 0.045 lb (20.41 g) |
|
OD6025-24LBFAN AXIAL 60X25MM 24VDC WIRE |
778 | 12.36 |
|
Datasheet |
OD6025 | Box | Active | 24VDC | Square - 60mm L x 60mm H | 25.00mm | 14.0 CFM (0.392m³/min) | 0.140 in H2O (34.9 Pa) | Ball | Tubeaxial | Auto Restart | 20.0dB(A) | 1 W | 2480 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV, UR | 0.141 lb (63.96 g) |
|
OD4020-05HBFAN AXIAL 40X20MM BALL 5VDC WIRE |
492 | 12.73 |
|
Datasheet |
OD4020 | Box | Active | 5VDC | Square - 40mm L x 40mm H | 20.00mm | 8.7 CFM (0.244m³/min) | 0.320 in H2O (79.7 Pa) | Ball | Tubeaxial | Auto Restart | 32.1dB(A) | 1.6 W | 7780 RPM | 2 Wire Leads | - | -4 ~ 149°F (-20 ~ 65°C) | CE, cURus, TUV | - |
|
|
CBM-5020B-160-360-22DC BLOWER, 49.2 X 49.8 X 20 MM, |
592 | 0.00 |
|
Datasheet |
CBM-50B | Box | Active | 12VDC | Rectangular/Rounded - 49.8mm L x 49.2mm H | 20.00mm | 6.1 CFM (0.171m³/min) | 0.640 in H2O (159.4 Pa) | Ball | Blower | Auto Restart, PWM Control, Speed Sensor (Tach) | 36.0dB(A) | 3.24 W | 6000 RPM | 4 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | - |
|
|
OD4010-24HHBThermal Products |
110 | 0.00 |
|
Datasheet |
OD4010 | Bulk | Active | 24VDC | Square - 40mm L x 40mm H | 10.50mm | 12.0 CFM (0.336m³/min) | 0.340 in H2O (84.7 Pa) | Ball | Tubeaxial | Auto Restart | 38.2dB(A) | 1.45 W | 10000 RPM | 2 Wire Leads | - | -4 ~ 149°F (-20 ~ 65°C) | CE, cURus, TUV, UR | - |
|

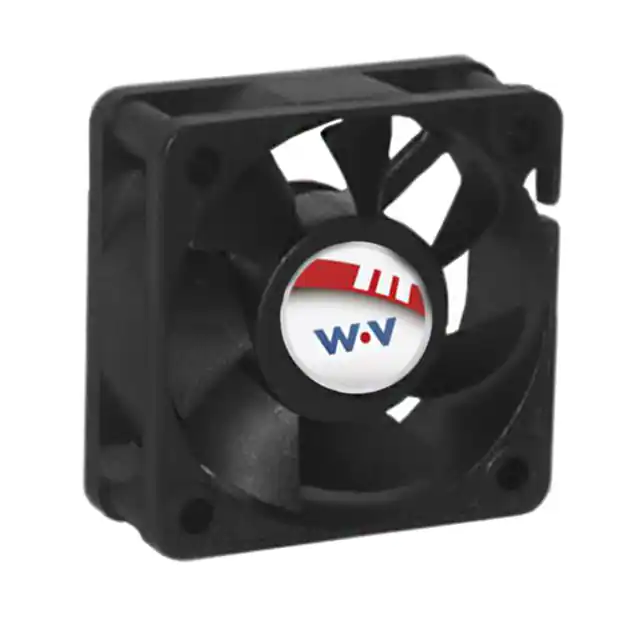

DC0502012H2B-2T0FAN AXIAL 50X20MM 12VDC WIRE |
728 | 10.92 |
|
Datasheet |
- | Box | Active | 12VDC | Square - 50mm L x 50mm H | 20.00mm | 20.3 CFM (0.568m³/min) | 0.300 in H2O (74.7 Pa) | Ball | Tubeaxial | Locked Rotor Protection | 38.0dB(A) | 2.52 W | 7000 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | - |
|
OD5010-24LBFAN AXIAL 50X10.5MM 24VDC WIRE |
600 | 12.73 |
|
Datasheet |
OD5010 | Bulk | Active | 24VDC | Square - 50mm L x 50mm H | 10.50mm | - | - | Ball | Tubeaxial | - | - | - | - | 2 Wire Leads | - | - | cURus | - |
|
|
4130/MF25100V1-1000U-A99FAN AXIAL 25X10MM VAPO 5VDC |
4,290 | 12.27 |
|
Datasheet |
MagLev® MF | Bulk | Active | 5VDC | Square - 25mm L x 25mm H | 10.00mm | 3.5 CFM (0.098m³/min) | 0.250 in H2O (62.3 Pa) | Vapo-Bearing™ | Tubeaxial | Auto Restart | 23.0dB(A) | 530 mW | 13000 RPM | 2 Position Rectangular Connector | - | 14 ~ 158°F (-10 ~ 70°C) | cURus, TUV | 0.016 lb (7.26 g) |
