DC Brushless Fans (BLDC)
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Voltage - Rated | Size / Dimension | Width | Air Flow | Static Pressure | Bearing Type | Fan Type | Features | Noise | Power (Watts) | RPM | Termination | Ingress Protection | Operating Temperature | Approval Agency | Weight |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

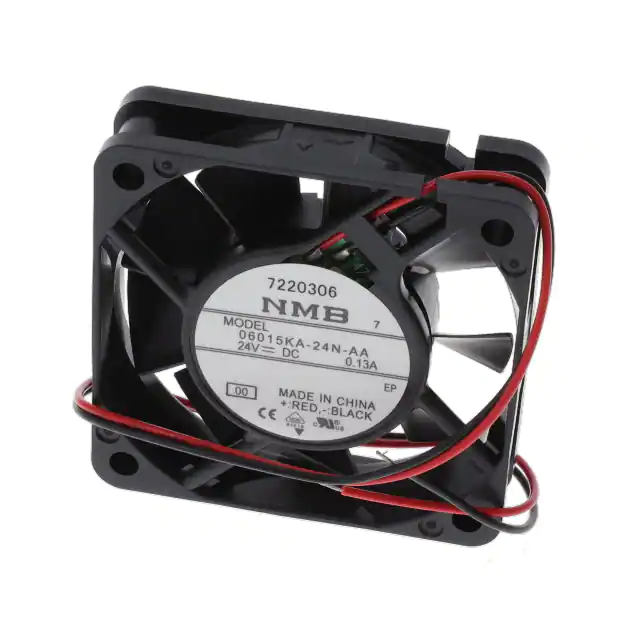

06015KA-24N-AA-00FAN AXIAL 60X15MM 24VDC WIRE |
2,131 | 11.23 |
|
Datasheet |
06015KA | Bulk | Active | 24VDC | Square - 60mm L x 60mm H | 15.00mm | 18.4 CFM (0.515m³/min) | 0.210 in H2O (52.3 Pa) | Ball | Tubeaxial | Auto Restart | 34.0dB | 2.4 W | 4600 RPM | 2 Wire Leads | - | 14 ~ 140°F (-10 ~ 60°C) | - | - |
|
MF17080V2-1000U-A99FAN AXIAL 17X8MM VAPO 5VDC WIRE |
699 | 7.18 |
|
Datasheet |
MagLev® MF | Bulk | Active | 5VDC | Square - 17mm L x 17mm H | 8.00mm | 0.700 CFM (0.020m³/min) | 0.170 in H2O (42.3 Pa) | Vapo-Bearing™ | Tubeaxial | Auto Restart | 14.2dB(A) | 330 mW | 16500 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | cURus, TUV | 0.009 lb (4.08 g) |
|

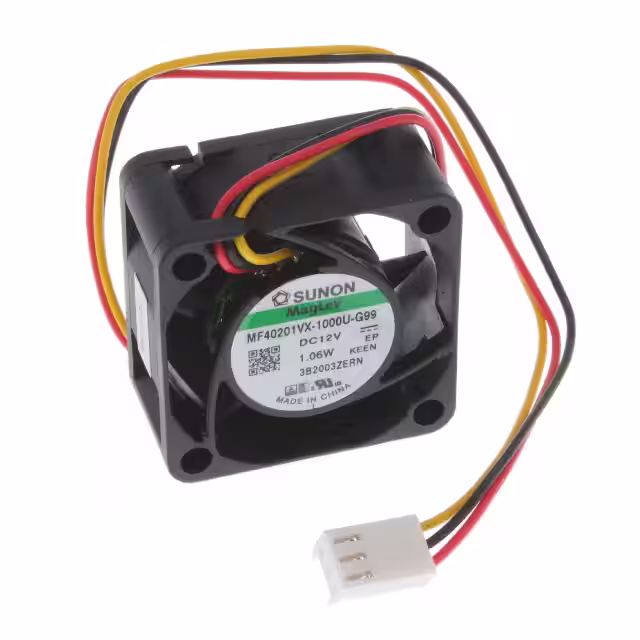

4133/MF40201VX-1000U-G99FAN AXIAL 40X20MM 12VDC RECT |
112 | 8.95 |
|
Datasheet |
MagLev® MF | Bulk | Active | 12VDC | Square - 40mm L x 40mm H | 20.00mm | 10.8 CFM (0.302m³/min) | 0.290 in H2O (72.2 Pa) | Vapo-Bearing™ | Tubeaxial | Auto Restart, Speed Sensor (Tach) | 27.5dB(A) | 960 mW | 8000 RPM | 3 Position Rectangular Connector | - | 14 ~ 158°F (-10 ~ 70°C) | cURus, TUV | 0.064 lb (29.03 g) |
|
CFM-4010B-250-195FAN AXIAL 40X10.5MM 24VDC WIRE |
727 | 11.73 |
|
Datasheet |
CFM-40B | Box | Active | 24VDC | Square - 40mm L x 40mm H | 10.50mm | 4.2 CFM (0.118m³/min) | 0.070 in H2O (17.4 Pa) | Ball | Tubeaxial | Auto Restart | 19.5dB(A) | 1.2 W | 5000 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | - |
|
AFB0412MA-AFAN AXIAL 40X10MM 12VDC WIRE |
4,572 | 10.80 |
|
Datasheet |
AFB | Box | Active | 12VDC | Square - 40mm L x 40mm H | 10.00mm | 5.7 CFM (0.160m³/min) | 0.104 in H2O (26.0 Pa) | Ball | Tubeaxial | Locked Rotor Protection | 21.5dB(A) | 360 mW | 5000 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CSA, UL, VDE | 0.031 lb (14.06 g) |
|
|
AFB0405HHA-AFAN AXIAL 40X10MM BALL 5VDC WIRE |
2,656 | 10.80 |
|
Datasheet |
AFB | Bulk | Active | 5VDC | Square - 40mm L x 40mm H | 10.00mm | 8.2 CFM (0.230m³/min) | 0.190 in H2O (47.3 Pa) | Ball | Tubeaxial | Locked Rotor Protection | 31.5dB(A) | 450 mW | 7000 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CSA, UL, VDE | 0.031 lb (14.06 g) |
|
EFB0412HDFAN AXIAL 40X20MM 12VDC WIRE |
2,506 | 13.14 |
|
Datasheet |
EFB | Tray | Active | 12VDC | Square - 40mm L x 40mm H | 20.00mm | 8.5 CFM (0.238m³/min) | 0.303 in H2O (75.5 Pa) | Ball | Tubeaxial | Locked Rotor Protection | 28.5dB(A) | 960 mW | 7600 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CSA, UL, VDE | 0.073 lb (33.11 g) |
|
|
AFB0412HHA-AFAN AXIAL 40X10MM 12VDC WIRE |
497 | 6.21 |
|
Datasheet |
AFB | Box | Active | 12VDC | Square - 40mm L x 40mm H | 10.00mm | 8.2 CFM (0.230m³/min) | 0.190 in H2O (47.3 Pa) | Ball | Tubeaxial | Locked Rotor Protection | 31.5dB(A) | 600 mW | 7000 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CSA, UL, VDE | 0.031 lb (14.06 g) |
|
|
06015KA-24L-AA-00FAN AXIAL 60X15MM 24VDC WIRE |
2,786 | 11.23 |
|
Datasheet |
06015KA | Bulk | Active | 24VDC | Square - 60mm L x 60mm H | 15.00mm | 14.1 CFM (0.395m³/min) | 0.130 in H2O (32.4 Pa) | Ball | Tubeaxial | Auto Restart | 28.0dB | 1.4 W | 3600 RPM | 2 Wire Leads | - | 14 ~ 140°F (-10 ~ 60°C) | - | - |
|
|
BFB0305MA-CF00FAN BLOWER 30X10MM 5VDC WIRE |
554 | 11.41 |
|
Datasheet |
BFB | Bulk | Active | 5VDC | Square - 30mm L x 30mm H | 10.00mm | 1.2 CFM (0.034m³/min) | 0.206 in H2O (51.3 Pa) | Ball | Blower | Locked Rotor Protection, Speed Sensor (Tach) | 26.0dB(A) | 600 mW | 6500 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | 0.023 lb (10.43 g) |
|
CFM-A225B-115-287-20FAN AXIAL 120X25.4MM 12VDC WIRE |
240 | 11.41 |
|
Datasheet |
CFM-120B | Box | Active | 12VDC | Square - 120mm L x 120mm H | 25.40mm | 52.2 CFM (1.46m³/min) | 0.060 in H2O (14.9 Pa) | Ball | Tubeaxial | Auto Restart, Speed Sensor (Tach) | 24.8dB(A) | 2.76 W | 1500 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | - |
|

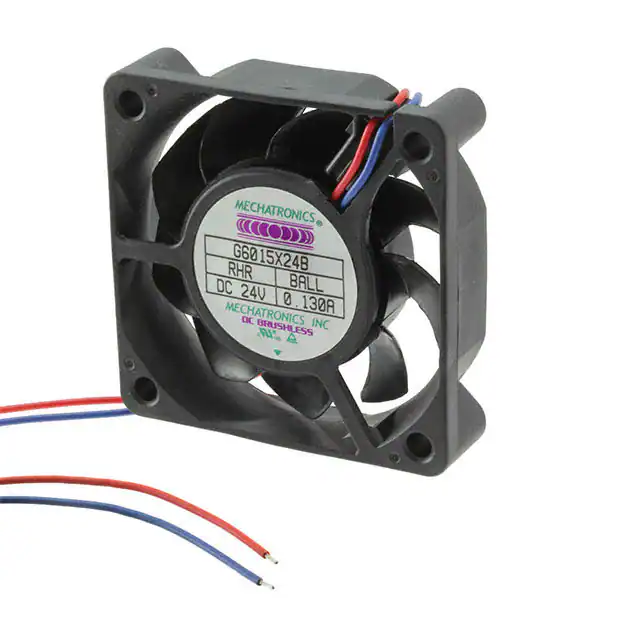

G6015X24B-RHRFAN AXIAL 60X15MM 24VDC WIRE |
869 | 11.00 |
|
Datasheet |
G6015-H | Bulk | Active | 24VDC | Square - 60mm L x 60mm H | 15.00mm | 22.0 CFM (0.616m³/min) | 0.300 in H2O (74.7 Pa) | Ball | Tubeaxial | - | 39.0dB(A) | - | 5800 RPM | 2 Wire Leads | - | - | CE, cUL, TUV, UL | 0.111 lb (50.35 g) |
|
|
BFB03512LA-CR00FAN BLOWER 35X10MM 12VDC WIRE |
560 | 11.41 |
|
Datasheet |
BFB | Bulk | Active | 12VDC | Square - 35mm L x 35mm H | 10.00mm | 1.3 CFM (0.036m³/min) | 0.163 in H2O (40.6 Pa) | Ball | Blower | Locked Rotor Sensor | 24.0dB(A) | 600 mW | 5500 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | 0.025 lb (11.34 g) |
|
|
BFB03512HHA-CF00FAN BLOWER 35X10MM 12VDC WIRE |
328 | 11.41 |
|
Datasheet |
BFB | Bulk | Active | 12VDC | Square - 35mm L x 35mm H | 10.00mm | 2.1 CFM (0.059m³/min) | 0.443 in H2O (110.3 Pa) | Ball | Blower | Locked Rotor Protection, Speed Sensor (Tach) | 31.0dB(A) | 1.32 W | 8500 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | 0.025 lb (11.34 g) |
|

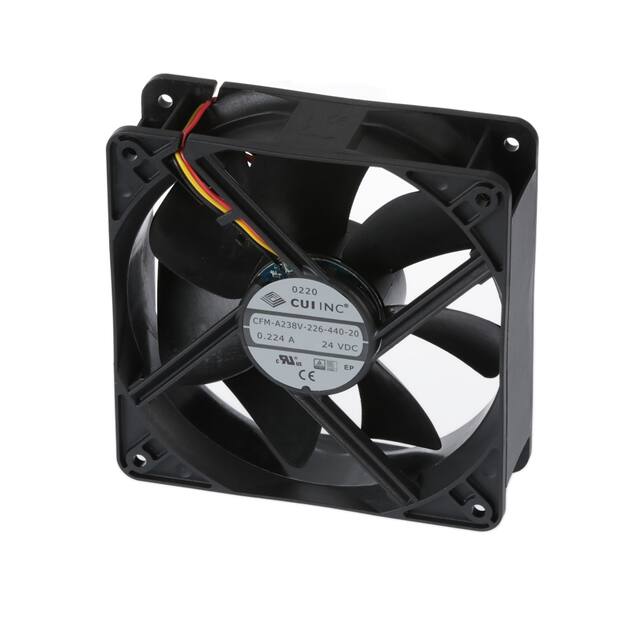

CFM-A238V-226-440-20FAN AXIAL 120X38MM 24VDC WIRE |
817 | 16.82 |
|
Datasheet |
CFM-120V | Tray | Active | 24VDC | Square - 120mm L x 120mm H | 38.00mm | 116.0 CFM (3.25m³/min) | 0.260 in H2O (64.8 Pa) | omniCOOL™ Magnetic Sleeve | Tubeaxial | Auto Restart, Speed Sensor (Tach) | 44.0dB(A) | 6.18 W | 2600 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | 0.481 lb (218.18 g) |
|
|
EF40101BX-1000U-A99Thermal Products |
3,214 | 0.00 |
|
Datasheet |
EF | Bulk | Active | 12VDC | Square - 40mm L x 40mm H | 10.00mm | 10.0 CFM (0.280m³/min) | 0.270 in H2O (67.3 Pa) | Ball | Tubeaxial | Auto Restart | 33.7dB(A) | 1.47 W | 9000 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CUR, TUV, UL | - |
|
OD3010-12MBFAN AXIAL 30X10.2MM 12VDC WIRE |
1,701 | 11.99 |
|
Datasheet |
OD3010 | Bulk | Active | 12VDC | Square - 30mm L x 30mm H | 10.20mm | 4.0 CFM (0.112m³/min) | 0.180 in H2O (45.0 Pa) | Ball | Tubeaxial | - | 28.4dB(A) | - | 9000 RPM | 2 Wire Leads | - | -4 ~ 149°F (-20 ~ 65°C) | cURus, TUV | - |
|
|
DC0401024M2B-2T0FAN 40X10MM 24VDC |
484 | 0.00 |
|
Datasheet |
- | Bulk | Active | 24VDC | Square - 40mm L x 40mm H | 10.00mm | 4.8 CFM (0.134m³/min) | 0.060 in H2O (14.9 Pa) | Ball | Tubeaxial | Locked Rotor Protection | 21.0dB(A) | 480 mW | 4000 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus | - |
|
|
DC0501024J2B-2T0FAN 50X10MM 24VDC |
375 | 0.00 |
|
Datasheet |
- | Bulk | Active | 24VDC | Square - 50mm L x 50mm H | 10.00mm | 6.7 CFM (0.188m³/min) | 0.050 in H2O (12.4 Pa) | Ball | Tubeaxial | Locked Rotor Protection | 18.0dB(A) | 1.2 W | 3500 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus | - |
|
|
AFB0412VHBFAN AXIAL 40X15MM 12VDC WIRE |
296 | 7.97 |
|
Datasheet |
AFB | Bulk | Active | 12VDC | Square - 40mm L x 40mm H | 15.00mm | 13.0 CFM (0.364m³/min) | 0.459 in H2O (114.3 Pa) | Ball | Tubeaxial | Locked Rotor Protection | 36.5dB(A) | 1.92 W | 9500 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CSA, UL, VDE | 0.057 lb (25.85 g) |
