DC Brushless Fans (BLDC)
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Voltage - Rated | Size / Dimension | Width | Air Flow | Static Pressure | Bearing Type | Fan Type | Features | Noise | Power (Watts) | RPM | Termination | Ingress Protection | Operating Temperature | Approval Agency | Weight |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
109R0812H402FAN AXIAL 80X25MM 12VDC WIRE |
2,404 | 14.04 |
|
Datasheet |
San Ace 80 | Box | Active | 12VDC | Square - 80mm L x 80mm H | 25.00mm | 36.4 CFM (1.02m³/min) | 0.142 in H2O (35.4 Pa) | Ball | Tubeaxial | Locked Rotor Protection | 29.0dB(A) | 1.56 W | 2900 RPM | 2 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | CSA, TUV, UL | 0.243 lb (110.22 g) |
|
|
109R0812H4021FAN AXIAL 80X25MM 12VDC WIRE |
1,775 | 14.04 |
|
Datasheet |
San Ace 80 | Box | Active | 12VDC | Square - 80mm L x 80mm H | 25.00mm | 36.4 CFM (1.02m³/min) | 0.142 in H2O (35.4 Pa) | Ball | Tubeaxial | Locked Rotor Protection | 29.0dB(A) | 1.56 W | 2900 RPM | 2 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | CSA, TUV, UL | 0.243 lb (110.22 g) |
|
109R0805F4021FAN AXIAL 80X25MM BALL 5VDC WIRE |
2,976 | 14.04 |
|
Datasheet |
San Ace 80 | Box | Active | 5VDC | Square - 80mm L x 80mm H | 25.00mm | 32.5 CFM (0.910m³/min) | 0.114 in H2O (28.4 Pa) | Ball | Tubeaxial | Locked Rotor Protection | 26.0dB(A) | 1.25 W | 2600 RPM | 2 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | CSA, TUV, UL | 0.243 lb (110.22 g) |
|

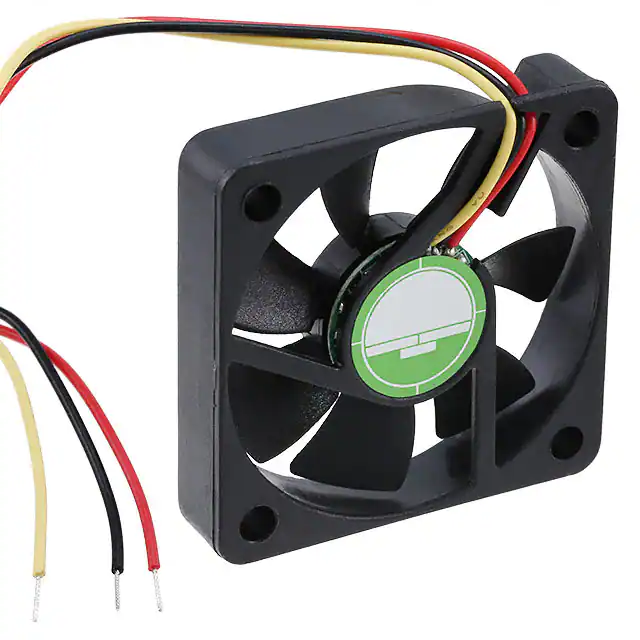

OD5010-12MB02AFAN AXIAL 50X10.5MM 12VDC WIRE |
2,435 | 15.09 |
|
Datasheet |
OD5010 | Bulk | Active | 12VDC | Square - 50mm L x 50mm H | 10.50mm | - | - | Ball | Tubeaxial | Locked Rotor Sensor | - | - | - | 3 Wire Leads | - | - | CE, cURus | - |
|
G6015E24B-RHR-EMFAN AXIAL 60X15MM 24VDC WIRE |
3,776 | 14.69 |
|
Datasheet |
G6015-H | Bulk | Active | 24VDC | Square - 60mm L x 60mm H | 15.00mm | 20.0 CFM (0.560m³/min) | 0.260 in H2O (64.8 Pa) | Ball | Tubeaxial | - | 36.0dB(A) | - | 5200 RPM | 2 Wire Leads | IP57 - Dust Protected, Waterproof | - | CE, cUL, TUV, UL | 0.111 lb (50.35 g) |
|

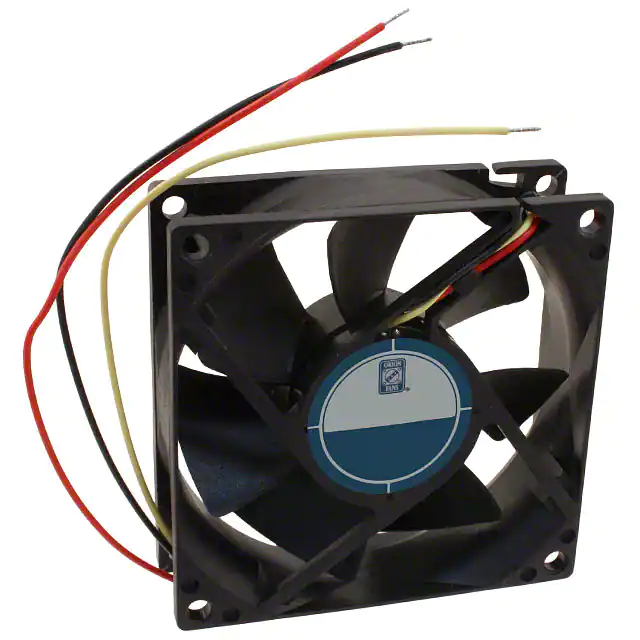

OD8025-12HB02AFAN AXIAL 80X25MM 12VDC WIRE |
1,183 | 16.29 |
|
Datasheet |
OD8025 | Box | Active | 12VDC | Square - 80mm L x 80mm H | 25.00mm | 40.0 CFM (1.12m³/min) | 0.150 in H2O (37.3 Pa) | Ball | Tubeaxial | Auto Restart, Locked Rotor Sensor | 35.0dB | 1.8 W | 3100 RPM | 3 Wire Leads | - | -4 ~ 167°F (-20 ~ 75°C) | cURus, TUV | 0.191 lb (86.64 g) |
|
MD4028V12B-RSR-CCFAN AXIAL 40X28MM 12VDC WIRE |
4,757 | 14.69 |
|
Datasheet |
MD4028 | Bulk | Active | 12VDC | Square - 40mm L x 40mm H | 28.00mm | 24.3 CFM (0.680m³/min) | 1.206 in H2O (300.4 Pa) | Ball | Tubeaxial | Conformal Coating, Thermal Overload Protector (TOP) | 53.1dB(A) | - | 15000 RPM | 2 Wire Leads | - | - | cUL, TUV, UL | 0.111 lb (50.35 g) |
|
AFB02505HHA-CF00FAN AXIAL 25X10MM BALL 5VDC WIRE |
3,360 | 13.19 |
|
Datasheet |
AFB | Box | Active | 5VDC | Square - 25mm L x 25mm H | 10.00mm | 2.4 CFM (0.067m³/min) | 0.300 in H2O (74.7 Pa) | Ball | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 28.0dB(A) | 800 mW | 13000 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | cURus, TUV | - |
|

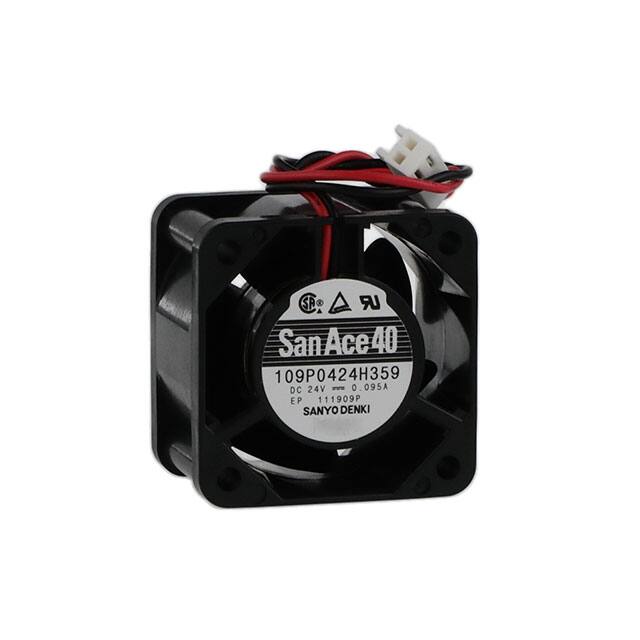

109P0424H359FAN AXIAL 40X28MM 24VDC |
3,553 | 13.38 |
|
Datasheet |
San Ace 40 | Box | Active | 24VDC | Square - 40mm L x 40mm H | 28.00mm | - | - | Ball | Tubeaxial | Locked Rotor Protection | 37.0dB(A) | - | 8700 RPM | 2 Position Rectangular Connector | - | -4 ~ 158°F (-20 ~ 70°C) | CSA, TUV, UL | 0.115 lb (52.16 g) |
|
G9232M24B-FSRFAN AXIAL 92X32MM 24VDC WIRE |
4,756 | 14.88 |
|
Datasheet |
G9232 | Bulk | Active | 24VDC | Square - 92mm L x 92mm H | 32.00mm | 48.0 CFM (1.34m³/min) | 0.180 in H2O (44.8 Pa) | Ball | Tubeaxial | Thermal Overload Protector (TOP) | 32.0dB(A) | - | 2800 RPM | 2 Wire Leads | - | - | CE, cUL, TUV, UL | 0.335 lb (151.95 g) |
|

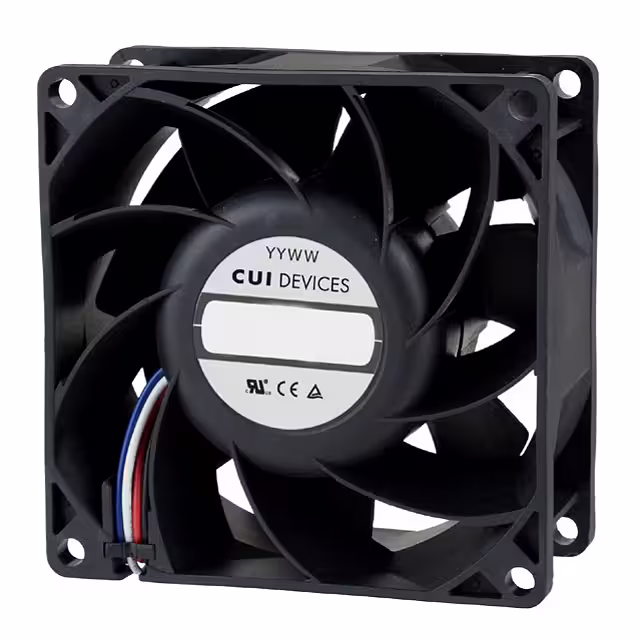

CFM-8038B-250-498FAN AXIAL 80X37.6MM 24VDC WIRE |
2,672 | 16.30 |
|
Datasheet |
CFM-80B | Box | Active | 24VDC | Square - 80mm L x 80mm H | 37.60mm | 61.8 CFM (1.73m³/min) | 0.580 in H2O (144.5 Pa) | Ball | Tubeaxial | Auto Restart | 49.8dB(A) | 10.8 W | 5000 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | - |
|
109P0412E601FAN AXIAL 40X20MM 12VDC WIRE |
2,314 | 14.53 |
|
Datasheet |
San Ace 40 | Box | Active | 12VDC | Square - 40mm L x 40mm H | 20.00mm | 9.2 CFM (0.258m³/min) | 0.351 in H2O (87.3 Pa) | Ball | Tubeaxial | Speed Sensor (Tach) | 37.0dB(A) | 1.8 W | 9200 RPM | 3 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | CSA, TUV, UL | 0.101 lb (45.81 g) |
|
109P0405F601FAN AXIAL 40X20MM BALL 5VDC WIRE |
2,832 | 14.43 |
|
Datasheet |
San Ace 40 | Box | Active | 5VDC | Square - 40mm L x 40mm H | 20.00mm | 6.5 CFM (0.182m³/min) | 0.181 in H2O (45.1 Pa) | Ball | Tubeaxial | Speed Sensor (Tach) | 28.0dB(A) | 1.25 W | 6500 RPM | 3 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | CSA, TUV, UL | 0.101 lb (45.81 g) |
|
109R0824H4011FAN AXIAL 80X25MM 24VDC WIRE |
4,515 | 14.36 |
|
Datasheet |
San Ace 80 | Box | Active | 24VDC | Square - 80mm L x 80mm H | 25.00mm | 36.4 CFM (1.02m³/min) | 0.142 in H2O (35.4 Pa) | Ball | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 29.0dB(A) | 1.68 W | 2900 RPM | 3 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | CSA, TUV, UL | 0.243 lb (110.22 g) |
|
|
109R0812H401FAN AXIAL 80X25MM 12VDC WIRE |
2,843 | 14.36 |
|
Datasheet |
San Ace 80 | Box | Active | 12VDC | Square - 80mm L x 80mm H | 25.00mm | 36.4 CFM (1.02m³/min) | 0.142 in H2O (35.4 Pa) | Ball | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 29.0dB(A) | 1.56 W | 2900 RPM | 3 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | CSA, TUV, UL | 0.243 lb (110.22 g) |
|

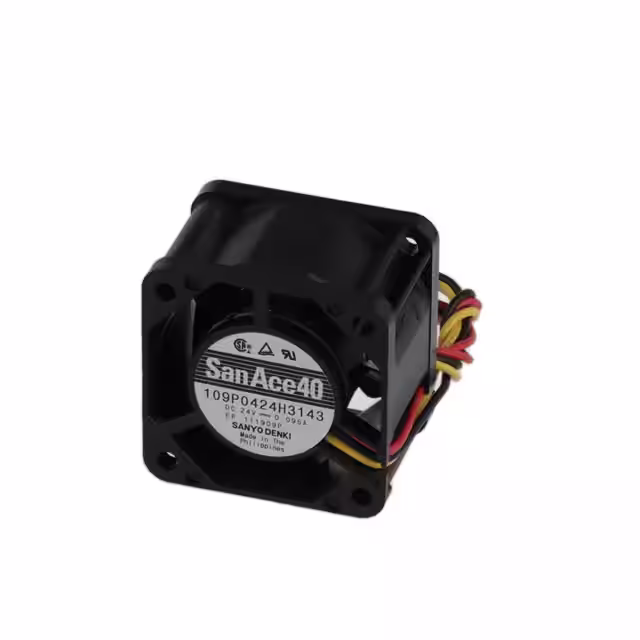

109P0424H3143FAN AXL 40X28MM 24VDC RECT CONN |
4,216 | 13.71 |
|
Datasheet |
San Ace 40 | Box | Active | 24VDC | Square - 40mm L x 40mm H | 28.00mm | - | - | Ball | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 37.0dB(A) | - | 8700 RPM | 3 Position Rectangular Connector | - | -4 ~ 158°F (-20 ~ 70°C) | CSA, TUV, UL | 0.115 lb (52.16 g) |
|
109R0624S4021FAN AXIAL 60X25MM 24VDC WIRE |
2,736 | 14.04 |
|
Datasheet |
San Ace 60 | Box | Active | 24VDC | Square - 60mm L x 60mm H | 25.00mm | 23.0 CFM (0.644m³/min) | 0.228 in H2O (56.8 Pa) | Ball | Tubeaxial | Locked Rotor Protection | 33.0dB(A) | 1.92 W | 4600 RPM | 2 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | CSA, TUV, UL | 0.199 lb (90.26 g) |
|

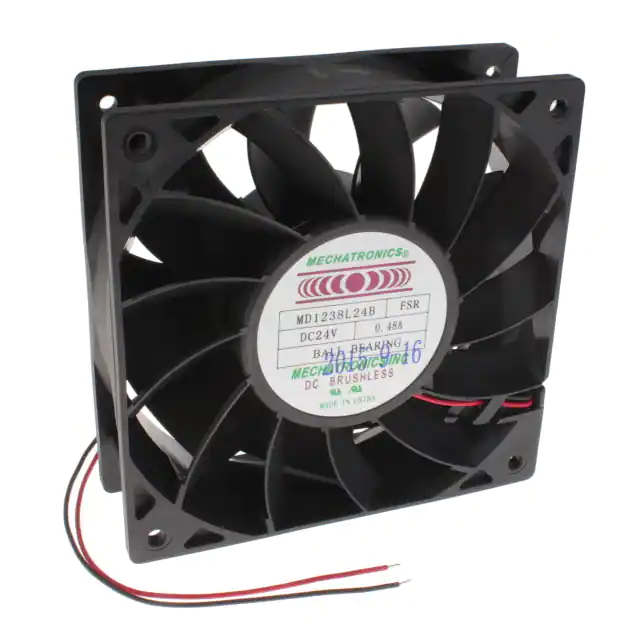

MD1238L24B-FSRFAN AXIAL 120X38MM 24VDC WIRE |
3,806 | 22.43 |
|
Datasheet |
MD1238 | Bulk | Active | 24VDC | Square - 120mm L x 120mm H | 38.00mm | 137.0 CFM (3.84m³/min) | 0.420 in H2O (104.6 Pa) | Ball | Tubeaxial | Thermal Overload Protector (TOP) | 52.0dB(A) | - | 3000 RPM | 2 Wire Leads | - | - | cUL, UL | 0.906 lb (410.95 g) |
|
|
109P0412K3D013FAN AXIAL 40X28MM 12VDC WIRE |
1,734 | 15.02 |
|
Datasheet |
San Ace 40 | Box | Active | 12VDC | Square - 40mm L x 40mm H | 28.00mm | 20.8 CFM (0.582m³/min) | 1.365 in H2O (340.0 Pa) | Ball | Tubeaxial | Locked Rotor Sensor | 50.0dB(A) | 6.6 W | 15500 RPM | 3 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | CSA, TUV, UL | 0.115 lb (52.16 g) |
|
|
109P0648H602FAN AXIAL 60X20MM 48VDC WIRE |
3,197 | 14.53 |
|
Datasheet |
San Ace 60 | Box | Active | 48VDC | Square - 60mm L x 60mm H | 20.00mm | 19.4 CFM (0.543m³/min) | 0.212 in H2O (52.8 Pa) | Ball | Tubeaxial | Locked Rotor Protection | 41.0dB(A) | 3.36 W | 5600 RPM | 2 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | CSA, TUV, UL | 0.199 lb (90.26 g) |
