DC Brushless Fans (BLDC)
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Voltage - Rated | Size / Dimension | Width | Air Flow | Static Pressure | Bearing Type | Fan Type | Features | Noise | Power (Watts) | RPM | Termination | Ingress Protection | Operating Temperature | Approval Agency | Weight |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
9S0812L4021FAN AXIAL 80X25MM 12VDC WIRE |
4,977 | 13.88 |
|
Datasheet |
San Ace 80 | Box | Active | 12VDC | Square - 80mm L x 80mm H | 25.00mm | 23.3 CFM (0.652m³/min) | 0.073 in H2O (18.2 Pa) | Ball | Tubeaxial | Locked Rotor Protection | 16.0dB(A) | 600 mW | 2000 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CSA, TUV, UL | 0.167 lb (75.75 g) |
|

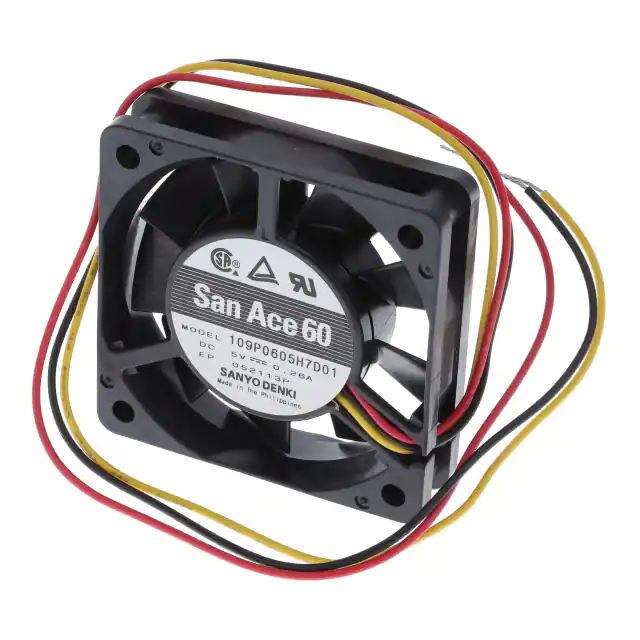

109P0605H7D01FAN AXIAL 60X15MM BALL 5VDC WIRE |
2,659 | 13.38 |
|
Datasheet |
San Ace 60 | Box | Active | 5VDC | Square - 60mm L x 60mm H | 15.00mm | 14.1 CFM (0.395m³/min) | 0.153 in H2O (38.2 Pa) | Ball | Tubeaxial | Locked Rotor Sensor | 32.0dB(A) | 1.3 W | 4100 RPM | 3 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | CSA, TUV, UL | 0.133 lb (60.33 g) |
|

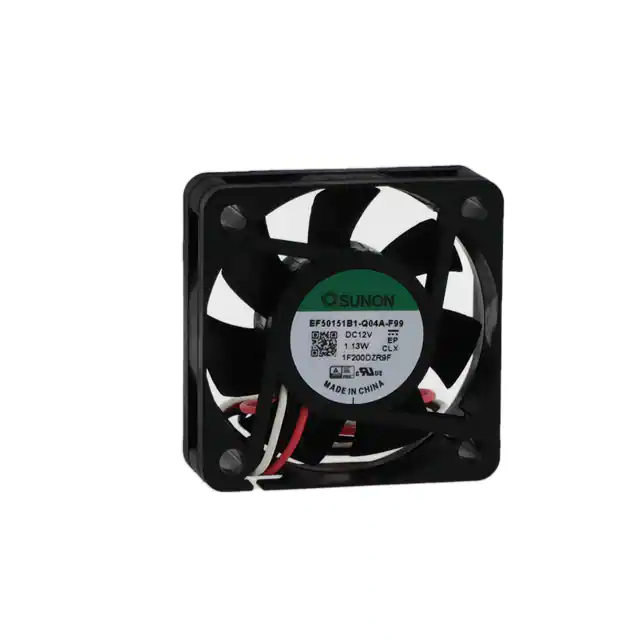

4510HQ/EF50151B1-Q04A-F99FAN AXIAL 50X15MM 12VDC WIRE |
4,021 | 14.69 |
|
Datasheet |
EF | Box | Active | 12VDC | Square - 50mm L x 50mm H | 15.00mm | 11.9 CFM (0.333m³/min) | 0.190 in H2O (47.3 Pa) | Ball | Tubeaxial | Auto Restart, Locked Rotor Sensor | 32.8dB(A) | 940 mW | 5500 RPM | 3 Wire Leads | - | 14 ~ 176°F (-10 ~ 80°C) | CE, CUR, TUV, UL | 0.075 lb (34.02 g) |
|
109P0524H701FAN AXIAL 52X15MM 24VDC WIRE |
3,478 | 13.71 |
|
Datasheet |
San Ace 52 | Box | Active | 24VDC | Square - 52mm L x 52mm H | 15.00mm | 9.0 CFM (0.252m³/min) | 0.128 in H2O (31.8 Pa) | Ball | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 27.0dB(A) | 1.2 W | 4600 RPM | 3 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | CSA, TUV, UL | 0.122 lb (55.34 g) |
|
109P0624J702FAN AXIAL 60X15MM 24VDC WIRE |
4,693 | 13.71 |
|
Datasheet |
San Ace 60 | Box | Active | 24VDC | Square - 60mm L x 60mm H | 15.00mm | 21.5 CFM (0.602m³/min) | 0.347 in H2O (86.4 Pa) | Ball | Tubeaxial | Locked Rotor Protection | 44.0dB(A) | 3.36 W | 6200 RPM | 2 Wire Leads | - | -4 ~ 140°F (-20 ~ 60°C) | CSA, TUV, UL | 0.133 lb (60.33 g) |
|
109P0424F3023FAN AXIAL 40X28MM 24VDC WIRE |
1,285 | 13.71 |
|
Datasheet |
San Ace 40 | Box | Active | 24VDC | Square - 40mm L x 40mm H | 28.00mm | 8.6 CFM (0.241m³/min) | 0.236 in H2O (58.8 Pa) | Ball | Tubeaxial | Locked Rotor Protection | 30.0dB(A) | 1.32 W | 6700 RPM | 2 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | CSA, TUV, UL | 0.115 lb (52.16 g) |
|
9S0812M401FAN AXIAL 80X25MM 12VDC WIRE |
2,486 | 12.34 |
|
Datasheet |
San Ace 80 | Box | Active | 12VDC | Square - 80mm L x 80mm H | 25.00mm | 29.3 CFM (0.820m³/min) | 0.110 in H2O (27.4 Pa) | Ball | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 22.0dB(A) | 960 mW | 2500 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CSA, TUV, UL | 0.167 lb (75.75 g) |
|
|
9S0812M4011FAN AXIAL 80X25MM 12VDC WIRE |
2,101 | 12.34 |
|
Datasheet |
San Ace 80 | Box | Active | 12VDC | Square - 80mm L x 80mm H | 25.00mm | 29.3 CFM (0.820m³/min) | 0.110 in H2O (27.4 Pa) | Ball | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 22.0dB(A) | 960 mW | 2500 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CSA, TUV, UL | 0.167 lb (75.75 g) |
B.jpg)
|
CFM-A225B-220-350-22FAN AXIAL 120X25.4MM 24VDC WIRE |
4,558 | 15.17 |
|
Datasheet |
CFM-120B | Box | Active | 24VDC | Square - 120mm L x 120mm H | 25.40mm | 69.7 CFM (1.95m³/min) | 0.100 in H2O (24.9 Pa) | Ball | Tubeaxial | Auto Restart, PWM Control, Speed Sensor (Tach) | 37.8dB(A) | 4.08 W | 2000 RPM | 4 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | - |
|
9S0612M402FAN AXIAL 60X25MM 12VDC WIRE |
2,367 | 14.78 |
|
Datasheet |
San Ace 60 | Box | Active | 12VDC | Square - 60mm L x 60mm H | 25.00mm | 14.1 CFM (0.395m³/min) | 0.080 in H2O (19.9 Pa) | Ball | Tubeaxial | - | 16.0dB(A) | 840 mW | 2700 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CSA, TUV, UL | 0.122 lb (55.34 g) |
|
9S0912L402FAN AXIAL 92X25MM 12VDC WIRE |
3,100 | 12.34 |
|
Datasheet |
San Ace 92 | Box | Active | 12VDC | Square - 92mm L x 92mm H | 25.00mm | 29.3 CFM (0.820m³/min) | 0.053 in H2O (13.2 Pa) | Ball | Tubeaxial | Locked Rotor Protection | 17.0dB(A) | 840 mW | 1750 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CSA, TUV, UL | 0.222 lb (100.7 g) |
|
CFM-9232B-150-509FAN AXIAL 92.2X32MM 12VDC WIRE |
4,681 | 15.36 |
|
Datasheet |
CFM-92B | Box | Active | 12VDC | Square - 92.2mm L x 92.2mm H | 32.00mm | 102.8 CFM (2.88m³/min) | 0.620 in H2O (154.4 Pa) | Ball | Tubeaxial | Auto Restart | 51.0dB(A) | 10.68 W | 5000 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | - |
|
F8025X24B3-FHRFAN AXIAL 80X25MM 24VDC WIRE |
1,349 | 14.59 |
|
Datasheet |
F8025-H | Bulk | Active | 24VDC | Square - 80mm L x 80mm H | 25.00mm | 53.0 CFM (1.48m³/min) | 0.260 in H2O (64.8 Pa) | Ball | Tubeaxial | Thermal Overload Protector (TOP), Thermistor | 39.0dB(A) | - | 4200 RPM | 2 Wire Leads | - | - | CE, cUL, TUV, UL | 0.182 lb (82.55 g) |
|
|
F8025E24B3-FSRFAN AXIAL 80X25MM 24VDC WIRE |
2,906 | 14.32 |
|
Datasheet |
F8025 | Bulk | Active | 24VDC | Square - 80mm L x 80mm H | 25.00mm | 46.0 CFM (1.29m³/min) | 0.160 in H2O (39.8 Pa) | Ball | Tubeaxial | Auto Restart, Locked Rotor Protection, Thermistor | 32.0dB(A) | - | 2800 RPM | 2 Wire Leads | - | - | CE, cUL, TUV, UL | 0.174 lb (78.93 g) |
|
9A0824L402FAN AXIAL 80X25MM 24VDC WIRE |
4,744 | 12.73 |
|
Datasheet |
San Cooler 80 | Box | Active | 24VDC | Square - 80mm L x 80mm H | 25.00mm | 23.0 CFM (0.644m³/min) | 0.059 in H2O (14.7 Pa) | Ball | Tubeaxial | Locked Rotor Protection | 20.0dB(A) | 960 mW | 1850 RPM | 2 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | CSA, TUV, UL | 0.199 lb (90.26 g) |
|

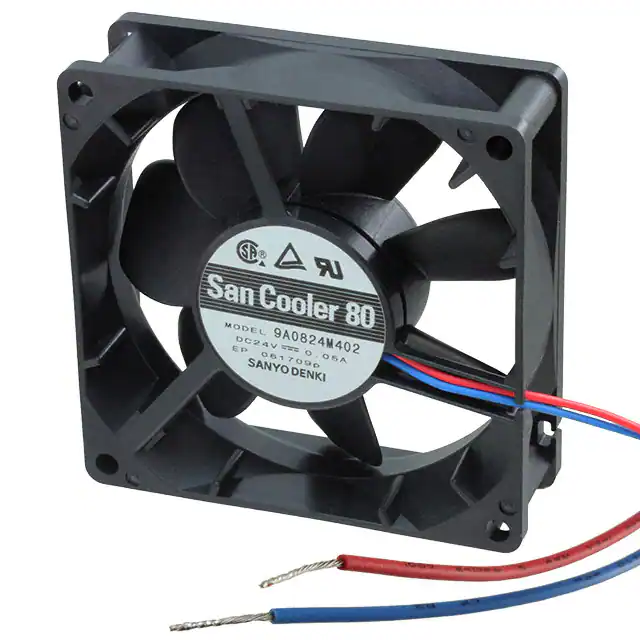

9A0824M402FAN AXIAL 80X25MM 24VDC WIRE |
3,668 | 12.73 |
|
Datasheet |
San Cooler 80 | Box | Active | 24VDC | Square - 80mm L x 80mm H | 25.00mm | 29.3 CFM (0.820m³/min) | 0.090 in H2O (22.4 Pa) | Ball | Tubeaxial | Locked Rotor Protection | 23.0dB(A) | 1.2 W | 2350 RPM | 2 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | CSA, TUV, UL | 0.199 lb (90.26 g) |
|
109P0412M3013FAN AXIAL 40X28MM 12VDC WIRE |
3,508 | 14.04 |
|
Datasheet |
San Ace 40 | Box | Active | 12VDC | Square - 40mm L x 40mm H | 28.00mm | 5.3 CFM (0.148m³/min) | 0.087 in H2O (21.7 Pa) | Ball | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 20.0dB(A) | 540 mW | 4100 RPM | 3 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | CSA, TUV, UL | 0.115 lb (52.16 g) |
|

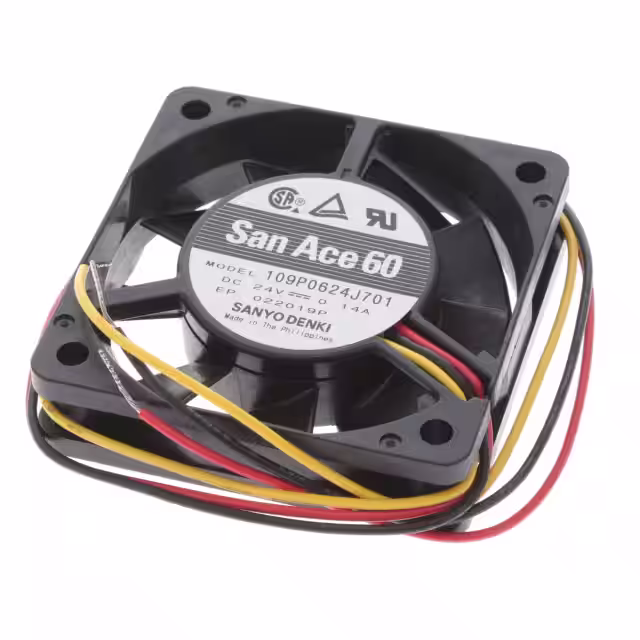

109P0624J701FAN AXIAL 60X15MM 24VDC WIRE |
1,811 | 14.04 |
|
Datasheet |
San Ace 60 | Box | Active | 24VDC | Square - 60mm L x 60mm H | 15.00mm | 21.5 CFM (0.602m³/min) | 0.347 in H2O (86.4 Pa) | Ball | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 44.0dB(A) | 3.36 W | 6200 RPM | 3 Wire Leads | - | -4 ~ 140°F (-20 ~ 60°C) | CSA, TUV, UL | 0.133 lb (60.33 g) |
|
109P0412G3023FAN AXIAL 40X28MM 12VDC WIRE |
2,898 | 14.04 |
|
Datasheet |
San Ace 40 | Box | Active | 12VDC | Square - 40mm L x 40mm H | 28.00mm | 14.8 CFM (0.414m³/min) | 0.719 in H2O (179.0 Pa) | Ball | Tubeaxial | Locked Rotor Protection | 42.0dB(A) | 3.72 W | 11500 RPM | 2 Wire Leads | - | -4 ~ 140°F (-20 ~ 60°C) | CSA, TUV, UL | 0.115 lb (52.16 g) |
|
109P0412H301FAN AXIAL 40X28MM 12VDC WIRE |
3,233 | 14.04 |
|
Datasheet |
San Ace 40 | Box | Active | 12VDC | Square - 40mm L x 40mm H | 28.00mm | - | - | Ball | Tubeaxial | Speed Sensor (Tach) | 37.0dB(A) | 2.34 W | 8700 RPM | 3 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | CSA, TUV, UL | 0.115 lb (52.16 g) |
