DC Brushless Fans (BLDC)
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Voltage - Rated | Size / Dimension | Width | Air Flow | Static Pressure | Bearing Type | Fan Type | Features | Noise | Power (Watts) | RPM | Termination | Ingress Protection | Operating Temperature | Approval Agency | Weight |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
|
8315100322FAN AXIAL 80X38MM 48VDC WIRE |
4,788 | 0.00 |
|
- |
- | Box | Active | 48VDC | Square - 80mm L x 80mm H | 38.15mm | 79.5 CFM (2.23m³/min) | 1.968 in H2O (490.0 Pa) | Ball | Tubeaxial | Auto Restart | 61.0dB(A) | 11.5 W | 10000 RPM | 2 Wire Leads | IP20 | -4 ~ 167°F (-20 ~ 75°C) | CCC, CE, CSA, EAC, UL, VDE | - |
|

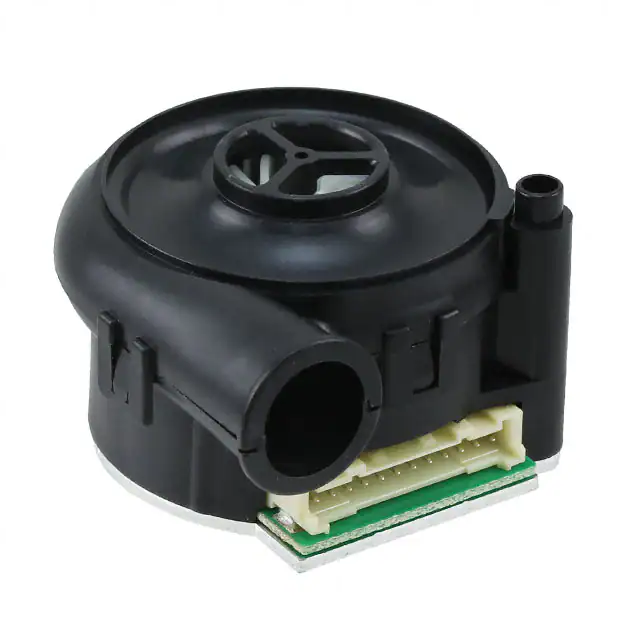

TF037F-2000-FFAN BLOWER 53.8X34.3MM 24VDC |
142 | 153.52 |
|
Datasheet |
TF037F | Tray | Active | 24VDC | Rectangular/Rounded - 53.80mm L x 50.5mm H | 34.30mm | 3.5 CFM (0.098m³/min) | 8.030 in H2O (2000.0 Pa) | Aerodynamic | Blower, Centrifugal | - | 65.0dB(A) | 16.1 W | 31000 RPM | 12 Position Rectangular Connector | - | 32 ~ 122°F (0 ~ 50°C) | - | 0.159 lb (72.12 g) |
|
|
EFB1524SHGP0AXIAL 172X150X50.8MM 24V PWM |
191 | 0.00 |
|
Datasheet |
EFB | Box | Active | 24VDC | Rectangular/Rounded - 172mm L x 150mm H | 50.80mm | 322.4 CFM (9.03m³/min) | 1.265 in H2O (315.0 Pa) | Ball | Tubeaxial | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 62.0dB(A) | 37.2 W | 4500 RPM | 4 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, VDE | - |
|
|
EFB1524LGP0AXIAL 172X150X50.8MM 24V PWM |
192 | 0.00 |
|
Datasheet |
EFB | Box | Active | 24VDC | Rectangular/Rounded - 172mm L x 150mm H | 50.80mm | 195.8 CFM (5.48m³/min) | 0.496 in H2O (123.5 Pa) | Ball | Tubeaxial | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 52.3dB(A) | 12 W | 2800 RPM | 4 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, VDE | - |
|
|
EFB1524HHGP0AXIAL 172X150X50.8MM 24V PWM |
184 | 0.00 |
|
Datasheet |
EFB | Box | Active | 24VDC | Rectangular/Rounded - 172mm L x 150mm H | 50.80mm | 265.8 CFM (7.44m³/min) | 0.814 in H2O (202.8 Pa) | Ball | Tubeaxial | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 59.0dB(A) | 21.6 W | 3700 RPM | 4 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, VDE | - |
|

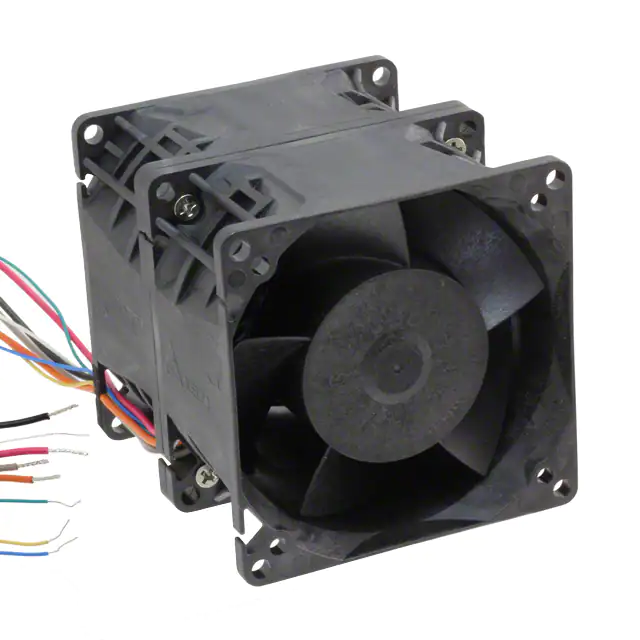

GFM0812DUB7SFAN AXIAL DUAL 80X86MM 12VDC |
1,538 | 55.10 |
|
Datasheet |
GFM - Three-Phase | Box | Active | 12VDC | Square - 80mm L x 80mm H | 86.00mm | 190.6 CFM (5.34m³/min) | 5.749 in H2O (1432.1 Pa) | Ball | Tubeaxial (Dual) | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 82.5dB(A) | 108 W | 13800 Front, 13200 Rear | 4 Wire Leads per Fan | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | 0.993 lb (450.42 g) |
|
|
EFB1524LGP6AXIAL 172X150X50.8 24V PWM IP68 |
192 | 0.00 |
|
Datasheet |
EFB | Box | Active | 24VDC | Rectangular/Rounded - 172mm L x 150mm H | 50.80mm | 195.8 CFM (5.48m³/min) | 0.496 in H2O (123.5 Pa) | Ball | Tubeaxial | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 52.3dB(A) | 12 W | 2800 RPM | 4 Wire Leads | IP68 - Dust Tight, Waterproof | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, VDE | - |
|
109E1312S101FAN AXIAL 127X38MM 12VDC WIRE |
2,024 | 76.35 |
|
Datasheet |
San Ace 127 | Box | Active | 12VDC | Square - 127mm L x 127mm H | 38.00mm | 154.0 CFM (4.31m³/min) | 0.502 in H2O (125.0 Pa) | Ball | Tubeaxial | Speed Sensor (Tach) | 49.0dB(A) | 14.4 W | 3450 RPM | 3 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | CSA, TUV, UL | 0.882 lb (400.07 g) |
|
|
17002099ACRKU190A-E24 |
300 | 0.00 |
|
Datasheet |
- | Box | Active | 24VDC | Round - 190mm Dia | 68.50mm | 335.0 CFM (9.38m³/min) | 2.540 in H2O (632.7 Pa) | Ball | Motorized Impellers | Auto Restart, Locked Rotor Protection | 74.0dB(A) | 80 W | 3200 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, UL | - |
|
|
17002100ACRKU190A-E48 |
300 | 0.00 |
|
Datasheet |
- | Box | Active | 48VDC | Round - 190mm Dia | 68.50mm | 335.0 CFM (9.38m³/min) | 2.540 in H2O (632.7 Pa) | Ball | Motorized Impellers | Auto Restart, Locked Rotor Protection | 74.0dB(A) | 80 W | 3200 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, UL | - |
|
|
EFB1524HHGP6AXIAL 172X150X50.8 24V PWM IP68 |
190 | 0.00 |
|
Datasheet |
EFB | Box | Active | 24VDC | Rectangular/Rounded - 172mm L x 150mm H | 50.80mm | 265.8 CFM (7.44m³/min) | 0.814 in H2O (202.8 Pa) | Ball | Tubeaxial | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 59.0dB(A) | 21.6 W | 3700 RPM | 4 Wire Leads | IP68 - Dust Tight, Waterproof | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, VDE | - |
|
|
EFB1524SHGP6AXIAL 172X150X50.8 24V PWM IP68 |
178 | 0.00 |
|
Datasheet |
EFB | Box | Active | 24VDC | Rectangular/Rounded - 172mm L x 150mm H | 50.80mm | 322.4 CFM (9.03m³/min) | 1.265 in H2O (315.0 Pa) | Ball | Tubeaxial | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 62.0dB(A) | 37.2 W | 4500 RPM | 4 Wire Leads | IP68 - Dust Tight, Waterproof | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, VDE | - |
|
|
THB1748BGP0AXIAL ROUND 172X 50.8MM 48V PWM |
192 | 0.00 |
|
Datasheet |
THB | Box | Active | 48VDC | Round - 172mm Dia | 50.80mm | 607.1 CFM (17.00m³/min) | 3.828 in H2O (953.5 Pa) | Ball | Tubeaxial | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 77.5dB(A) | 163 W | 8000 RPM | 4 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | - |
|
|
17002102ACRKU220A-E48 |
300 | 0.00 |
|
Datasheet |
- | Box | Active | 48VDC | Round - 220mm Dia | 71.00mm | 521.2 CFM (14.76m³/min) | 2.780 in H2O (692.4 Pa) | Ball | Motorized Impellers | Auto Restart, Locked Rotor Protection | 78.0dB(A) | 96 W | 3000 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, UL | - |
|
|
17002101ACRKU220A-E24 |
299 | 0.00 |
|
Datasheet |
- | Box | Active | 24VDC | Round - 220mm Dia | 71.00mm | 521.2 CFM (14.76m³/min) | 2.780 in H2O (692.4 Pa) | Ball | Motorized Impellers | Auto Restart, Locked Rotor Protection | 78.0dB(A) | 93.6 W | 3000 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, UL | - |
|
|
THB1748BGP6AXIAL 172X50.8 48V PWM IP68 |
189 | 0.00 |
|
Datasheet |
THB | Box | Active | 48VDC | Round - 172mm Dia | 50.80mm | 607.1 CFM (17.00m³/min) | 3.828 in H2O (953.5 Pa) | Ball | Tubeaxial | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 77.5dB(A) | 163 W | 8000 RPM | 4 Wire Leads | IP68 - Dust Tight, Waterproof | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | - |
|
|
17002080ACR2206DC48V |
100 | 0.00 |
|
Datasheet |
- | Box | Active | 48VDC | Round - 222mm Dia | 60.00mm | 625.7 CFM(17.72m³/min) | 1.290 in H2O (321.3 Pa) | Ball | Tubeaxial | Auto Restart, Locked Rotor Protection | 72.0dB(A) | 81.6 W | 4000 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, UL | - |
|
|
17002079ACR2206DC24V |
4,975 | 0.00 |
|
Datasheet |
- | Box | Active | 24VDC | Round - 222mm Dia | 60.00mm | 625.7 CFM(17.72m³/min) | 1.290 in H2O (321.3 Pa) | Ball | Tubeaxial | Auto Restart, Locked Rotor Protection | 72.0dB(A) | 72 W | 4000 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, UL | - |
|
|
17002077ACR2072DC24V |
100 | 0.00 |
|
Datasheet |
- | Box | Active | 24VDC | Square - 208mm L x 208mm H | 72.00mm | 731.5 CFM (20.48m³/min) | 1.080 in H2O (269.0 Pa) | Ball | Tubeaxial | Auto Restart, Locked Rotor Protection | 76.0dB(A) | 120 W | 3600 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, UL | - |
|
|
17002085ACR2880DC24V |
3,670 | 0.00 |
|
Datasheet |
- | Box | Active | 24VDC | Square - 280mm L x 280mm H | 80.00mm | 1179.6 CFM (33.40m³/min) | 1.070 in H2O (266.5 Pa) | Ball | Tubeaxial | Auto Restart, Locked Rotor Protection | 77.0dB(A) | 124.8 W | 3000 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, UL | - |
