DC Brushless Fans (BLDC)
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Voltage - Rated | Size / Dimension | Width | Air Flow | Static Pressure | Bearing Type | Fan Type | Features | Noise | Power (Watts) | RPM | Termination | Ingress Protection | Operating Temperature | Approval Agency | Weight |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
THD0948HE-AFAN AXIAL 92X38MM 48VDC WIRE |
139 | 34.76 |
|
Datasheet |
THD | Bulk | Active | 48VDC | Square - 92mm L x 92mm H | 38.00mm | 182.4 CFM (5.11m³/min) | 3.435 in H2O (855.6 Pa) | Ball | Tubeaxial | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 71.0dB(A) | 52.8 W | 13500 RPM | 4 Wire Leads | - | -13 ~ 158°F (-25 ~ 70°C) | CE, cURus, TUV | 0.477 lb (216.36 g) |
|
|
PFB0924DHEP5AXIAL 92X92X38MM 24V PWM IP55 |
277 | 0.00 |
|
Datasheet |
PFB | Box | Active | 24VDC | Square - 92mm L x 92mm H | 38.00mm | 175.0 CFM (4.90m³/min) | 1.819 in H2O (453.1 Pa) | Ball | Tubeaxial | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 66.5dB(A) | 34.8 W | 8000 RPM | 4 Wire Leads | IP55 - Dust Protected, Water Resistant | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, VDE | - |
|
|
09225VE-24Q-CU-0292X92X25MM, 24VDC, 5,600 RPM, 96 |
172 | 0.00 |
|
Datasheet |
09225VE | Box | Active | 24VDC | Square - 92mm L x 92mm H | 25.00mm | 96.4 CFM (2.70m³/min) | 0.600 in H2O (149.5 Pa) | Ball | Tubeaxial | Auto Restart, PWM Control, Speed Sensor (Tach) | 51.0dB | 9.12 W | 5600 RPM | 4 Wire Leads | IP68 - Dust Tight, Waterproof | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, VDE | - |
|
|
PFB0824UHEP6AXIAL 80X80X38MM 24V PWM IP68 |
270 | 0.00 |
|
Datasheet |
PFB | Box | Active | 24VDC | Square - 80mm L x 80mm H | 38.00mm | 96.8 CFM (2.71m³/min) | 1.148 in H2O (286.0 Pa) | Ball | Tubeaxial | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 57.9dB(A) | 16.32 W | 7000 RPM | 4 Wire Leads | IP68 - Dust Tight, Waterproof | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, VDE | - |
|
|
PFB0924GHEP5AXIAL 92X92X38MM 24V PWM IP55 |
279 | 0.00 |
|
Datasheet |
PFB | Box | Active | 24VDC | Square - 92mm L x 92mm H | 38.00mm | 124.2 CFM (3.48m³/min) | 1.004 in H2O (250.0 Pa) | Ball | Tubeaxial | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 60.5dB(A) | 15.12 W | 6000 RPM | 4 Wire Leads | IP55 - Dust Protected, Water Resistant | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, VDE | - |
|
|
PFB0924EHEP6AXIAL 92X92X38MM 24V PWM IP68 |
260 | 0.00 |
|
Datasheet |
PFB | Box | Active | 24VDC | Square - 92mm L x 92mm H | 38.00mm | 103.7 CFM (2.90m³/min) | 0.691 in H2O (172.1 Pa) | Ball | Tubeaxial | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 54.0dB(A) | 7.92 W | 4800 RPM | 4 Wire Leads | IP68 - Dust Tight, Waterproof | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, VDE | - |
|

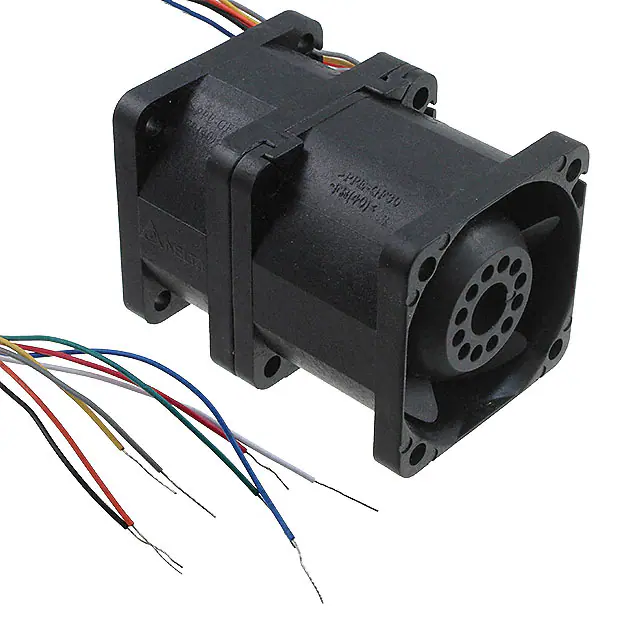

GFM0412SS-DE1PB7QFAN AXIAL DUAL 40X56MM 12VDC |
354 | 38.57 |
|
Datasheet |
GFM - Three-Phase | Box | Active | 12VDC | Square - 40mm L x 40mm H | 56.00mm | 21.6 CFM (0.605m³/min) | 3.416 in H2O (850.9 Pa) | Ball | Tubeaxial (Dual) | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 68.5dB(A) | 12.6 W | 19000 Front, 19250 Rear | 4 Wire Leads per Fan | - | 14 ~ 158°F (-10 ~ 70°C) | cULus, TUV | 0.225 lb (102.06 g) |
|
|

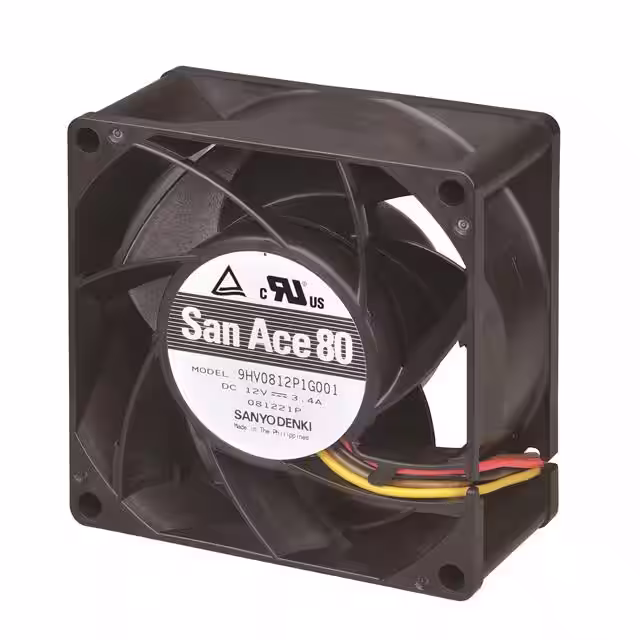

9HV0812P1G601DC AXIAL FAN 80X80X38MM |
504 | 0.00 |
|
Datasheet |
San Ace 80 | Box | Active | 12VDC | Square - 80mm L x 80mm H | 38.00mm | 130.7 CFM (3.66m³/min) | 4.000 in H2O (996.3 Pa) | Ball | Tubeaxial | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 69.0dB(A) | 40.8 W | 14900 RPM | 4 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | CSA, TUV, UL | 0.508 lb (230.42 g) |
|
|
QFR0812LJ-00P6AXIAL 80X80X38MM 12V PWM IP68 |
253 | 0.00 |
|
Datasheet |
QFR | Box | Active | 12VDC | Square - 80mm L x 80mm H | 25.40mm | 33.5 CFM (0.938m³/min) | 0.141 in H2O (35.1 Pa) | Ball | Tubeaxial | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 31.5dB(A) | 1.56 W | 3150 RPM | 4 Wire Leads | IP68 - Dust Tight, Waterproof | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | - |
|
|
QFR0824SHP6AXIAL 80X80X38MM 24V PWM IP68 |
270 | 0.00 |
|
Datasheet |
QFR | Box | Active | 24VDC | Square - 80mm L x 80mm H | 25.00mm | 50.3 CFM (1.41m³/min) | 0.318 in H2O (79.2 Pa) | Ball | Tubeaxial | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 44.2dB(A) | 3.6 W | 4300 RPM | 4 Wire Leads | IP68 - Dust Tight, Waterproof | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, VDE | - |
|
|
THD0924HEP6AXIAL 92X92X38MM 24V PWM IP68 |
283 | 0.00 |
|
Datasheet |
THD | Box | Active | 24VDC | Square - 92mm L x 92mm H | 38.00mm | 145.5 CFM (4.08m³/min) | 2.334 in H2O (581.4 Pa) | Ball | Tubeaxial | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 64.0dB(A) | 27.6 W | 10700 RPM | 4 Wire Leads | IP68 - Dust Tight, Waterproof | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | - |
|
|
12038VE-12R-GUE-4120X120X38MM, 12VDC, 6,400 RPM, |
187 | 0.00 |
|
Datasheet |
12038VE | Box | Active | 12VDC | Square - 120mm L x 120mm H | 38.00mm | 244.0 CFM (6.90m³/min) | 1.490 in H2O (371.1 Pa) | Ball | Tubeaxial | Auto Restart, PWM Control, Speed Sensor (Tach) | 66.0dB | 38.4 W | 6400 RPM | 4 Wire Leads | IP68 - Dust Tight, Waterproof | 14 ~ 140°F (-10 ~ 60°C) | CE, cURus, VDE | - |
|
|
09238RG-24P-GUD-192X92X38MM, 24VDC, 6,700 RPM, 14 |
150 | 0.00 |
|
Datasheet |
09238RG | Box | Active | 24VDC | Square - 92mm L x 92mm H | 38.00mm | 141.0 CFM (3.95m³/min) | 1.040 in H2O (258.0 Pa) | Ball | Tubeaxial | Auto Restart, PWM Control, Speed Sensor (Tach) | 61.0dB | 22.08 W | 6700 RPM | 4 Wire Leads | IP68 - Dust Tight, Waterproof | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, VDE | - |
|
|
PFB0824GHEP6AXIAL 80X80X38MM 24V PWM IP68 |
114 | 0.00 |
|
Datasheet |
PFB | Box | Active | 24VDC | Square - 80mm L x 80mm H | 38.00mm | 86.4 CFM (2.45m³/min) | 0.898 in H2O (223.7 Pa) | Ball | Tubeaxial | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 55.5dB(A) | 10.8 W | 6100 RPM | 4 Wire Leads | IP68 - Dust Tight, Waterproof | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, VDE | - |
|
|
9RA1248P1K0011120X38MM 48VDC RBLS TACH/PWM |
2,844 | 0.00 |
|
Datasheet |
San Ace 120 | Box | Active | 48VDC | Square - 120mm L x 120mm H | 38.00mm | 158.0 CFM (4.42m³/min) | 0.683 in H2O (170.0 Pa) | Ball | Tubeaxial | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 50.0dB(A) | 12 W | 4700 RPM | 4 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | cURus, TUV | - |
|
|
9WPA0612H400160X25MM 12VDC IP68 HIGH PERF TAC |
1,866 | 0.00 |
|
Datasheet |
San Ace 60W | Box | Active | 12VDC | Square - 60mm L x 60mm H | 25.00mm | - | - | Ball | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | - | - | - | 3 Wire Leads | IP68 - Dust Tight, Waterproof | - | cURus, TUV | - |
|
|
PFB1224GHEP0AXIAL 120X38 24VDC PWM |
3,154 | 0.00 |
|
Datasheet |
PFB | Box | Active | 24VDC | Square - 120mm L x 120mm H | 38.00mm | 212.2 CFM (6.01m³/min) | 1.040 in H2O (258.0 Pa) | Ball | Tubeaxial | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 64.0dB(A) | 32.4 W | 4800 RPM | 4 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, VDE | - |
|
|
PFB1224HE-00P0AXIAL 120X38 24V PWM |
1,229 | 0.00 |
|
Datasheet |
PFB | Box | Active | 24VDC | Square - 120mm L x 120mm H | 38.00mm | 201.4 CFM (5.7m³/min) | 1.480 in H2O (368.7 Pa) | Ball | Tubeaxial | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 65.0dB(A) | 24 W | 5800 RPM | 4 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | - |
|
9HV0824G1D001FAN AXIAL 80X38MM 24VDC WIRE |
4,867 | 47.23 |
|
Datasheet |
San Ace 80 | Box | Active | 24VDC | Square - 80mm L x 80mm H | 38.00mm | 130.7 CFM (3.66m³/min) | 4.000 in H2O (996.3 Pa) | Ball | Tubeaxial | Locked Rotor Sensor | 69.0dB(A) | 40.8 W | 14900 RPM | 3 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | CSA, TUV, UL | 0.508 lb (230.42 g) |
|
|
19041170AFAN 120X32MM 24VDC MC24B7X-E2 |
360 | 67.18 |
|
Datasheet |
Muffin | Box | Active | 24VDC | Square - 120mm L x 120mm H | 32.00mm | 102.0 CFM (2.86m³/min) | - | Ball | Tubeaxial | Auto Restart, Locked Rotor Protection, Speed Sensor (Tach) | 47.8dB(A) | 5.5 W | 3700 RPM | 3 Wire Leads | - | - | UL | - |
