DC Brushless Fans (BLDC)
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Voltage - Rated | Size / Dimension | Width | Air Flow | Static Pressure | Bearing Type | Fan Type | Features | Noise | Power (Watts) | RPM | Termination | Ingress Protection | Operating Temperature | Approval Agency | Weight |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
|
04056EA-12S-E6F-A40X40X56MM, 12VDC, 25,200/21,000 |
143 | 0.00 |
|
Datasheet |
04056EA | Box | Active | 12VDC | Square - 40mm L x 40mm H | 56.00mm | 35.3 CFM (0.988m³/min) | 5.170 in H2O (1287.8 Pa) | Ball | Tubeaxial (Dual) | Auto Restart, Dual Speed, PWM Control, Speed Sensor (Tach) | 69.5dB(A) | 33.6 W | 25200 RPM Front, 21000 RPM Rear | 4 Wire Leads | - | 14 ~ 140°F (-10 ~ 60°C) | CE, cULus, VDE | - |
|
19032001AFAN AXIAL 79.8X41.8MM 12V SD12B2 |
233 | 60.19 |
|
Datasheet |
Sprite | Bulk | Active | 12VDC | Square - 79.8mm L x 79.8mm H | 41.80mm | 35.0 CFM (0.980m³/min) | 0.152 in H2O (37.9 Pa) | Ball | Tubeaxial | Auto Restart, Locked Rotor Protection | 47.6dB(A) | 3 W | 3500 RPM | 2 Terminals | - | 14 ~ 158°F (-10 ~ 70°C) | CE, UL | 1.1 lbs (500.0 g) |
|
19028885AFAN AXIAL 119.1X39.1MM MD12B5 |
201 | 50.41 |
|
Datasheet |
Muffin XL | Bulk | Active | 12VDC | Square - 119.13mm L x 119.13mm H | 39.12mm | 110.0 CFM (3.08m³/min) | 0.278 in H2O (69.2 Pa) | Ball | Tubeaxial | Auto Restart, Locked Rotor Protection, Speed Sensor (Tach) | 50.0dB(A) | 6 W | 3330 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | - | 1.4 lbs (635.0 g) |
|
19030615AFAN AXIAL 80X32MM 12VDC ST12B3 |
140 | 41.51 |
|
Datasheet |
Sprint | Bulk | Active | 12VDC | Square - 80mm L x 80mm H | 32.00mm | 33.0 CFM (0.924m³/min) | 0.225 in H2O (56.0 Pa) | Ball | Tubeaxial | Auto Restart, Locked Rotor Protection | 40.9dB(A) | 3.4 W | 3400 RPM | 2 Wire Leads | - | 14 ~ 185°F (-10 ~ 85°C) | CSA, TUV, UL | 0.397 lb (180.08 g) |
|
19032527AFAN AXIAL 120X38.1MM 48V MS48B3 |
193 | 39.40 |
|
Datasheet |
Muffin XP | Bulk | Active | 48VDC | Square - 120mm L x 120mm H | 38.10mm | 110.0 CFM (3.08m³/min) | 0.252 in H2O (62.8 Pa) | Ball | Tubeaxial | Auto Restart, Locked Rotor Protection | 49.1dB(A) | 7.4 W | 2900 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | cUL, UL | 0.551 lb (249.93 g) |
|
|
19032525AFAN AXIAL 120X38.1MM 12V MS12B3 |
205 | 39.06 |
|
Datasheet |
Muffin XP | Bulk | Active | 12VDC | Square - 120mm L x 120mm H | 38.10mm | 110.0 CFM (3.08m³/min) | 0.252 in H2O (62.8 Pa) | Ball | Tubeaxial | Auto Restart, Locked Rotor Protection | 49.1dB(A) | 7 W | 2900 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | cUL, UL | 0.551 lb (249.93 g) |
|

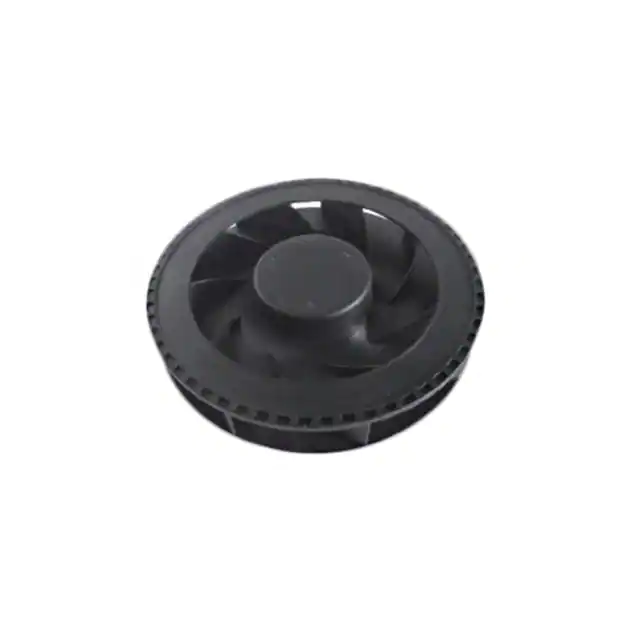

MSI1225H24B-BBRFAN IMP MTRZD 120X25.8MM 24VDC |
128 | 40.24 |
|
Datasheet |
MSI1225 | Box | Active | 24VDC | Round - 120mm Dia | 25.80mm | 58.0 CFM (1.62m³/min) | 0.570 in H2O (142.0 Pa) | Ball | Motorized Impellers | Auto Restart | 54.0dB(A) | - | 3300 RPM | 2 Wire Leads | - | - | CE, cUL, TUV, UL | 0.356 lb (161.48 g) |
|

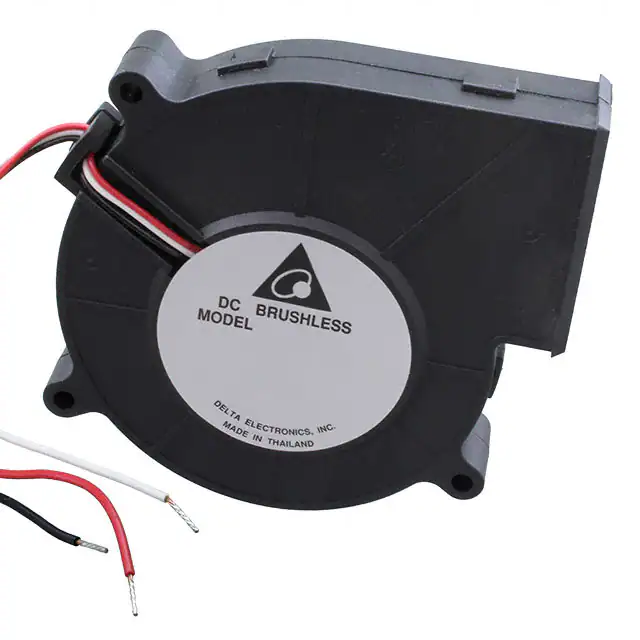

BFB1012HD-04D4LFAN BLOWER 100X22.9MM 12VDC WIRE |
141 | 40.18 |
|
Datasheet |
BFB | Box | Active | 12VDC | Rectangular/Rounded - 100mm L x 80mm H | 22.90mm | 18.3 CFM (0.512m³/min) | 1.620 in H2O (403.5 Pa) | Ball | Blower | Locked Rotor Protection, PWM Control | 50.5dB(A) | 6.96 W | 4000 RPM | 3 Wire Leads | IP55 - Dust Protected, Water Resistant | -40 ~ 185°F (-40 ~ 85°C) | - | 0.276 lb (125.19 g) |
|

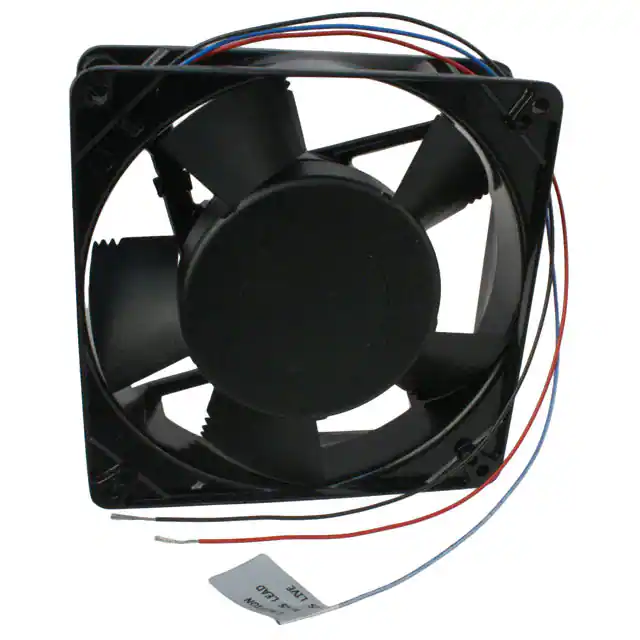

19031377AFAN AXIAL 127X38.1MM 48V GL48B7 |
199 | 78.44 |
|
Datasheet |
Galaxy | Box | Active | 48VDC | Square - 127mm L x 127mm H | 38.10mm | 150.0 CFM (4.20m³/min) | 0.486 in H2O (121.1 Pa) | Ball | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 53.6dB(A) | 15 W | 3250 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | UL | 1.4 lbs (635.0 g) |
|
|
19028887AFAN AXIAL 119.1X39.1MM MD48B5 |
123 | 56.96 |
|
Datasheet |
Muffin XL | Box | Active | 48VDC | Square - 119.13mm L x 119.13mm H | 39.12mm | 110.0 CFM (3.08m³/min) | 0.278 in H2O (69.2 Pa) | Ball | Tubeaxial | Auto Restart, Locked Rotor Protection, Speed Sensor (Tach) | 50.0dB(A) | 5.8 W | 3100 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, UL | 1.4 lbs (635.0 g) |
|
9WPA0812P4G00380X25MM, DC, 12V, SPLASH & DUST |
274 | 56.25 |
|
Datasheet |
San Ace 80W | Bulk | Active | 12VDC | Square - 80mm L x 80mm H | 25.20mm | 81.8 CFM (2.29m³/min) | 0.843 in H2O (210.0 Pa) | Ball | Tubeaxial | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 54.0dB(A) | - | 8250 RPM | 4 Position Rectangular Connector | IP68 - Dust Tight, Waterproof | -4 ~ 158°F (-20 ~ 70°C) | - | - |
|
4418F/2FAN AXIAL 119X25.4MM 48VDC WIRE |
127 | 46.32 |
|
Datasheet |
4400F | Bulk | Active | 48VDC | Square - 119mm L x 119mm H | 25.40mm | 100.0 CFM (2.80m³/min) | - | Ball | Tubeaxial | Speed Sensor (Tach) | 43.0dB(A) | 5.4 W | 2900 RPM | 3 Wire Leads | - | -4 ~ 140°F (-20 ~ 60°C) | CE, CSA, UL, VDE | 0.386 lb (175.09 g) |
|
3318NH3FAN AXIAL 92X32MM 48VDC WIRE |
2,892 | 54.89 |
|
Datasheet |
3300N | Bulk | Active | 48VDC | Square - 92mm L x 92mm H | 32.00mm | 78.0 CFM (2.18m³/min) | - | Ball | Tubeaxial | - | 50.0dB(A) | 6.5 W | 4350 RPM | 2 Wire Leads | - | -4 ~ 167°F (-20 ~ 75°C) | UL | 0.419 lb (190.06 g) |
|
3212JNFAN AXIAL 92X38MM 12VDC WIRE |
136 | 62.53 |
|
Datasheet |
3200J | Bulk | Active | 12VDC | Square - 92mm L x 92mm H | 38.00mm | 76.6 CFM (2.14m³/min) | - | Ball | Tubeaxial | Locked Rotor Protection | 51.0dB(A) | 7.5 W | 6000 RPM | 2 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | - | - |
|

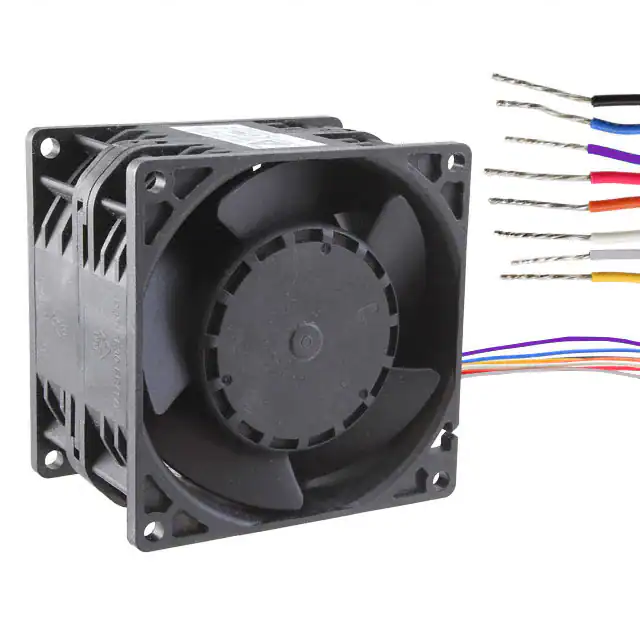

GFC0812DS-CMA8FAN AXIAL DUAL 80X56MM 12VDC |
577 | 44.81 |
|
Datasheet |
GFC | Box | Active | 12VDC | Square - 80mm L x 80mm H | 56.00mm | 90.0 CFM (2.52m³/min) | 3.827 in H2O (953.3 Pa) | Ball | Tubeaxial (Dual) | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 72.6dB(A) | 26.04 W | 12000 Front, 10500 Rear | 4 Wire Leads per Fan | - | 14 ~ 140°F (-10 ~ 60°C) | CE, cURus, TUV | 0.75 lb (340.19 g) |
|
CFM-A751BF-135-533FAN AXIAL 172X51.5MM 12VDC WIRE |
199 | 65.53 |
|
Datasheet |
CFM-A7BF | Box | Active | 12VDC | Rectangular/Rounded - 172mm L x 151.5mm H | 51.50mm | 252.9 CFM (7.08m³/min) | 0.650 in H2O (161.9 Pa) | Ball | Tubeaxial | Auto Restart | 53.3dB(A) | 24.84 W | 3500 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | - |
|
3258J/2H3PFAN AXIAL 92X38MM 48VDC WIRE |
149 | 57.65 |
|
Datasheet |
S-Panther 3250J | Bulk | Active | 48VDC | Square - 92mm L x 92mm H | 38.00mm | 158.0 CFM (4.42m³/min) | - | Ball | Tubeaxial | PWM Control, Speed Sensor (Tach) | 64.0dB(A) | 33.6 W | 7450 RPM | 4 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | CSA, UL, VDE | 0.529 lb (239.95 g) |
|
CFM-A751BF-135-533-22FAN AXIAL 172X51.5MM 12VDC WIRE |
191 | 66.68 |
|
Datasheet |
CFM-A7BF | Box | Active | 12VDC | Rectangular/Rounded - 172mm L x 151.5mm H | 51.50mm | 252.9 CFM (7.08m³/min) | 0.650 in H2O (161.9 Pa) | Ball | Tubeaxial | Auto Restart, PWM Control, Speed Sensor (Tach) | 53.3dB(A) | 24.84 W | 3500 RPM | 4 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | - |
|
|
CFM-A751BF-235-533-22FAN AXIAL 172X51.5MM 24VDC WIRE |
164 | 66.68 |
|
Datasheet |
CFM-A7BF | Box | Active | 24VDC | Rectangular/Rounded - 172mm L x 151.5mm H | 51.50mm | 252.9 CFM (7.08m³/min) | 0.650 in H2O (161.9 Pa) | Ball | Tubeaxial | Auto Restart, PWM Control, Speed Sensor (Tach) | 53.3dB(A) | 24.24 W | 3500 RPM | 4 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | - |
|

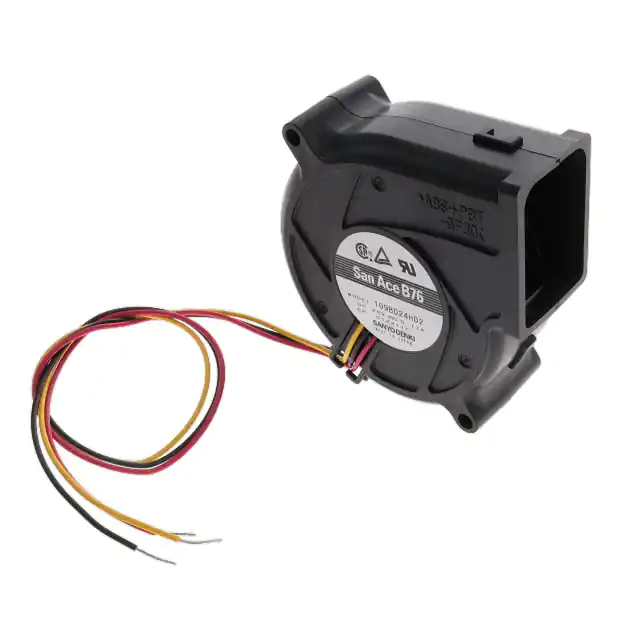

109BD24HD2FAN BLOWER 76X30MM 24VDC WIRE |
1,396 | 40.25 |
|
Datasheet |
San Ace B76 | Tray | Active | 24VDC | Square/Rounded - 76mm L x 75.5mm H | 30.00mm | 12.7 CFM (0.356m³/min) | 0.610 in H2O (151.9 Pa) | Ball | Blower | Locked Rotor Sensor | 41.5dB(A) | 4.08 W | 3000 RPM | 3 Wire Leads | - | -4 ~ 140°F (-20 ~ 60°C) | CSA, TUV, UL | 0.222 lb (100.7 g) |
