DC Brushless Fans (BLDC)
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Voltage - Rated | Size / Dimension | Width | Air Flow | Static Pressure | Bearing Type | Fan Type | Features | Noise | Power (Watts) | RPM | Termination | Ingress Protection | Operating Temperature | Approval Agency | Weight |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
FAD1-08038CBHW12FAN AXIAL 80.5X38MM 12VDC WIRE |
188 | 20.87 |
|
Datasheet |
FAD1-08038 | Bulk | Active | 12VDC | Square - 80.5mm L x 80.5mm H | 38.00mm | 53.3 CFM (1.49m³/min) | 0.222 in H2O (55.3 Pa) | Ball | Tubeaxial | - | 39.9dB(A) | 3.12 W | 3500 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | 0.264 lb (119.75 g) |
|
9HV3612P3K005FAN AXL 36X28MM 12VDC RECT CONN |
124 | 22.36 |
|
Datasheet |
San Ace 36 | Box | Active | 12VDC | Square - 36mm L x 36mm H | 28.00mm | - | - | Ball | Tubeaxial | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 67.0dB(A) | - | 32500 RPM | 4 Position Rectangular Connector | - | -4 ~ 140°F (-20 ~ 60°C) | - | 0.117 lb (53.07 g) |
|

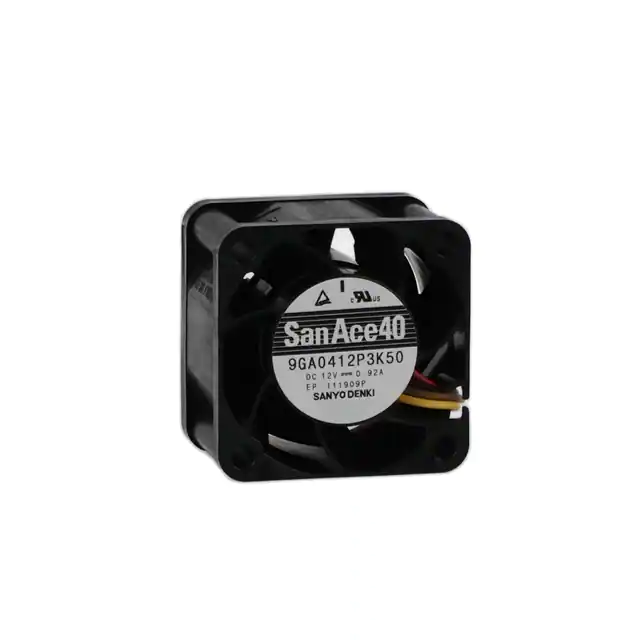

9GA0412P3K50FAN AXL 40X28MM 12VDC RECT CONN |
117 | 18.44 |
|
Datasheet |
San Ace 40 | Box | Active | 12VDC | Square - 40mm L x 40mm H | 28.00mm | - | - | Ball | Tubeaxial | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 61.0dB(A) | - | 22000 RPM | 4 Position Rectangular Connector | - | -4 ~ 140°F (-20 ~ 60°C) | - | 0.117 lb (53.07 g) |
|
CFM-A238B-132-480-20FAN AXIAL 120X37.5MM 12VDC WIRE |
214 | 21.47 |
|
Datasheet |
CFM-120B | Box | Active | 12VDC | Square - 120mm L x 120mm H | 37.50mm | 123.6 CFM (3.46m³/min) | 0.340 in H2O (84.7 Pa) | Ball | Tubeaxial | Auto Restart, Speed Sensor (Tach) | 48.0dB(A) | 10.32 W | 3200 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | - |
|
9G0912G102FAN AXIAL 92X38MM 12VDC WIRE |
177 | 18.93 |
|
Datasheet |
San Ace 92 | Box | Active | 12VDC | Square - 92mm L x 92mm H | 38.00mm | 110.0 CFM (3.08m³/min) | 0.602 in H2O (149.9 Pa) | Ball | Tubeaxial | Locked Rotor Protection | 50.0dB(A) | 13.2 W | 5000 RPM | 2 Wire Leads | - | -4 ~ 140°F (-20 ~ 60°C) | CSA, TUV, UL | 0.397 lb (180.08 g) |
|
9CRA0412P5G03FAN AXIAL DUAL 40X56MM 12VDC |
272 | 25.27 |
|
Datasheet |
San Ace 40 | Box | Active | 12VDC | Square - 40mm L x 40mm H | 56.00mm | 27.2 CFM (0.762m³/min) | 1.750 in H2O (435.9 Pa) | Ball | Tubeaxial (Dual) | Counter-Rotating, PWM Control, Speed Sensor (Tach) | 59.0dB(A) | 12 W | 14000 Front, 10400 Rear | 4 Wire Leads per Fan | - | -4 ~ 158°F (-20 ~ 70°C) | CSA, TUV, UL | 0.199 lb (90.26 g) |
|
9RA0812H4001FAN AXIAL 80X25MM 12VDC WIRE |
152 | 18.95 |
|
Datasheet |
San Ace 80 | Bulk | Active | 12VDC | Square - 80mm L x 80mm H | 25.00mm | 32.5 CFM (0.910m³/min) | 0.140 in H2O (34.9 Pa) | Ball | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 27.0dB(A) | 960 mW | 3300 RPM | 3 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | cURus, TUV | - |
|
OD9238-12HBVXEFAN AXIAL 92X38MM 12VDC WIRE |
147 | 27.90 |
|
Datasheet |
OD9238 | Box | Active | 12VDC | Square - 92mm L x 92mm H | 38.00mm | 147.0 CFM (4.12m³/min) | 1.400 in H2O (348.7 Pa) | Ball | Tubeaxial | Auto Restart | 67.1dB(A) | 36 W | 7000 RPM | 2 Wire Leads | - | -4 ~ 149°F (-20 ~ 65°C) | CE, cURus, TUV, UR | - |
|
CFM-A225BF-240-516-20FAN AXIAL 120X25.4MM 24VDC WIRE |
262 | 28.14 |
|
Datasheet |
CFM-120 BF | Box | Active | 24VDC | Square - 120mm L x 120mm H | 25.40mm | 128.0 CFM (3.58m³/min) | 0.470 in H2O (117.1 Pa) | Ball | Tubeaxial | Auto Restart, Speed Sensor (Tach) | 51.7dB(A) | 12.72 W | 4000 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | - |
|
CFM-8038BF-1130-631-20FAN AXIAL 80X38MM 12VDC WIRE |
210 | 28.43 |
|
Datasheet |
CFM-80BF | Box | Active | 12VDC | Square - 80mm L x 80mm H | 38.00mm | 98.6 CFM (2.76m³/min) | 2.700 in H2O (672.6 Pa) | Ball | Tubeaxial | Auto Restart, Speed Sensor (Tach) | 63.2dB(A) | 30.24 W | 13000 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | - |
|

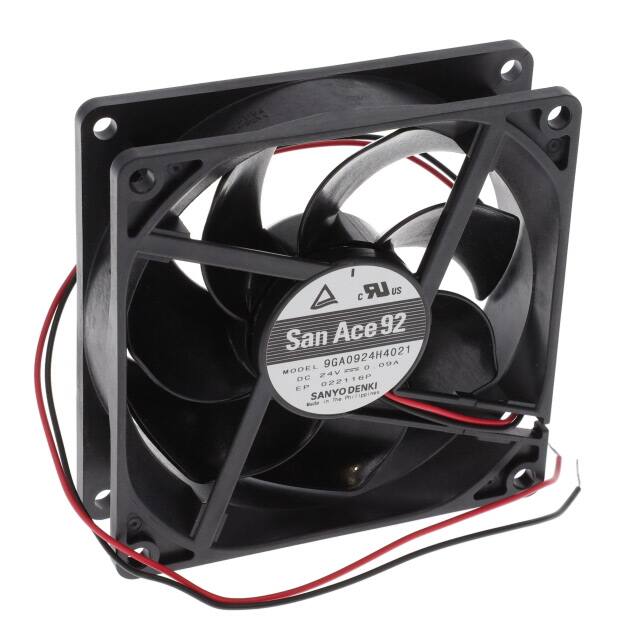

9GA0924H4021FAN AXIAL 92X25MM 24VDC WIRE |
139 | 24.70 |
|
Datasheet |
San Ace 92 | Box | Active | 24VDC | Square - 92mm L x 92mm H | 25.00mm | - | - | Ball | Tubeaxial | Locked Rotor Protection | - | 2.16 W | - | 2 Wire Leads | - | - | - | - |
|
|
9BMB12S201FAN BLOWER 97.1X33MM 12VDC WIRE |
657 | 27.45 |
|
Datasheet |
San Ace B97 | Box | Active | 12VDC | Rectangular/Rounded - 97.1mm L x 95mm H | 33.00mm | 43.1 CFM (1.21m³/min) | 2.450 in H2O (610.0 Pa) | Ball | Blower | Locked Rotor Protection, Speed Sensor (Tach) | 59.0dB(A) | 16.8 W | 5250 RPM | 3 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | cURus, TUV | 0.419 lb (190.06 g) |
(8020BF)(8038BF).jpg)
|
CFM-8038BF-1110-595-22FAN AXIAL 80X38MM 12VDC WIRE |
218 | 29.10 |
|
Datasheet |
CFM-80BF | Box | Active | 12VDC | Square - 80mm L x 80mm H | 38.00mm | 83.8 CFM (2.35m³/min) | 1.960 in H2O (488.2 Pa) | Ball | Tubeaxial | Auto Restart, PWM Control, Speed Sensor (Tach) | 59.5dB(A) | 19.68 W | 11000 RPM | 4 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | - |
|
|
CFM-A225BF-153-577FAN AXIAL 120X25.4MM 12VDC WIRE |
170 | 29.68 |
|
Datasheet |
CFM-120 BF | Box | Active | 12VDC | Square - 120mm L x 120mm H | 25.40mm | 169.5 CFM (4.75m³/min) | 0.820 in H2O (204.3 Pa) | Ball | Tubeaxial | Auto Restart | 57.8dB(A) | 22.44 W | 5300 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | - |
|

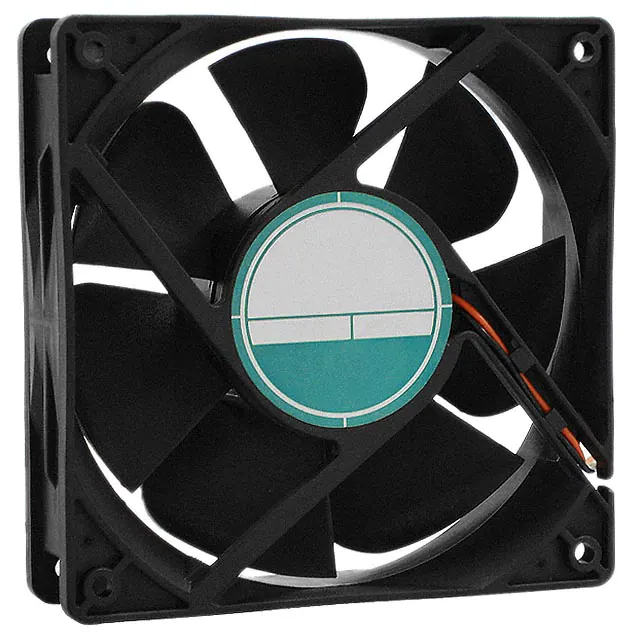

OD1232-48MB02AFAN AXIAL 120X32MM 48VDC WIRE |
459 | 26.16 |
|
Datasheet |
OD1232 | Bulk | Active | 48VDC | Square - 120mm L x 120mm H | 32.00mm | 107.0 CFM (3.00m³/min) | 0.330 in H2O (82.2 Pa) | Ball | Tubeaxial | Locked Rotor Sensor | 48.0dB | - | 3300 RPM | 3 Wire Leads | - | -4 ~ 176°F (-20 ~ 80°C) | CE, cURus | - |
|
9G1212E1011FAN AXIAL 119X38MM 12VDC WIRE |
114 | 23.60 |
|
Datasheet |
San Ace 120 | Box | Active | 12VDC | Square - 119mm L x 119mm H | 38.00mm | 118.0 CFM (3.30m³/min) | 0.401 in H2O (100.0 Pa) | Ball | Tubeaxial | Speed Sensor (Tach) | 46.0dB(A) | 7.32 W | 3100 RPM | 3 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | CSA, TUV, UL | 0.728 lb (330.22 g) |
|
|
9RA0912M4001FAN AXIAL 92X25MM 12VDC WIRE |
108 | 21.89 |
|
Datasheet |
San Ace 92 | Bulk | Active | 12VDC | Square - 92mm L x 92mm H | 25.00mm | 37.1 CFM (1.04m³/min) | 0.100 in H2O (24.9 Pa) | Ball | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 23.0dB(A) | 840 mW | 2450 RPM | 3 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | cURus, TUV | - |
|
9G1212F402FAN AXIAL 119X25MM 12VDC WIRE |
174 | 19.75 |
|
Datasheet |
San Ace 120 | Box | Active | 12VDC | Square - 119mm L x 119mm H | 25.00mm | 70.0 CFM (1.96m³/min) | 0.169 in H2O (42.1 Pa) | Ball | Tubeaxial | - | 35.0dB(A) | 2.28 W | 2250 RPM | 2 Wire Leads | - | 14 ~ 140°F (-10 ~ 60°C) | CSA, TUV, UL | 0.529 lb (239.95 g) |
|

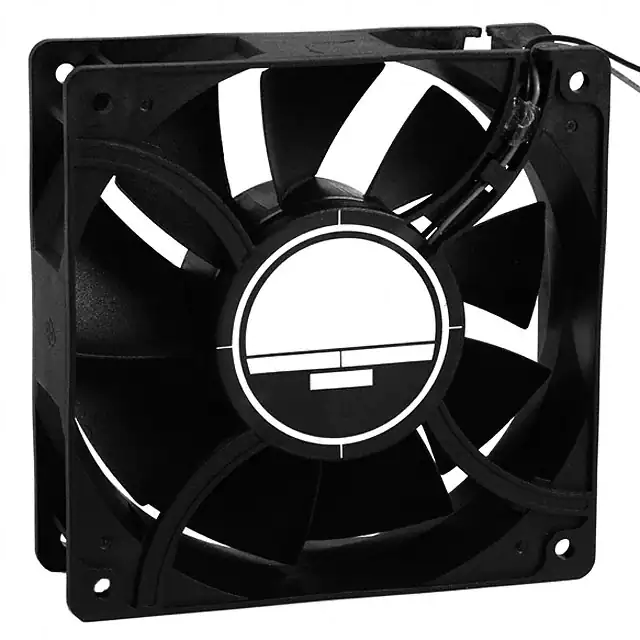

OD1238-24MBXCFAN AXIAL 120X38.5MM 24VDC WIRE |
607 | 30.35 |
|
Datasheet |
OD1238 XC | Bulk | Active | 24VDC | Square - 120mm L x 120mm H | 38.50mm | 175.0 CFM (4.90m³/min) | 0.510 in H2O (127.0 Pa) | Ball | Tubeaxial | Auto Restart | 57.0dB | 16 W | 3800 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | cURus, TUV | - |
|
9G1224H4011FAN AXIAL 119X25MM 24VDC WIRE |
232 | 20.05 |
|
Datasheet |
San Ace 120 | Box | Active | 24VDC | Square - 119mm L x 119mm H | 25.00mm | 88.0 CFM (2.46m³/min) | 0.257 in H2O (64.0 Pa) | Ball | Tubeaxial | Speed Sensor (Tach) | 40.0dB(A) | 4.08 W | 2850 RPM | 3 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | CSA, TUV, UL | 0.529 lb (239.95 g) |
