DC Brushless Fans (BLDC)
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Voltage - Rated | Size / Dimension | Width | Air Flow | Static Pressure | Bearing Type | Fan Type | Features | Noise | Power (Watts) | RPM | Termination | Ingress Protection | Operating Temperature | Approval Agency | Weight |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

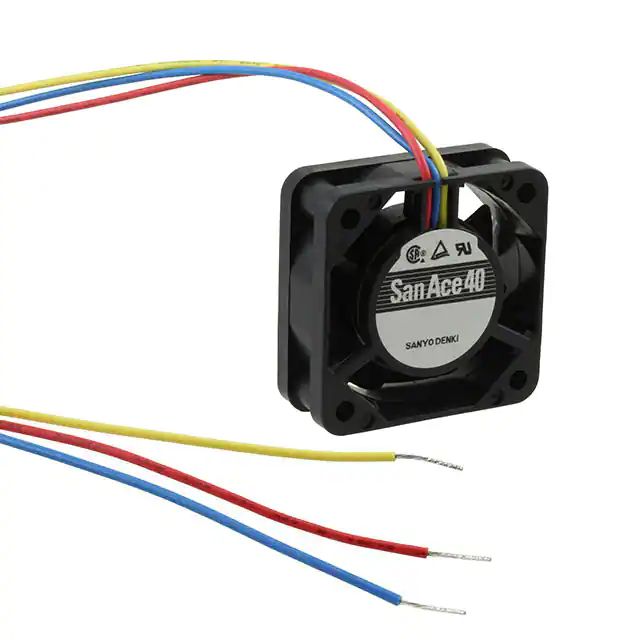

109P0412S701FAN AXIAL 40X15MM 12VDC WIRE |
106 | 13.07 |
|
Datasheet |
San Ace 40 | Box | Active | 12VDC | Square - 40mm L x 40mm H | 15.00mm | 7.1 CFM (0.199m³/min) | 0.369 in H2O (91.9 Pa) | Ball | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 32.0dB(A) | 2.16 W | 8600 RPM | 3 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | CSA, TUV, UL | 0.071 lb (32.21 g) |
|
9A0624G4011FAN AXIAL 60X25MM 24VDC WIRE |
294 | 12.90 |
|
Datasheet |
San Cooler 60 | Box | Active | 24VDC | Square - 60mm L x 60mm H | 25.00mm | 27.6 CFM (0.773m³/min) | 0.351 in H2O (87.3 Pa) | Ball | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 39.0dB(A) | 3.12 W | 5600 RPM | 3 Wire Leads | - | -4 ~ 140°F (-20 ~ 60°C) | CSA, TUV, UL | 0.176 lb (80.00 g) |
(7025B).jpg)
|

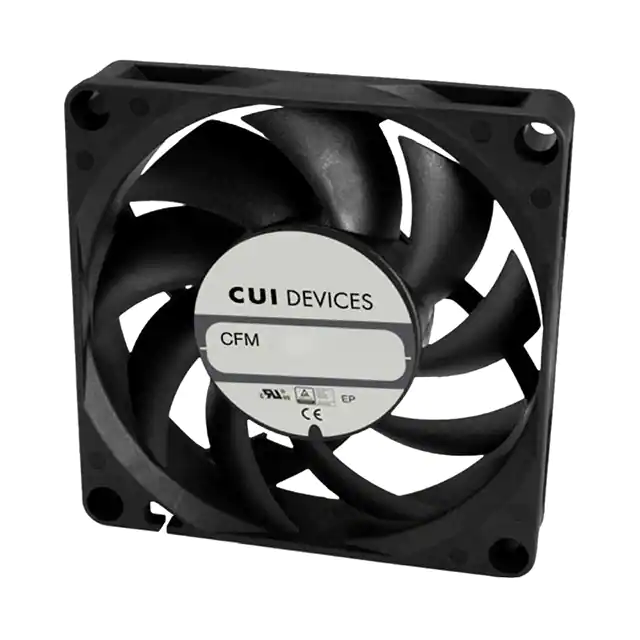

CFM-7025B-150-443-22FAN AXIAL 70X25.2MM 12VDC WIRE |
219 | 13.83 |
|
Datasheet |
CFM-70B | Box | Active | 12VDC | Square - 70mm L x 70mm H | 25.20mm | 43.0 CFM (1.20m³/min) | 0.340 in H2O (84.7 Pa) | Ball | Tubeaxial | Auto Restart, PWM Control, Speed Sensor (Tach) | 41.9dB(A) | 6 W | 5000 RPM | 4 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | - |
(8020BF)(8038BF).jpg)
|

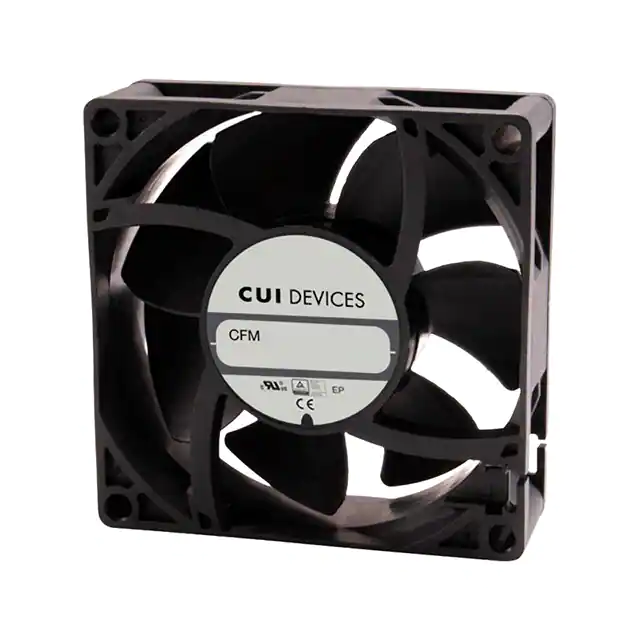

CFM-8020BF-155-444-22FAN AXIAL 80X20MM 12VDC WIRE |
203 | 13.83 |
|
Datasheet |
CFM-80BF | Box | Active | 12VDC | Square - 80mm L x 80mm H | 20.00mm | 53.9 CFM (1.51m³/min) | 0.350 in H2O (87.2 Pa) | Ball | Tubeaxial | Auto Restart, PWM Control, Speed Sensor (Tach) | 44.5dB(A) | 5.4 W | 5500 RPM | 4 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | - |
|

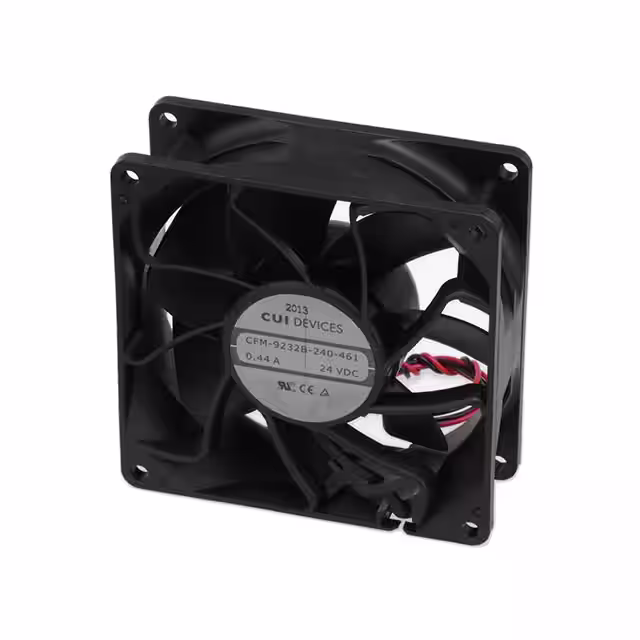

CFM-9232B-240-461FAN AXIAL 92.2X32MM 24VDC WIRE |
112 | 14.47 |
|
Datasheet |
CFM-92B | Box | Active | 24VDC | Square - 92.2mm L x 92.2mm H | 32.00mm | 82.2 CFM (2.30m³/min) | 0.400 in H2O (99.6 Pa) | Ball | Tubeaxial | Auto Restart | 46.2dB(A) | 8.64 W | 4000 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | - |
|
OD1238-12HSSFAN AXIAL 120X38.5MM 12VDC WIRE |
296 | 16.08 |
|
Datasheet |
OD1238 | Box | Active | 12VDC | Square - 120mm L x 120mm H | 38.50mm | 105.0 CFM (2.94m³/min) | 0.270 in H2O (67.3 Pa) | Sealed Sleeve | Tubeaxial | - | 47.0dB | 4.7 W | 2800 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | cURus, TUV | - |
|
109P0405M701FAN AXIAL 40X15MM BALL 5VDC WIRE |
794 | 13.23 |
|
Datasheet |
San Ace 40 | Box | Active | 5VDC | Square - 40mm L x 40mm H | 15.00mm | 5.3 CFM (0.148m³/min) | 0.213 in H2O (53.0 Pa) | Ball | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 24.0dB(A) | 1.05 W | 6500 RPM | 3 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | CSA, TUV, UL | 0.071 lb (32.21 g) |
|
9A0912H4011FAN AXIAL 92X25MM 12VDC WIRE |
218 | 13.07 |
|
Datasheet |
San Cooler 92 | Box | Active | 12VDC | Square - 92mm L x 92mm H | 25.00mm | 51.2 CFM (1.43m³/min) | 0.177 in H2O (44.1 Pa) | Ball | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 33.0dB(A) | 2.52 W | 3150 RPM | 3 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | CSA, TUV, UL | 0.222 lb (100.7 g) |
|

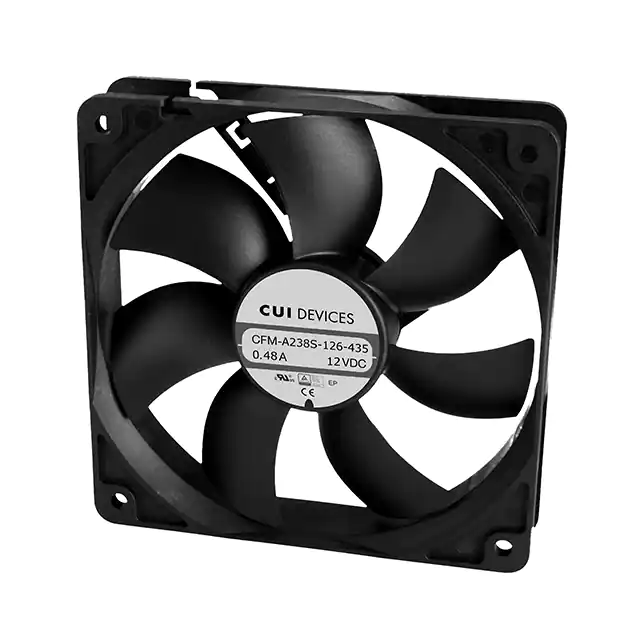

CFM-A238S-126-435-20FAN AXIAL 120X37.5MM 12VDC WIRE |
483 | 14.10 |
|
Datasheet |
CFM-120S | Box | Active | 12VDC | Square - 120mm L x 120mm H | 37.50mm | 100.7 CFM (2.82m³/min) | 0.240 in H2O (59.8 Pa) | Sleeve | Tubeaxial | Auto Restart, Speed Sensor (Tach) | 43.5dB(A) | 5.76 W | 2600 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | - |
|
E9225E12B1-FSRFAN AXIAL 92X25MM 12VDC WIRE |
109 | 13.75 |
|
Datasheet |
E9225 | Bulk | Active | 12VDC | Square - 92mm L x 92mm H | 25.00mm | 56.0 CFM (1.57m³/min) | 0.280 in H2O (69.7 Pa) | Ball | Tubeaxial | Speed Sensor (Tach), Thermal Overload Protector (TOP) | 39.0dB(A) | - | 3600 RPM | 3 Wire Leads | - | - | CE, cUL, TUV, UL | 0.245 lb (111.13 g) |
|
|
109P0624M7D01FAN AXIAL 60X15MM 24VDC WIRE |
154 | 13.38 |
|
Datasheet |
San Ace 60 | Box | Active | 24VDC | Square - 60mm L x 60mm H | 15.00mm | 10.6 CFM (0.297m³/min) | 0.091 in H2O (22.7 Pa) | Ball | Tubeaxial | Locked Rotor Sensor | 25.0dB(A) | 960 mW | 3100 RPM | 3 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | CSA, TUV, UL | 0.133 lb (60.33 g) |
|
109P0512H702FAN AXIAL 52X15MM 12VDC WIRE |
136 | 13.38 |
|
Datasheet |
San Ace 52 | Box | Active | 12VDC | Square - 52mm L x 52mm H | 15.00mm | 9.0 CFM (0.252m³/min) | 0.128 in H2O (31.8 Pa) | Ball | Tubeaxial | Locked Rotor Protection | 27.0dB(A) | 1.2 W | 4600 RPM | 2 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | CSA, TUV, UL | 0.122 lb (55.34 g) |
B.jpg)
|

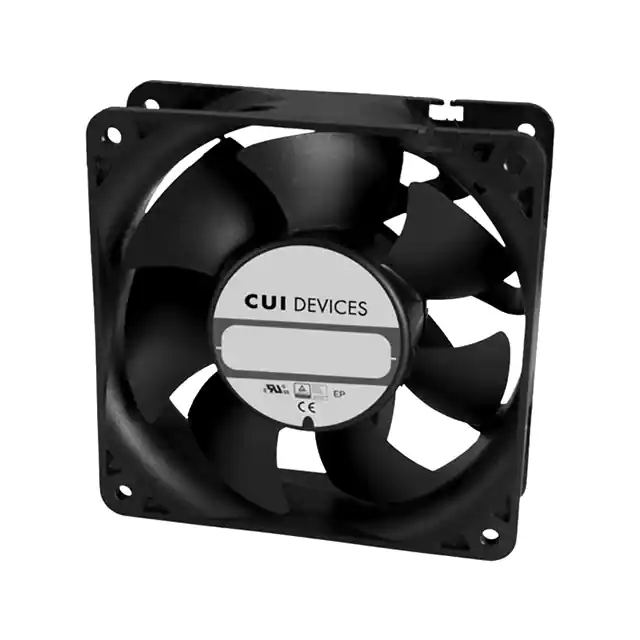

CFM-A225B-120-350-22FAN AXIAL 120X25.4MM 12VDC WIRE |
158 | 14.77 |
|
Datasheet |
CFM-120B | Box | Active | 12VDC | Square - 120mm L x 120mm H | 25.40mm | 69.7 CFM (1.95m³/min) | 0.100 in H2O (24.9 Pa) | Ball | Tubeaxial | Auto Restart, PWM Control, Speed Sensor (Tach) | 37.8dB(A) | 2.76 W | 2000 RPM | 4 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | - |
|
MS2507E12D-RSRFAN AXIAL 25X7.4MM SLEEVE 12VDC |
232 | 13.58 |
|
Datasheet |
MS2507 | Box | Active | 12VDC | Square - 25mm L x 25mm H | 7.40mm | 2.8 CFM (0.078m³/min) | 0.180 in H2O (44.8 Pa) | Sleeve | Tubeaxial | - | 31.0dB(A) | - | 17000 RPM | - | - | - | CE, cUL, TUV, UL | 0.011 lb (4.99 g) |
|

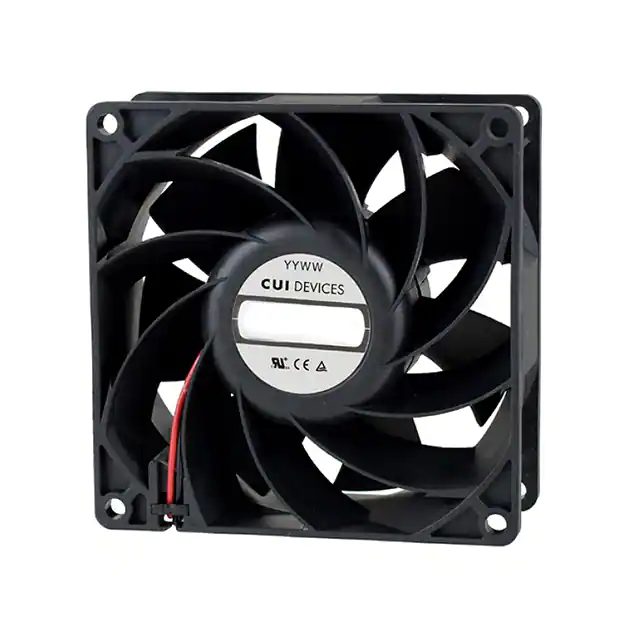

CFM-9232S-250-509FAN AXIAL 92.2X32MM 24VDC WIRE |
171 | 14.24 |
|
Datasheet |
CFM-92S | Box | Active | 24VDC | Square - 92.2mm L x 92.2mm H | 32.00mm | 102.8 CFM (2.88m³/min) | 0.620 in H2O (154.4 Pa) | Sleeve | Tubeaxial | Auto Restart | 51.0dB(A) | 13.2 W | 5000 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | - |
|

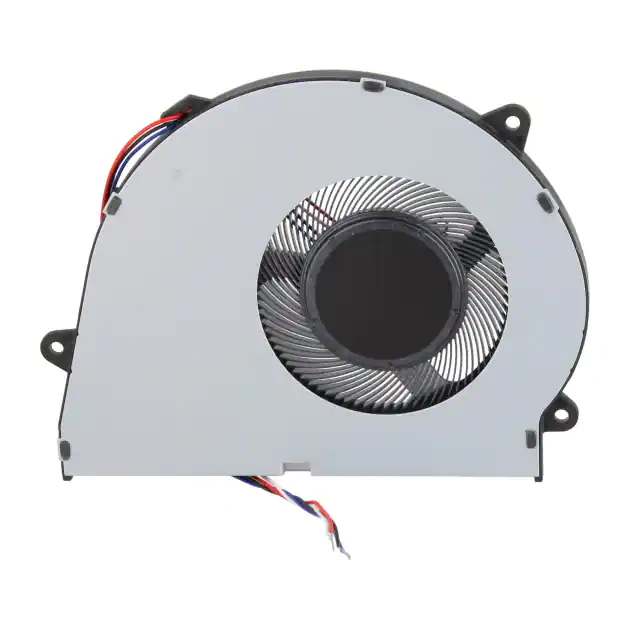

DB0870505H1A-BT0FAN BLOWER 74.5X5MM 5VDC RECT |
217 | 19.01 |
|
Datasheet |
Slim-Line | Bulk | Active | 5VDC | Rectangular/Rounded - 74.5mm L x 90mm H | 5.00mm | 4.6 CFM (0.129m³/min) | 0.571 in H2O (142.2 Pa) | Ball | Blower | PWM Control, Speed Sensor (Tach) | 40.9dB(A) | 2.25 W | 4500 RPM | 4 Position Rectangular Connector | IP55 - Dust Protected, Water Resistant | 14 ~ 158°F (-10 ~ 70°C) | - | 0.091 lb (41.28 g) |
6025BF).jpg)
|
CFM-6025BF-290-479-22FAN AXIAL 60X25.4MM 24VDC WIRE |
172 | 18.44 |
|
Datasheet |
CFM-60BF | Box | Active | 24VDC | Square - 60mm L x 60mm H | 25.40mm | 43.1 CFM (1.21m³/min) | 0.720 in H2O (179.3 Pa) | Ball | Tubeaxial | Auto Restart, PWM Control, Speed Sensor (Tach) | 47.9dB(A) | 10.08 W | 9000 RPM | 4 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | - |
|
AFB0712HH-AFAN AXIAL 70X25.4MM 12VDC WIRE |
527 | 14.30 |
|
Datasheet |
AFB | Bulk | Active | 12VDC | Square - 70mm L x 70mm H | 25.40mm | 44.0 CFM (1.23m³/min) | 0.311 in H2O (77.5 Pa) | Ball | Tubeaxial | Locked Rotor Protection | 44.0dB(A) | 3.72 W | 4700 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CSA, UL, VDE | 0.199 lb (90.26 g) |
|
FAD1-12025CBLW12FAN AXIAL 120X25.5MM 12VDC WIRE |
108 | 13.93 |
|
Datasheet |
FAD1-12025 | Bulk | Active | 12VDC | Square - 120mm L x 120mm H | 25.50mm | 71.8 CFM (2.01m³/min) | 0.093 in H2O (23.2 Pa) | Ball | Tubeaxial | - | 34.4dB(A) | 1.8 W | 1800 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | 0.344 lb (156.04 g) |
|
CFM-A225V-227-405-20FAN AXIAL 120X25MM 24VDC WIRE |
107 | 14.35 |
|
Datasheet |
CFM-120V | Tray | Active | 24VDC | Square - 120mm L x 120mm H | 25.00mm | 93.0 CFM (2.60m³/min) | 0.220 in H2O (54.8 Pa) | omniCOOL™ Magnetic Sleeve | Tubeaxial | Auto Restart, Speed Sensor (Tach) | 40.5dB(A) | 4.03 W | 2700 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | 0.357 lb (161.93 g) |
