DC Brushless Fans (BLDC)
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Voltage - Rated | Size / Dimension | Width | Air Flow | Static Pressure | Bearing Type | Fan Type | Features | Noise | Power (Watts) | RPM | Termination | Ingress Protection | Operating Temperature | Approval Agency | Weight |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
FAD1-12038CBJW12FAN AXIAL 120X38.5MM 12VDC WIRE |
206 | 16.41 |
|
Datasheet |
FAD1-12038 | Bulk | Active | 12VDC | Square - 120mm L x 120mm H | 38.50mm | 120.1 CFM (3.36m³/min) | 0.335 in H2O (83.4 Pa) | Ball | Tubeaxial | - | 48.0dB(A) | 7.44 W | 3200 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | 0.518 lb (234.96 g) |
|
109R0624G4021FAN AXIAL 60X25MM 24VDC WIRE |
115 | 14.04 |
|
Datasheet |
San Ace 60 | Box | Active | 24VDC | Square - 60mm L x 60mm H | 25.00mm | 27.5 CFM (0.770m³/min) | 0.351 in H2O (87.3 Pa) | Ball | Tubeaxial | Locked Rotor Protection | 39.0dB(A) | 3.12 W | 5600 RPM | 2 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | CSA, TUV, UL | 0.199 lb (90.26 g) |
|
109P0424D6D01FAN AXIAL 40X20MM 24VDC WIRE |
173 | 14.53 |
|
Datasheet |
San Ace 40 | Box | Active | 24VDC | Square - 40mm L x 40mm H | 20.00mm | 10.9 CFM (0.305m³/min) | 0.498 in H2O (124.0 Pa) | Ball | Tubeaxial | Locked Rotor Sensor | 42.0dB(A) | 3.12 W | 11000 RPM | 3 Wire Leads | - | -4 ~ 140°F (-20 ~ 60°C) | CSA, TUV, UL | 0.101 lb (45.81 g) |
|
AFB0912HH-F00FAN AXIAL 92X25.4MM 12VDC WIRE |
316 | 15.02 |
|
Datasheet |
AFB | Box | Active | 12VDC | Square - 92mm L x 92mm H | 25.40mm | 57.9 CFM (1.62m³/min) | 0.221 in H2O (55.0 Pa) | Ball | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 38.0dB(A) | 3 W | 3200 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CSA, UL, VDE | 0.219 lb (99.34 g) |
|
04020VA-12N-AL-00FAN AXIAL 40X20MM 12VDC WIRE |
292 | 12.50 |
|
Datasheet |
04020VA | Bulk | Active | 12VDC | Square - 40mm L x 40mm H | 20.00mm | 10.2 CFM (0.286m³/min) | 0.310 in H2O (77.2 Pa) | Ball | Tubeaxial | Auto Restart, Locked Rotor Sensor | 32.5dB | 1.3 W | 8500 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | - | - |
|
08020SA-12M-AL-00FAN AXIAL 80X20MM 12VDC WIRE |
101 | 12.99 |
|
Datasheet |
08020SA | Box | Active | 12VDC | Square - 80mm L x 80mm H | 20.00mm | 40.0 CFM (1.12m³/min) | 0.210 in H2O (52.3 Pa) | Ball | Tubeaxial | Locked Rotor Sensor | 37.5dB | 1.56 W | 3700 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | - | 0.176 lb (79.83 g) |
|
|
04020VA-12R-AU-0140X40X20MM, 12VDC, 12,000 RPM, 1 |
310 | 0.00 |
|
Datasheet |
04020VA | Box | Active | 12VDC | Square - 40mm L x 40mm H | 20.00mm | 13.4 CFM (0.375m³/min) | 0.660 in H2O (164.4 Pa) | Ball | Tubeaxial | Auto Restart, PWM Control, Speed Sensor (Tach) | 46.0dB | 3.6 W | 12000 RPM | 4 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cULus, VDE | - |
6025BF).jpg)
|
CFM-6025BF-135-274-22FAN AXIAL 60X25.4MM 12VDC WIRE |
188 | 13.18 |
|
Datasheet |
CFM-60BF | Box | Active | 12VDC | Square - 60mm L x 60mm H | 25.40mm | 16.8 CFM (0.470m³/min) | 0.110 in H2O (27.4 Pa) | Ball | Tubeaxial | Auto Restart, PWM Control, Speed Sensor (Tach) | 27.5dB(A) | 1.08 W | 3500 RPM | 4 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | - |
|
9S0924M4011FAN AXIAL 92X25MM 24VDC WIRE |
179 | 12.58 |
|
Datasheet |
San Ace 92 | Box | Active | 24VDC | Square - 92mm L x 92mm H | 25.00mm | 37.8 CFM (1.06m³/min) | 0.087 in H2O (21.7 Pa) | Ball | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 22.0dB(A) | 1.68 W | 2250 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CSA, TUV, UL | 0.222 lb (100.7 g) |
|
CFM-4020BG-1140-462-20FAN AXIAL 40X20MM 12VDC WIRE |
292 | 16.21 |
|
Datasheet |
CFM-40BG | Box | Active | 12VDC | Square - 40mm L x 40mm H | 20.00mm | 17.5 CFM (0.490m³/min) | 0.890 in H2O (221.7 Pa) | Ball | Tubeaxial | Auto Restart, Speed Sensor (Tach) | 46.2dB(A) | 6 W | 14000 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | - |
|

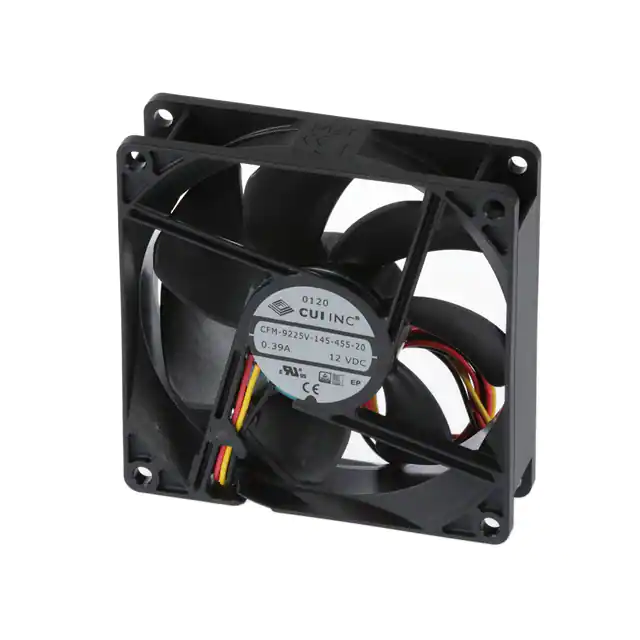

CFM-9225V-145-455-20FAN AXIAL 92X25MM 12VDC WIRE |
1,690 | 13.40 |
|
Datasheet |
CFM-92V | Tray | Active | 12VDC | Square - 92mm L x 92mm H | 25.00mm | 75.0 CFM (2.10m³/min) | 0.350 in H2O (87.2 Pa) | omniCOOL™ Magnetic Sleeve | Tubeaxial | Auto Restart, Speed Sensor (Tach) | 45.5dB(A) | 5.12 W | 4500 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | 0.234 lb (106.14 g) |
|

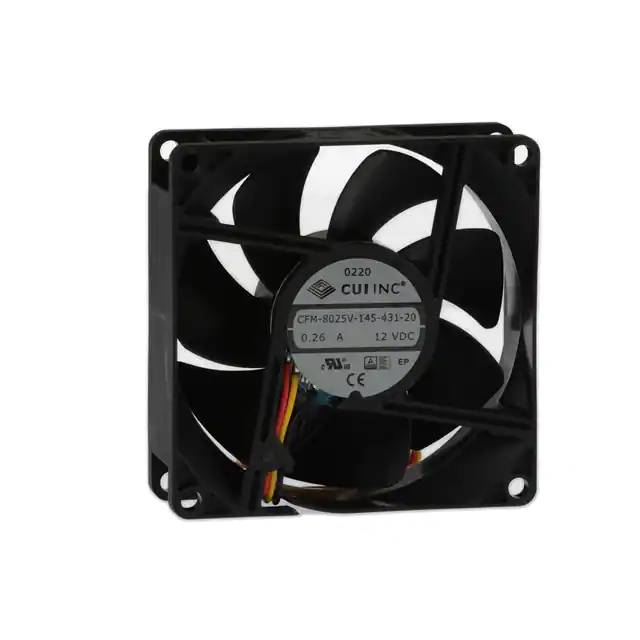

CFM-8025V-145-431-20FAN AXIAL 80X25MM 12VDC WIRE |
132 | 13.40 |
|
Datasheet |
CFM-80V | Tray | Active | 12VDC | Square - 80mm L x 80mm H | 25.00mm | 57.0 CFM (1.60m³/min) | 0.350 in H2O (87.2 Pa) | omniCOOL™ Magnetic Sleeve | Tubeaxial | Auto Restart, Speed Sensor (Tach) | 43.1dB(A) | 3.32 W | 4500 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | 0.201 lb (91.17 g) |
|
OD4028-12MBFAN AXIAL 40X28MM 12VDC WIRE |
981 | 13.69 |
|
Datasheet |
OD4028 | Bulk | Active | 12VDC | Square - 40mm L x 40mm H | 28.00mm | 11.0 CFM (0.308m³/min) | 0.250 in H2O (62.3 Pa) | Ball | Tubeaxial | - | 35.0dB | - | 8000 RPM | 2 Wire Leads | - | -4 ~ 176°F (-20 ~ 80°C) | cURus, TUV | - |
|
9GAX0412P3K0011FAN AXIAL 40X28MM 12VDC WIRE |
374 | 16.96 |
|
Datasheet |
San Ace 40 | Box | Active | 12VDC | Square - 40mm L x 40mm H | 28.00mm | 28.6 CFM (0.801m³/min) | 3.210 in H2O (800.0 Pa) | Ball | Tubeaxial | PWM Control, Speed Sensor (Tach) | 61.0dB(A) | 11.04 W | 22000 RPM | 4 Wire Leads | - | -4 ~ 140°F (-20 ~ 60°C) | CSA, TUV, UL | 0.117 lb (53.07 g) |
|
AFB0824HHBFAN AXIAL 80X15MM 24VDC WIRE |
333 | 13.91 |
|
Datasheet |
AFB | Box | Active | 24VDC | Square - 80mm L x 80mm H | 15.00mm | 35.7 CFM (1.00m³/min) | 0.159 in H2O (39.6 Pa) | Ball | Tubeaxial | Locked Rotor Protection | 37.0dB(A) | 2.4 W | 3400 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CSA, UL, VDE | 0.128 lb (58.06 g) |
|

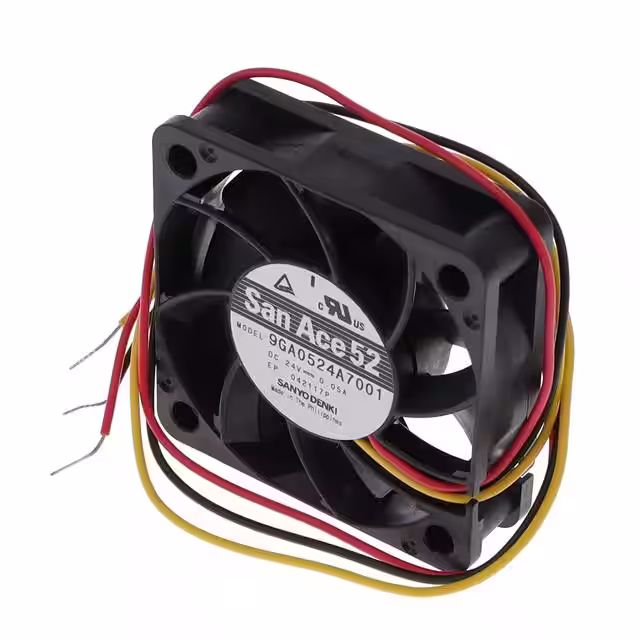

9GA0524A7001FAN AXIAL 52X15MM 24VDC WIRE |
261 | 17.15 |
|
Datasheet |
San Ace 52 | Bulk | Active | 24VDC | Square - 52mm L x 52mm H | 15.00mm | - | - | Ball | Tubeaxial | PWM Control, Speed Sensor (Tach) | - | 1.2 W | - | 4 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | CSA, TUV, UL | - |
|

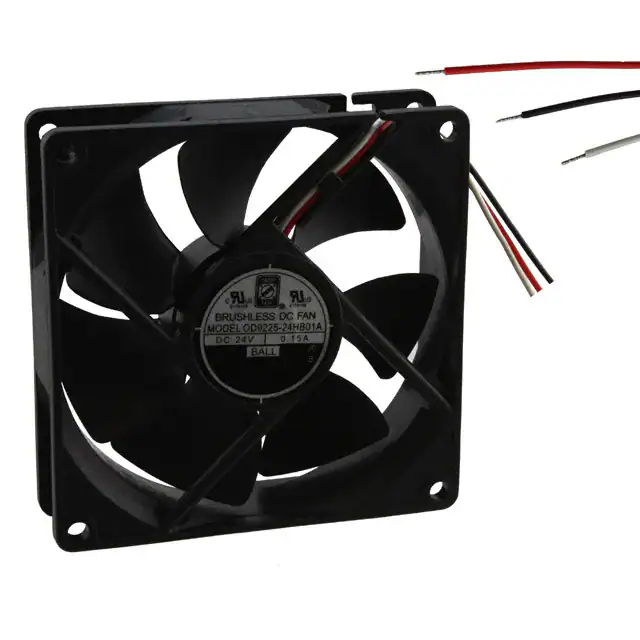

OD9225-24HB01AFAN AXIAL 92.5X25MM 24VDC WIRE |
713 | 17.02 |
|
Datasheet |
OD9225 | Box | Active | 24VDC | Square - 92.5mm L x 92.5mm H | 25.00mm | 53.0 CFM (1.48m³/min) | 0.130 in H2O (32.4 Pa) | Ball | Tubeaxial | Speed Sensor (Tach) | 35.0dB | - | 2900 RPM | 3 Wire Leads | - | -4 ~ 176°F (-20 ~ 80°C) | cURus, TUV | - |
|
9G1212H1011FAN AXIAL 119X38MM 12VDC WIRE |
2,817 | 22.83 |
|
Datasheet |
San Ace 120 | Box | Active | 12VDC | Square - 119mm L x 119mm H | 38.00mm | 99.0 CFM (2.77m³/min) | 0.283 in H2O (70.5 Pa) | Ball | Tubeaxial | Speed Sensor (Tach) | 39.0dB(A) | 4.56 W | 2600 RPM | 3 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | CSA, TUV, UL | 0.728 lb (330.22 g) |
|
DC0382812V2B-2T0FAN AXIAL 38X28MM 12VDC WIRE |
198 | 13.80 |
|
Datasheet |
- | Box | Active | 12VDC | Square - 38mm L x 38mm H | 28.00mm | 20.8 CFM (0.582m³/min) | 1.670 in H2O (416.0 Pa) | Ball | Tubeaxial | Locked Rotor Protection | 59.0dB(A) | 10.2 W | 17000 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | - |
|
E9225X24B-FSR-EM-L17FAN AXIAL 92X25MM 24VDC WIRE |
548 | 17.19 |
|
Datasheet |
E9225 | Bulk | Active | 24VDC | Square - 92mm L x 92mm H | 25.00mm | 60.0 CFM (1.68m³/min) | 0.320 in H2O (79.7 Pa) | Ball | Tubeaxial | Thermal Overload Protector (TOP) | 43.0dB(A) | - | 4000 RPM | 2 Wire Leads | IP57 - Dust Protected, Waterproof | - | CE, cUL, TUV, UL | 0.245 lb (111.13 g) |
