DC Brushless Fans (BLDC)
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Voltage - Rated | Size / Dimension | Width | Air Flow | Static Pressure | Bearing Type | Fan Type | Features | Noise | Power (Watts) | RPM | Termination | Ingress Protection | Operating Temperature | Approval Agency | Weight |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
|
OD280-48LBDC FAN 48V 280X89MM |
2,580 | 0.00 |
|
Datasheet |
OD280 | Bulk | Active | 48VDC | Square - 280mm L x 280mm H | 89.00mm | 870.0 CFM (24.36m³/min) | 0.550 in H2O (137.0 Pa) | Ball | Tubeaxial | - | 48.0dB(A) | 27 W | 1800 RPM | 2 Wire Leads | - | 5 ~ 149°F (-15 ~ 65°C) | cURus, TUV | - |
|

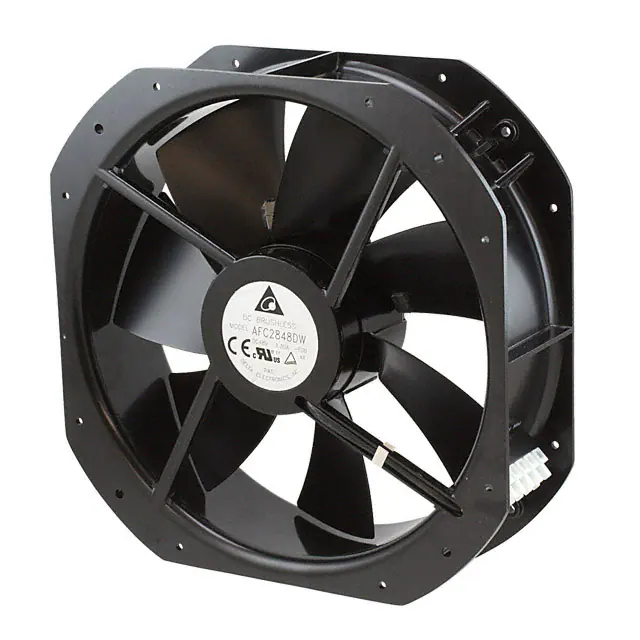

AFC2848DW-F00FAN AXIAL 280X80MM 48VDC WIRE |
2,123 | 283.50 |
|
Datasheet |
AFC | Bulk | Obsolete | 48VDC | Square - 280mm L x 280mm H | 80.00mm | 1199.6 CFM (33.59m³/min) | 0.972 in H2O (242.1 Pa) | Ball | Tubeaxial | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 70.0dB(A) | 105.6 W | 2750 RPM | 4 Wire Leads | - | 14 ~ 140°F (-10 ~ 60°C) | CE, TUV, UL | 5.5 lbs (2.5 kg) |
|
2218/2TDODC TUBEAXIAL FAN |
1,878 | 0.00 |
|
- |
- | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
2214/2TDODC TUBEAXIAL FAN |
2,019 | 0.00 |
|
- |
- | Bulk | Active | 24VDC | Square - 225mm L x 225mm H | 80.00mm | 589.0 CFM (16.49m³/min) | - | Ball | Tubeaxial | - | 59.0dB(A) | 50 W | 3000 RPM | Terminal Block | - | -4 ~ 140°F (-20 ~ 60°C) | - | - |
|
|
W1G250-CI35-52FAN AXIAL 320X85MM 24VDC WIRE |
3,461 | 0.00 |
|
Datasheet |
W1G250 | - | Obsolete | 24VDC | Round - 320mm Dia | 85.00mm | 1054.0 CFM (29.51m³/min) | - | Ball | Tubeaxial | - | 70.0dB(A) | - | - | 2 Wire Leads | - | - | - | 4 lbs (1.8 kg) |
|
|
A1G280-AA79-11FAN AXIAL 292X77.7MM 12VDC WIRE |
2,250 | 296.77 |
|
Datasheet |
A1G280 | Bulk | Active | 12VDC | Round - 292mm Dia | 77.70mm | 1065.0 CFM (29.82m³/min) | - | Ball | Tubeaxial | Speed Sensor (Tach) | 63.0dB(A) | 90 W | 2350 RPM | 3 Wire Leads | - | - | - | 3.5 lbs (1.6 kg) |
|
|
R1G175-AB63-41DC BACKWARD-CURVED MOTORIZED IMP |
3,868 | 0.00 |
|
- |
R1G175 | Bulk | Active | 24VDC | Round - 175mm Dia | 69.00mm | - | - | Ball | Motorized Impellers | PWM Control, Speed Sensor (Tach) | - | 34 W | 3100 RPM | 4 Wire Leads | IP44 | -13 ~ 140°F (-25 ~ 60°C) | CSA, UL | - |
|
|
RER175-42/18/2TDPUS-FORCE EC RADIAL BLOWER |
3,590 | 0.00 |
|
- |
RER175 | Bulk | Active | 48VDC | Round - 175mm Dia | 69.00mm | 577 CFM (16.16m³/min) | - | Ball | Tubeaxial | - | - | 166 W | 5400 RPM | 2 Wire Leads | IP54 - Dust Protected, Water Resistant | -4 ~ 149°F (-20 ~ 65°C) | - | - |
|
|
G2G120-AR31-01FAN BLOWER 174X115.0MM 12VDC |
1,348 | 0.00 |
|
Datasheet |
G2G120 | Bulk | Obsolete | 12VDC | Rectangular/Rounded - 174mm L x 190mm H | 115.0mm | 130.0 CFM (3.64m³/min) | - | Ball | Blower | - | 58.0dB(A) | 40 W | - | 2 Wire Leads | - | - | - | 4.5 lbs (2 kg) |
|
|
R1G250-AQ37-52FAN IMP MTRZD 250X89MM 48VDC |
2,970 | 358.95 |
|
- |
R1G250 | Bulk | Active | 48VDC | Round - 250mm Dia | 89.00mm | - | - | Ball | Motorized Impellers | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 73.0dB(A) | 105 W | 2600 RPM | 4 Wire Leads with Splice Terminals | IP42 | -13 ~ 140°F (-25 ~ 60°C) | CCC, CSA, EAC, UL | - |
|
|
R1G250-AQ21-52DC BACKWARD-CURVED MOTORIZED IMP |
1,806 | 384.53 |
|
- |
R1G250 | Bulk | Active | 24VDC | Round - 255mm Dia | 89.00mm | - | - | Ball | Motorized Impellers | PWM Control, Speed Sensor (Tach) | - | 93 W | 2540 RPM | 4 Wire Leads | IP42 | -13 ~ 140°F (-25 ~ 60°C) | CSA, EAC, UL | - |
|

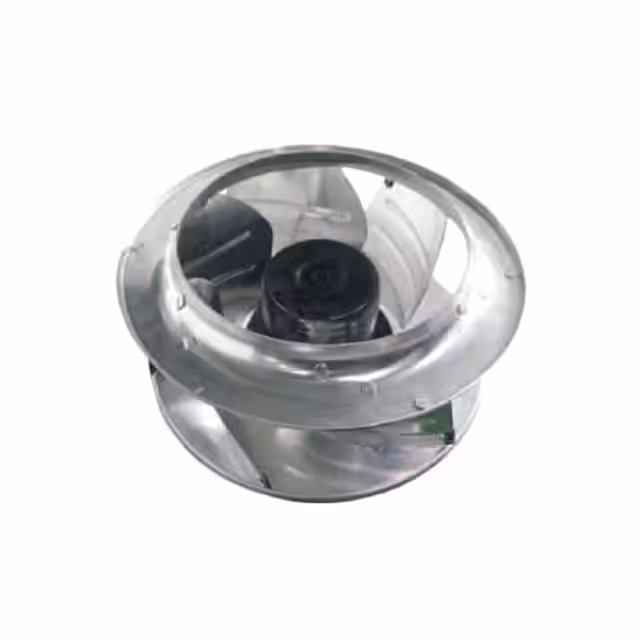

MSI3116H48B-BBRFAN IMP MTRZD 315X161.0MM 48VDC |
3,120 | 327.96 |
|
Datasheet |
MSI3116 | Box | Active | 48VDC | Round - 315mm Dia | 161.0mm | 1675.0 CFM (46.90m³/min) | 3.150 in H2O (784.7 Pa) | Ball | Motorized Impellers | Auto Restart | 76.0dB(A) | - | 2100 RPM | 2 Wire Leads | - | - | CE, cUL, TUV, UL | 6.6 lbs (3 kg) |
|
|
MSI3116H48B1-BBRFAN IMP MTRZD 315X161.0MM 48VDC |
1,184 | 300.23 |
|
Datasheet |
MSI3116 | Box | Active | 48VDC | Round - 315mm Dia | 161.0mm | 1675.0 CFM (46.90m³/min) | 3.150 in H2O (784.7 Pa) | Ball | Motorized Impellers | Auto Restart, Speed Sensor (Tach) | 76.0dB(A) | - | 2100 RPM | 3 Wire Leads | - | - | CE, cUL, TUV, UL | 6.6 lbs (3 kg) |
|
|
MSI3116H48B2-BBRFAN IMP MTRZD 315X161.0MM 48VDC |
3,561 | 300.23 |
|
Datasheet |
MSI3116 | Box | Active | 48VDC | Round - 315mm Dia | 161.0mm | 1675.0 CFM (46.90m³/min) | 3.150 in H2O (784.7 Pa) | Ball | Motorized Impellers | Auto Restart, Locked Rotor Sensor | 76.0dB(A) | - | 2100 RPM | 3 Wire Leads | - | - | CE, cUL, TUV, UL | 6.6 lbs (3 kg) |
|
|
A1G200-AH77-52DC AXIAL FAN |
1,252 | 0.00 |
|
- |
A1G200 | Bulk | Active | 24VDC | Round - 200mm Dia | 65.00mm | - | 0.482 in H2O (120.0 Pa) | Ball | Tubeaxial | PWM Control, Speed Sensor (Tach) | - | 50 W | 2950 RPM | 4 Wire Leads | IP42 | -13 ~ 140°F (-25 ~ 60°C) | CSA, UL | - |
|
|
A1G200-AI77-52DC AXIAL FAN |
2,578 | 0.00 |
|
- |
A1G200 | Bulk | Active | 24VDC | Round - 197mm Dia | 65.00mm | - | 0.482 in H2O (120.0 Pa) | Ball | Tubeaxial | PWM Control, Speed Sensor (Tach) | - | 55 W | 2950 RPM | 4 Wire Leads | IP42 | -13 ~ 140°F (-25 ~ 60°C) | CSA, UL | - |
|
|
MSI3116H48B1+6-BBRFAN IMP MTRZD 315X161.0MM 48VDC |
4,135 | 303.49 |
|
Datasheet |
MSI3116 | Box | Active | 48VDC | Round - 315mm Dia | 161.0mm | 1675.0 CFM (46.90m³/min) | 3.150 in H2O (784.7 Pa) | Ball | Motorized Impellers | Auto Restart, PWM Control, Speed Sensor (Tach) | 76.0dB(A) | - | 2100 RPM | 4 Wire Leads | - | - | CE, cUL, TUV, UL | 6.6 lbs (3 kg) |
|
|
D3G146-AA31-21FAN BLOWER 206X270.0MM 48VDC |
3,940 | 0.00 |
|
Datasheet |
D3G146 | - | Obsolete | 48VDC | Rectangular/Rounded - 206mm L x 219mm H | 270.0mm | 506.0 CFM (14.17m³/min) | - | Ball | Blower | - | 58.0dB(A) | 86 W | - | 2 Wire Leads | - | - | - | 9 lbs (4.1 kg) |
|
K3G097-BP46-01FAN BLOWER CF 144.3X335MM 26VDC |
2,295 | 345.40 |
|
- |
K3G097BP | Bulk | Active | 26VDC | Rectangular/Rounded - 144.3mm L x 163.5mm H | 335.0mm | 662.1 CFM (18.54m³/min) | - | Ball | Blower, Centrifugal (Dual) | Locked Rotor Protection, PWM Control, Thermal Overload Protector (TOP) | 79.0dB(A) | 310 W | 3600 RPM | - | - | -40 ~ 185°F (-40 ~ 85°C) | EAC | 4.5 lbs (2 kg) |
|
|
R1G225-AG15-11FAN IMP MTRZD 225X107.0MM 48VDC |
2,658 | 375.39 |
|
- |
R1G225 | Bulk | Active | 48VDC | Round - 225mm Dia | 107.0mm | - | - | Ball | Motorized Impellers | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | - | 115 W | 2850 RPM | 4 Position Rectangular Connector | IP44 | -13 ~ 140°F (-25 ~ 60°C) | CSA, UL | - |
