DC Brushless Fans (BLDC)
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Voltage - Rated | Size / Dimension | Width | Air Flow | Static Pressure | Bearing Type | Fan Type | Features | Noise | Power (Watts) | RPM | Termination | Ingress Protection | Operating Temperature | Approval Agency | Weight |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
6318/2TDH4PUS-FORCE DC TUBEAXIAL FAN |
3,942 | 0.00 |
|
- |
- | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
DV6248TDADC TUBEAXIAL FAN |
3,256 | 0.00 |
|
- |
DV6248 | Bulk | Active | 48VDC | Round - 171.5mm Dia | 50.80mm | 412.3 CFM (11.54m³/min) | - | Ball | Tubeaxial | - | 69.0dB(A) | 89 W | 5500 RPM | 2 Wire Leads | - | -4 ~ 140°F (-20 ~ 60°C) | CSA, CE, VDE, UL | - |
|
|
6448/12HAU-211DC TUBEAXIAL FAN |
3,452 | 0.00 |
|
- |
- | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
R1G190-AB25-02FAN IMP MTRZD 190X68.5MM 48VDC |
2,494 | 200.69 |
|
- |
R1G190 | Bulk | Active | 48VDC | Round - 190mm Dia | 68.50mm | - | - | Ball | Motorized Impellers | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 68.0dB(A) | 51 W | 2950 RPM | 4 Wire Leads with Splice Terminals | IP22 | -13 ~ 104°F (-25 ~ 40°C) | CCC, EAC | - |
|
|
R1G190-AB27-02FAN IMP MTRZD 190X72MM 24VDC |
1,115 | 229.87 |
|
- |
R1G190 | Bulk | Active | 24VDC | Round - 190mm Dia | 72.00mm | - | - | Ball | Motorized Impellers | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 68.0dB(A) | 51 W | 2950 RPM | 4 Wire Leads with Splice Terminals | IP20 | -13 ~ 104°F (-25 ~ 40°C) | EAC | - |
|
|
8315100100DC CENTRIFUGAL FAN |
1,092 | 0.00 |
|
- |
- | Bulk | Active | 24VDC | Rectangular/Rounded - 64.5mm L x 64.1mm H | 65.50mm | 18.1 CFM (0.507m³/min) | - | Ball | Blower, Centrifugal | - | 58.0dB(A) | 38 W | 38000 RPM | 2 Wire Leads | - | -4 ~ 149°F (-20 ~ 65°C) | CSA, CE, VDE, UL | - |
|
|
8315100111DC CENTRIFUGAL FAN |
1,115 | 0.00 |
|
- |
- | Bulk | Active | 12VDC | Rectangular/Rounded - 66mm L x 64mm H | 65.00mm | 15.9 CFM (0.445m³/min) | - | Ball | Blower, Centrifugal | - | 58.0dB(A) | 30 W | 33000 RPM | 2 Wire Leads | - | -4 ~ 149°F (-20 ~ 65°C) | CSA, CE, VDE, UL | - |
|
|
8315100115DC CENTRIFUGAL FAN |
1,301 | 0.00 |
|
- |
- | Bulk | Active | 24VDC | Rectangular/Rounded - 64.6mm L x 64.5mm H | 65.50mm | 17.7 CFM (0.496m³/min) | 18.066 in H2O (4500.0 Pa) | Ball | Blower, Centrifugal | Auto Restart, PWM Control, Speed Sensor (Tach) | 58.0dB(A) | 36 W | 36500 RPM | 4 Wire Leads | - | -4 ~ 149°F (-20 ~ 65°C) | CCC, CSA, CE, EAC, VDE, UL | - |
|
|
RVE45-3/52/2PDC CENTRIFUGAL FAN |
2,162 | 0.00 |
|
- |
RVE45 | Bulk | Active | 12VDC | Rectangular/Rounded - 64.5mm L x 64.1mm H | 65.50mm | 15.9 CFM (0.445m³/min) | - | Ball | Blower, Centrifugal | - | 58.0dB(A) | 30 W | 33000 RPM | 2 Wire Leads | - | -4 ~ 149°F (-20 ~ 65°C) | CSA, CE, VDE, UL | - |
|
|
55668.06030DC CROSSFLOW BLOWER |
1,905 | 214.44 |
|
- |
- | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
RER190-45/18/2TDMPS-FORCE EC RADIAL BLOWER |
2,041 | 0.00 |
|
- |
RER190 | Bulk | Active | 48VDC | Round - 190mm Dia | 69.00mm | 517.6 CFM (14.49m³/min) | - | Ball | Blower, Centrifugal | PWM Control, Speed Sensor (Tach) | - | 114 W | 3900 RPM | 4 Wire Leads | - | -4 ~ 149°F (-20 ~ 65°C) | - | - |
|
|
RER190-45/14/2TDMPS-FORCE EC RADIAL BLOWER |
3,489 | 0.00 |
|
- |
RER190 | Bulk | Active | 24VDC | Round - 190mm Dia | 69.00mm | 517.6 CFM (14.49m³/min) | - | Ball | Blower | PWM Control, Speed Sensor (Tach) | - | 114 W | 3900 RPM | 4 Wire Leads | - | -4 ~ 149°F (-20 ~ 65°C) | - | - |
|
DV6224TDFAN AXIAL 171.5X50.8MM 24VDC |
2,324 | 235.39 |
|
Datasheet |
DV6200TD | Bulk | Active | 24VDC | Round - 171.5mm Dia | 50.80mm | 412.0 CFM (11.54m³/min) | - | Ball | Tubeaxial | - | 69.0dB(A) | 91 W | 5500 RPM | 2 Wire Leads | - | -4 ~ 140°F (-20 ~ 60°C) | CSA, UL, VDE | 1.8 lbs (816.5 g) |
|
|
55668.34010FAN BLOWER CF 324X96MM 24VDC |
4,152 | 221.73 |
|
- |
QLZ06DC | Bulk | Active | 24VDC | Rectangular - 324mm L x 83mm H | 96.00mm | 129.0 CFM (3.61m³/min) | 0.321 in H2O (80.0 Pa) | - | Blower, Cross Flow | - | - | 17 W | 1800 RPM | Terminal Block | IP20 | 32 ~ 140°F (0 ~ 60°C) | - | - |
|
G1G097-AA07-01DC CENTRIFUGAL BLOWER |
4,787 | 319.84 |
|
- |
G1G097 | Bulk | Active | 48VDC | Rectangular/Rounded - 143mm L x 137mm H | 40.00mm | - | - | Ball | Blower, Centrifugal | PWM Control, Speed Sensor (Tach) | - | 16 W | 2650 RPM | 4 Wire Leads | IP22 | -13 ~ 140°F (-25 ~ 60°C) | CCC | - |
|

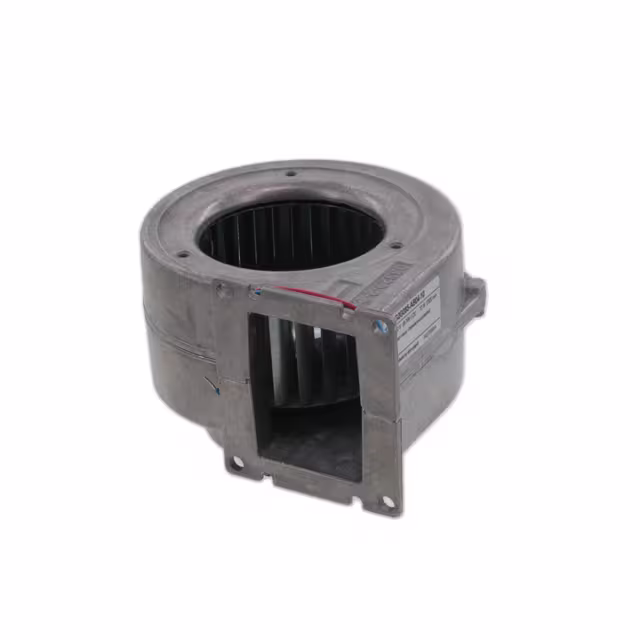

G2G085-AB04-10FAN BLOWER 117X76MM 12VDC WIRE |
2,482 | 220.94 |
|
Datasheet |
G2G085 | Bulk | Obsolete | 12VDC | Rectangular/Rounded - 117mm L x 127mm H | 76.00mm | 47.0 CFM (1.32m³/min) | - | Ball | Blower | - | 52.0dB(A) | 10 W | - | 2 Wire Leads | - | - | - | 2 lbs (907.2 g) |
|

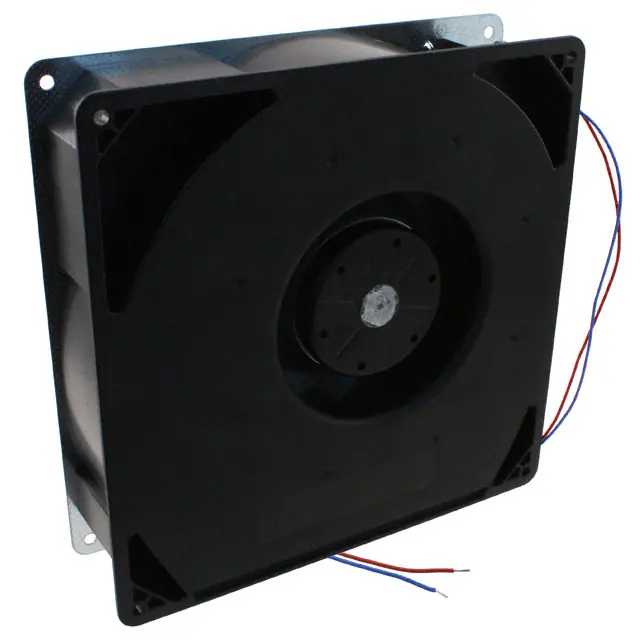

RG160-28/18NTDIFAN BLOWER CF 220X56MM 48VDC |
1,050 | 224.24 |
|
Datasheet |
RG160NTD | Box | Active | 48VDC | Square - 220mm L x 220mm H | 56.00mm | 176.6 CFM (4.94m³/min) | - | Ball | Blower, Centrifugal | Temperature Sensor | - | 58 W | - | 2 Wire Leads | - | - | - | 3.1 lbs (1.4 kg) |
|
|
RER225-63/14/2TDLPS-FORCE EC RADIAL BLOWER |
4,805 | 0.00 |
|
- |
- | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
R1G225-AC73-52FAN IMP MTRZD 225X99MM 48VDC |
3,877 | 0.00 |
|
Datasheet |
R1G225 | - | Obsolete | 48VDC | Round - 225mm Dia | 99.00mm | 625.0 CFM (17.50m³/min) | - | Ball | Motorized Impellers | PWM Control, Speed Sensor (Tach) | 73.0dB(A) | 110 W | - | 4 Wire Leads | - | - | - | 4.6 lbs (2.1 kg) |
|
|
RER225-63/18/2TDLPS-FORCE EC RADIAL BLOWER |
3,967 | 0.00 |
|
- |
- | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
