DC Brushless Fans (BLDC)
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Voltage - Rated | Size / Dimension | Width | Air Flow | Static Pressure | Bearing Type | Fan Type | Features | Noise | Power (Watts) | RPM | Termination | Ingress Protection | Operating Temperature | Approval Agency | Weight |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
109L5748M501FAN AXIAL 172X51MM 48VDC WIRE |
3,497 | 78.94 |
|
Datasheet |
San Ace 172L | Box | Active | 48VDC | Rectangular/Rounded - 172mm L x 150mm H | 51.00mm | 148.0 CFM (4.14m³/min) | 0.271 in H2O (67.6 Pa) | Ball | Tubeaxial | Speed Sensor (Tach) | 41.0dB(A) | 5.28 W | 2000 RPM | 3 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | CSA, TUV, UL | 1.7 lbs (760.0 g) |
|
|
109L5748H501FAN AXIAL 172X51MM 48VDC WIRE |
4,453 | 9.35 |
|
Datasheet |
San Ace 172L | Box | Active | 48VDC | Rectangular/Rounded - 172mm L x 150mm H | 51.00mm | 226.0 CFM (6.33m³/min) | 0.551 in H2O (137.2 Pa) | Ball | Tubeaxial | Speed Sensor (Tach) | 52.0dB(A) | 13.44 W | 3050 RPM | 3 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | CSA, TUV, UL | 1.7 lbs (760.0 g) |
|
|
DV6448DC TUBEAXIAL FAN |
2,775 | 0.00 |
|
- |
- | Bulk | Active | 48VDC | Rectangular/Rounded - 171.5mm L x 159.7mm H | 50.80mm | 312.2 CFM (8.74m³/min) | - | Ball | Tubeaxial | - | 65.0dB(A) | 40 W | 4300 RPM | 2 Wire Leads | - | -4 ~ 167°F (-20 ~ 75°C) | CSA, CE, VDE, UL | - |
|
|
DV5214N/2U-807DC TUBEAXIAL FAN |
3,516 | 0.00 |
|
- |
- | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
OD180APL-48HTBIP69KFAN AXIAL 180X65MM 48VDC TERM |
4,256 | 166.73 |
|
Datasheet |
OD180APL-IP69K | Box | Active | 48VDC | Square - 180mm L x 180mm H | 65.00mm | 460.0 CFM (12.88m³/min) | 1.100 in H2O (274.0 Pa) | Ball | Tubeaxial | Auto Restart | 63.2dB(A) | 50.2 W | 3375 RPM | 2 Terminals | IP69K - Dust Tight, Water Resistant, Waterproof | -4 ~ 149°F (-20 ~ 65°C) | CE, cURus, TUV, UR | - |
|
RER133-41/18/2TDMPFAN IMP MTRZD 133X91MM 48VDC |
1,732 | 142.52 |
|
Datasheet |
RER133TD, S-Force | Bulk | Active | 48VDC | Round - 133mm Dia | 91.00mm | 270.7 CFM (7.58m³/min) | - | Ball | Motorized Impellers | PWM Control, Speed Sensor (Tach) | - | 50 W | 5000 RPM | 4 Wire Leads | - | -4 ~ 149°F (-20 ~ 65°C) | - | 1.9 lbs (900.0 g) |
|

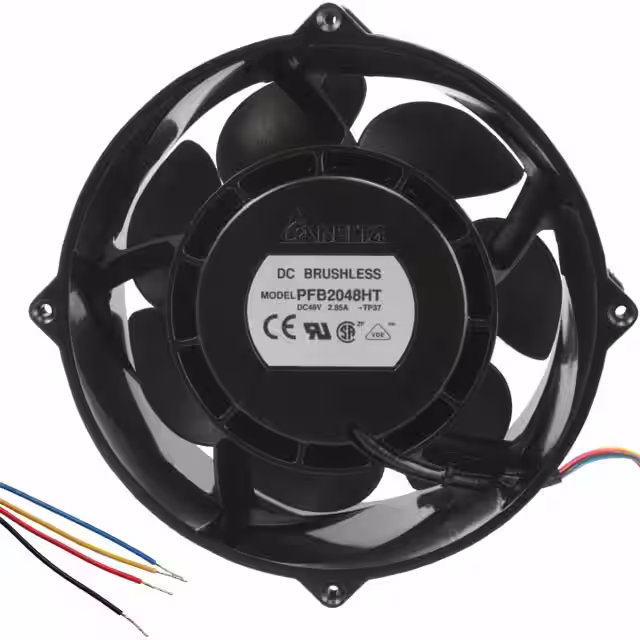

PFB2048HT-TP37FAN AXIAL 208X70MM 48VDC WIRE |
2,893 | 0.00 |
|
Datasheet |
PFB | Bulk | Obsolete | 48VDC | Round - 208mm Dia | 70.00mm | 569.5 CFM (15.95m³/min) | 2.290 in H2O (570.4 Pa) | Ball | Tubeaxial | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 68.5dB(A) | 113.28 W | 4800 RPM | 4 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CSA, UL, VDE | 3.5 lbs (1.6 kg) |
|
ODB22599-24HB10AFAN IMP MTRZD 225X99MM 24VDC |
4,268 | 119.69 |
|
Datasheet |
ODB | Bulk | Active | 24VDC | Round - 225mm Dia | 99.00mm | 835.0 CFM (23.38m³/min) | 2.050 in H2O (510.6 Pa) | Ball | Motorized Impellers | PWM Control, Speed Sensor (Tach) | 55.0dB | 110.4 W | 2500 RPM | 4 Wire Leads | - | 14 ~ 149°F (-10 ~ 65°C) | CE, cURus, TUV, UR | 3.3 lbs (1.5 kg) |
|
|
17001208AFAN AXIAL 24VDC GLD24B3-E3 |
1,727 | 175.18 |
|
Datasheet |
Galaxy | Box | Active | 24VDC | Square - 127mm L x 127mm H | 38.10mm | 150.0 CFM (4.20m³/min) | - | Ball | Tubeaxial | Auto Restart, Locked Rotor Protection | 53.6dB(A) | 15.1 W | 3300 RPM | 2 Wire Leads | IP68 - Dust Tight, Waterproof | 14 ~ 158°F (-10 ~ 70°C) | CE, cUL, UL | - |
|
|
6448/17U-365FAN AXIAL 171.5X50.8MM 48VDC |
3,661 | 168.86 |
|
- |
6400U | Bulk | Active | 48VDC | Rectangular/Rounded - 171.5mm L x 150mm H | 50.80mm | 241.0 CFM (6.75m³/min) | - | Ball | Tubeaxial | Alarm Sensor | 57.0dB(A) | 17 W | 3400 RPM | - | - | - | - | - |
|
|
DV6224/12FAN AXIAL 171.5X50.8MM 24VDC |
4,504 | 169.79 |
|
- |
DV6200 | Bulk | Active | 24VDC | Round - 171.5mm Dia | 50.80mm | 317.8 CFM (8.90m³/min) | - | Ball | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 63.0dB(A) | 40 W | 4300 RPM | 3 Wire Leads | - | -4 ~ 167°F (-20 ~ 75°C) | - | - |
|
|
KFB2348HHUFAN IMP MTRZD 225X99MM 48VDC |
2,538 | 0.00 |
|
Datasheet |
KFB | Box | Obsolete | 48VDC | Round - 225mm Dia | 99.00mm | 771.5 CFM (21.60m³/min) | 2.700 in H2O (672.6 Pa) | Ball | Motorized Impellers | - | 73.5dB(A) | 110 W | 2700 RPM | 2 Wire Leads | - | - | CE, CSA, UL, VDE | 2.6 lbs (1.2 kg) |
|
|
KFB2348HHV-F00FAN IMP MTRZD 225X107.0MM 48VDC |
2,177 | 0.00 |
|
Datasheet |
KFB | Box | Obsolete | 48VDC | Round - 225mm Dia | 107.0mm | 731.5 CFM (20.48m³/min) | 2.670 in H2O (665.1 Pa) | Ball | Motorized Impellers | Locked Rotor Protection, Speed Sensor (Tach) | 73.5dB(A) | 110 W | 2700 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CSA, UL, VDE | 2.6 lbs (1.2 kg) |
|
|
9W1TJ48P0H61FAN BLOWER CF 133X91MM 48VDC |
2,271 | 148.54 |
|
Datasheet |
San Ace 133W | Box | Active | 48VDC | Round - 133mm Dia | 91.00mm | 225.0 CFM (6.30m³/min) | 1.590 in H2O (396.1 Pa) | Ball | Blower, Centrifugal | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 61.0dB(A) | 26.4 W | 4150 RPM | 4 Wire Leads | IP54 - Dust Protected, Water Resistant | -4 ~ 158°F (-20 ~ 70°C) | CSA, TUV, UL | 1.6 lbs (725.7 g) |
|
OD254AP-24HTBIP68FAN IMP MTRZD 254X89MM 24VDC |
3,823 | 175.94 |
|
Datasheet |
OD254AP-IP68 | Box | Active | 24VDC | Round - 254mm Dia | 89.00mm | 830.0 CFM (23.24m³/min) | 0.790 in H2O (196.8 Pa) | Ball | Motorized Impellers | Auto Restart | 62.1dB(A) | 65 W | 2450 RPM | 2 Terminals | IP68 - Dust Tight, Waterproof | -4 ~ 149°F (-20 ~ 65°C) | CE, cURus, TUV, UR | - |
|
|
OD254AP-12HTBIP68FAN IMP MTRZD 254X89MM 12VDC |
3,305 | 175.94 |
|
Datasheet |
OD254AP-IP68 | Box | Active | 12VDC | Round - 254mm Dia | 89.00mm | 830.0 CFM (23.24m³/min) | 0.790 in H2O (196.8 Pa) | Ball | Motorized Impellers | Auto Restart | 62.1dB(A) | 65 W | 2450 RPM | 2 Terminals | IP68 - Dust Tight, Waterproof | -4 ~ 149°F (-20 ~ 65°C) | CE, cURus, TUV, UR | - |
|
|
6318N/2TDPDC TUBEAXIAL FAN |
4,054 | 0.00 |
|
- |
- | Bulk | Active | 48VDC | Round - 171.5mm Dia | 51.00mm | 447.6 CFM (12.53m³/min) | - | Ball | Tubeaxial | Alarm Sensor, Speed Sensor (Tach) | - | 68 W | 5500 RPM | 4 Wire Leads | IP54 - Dust Protected, Water Resistant | -4 ~ 158°F (-20 ~ 70°C) | - | - |
|
|
RET97-25/18/2TDPDC RADIAL BLOWER |
1,357 | 0.00 |
|
- |
RET97 | Bulk | Active | 48VDC | Round - 97mm Dia | 40.50mm | 129.6 CFM (3.63m³/min) | - | Ball | Blower, Centrifugal | Speed Sensor (Tach) | - | 76 W | 6000 RPM | 3 Wire Leads | - | -4 ~ 140°F (-20 ~ 60°C) | - | - |
|
|
OD254AP-48HTBIP68FAN IMP MTRZD 254X89MM 48VDC |
1,622 | 179.62 |
|
Datasheet |
OD254AP-IP68 | Box | Active | 48VDC | Round - 254mm Dia | 89.00mm | 830.0 CFM (23.24m³/min) | 0.790 in H2O (196.8 Pa) | Ball | Motorized Impellers | Auto Restart | 62.1dB(A) | 65 W | 2450 RPM | 2 Terminals | IP68 - Dust Tight, Waterproof | -4 ~ 149°F (-20 ~ 65°C) | CE, cURus, TUV, UR | - |
|
|
R150H2-051-D0550DC AXIAL FAN |
3,040 | 0.00 |
|
Datasheet |
R150 | Box | Active | 24VDC | Rectangular/Rounded - 172.7mm L x 150mm H | 51.00mm | 364.1 CFM (10.31m³/min) | 2.236 in H2O (557.0 Pa) | Ball | Tubeaxial | Auto Restart, Speed Sensor (Tach) | 66.0dB | 48 W | 5000 RPM | 3 Wire Leads | - | - | - | - |
