DC Brushless Fans (BLDC)
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Voltage - Rated | Size / Dimension | Width | Air Flow | Static Pressure | Bearing Type | Fan Type | Features | Noise | Power (Watts) | RPM | Termination | Ingress Protection | Operating Temperature | Approval Agency | Weight |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

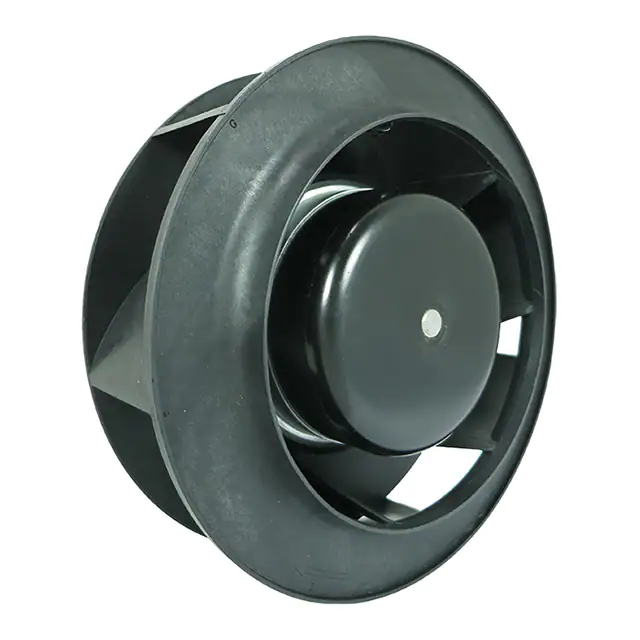

ODB19069-24HB10AFAN IMP MTRZD 189.5X68.5MM 24VDC |
3,407 | 105.32 |
|
Datasheet |
- | Bulk | Active | 24VDC | Round - 189.5mm Dia | 68.50mm | 395.0 CFM (11.06m³/min) | 2.000 in H2O (498.2 Pa) | Ball | Motorized Impellers | PWM Control, Speed Sensor (Tach) | 75.0dB | 108 W | 3200 RPM | 4 Wire Leads | - | 14 ~ 149°F (-10 ~ 65°C) | CE, cURus, TUV, UR | 2.205 lb (1 kg) |
|
|
RER13341142TDMPFAN IMP MTRZD 133X91MM 24VDC |
1,556 | 0.00 |
|
Datasheet |
RER133TD | Box | Active | 24VDC | Round - 133mm Dia | 91.00mm | 270.6 CFM (7.58m³/min) | - | Ball | Motorized Impellers | PWM Control, Speed Sensor (Tach) | - | 50 W | 5000 RPM | 4 Wire Leads | - | -4 ~ 149°F (-20 ~ 65°C) | - | 2 lbs (907.2 g) |
|
9EH5724P5C01FAN AXIAL 51MM BALL 24VDC WIRE |
4,559 | 71.56 |
|
Datasheet |
- | Box | Active | 24VDC | - | 51.00mm | - | - | Ball | Tubeaxial | PWM Control, Speed Sensor (Tach) | 66.0dB(A) | 55.2 W | - | 4 Wire Leads | - | - | - | - |
|
RG160-28/14NMFAN BLOWER CF 220X56MM 24VDC |
1,129 | 133.82 |
|
Datasheet |
RG160N | Bulk | Active | 24VDC | Square - 220mm L x 220mm H | 56.00mm | 81.8 CFM (2.29m³/min) | - | Ball | Blower, Centrifugal | - | 56.0dB(A) | 7 W | 1900 RPM | 2 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | - | 3.1 lbs (1.4 kg) |
|
MSI1967H48B1+6-BBRFAN IMP MTRZD 190X67MM 48VDC |
2,970 | 120.03 |
|
Datasheet |
MSI1967 | Box | Active | 48VDC | Round - 190mm Dia | 67.00mm | 358.0 CFM (10.02m³/min) | 1.830 in H2O (455.8 Pa) | Ball | Motorized Impellers | Auto Restart, PWM Control, Speed Sensor (Tach) | 71.0dB(A) | - | 3000 RPM | 4 Wire Leads | - | - | CE, cUL, TUV, UL | 2.9 lbs (1.3 kg) |
|
|
7114NUFAN AXIAL 150X38 24VDC |
2,462 | 148.49 |
|
- |
7100NU | Bulk | Active | 24VDC | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
DV4112/2NAU-192FAN AXIAL 119X38MM BALL 12VDC |
2,402 | 0.00 |
|
- |
DV4100 | Bulk | Obsolete | 12VDC | Square - 119mm L x 119mm H | 38.00mm | - | - | Ball | Tubeaxial | Speed Sensor (Tach) | - | - | - | - | - | - | - | - |
|
|
109E1724M502FAN AXIAL 172X51MM 24VDC WIRE |
3,625 | 74.34 |
|
Datasheet |
San Ace 172 | Box | Active | 24VDC | Round - 172mm Dia | 51.00mm | 148.0 CFM (4.14m³/min) | 0.271 in H2O (67.6 Pa) | Ball | Tubeaxial | Locked Rotor Protection | 36.0dB(A) | 4.8 W | 2000 RPM | 2 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | CSA, TUV, UL | 1.7 lbs (780.0 g) |
|
OD180APL-12HTBIP68FAN AXIAL 180X65MM 12VDC TERM |
1,919 | 159.36 |
|
Datasheet |
OD180APL-IP68 | Box | Active | 12VDC | Square - 180mm L x 180mm H | 65.00mm | 460.0 CFM (12.88m³/min) | 1.100 in H2O (274.0 Pa) | Ball | Tubeaxial | Auto Restart | 63.2dB(A) | 50.4 W | 3375 RPM | 2 Terminals | IP68 - Dust Tight, Waterproof | -4 ~ 149°F (-20 ~ 65°C) | CE, cURus, TUV, UR | - |
|
|
OD180APL-24HTBIP68FAN AXIAL 180X65MM 24VDC TERM |
1,720 | 159.36 |
|
Datasheet |
OD180APL-IP68 | Box | Active | 24VDC | Square - 180mm L x 180mm H | 65.00mm | 460.0 CFM (12.88m³/min) | 1.100 in H2O (274.0 Pa) | Ball | Tubeaxial | Auto Restart | 63.2dB(A) | 60.2 W | 3375 RPM | 2 Terminals | IP68 - Dust Tight, Waterproof | -4 ~ 149°F (-20 ~ 65°C) | CE, cURus, TUV, UR | - |
|
|
6448/2HP-222DC TUBEAXIAL FAN |
1,843 | 0.00 |
|
- |
- | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
109E5712H501FAN AXIAL 172X51MM 12VDC WIRE |
3,055 | 74.63 |
|
Datasheet |
San Ace 172 | Box | Active | 12VDC | Rectangular/Rounded - 172mm L x 150mm H | 51.00mm | 226.0 CFM (6.33m³/min) | 0.551 in H2O (137.2 Pa) | Ball | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 52.0dB(A) | 14.4 W | 3050 RPM | 3 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | CSA, TUV, UL | 1.7 lbs (760.0 g) |
|
|
109E5712M5D01FAN AXIAL 172X51MM 12VDC WIRE |
4,748 | 74.63 |
|
Datasheet |
San Ace 172 | Box | Active | 12VDC | Rectangular/Rounded - 172mm L x 150mm H | 51.00mm | 148.0 CFM (4.14m³/min) | 0.271 in H2O (67.6 Pa) | Ball | Tubeaxial | Locked Rotor Sensor | 41.0dB(A) | 5.76 W | 2000 RPM | 3 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | CSA, TUV, UL | 1.7 lbs (760.0 g) |
|
|
109E1724F5D01FAN AXIAL 172X51MM 24VDC WIRE |
1,575 | 74.63 |
|
Datasheet |
San Ace 172 | Box | Active | 24VDC | Round - 172mm Dia | 51.00mm | 180.0 CFM (5.04m³/min) | 0.382 in H2O (95.1 Pa) | Ball | Tubeaxial | Locked Rotor Sensor | 42.0dB(A) | 8.4 W | 2500 RPM | 3 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | CSA, TUV, UL | 1.7 lbs (780.0 g) |
|
|
109E1748H502FAN AXIAL 172X51MM 48VDC WIRE |
4,630 | 75.95 |
|
Datasheet |
San Ace 172 | Box | Active | 48VDC | Round - 172mm Dia | 51.00mm | 226.0 CFM (6.33m³/min) | 0.551 in H2O (137.2 Pa) | Ball | Tubeaxial | Locked Rotor Protection | 47.0dB(A) | 13.44 W | 3050 RPM | 2 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | CSA, TUV, UL | 1.7 lbs (780.0 g) |
|
|
109E5748H502FAN AXIAL 172X51MM 48VDC WIRE |
1,426 | 75.95 |
|
Datasheet |
San Ace 172 | Box | Active | 48VDC | Rectangular/Rounded - 172mm L x 150mm H | 51.00mm | 226.0 CFM (6.33m³/min) | 0.551 in H2O (137.2 Pa) | Ball | Tubeaxial | Locked Rotor Protection | 52.0dB(A) | 13.44 W | 3050 RPM | 2 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | CSA, TUV, UL | 1.7 lbs (760.0 g) |
|
RER120-26/18/2TDPFAN IMP MTRZD 120X54MM 48VDC |
4,240 | 147.73 |
|
Datasheet |
RER120TD | Box | Active | 48VDC | Round - 120mm Dia | 54.00mm | 229.5 CFM (6.43m³/min) | - | Ball | Motorized Impellers | PWM Control, Speed Sensor (Tach) | - | 92 W | 6300 RPM | 4 Wire Leads | - | - | - | 0.95 lb (430.91 g) |
|
|
109E5748H501FAN AXIAL 172X51MM 48VDC WIRE |
3,922 | 76.24 |
|
Datasheet |
San Ace 172 | Box | Active | 48VDC | Rectangular/Rounded - 172mm L x 150mm H | 51.00mm | 226.0 CFM (6.33m³/min) | 0.551 in H2O (137.2 Pa) | Ball | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 52.0dB(A) | 13.44 W | 3050 RPM | 3 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | CSA, TUV, UL | 1.7 lbs (760.0 g) |
|
|
109E5748M501FAN AXIAL 172X51MM 48VDC WIRE |
1,890 | 76.24 |
|
Datasheet |
San Ace 172 | Box | Active | 48VDC | Rectangular/Rounded - 172mm L x 150mm H | 51.00mm | 148.0 CFM (4.14m³/min) | 0.271 in H2O (67.6 Pa) | Ball | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 41.0dB(A) | 5.28 W | 2000 RPM | 3 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | CSA, TUV, UL | 1.7 lbs (760.0 g) |
|
DV6224FAN AXIAL 171.5X50.8MM 24VDC |
4,687 | 0.00 |
|
Datasheet |
DV6200 | Bulk | Obsolete | 24VDC | Round - 171.5mm Dia | 50.80mm | 317.8 CFM (8.90m³/min) | - | Ball | Tubeaxial | - | 63.0dB(A) | 40 W | 4300 RPM | 2 Wire Leads | - | -4 ~ 167°F (-20 ~ 75°C) | CE, CSA, UL, VDE | 1.8 lbs (816.5 g) |
