DC Brushless Fans (BLDC)
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Voltage - Rated | Size / Dimension | Width | Air Flow | Static Pressure | Bearing Type | Fan Type | Features | Noise | Power (Watts) | RPM | Termination | Ingress Protection | Operating Temperature | Approval Agency | Weight |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
AFB1512L-TA50FAN AXIAL 172X25.4MM 12VDC WIRE |
1,876 | 70.30 |
|
Datasheet |
AFB | Tray | Obsolete | 12VDC | Rectangular/Rounded - 172mm L x 150mm H | 25.40mm | 160.8 CFM (4.50m³/min) | 0.305 in H2O (75.9 Pa) | Ball | Tubeaxial | Locked Rotor Protection | 46.0dB(A) | 6.72 W | 2400 RPM | 2 Wire Leads | IP55 - Dust Protected, Water Resistant | 14 ~ 158°F (-10 ~ 70°C) | CE, CSA, UL, VDE | 0.948 lb (430.01 g) |
|
RL90-18/14NGFAN BLOWER 121X37MM 24VDC WIRE |
3,892 | 63.36 |
|
Datasheet |
RL90N | Box | Active | 24VDC | Square/Rounded - 121mm L x 121mm H | 37.00mm | 23.5 CFM (0.658m³/min) | - | Sleeve | Blower | - | 58.0dB(A) | 5 W | 2500 RPM | 2 Wire Leads | - | 14 ~ 167°F (-10 ~ 75°C) | - | 0.926 lb (420.03 g) |
|
9WL0612J4002FAN AXIAL 60X25MM 12VDC WIRE |
4,834 | 73.40 |
|
Datasheet |
San Ace 60W | Box | Active | 12VDC | Square - 60mm L x 60mm H | 25.00mm | 38.8 CFM (1.09m³/min) | 0.730 in H2O (181.8 Pa) | Ball | Tubeaxial | Locked Rotor Protection | 47.0dB(A) | 4.68 W | 8650 RPM | 2 Wire Leads | IP68 - Dust Tight, Waterproof | -4 ~ 158°F (-20 ~ 70°C) | CSA, TUV, UL | 0.265 lb (120.2 g) |
|
8312HLUFAN AXIAL 80X32MM 12VDC WIRE |
3,491 | 64.73 |
|
Datasheet |
8300U | Bulk | Active | 12VDC | Square - 80mm L x 80mm H | 32.00mm | 39.4 CFM (1.10m³/min) | - | Ball | Tubeaxial | - | 43.0dB(A) | 4 W | 4200 RPM | 2 Wire Leads | IP68 - Dust Tight, Waterproof | -4 ~ 167°F (-20 ~ 75°C) | UL | 0.463 lb (210.01 g) |
|

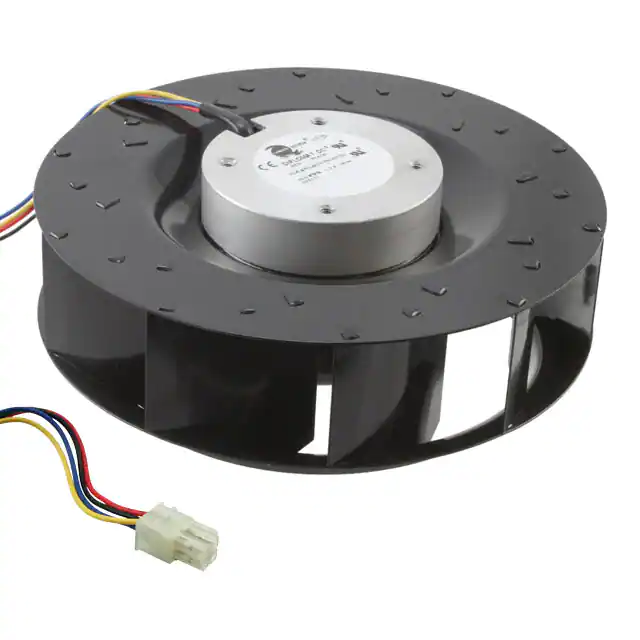

19043171AFAN IMP 175X68.6MM DD692748Z1E5X |
1,954 | 69.03 |
|
Datasheet |
Diplomat | Box | Active | 48VDC | Round - 175mm Dia | 68.60mm | 354.0 CFM (9.91m³/min) | 1.800 in H2O (448.4 Pa) | Ball | Motorized Impellers | Auto Restart, Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 71.2dB(A) | 52.9 W | 3435 RPM | 4 Position Rectangular Connector | - | 14 ~ 158°F (-10 ~ 70°C) | CE, UR | 2.3 lbs (1 kg) |
|
|
PF80801B1-000U-A9HThermal Products |
2,300 | 0.00 |
|
Datasheet |
PF | Bulk | Active | 12VDC | Square - 80mm L x 80mm H | 80.00mm | 122.0 CFM (3.42m³/min) | 3.660 in H2O (911.7 Pa) | Ball | Tubeaxial (Dual) | Auto Restart | 75.1dB(A) | 42 W | 12600 RPM Front, 11300 RPM Rear | 2 Wire Leads per Fan | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CUR, TUV, UL | - |
|
|
PF80801BX-000U-A9HThermal Products |
4,638 | 0.00 |
|
Datasheet |
PF | Bulk | Active | 12VDC | Square - 80mm L x 80mm H | 80.00mm | 151.5 CFM (4.24m³/min) | 5.440 in H2O (1355 Pa) | Ball | Tubeaxial (Dual) | Auto Restart | 80.4dB(A) | 81.6 W | 15600 RPM Front, 14100 RPM Rear | 2 Wire Leads per Fan | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CUR, TUV, UL | - |
|
|
4182NXUFAN AXIAL 119X38MM 12VDC WIRE |
3,288 | 81.55 |
|
- |
4100N | Bulk | Active | 12VDC | Square - 119mm L x 119mm H | 38.00mm | 106.0 CFM (2.97m³/min) | - | Ball | Tubeaxial | - | 49.0dB(A) | 4.9 W | 3200 RPM | 2 Wire Leads | - | - | - | 0.86 lb (390.09 g) |
|
|
9WL0612J4D001FAN AXIAL 60X25MM 12VDC WIRE |
1,527 | 68.98 |
|
Datasheet |
San Ace 60W | Box | Active | 12VDC | Square - 60mm L x 60mm H | 25.00mm | 38.8 CFM (1.09m³/min) | 0.730 in H2O (181.8 Pa) | Ball | Tubeaxial | Locked Rotor Sensor | 47.0dB(A) | 4.68 W | 8650 RPM | 3 Wire Leads | IP68 - Dust Tight, Waterproof | -4 ~ 158°F (-20 ~ 70°C) | CSA, TUV, UL | 0.265 lb (120.2 g) |
_Series.JPG)
|
6248NTFAN AXL 171.5X50.8MM 48VDC TERM |
4,773 | 0.00 |
|
Datasheet |
6200N | Box | Obsolete | 48VDC | Round - 171.5mm Dia | 50.80mm | 241.3 CFM (6.76m³/min) | - | Ball | Tubeaxial | Temperature Dependent Speed Control | 55.0dB(A) | 17 W | 3400 RPM | 2 Terminals | - | 14 ~ 162°F (-10 ~ 72°C) | CE, CSA, UL, VDE | 1.8 lbs (816.5 g) |
|
|
6224NTFAN AXL 171.5X50.8MM 24VDC TERM |
2,283 | 0.00 |
|
Datasheet |
6200N | Bulk | Obsolete | 24VDC | Round - 171.5mm Dia | 50.80mm | 241.3 CFM (6.76m³/min) | - | Ball | Tubeaxial | Temperature Dependent Speed Control | 55.0dB(A) | 18 W | 3400 RPM | 2 Terminals | - | 14 ~ 162°F (-10 ~ 72°C) | CE, CSA, UL, VDE | 1.8 lbs (816.5 g) |
|
|
PF80801B1-000U-G9H12VDC FAN 80X80MM ALARM |
4,097 | 0.00 |
|
Datasheet |
PF | Box | Active | 12VDC | Square - 80mm L x 80mm H | 80.00mm | 122.0 CFM (3.42m³/min) | 3.660 in H2O (911.7 Pa) | Ball | Tubeaxial (Dual) | Speed Sensor (Tach) | 75.1dB(A) | 42 W | 12600 RPM Front, 11300 RPM Rear | 3 Wire Leads per Fan | - | - | CCC, CE, cURus, TUV, UKCA | - |
|
|
PF80801BX-000U-G9H12VDC FAN 80X80MM ALARM |
4,635 | 0.00 |
|
Datasheet |
PF | Box | Active | 12VDC | Square - 80mm L x 80mm H | 80.00mm | 151.5 CFM (4.24m³/min) | 5.440 in H2O (1355.0 Pa) | Ball | Tubeaxial (Dual) | Speed Sensor (Tach) | 80.4dB(A) | 81.6 W | 15600 RPM Front, 14100 RPM Rear | 3 Wire Leads per Fan | - | - | CCC, CE, cURus, TUV, UKCA | - |
|
|
9WL0912P4S001FAN AXIAL 92X25MM 12VDC WIRE |
1,883 | 76.78 |
|
Datasheet |
San Ace 92W | Box | Active | 12VDC | Square - 92mm L x 92mm H | 25.00mm | 59.7 CFM (1.67m³/min) | 0.250 in H2O (62.3 Pa) | Ball | Tubeaxial | PWM Control, Speed Sensor (Tach) | 37.0dB(A) | 2.64 W | 3850 RPM | 4 Wire Leads | IP68 - Dust Tight, Waterproof | -4 ~ 158°F (-20 ~ 70°C) | CSA, TUV, UL | 0.375 lb (170.1 g) |
|
TFA1448CGFAN AXIAL 139.7X50.8MM 48VDC |
2,514 | 71.38 |
|
Datasheet |
TFA | Box | Obsolete | 48VDC | Square - 139.7mm L x 139.7mm H | 50.80mm | 285.0 CFM (7.98m³/min) | 1.020 in H2O (255.0 Pa) | Ball | Tubeaxial | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 62.5dB(A) | 34.56 W | 4200 RPM | 4 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | - | 1.6 lbs (725.7 g) |
|
|
PF80801BX-000U-S9H12VDC FAN 80X80MM TACH/PWM |
1,921 | 0.00 |
|
Datasheet |
PF | Box | Active | 12VDC | Square - 80mm L x 80mm H | 80.00mm | 151.5 CFM (4.24m³/min) | 5.440 in H2O (1355.0 Pa) | Ball | Tubeaxial (Dual) | PWM Control | 80.4dB(A) | 81.6 W | 15600 RPM Front, 14100 RPM Rear | 3 Wire Leads per Fan | - | - | CCC, CE, cURus, TUV, UKCA | - |
|
|
PF80801B1-000U-S9H12VDC FAN 80X80MM TACH/PWM |
1,064 | 0.00 |
|
Datasheet |
PF | Box | Active | 12VDC | Square - 80mm L x 80mm H | 80.00mm | 122.0 CFM (3.42m³/min) | 3.660 in H2O (911.7 Pa) | Ball | Tubeaxial (Dual) | PWM Control | 75.1dB(A) | 42 W | 12600 RPM Front, 11300 RPM Rear | 3 Wire Leads per Fan | - | - | CCC, CE, cURus, TUV, UKCA | - |
|
|
9GV1424H1002140X38MM 24V, GUIDE VANE, HIGH A |
2,559 | 0.00 |
|
Datasheet |
San Ace 140 | Box | Active | 24VDC | Square - 140mm L x 140mm H | 38.00mm | - | - | Ball | Tubeaxial | Locked Rotor Protection | - | - | - | 2 Wire Leads | - | - | cURus, TUV | - |
|

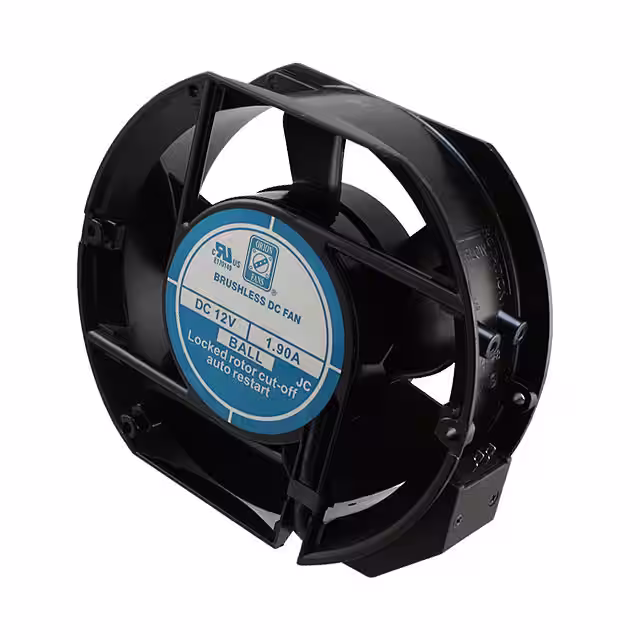

OD172SAP-12HTBFAN AXIAL 172X50.8MM 12VDC TERM |
4,600 | 72.31 |
|
Datasheet |
OD172S | Box | Active | 12VDC | Rectangular/Rounded - 172mm L x 150mm H | 50.80mm | 230.0 CFM (6.44m³/min) | 0.750 in H2O (186.8 Pa) | Ball | Tubeaxial | Auto Restart | 52.0dB | - | 3200 RPM | 2 Terminals | - | -4 ~ 167°F (-20 ~ 75°C) | cURus, TUV | - |
|

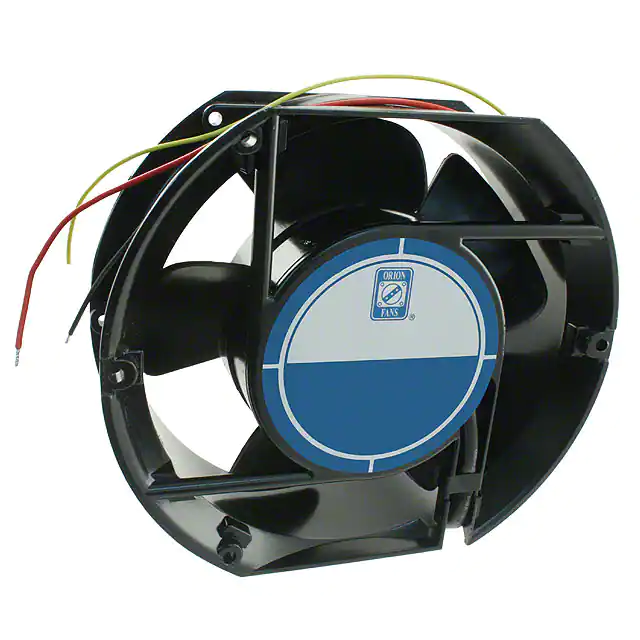

OD172SAP-12HB02AFAN AXIAL 172X50.8MM 12VDC WIRE |
2,326 | 72.31 |
|
Datasheet |
OD172S | Box | Active | 12VDC | Rectangular/Rounded - 172mm L x 150mm H | 50.80mm | 230.0 CFM (6.44m³/min) | 0.750 in H2O (186.8 Pa) | Ball | Tubeaxial | Auto Restart, Locked Rotor Sensor | 52.0dB | - | 3200 RPM | 3 Wire Leads | - | -4 ~ 167°F (-20 ~ 75°C) | cURus, TUV | - |
