DC Brushless Fans (BLDC)
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Voltage - Rated | Size / Dimension | Width | Air Flow | Static Pressure | Bearing Type | Fan Type | Features | Noise | Power (Watts) | RPM | Termination | Ingress Protection | Operating Temperature | Approval Agency | Weight |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
109E5712M502FAN AXIAL 172X51MM 12VDC WIRE |
3,694 | 74.34 |
|
Datasheet |
San Ace 172 | Box | Active | 12VDC | Rectangular/Rounded - 172mm L x 150mm H | 51.00mm | 148.0 CFM (4.14m³/min) | 0.271 in H2O (67.6 Pa) | Ball | Tubeaxial | Locked Rotor Protection | 41.0dB(A) | 5.76 W | 2000 RPM | 2 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | CSA, TUV, UL | 1.7 lbs (760.0 g) |
|
|
109E5724F502FAN AXIAL 172X51MM 24VDC WIRE |
3,619 | 74.34 |
|
Datasheet |
San Ace 172 | Box | Active | 24VDC | Rectangular/Rounded - 172mm L x 150mm H | 51.00mm | 180.0 CFM (5.04m³/min) | 0.380 in H2O (94.6 Pa) | Ball | Tubeaxial | Locked Rotor Protection | 47.0dB(A) | 8.4 W | 2500 RPM | 2 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | CSA, TUV, UL | 1.7 lbs (760.0 g) |
|
|
109E5724M502FAN AXIAL 172X51MM 24VDC WIRE |
2,014 | 74.34 |
|
Datasheet |
San Ace 172 | Box | Active | 24VDC | Rectangular/Rounded - 172mm L x 150mm H | 51.00mm | 148.0 CFM (4.14m³/min) | 0.271 in H2O (67.6 Pa) | Ball | Tubeaxial | Locked Rotor Protection | 41.0dB(A) | 4.8 W | 2000 RPM | 2 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | CSA, TUV, UL | 1.7 lbs (760.0 g) |
|
|
109E1712F502FAN AXIAL 172X51MM 12VDC WIRE |
2,211 | 74.34 |
|
Datasheet |
San Ace 172 | Box | Active | 12VDC | Round - 172mm Dia | 51.00mm | 180.0 CFM (5.04m³/min) | 0.382 in H2O (95.1 Pa) | Ball | Tubeaxial | Locked Rotor Protection | 42.0dB(A) | 10.8 W | 2500 RPM | 2 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | CSA, TUV, UL | 1.7 lbs (780.0 g) |
|
|
109E1712M502FAN AXIAL 172X51MM 12VDC WIRE |
4,014 | 74.34 |
|
Datasheet |
San Ace 172 | Box | Active | 12VDC | Round - 172mm Dia | 51.00mm | 148.0 CFM (4.14m³/min) | 0.271 in H2O (67.6 Pa) | Ball | Tubeaxial | Locked Rotor Protection | 36.0dB(A) | 5.76 W | 2000 RPM | 2 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | CSA, TUV, UL | 1.7 lbs (780.0 g) |
|

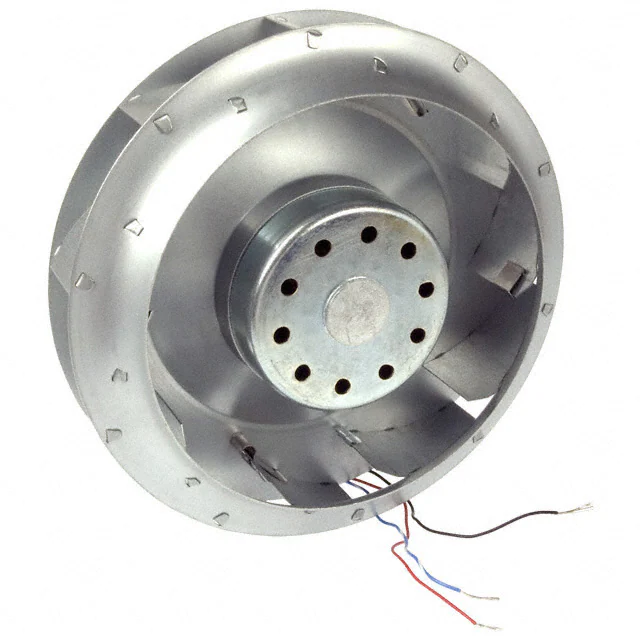

19039843AFAN IMP MTR 175X53MM DD692148K1A |
4,437 | 0.00 |
|
Datasheet |
Diplomat | - | Active | 48VDC | Round - 175mm Dia | 53.00mm | 250.0 CFM (7.00m³/min) | 1.590 in H2O (396.1 Pa) | Ball | Motorized Impellers | Auto Restart, Locked Rotor Protection, Speed Sensor (Tach) | 67.2dB(A) | 31.2 W | 3250 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cUL, UL | 2.5 lbs (1.1 kg) |
|
|
PFE0514B1-000U-A99FAN AXIAL 140X50.8MM 48VDC WIRE |
1,143 | 35.32 |
|
Datasheet |
PFE | Bulk | Active | 48VDC | Square - 140mm L x 140mm H | 50.80mm | 250.3 CFM (7.01m³/min) | 1.430 in H2O (356.2 Pa) | Ball | Tubeaxial | Auto Restart | 61.4dB(A) | 22.56 W | 5000 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CUR, TUV, UL | 1.4 lbs (635.0 g) |
|
|
109E5712F501FAN AXIAL 172X51MM 12VDC WIRE |
3,406 | 74.63 |
|
Datasheet |
San Ace 172 | Box | Active | 12VDC | Rectangular/Rounded - 172mm L x 150mm H | 51.00mm | 180.0 CFM (5.04m³/min) | 0.380 in H2O (94.6 Pa) | Ball | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 47.0dB(A) | 8.16 W | 2500 RPM | 3 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | CSA, TUV, UL | 1.7 lbs (760.0 g) |
|
|
109E5724F501FAN AXIAL 172X51MM 24VDC WIRE |
4,599 | 74.63 |
|
Datasheet |
San Ace 172 | Box | Active | 24VDC | Rectangular/Rounded - 172mm L x 150mm H | 51.00mm | 180.0 CFM (5.04m³/min) | 0.380 in H2O (94.6 Pa) | Ball | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 47.0dB(A) | 8.4 W | 2500 RPM | 3 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | CSA, TUV, UL | 1.7 lbs (760.0 g) |
|
|
109E5724M501FAN AXIAL 172X51MM 24VDC WIRE |
3,781 | 74.63 |
|
Datasheet |
San Ace 172 | Box | Active | 24VDC | Rectangular/Rounded - 172mm L x 150mm H | 51.00mm | 148.0 CFM (4.14m³/min) | 0.271 in H2O (67.6 Pa) | Ball | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 41.0dB(A) | 4.8 W | 2000 RPM | 3 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | CSA, TUV, UL | 1.7 lbs (760.0 g) |
|
|
109E1712H5D01FAN AXIAL 172X51MM 12VDC WIRE |
4,105 | 74.63 |
|
Datasheet |
San Ace 172 | Box | Active | 12VDC | Round - 172mm Dia | 51.00mm | 226.0 CFM (6.33m³/min) | 0.551 in H2O (137.2 Pa) | Ball | Tubeaxial | Locked Rotor Sensor | 47.0dB(A) | 14.4 W | 3050 RPM | 3 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | CSA, TUV, UL | 1.7 lbs (780.0 g) |
|
|
109E1712F501FAN AXIAL 172X51MM 12VDC WIRE |
4,184 | 74.63 |
|
Datasheet |
San Ace 172 | Box | Active | 12VDC | Round - 172mm Dia | 51.00mm | 180.0 CFM (5.04m³/min) | 0.382 in H2O (95.1 Pa) | Ball | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 42.0dB(A) | 10.8 W | 2500 RPM | 3 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | CSA, TUV, UL | 1.7 lbs (780.0 g) |
|
|
109E1712M501FAN AXIAL 172X51MM 12VDC WIRE |
3,606 | 74.63 |
|
Datasheet |
San Ace 172 | Box | Active | 12VDC | Round - 172mm Dia | 51.00mm | 148.0 CFM (4.14m³/min) | 0.271 in H2O (67.6 Pa) | Ball | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 36.0dB(A) | 5.76 W | 2000 RPM | 3 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | CSA, TUV, UL | 1.7 lbs (780.0 g) |
|
|
109E1724F501FAN AXIAL 172X51MM 24VDC WIRE |
4,479 | 74.63 |
|
Datasheet |
San Ace 172 | Box | Active | 24VDC | Round - 172mm Dia | 51.00mm | 180.0 CFM (5.04m³/min) | 0.382 in H2O (95.1 Pa) | Ball | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 42.0dB(A) | 8.4 W | 2500 RPM | 3 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | CSA, TUV, UL | 1.7 lbs (780.0 g) |
|
|
109E1724M501FAN AXIAL 172X51MM 24VDC WIRE |
2,578 | 74.63 |
|
Datasheet |
San Ace 172 | Box | Active | 24VDC | Round - 172mm Dia | 51.00mm | 148.0 CFM (4.14m³/min) | 0.271 in H2O (67.6 Pa) | Ball | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 36.0dB(A) | 4.8 W | 2000 RPM | 3 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | CSA, TUV, UL | 1.7 lbs (780.0 g) |
|
|
109E5724M5D01FAN AXIAL 172X51MM 24VDC WIRE |
2,453 | 74.63 |
|
Datasheet |
San Ace 172 | Box | Active | 24VDC | Rectangular/Rounded - 172mm L x 150mm H | 51.00mm | 148.0 CFM (4.14m³/min) | 0.271 in H2O (67.6 Pa) | Ball | Tubeaxial | Locked Rotor Sensor | 41.0dB(A) | 4.8 W | 2000 RPM | 3 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | CSA, TUV, UL | 1.7 lbs (760.0 g) |
|
|
55616.37000FAN BLOWER CF 383X108.4MM 24VDC |
3,531 | 0.00 |
|
Datasheet |
55616 | - | Obsolete | 24VDC | Rectangular - 383mm L x 91mm H | 108.4mm | 163.0 CFM (4.56m³/min) | - | Sleeve | Blower, Cross Flow | - | 50.0dB(A) | 12 W | - | 2 Terminals | - | - | - | - |
|
|
9GT0912M1002FAN AXIAL 92X38MM 12VDC WIRE |
1,299 | 66.25 |
|
Datasheet |
San Ace 92T | Box | Active | 12VDC | Square - 92mm L x 92mm H | 38.00mm | 116.6 CFM (3.26m³/min) | 1.260 in H2O (313.9 Pa) | Ball | Tubeaxial | Locked Rotor Protection | 58.0dB(A) | 18 W | 8100 RPM | 2 Wire Leads | - | -40 ~ 185°F (-40 ~ 85°C) | CSA, TUV, UL | 0.331 lb (150.14 g) |
|
|
9GT0924M1002FAN AXIAL 92X38MM 24VDC WIRE |
2,899 | 66.25 |
|
Datasheet |
San Ace 92T | Box | Active | 24VDC | Square - 92mm L x 92mm H | 38.00mm | 116.6 CFM (3.26m³/min) | 1.260 in H2O (313.9 Pa) | Ball | Tubeaxial | Locked Rotor Protection | 58.0dB(A) | 18 W | 8100 RPM | 2 Wire Leads | - | -40 ~ 185°F (-40 ~ 85°C) | CSA, TUV, UL | 0.331 lb (150.14 g) |
|
|
19040084AFAN CARAVEL DC FAN |
1,600 | 0.00 |
|
Datasheet |
Caravel | - | Active | 24VDC | Round - 254mm Dia | 88.90mm | 550.0 CFM (15.40m³/min) | - | Ball | Tubeaxial | - | - | 1650 W | - | 2 Wire Leads | - | - | - | - |
