AC Fans
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Voltage - Rated | Size / Dimension | Width | Air Flow | Static Pressure | Bearing Type | Fan Type | Features | Noise | Power (Watts) | RPM | Termination | Ingress Protection | Operating Temperature | Approval Agency | Weight |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
G2E140-AE77-01MOTORIZED IMPELLER |
3,347 | 345.98 |
|
Datasheet |
G2E140 | Bulk | Active | 230VAC | Rectangular/Rounded - 226.8mm L x 247.5mm H | 130.0mm | - | - | Ball | Blower, Centrifugal | Capacitor, Thermal Overload Protector (TOP) | - | 115W | 1500 RPM | 4 Wire Leads | IP44 | -13 ~ 95°F (-25 ~ 35°C) | CCC, CE, EAC | - |
|

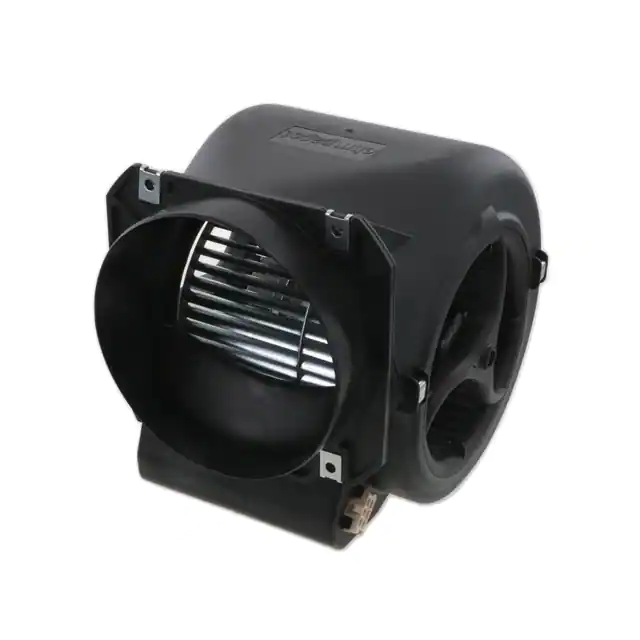

D2E146-HT75-45BLOWER |
1,932 | 383.85 |
|
Datasheet |
D2E146 | Bulk | Active | 115VAC | Rectangular/Rounded - 220mm L x 216mm H | 199.0mm | - | 0.803 in H2O (200.0 Pa) | Ball | Blower, Centrifugal | Capacitor, Thermal Overload Protector (TOP) | - | 380W | 2150 RPM | 6 Position Rectangular Connector | IP20 | -13 ~ 113°F (-25 ~ 45°C) | CE, CSA, UL | - |
|
W3G250-HH53-03FAN AXIAL 115V 280X80MM 846CFM |
2,618 | 403.85 |
|
Datasheet |
W3G250 | Bulk | Active | 115VAC | Square - 280mm L x 280mm H | 80.00mm | 846.0 CFM (23.69m³/min) | 0.320 in H2O (79.7 Pa) | Ball | Tubeaxial | PWM Control, Speed Sensor (Tach) | - | 56.0W | 2040 RPM | Terminal Block | IP54 - Dust Protected, Water Resistant | -13 ~ 122°F (-25 ~ 50°C) | UL | 4.6 lbs (2.1 kg) |
|
G2D160-AF02-01MOTORIZED IMPELLER |
2,297 | 512.52 |
|
Datasheet |
G2D160 | Bulk | Active | 230/400VAC | Rectangular/Rounded - 226.8mm L x 247.5mm H | 130.0mm | - | 1.204 in H2O (299.9 Pa) | Ball | Blower, Centrifugal | Dual Voltage | - | 335W | 2550 RPM | 7 Wire Leads with Splice Terminals | IP44 | -13 ~ 104°F (-25 ~ 40°C) | CCC, CE | - |
|
|
ACB2L-A-8025BAC 220V 80*80*25 BALL 2; 20CFM |
4,683 | 0.00 |
|
- |
- | Box | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
CHACB1L-A-8025BAC 110V 80*80*25 BALL; 20CFM |
4,509 | 0.00 |
|
- |
- | Box | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
CHACB2L-A-8025BAC 220V 80*80*25 BALL; 20CFM |
2,633 | 0.00 |
|
- |
- | Box | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
ACB1L-A-8025BAC 110V 80*80*25 BALL 2; 20CFM |
1,271 | 0.00 |
|
- |
- | Box | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
ACB1H-A-12038BAC 110V 120*120*38 BALL 2; 92CFM |
3,384 | 0.00 |
|
- |
- | Box | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
ACB2H-A-12038B120*120*38 BALL 2; 110CFM |
1,457 | 0.00 |
|
- |
- | Box | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|

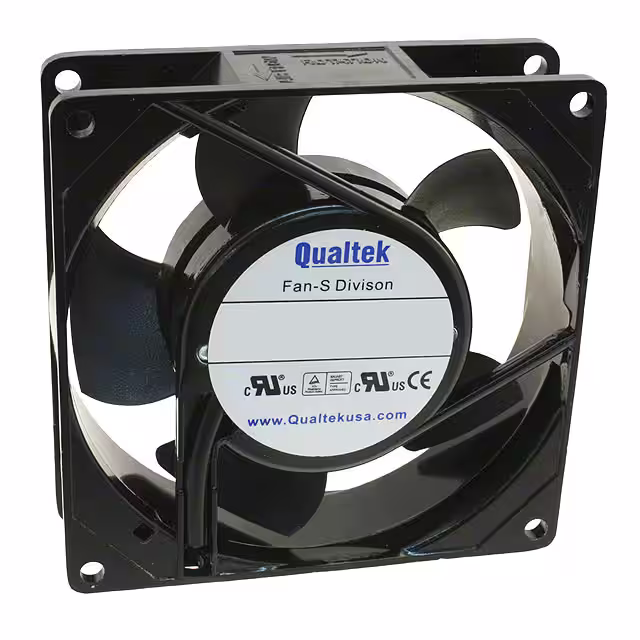

FAA1-09225QBMT31FAN AXIAL 92X25MM 230VAC TERM |
1,187 | 23.31 |
|
Datasheet |
FAA1-09225 | Bulk | Active | 230VAC | Square - 92mm L x 92mm H | 25.00mm | 30.5 CFM (0.854m³/min) | 0.089 in H2O (22.2 Pa) | Ball | Tubeaxial | - | 26.8dB(A) | 11.50W | 2200 RPM | 2 Terminals | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | 0.507 lb (229.97 g) |
|
|
ACB1H-A-15050BAC 110V 172*151*51 BALL 2; 190CF |
2,473 | 0.00 |
|
- |
- | Box | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
ACB2H-A-15050BAC 220V 172*151*51 BALL 2; 190CF |
2,994 | 0.00 |
|
- |
- | Box | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
17002092ACR17023HA1BML |
2,553 | 0.00 |
|
Datasheet |
CR17023 AC | Box | Active | 110/120VAC | Rectangular/Rounded - 172mm L x 152mm H | 38.00mm | 154.0 CFM (4.31m³/min) | 0.540 in H2O (134.5 Pa) | Ball | Tubeaxial | - | 61.0dB(A) | 26.00W | 3300 RPM | 2 Terminals | - | 14 ~ 158°F (-10 ~ 70°C) | CE, UL | - |
|
|
17002091ACR17023HA1BMT |
2,784 | 0.00 |
|
Datasheet |
CR17023 AC | Box | Active | 110/120VAC | Rectangular/Rounded - 172mm L x 152mm H | 38.00mm | 154.0 CFM (4.31m³/min) | 0.540 in H2O (134.5 Pa) | Ball | Tubeaxial | - | 61.0dB(A) | 26.00W | 3300 RPM | 2 Terminals | - | 14 ~ 158°F (-10 ~ 70°C) | CE, UL | - |
|
|
17002093ACR17023HA2BMT |
1,261 | 0.00 |
|
Datasheet |
CR17023 AC | Box | Active | 220 ~ 240VAC | Rectangular/Rounded - 172mm L x 152mm H | 38.00mm | 154.0 CFM (4.31m³/min) | 0.540 in H2O (134.5 Pa) | Ball | Tubeaxial | - | 61.0dB(A) | 26.00W | 3300 RPM | 2 Terminals | - | 14 ~ 158°F (-10 ~ 70°C) | CE, UL | - |
|
|
17002094ACR17023HA2BML |
4,954 | 0.00 |
|
Datasheet |
CR17023 AC | Box | Active | 220 ~ 240VAC | Rectangular/Rounded - 172mm L x 152mm H | 38.00mm | 154.0 CFM (4.31m³/min) | 0.540 in H2O (134.5 Pa) | Ball | Tubeaxial | - | 61.0dB(A) | 26.00W | 3300 RPM | 2 Terminals | - | 14 ~ 158°F (-10 ~ 70°C) | CE, UL | - |
|

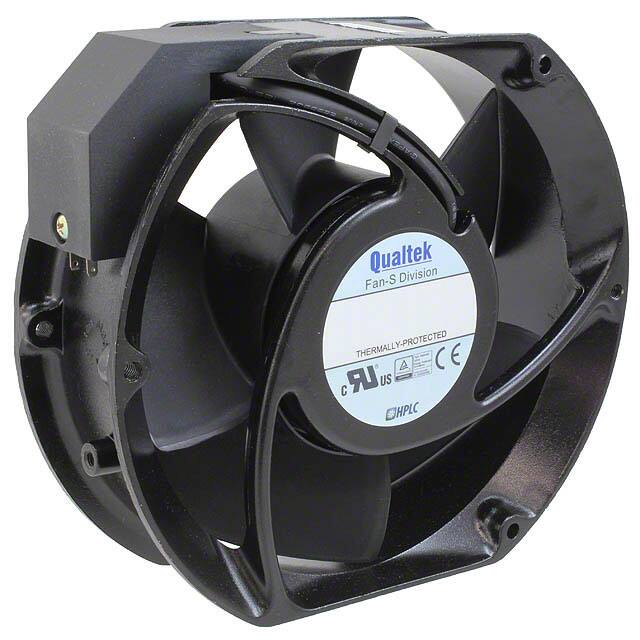

FDA2-17251QBHT4DFAN AXIAL 172X51MM 230VAC TERM |
3,985 | 68.35 |
|
Datasheet |
HPLC, FDA2-17251 | Bulk | Active | 230VAC | Rectangular/Rounded - 172mm L x 151mm H | 51.00mm | 250.0 CFM (7.00m³/min) | 0.610 in H2O (151.9 Pa) | Ball | Tubeaxial | - | 59.0dB(A) | 27.00W | 3100 RPM | 2 Terminals | IP56M - Dust Protected, Water Resistant | -4 ~ 158°F (-20 ~ 70°C) | CE, cURus, TUV | 2 lbs (907.2 g) |
|
|
17002179ACRB175A1B2850 AC CENTRIFUGAL FAN |
4,064 | 0.00 |
|
Datasheet |
- | Box | Active | 110/120VAC | Round - 175mm Dia | 68.50mm | 278.0 CFM (7.78m³/min) | 1.505 in H2O (375.0 Pa) | Ball | Tubeaxial | Thermal Overload Protector (TOP) | 66.0dB(A) | 66.0W | 2850 RPM | 2 Wire Leads | IP54 - Dust Protected, Water Resistant | -22 ~ 140°F (-30 ~ 60°C) | CE, UL | - |
|
|
17002180ACRB180A1B2850 AC CENTRIFUGAL FAN |
3,368 | 0.00 |
|
Datasheet |
- | Box | Active | 110/120VAC | Round - 180mm Dia | 68.50mm | 301.0 CFM (8.43m³/min) | 1.720 in H2O (428.4 Pa) | Ball | Tubeaxial | Thermal Overload Protector (TOP) | 65.0dB(A) | 66.0W | 2850 RPM | 2 Wire Leads | IP54 - Dust Protected, Water Resistant | -22 ~ 140°F (-30 ~ 60°C) | CE, UL | - |
