AC Fans
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Voltage - Rated | Size / Dimension | Width | Air Flow | Static Pressure | Bearing Type | Fan Type | Features | Noise | Power (Watts) | RPM | Termination | Ingress Protection | Operating Temperature | Approval Agency | Weight |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
FKA2-25489QBHW3FFAN AXIAL 254X89MM 230VAC WIRE |
4,366 | 98.20 |
|
Datasheet |
FKA2-25489 | Bulk | Active | 230VAC | Round - 254mm Dia | 89.00mm | 530.0 CFM (14.84m³/min) | 0.276 in H2O (68.7 Pa) | Ball | Tubeaxial | - | 62.0dB(A) | 62.8W | 2000 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | 4.4 lbs (2 kg) |
|

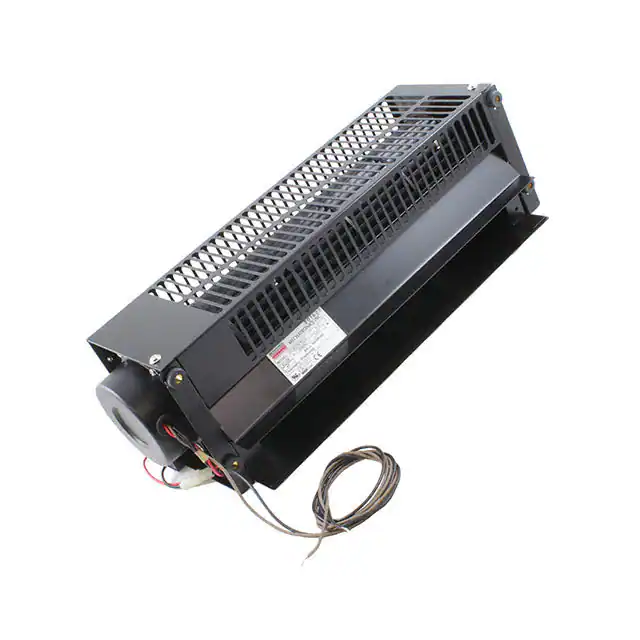

UF9029CBP12H-LFAN BLWR CF 120VAC 420X150X130MM |
4,213 | 95.77 |
|
Datasheet |
UF9029 | Bulk | Active | 120VAC | Rectangular - 420mm L x 130mm H | 125.0mm | 177.1 CFM (4.96m³/min) | 0.130 in H2O (32.4 Pa) | Ball | Blower, Cross Flow | Permanent Split Capacitor Motor, Thermal Overload Protector (TOP) | 46.0dB(A) | 31.00W | 1560 RPM | 2 Wire Leads | - | -40 ~ 158°F (-40 ~ 70°C) | CE, cUL, TUV, UL | 6.6 lbs (3 kg) |
|
|
OA172SAP-11-1TBXCSFFAN AXIAL 172X55MM 115VAC TERM |
2,968 | 0.00 |
|
Datasheet |
OA172XC | Bulk | Active | 115VAC | Rectangular/Rounded - 172mm L x 150mm H | 55.00mm | 293.0 CFM (8.20m³/min) | 0.900 in H2O (224.2 Pa) | Ball | Tubeaxial | Capacitor, Salt Fog Rated | 60.0dB | 38.00W | 3400 RPM | 2 Terminals | - | -4 ~ 158°F (-20 ~ 70°C) | CE, cURus, TUV, UR | 2.4 lbs (1.1 kg) |
|
UF25GC23-BTHR-B1FAN AXIAL 254X89MM 230VAC TACH |
1,201 | 97.47 |
|
Datasheet |
UF25GC | Bulk | Active | 230VAC | Round - 254mm Dia | 89.00mm | 550.0 CFM (15.40m³/min) | 0.400 in H2O (99.6 Pa) | Ball | Tubeaxial | Permanent Split Capacitor Motor, Speed Sensor (Tach), Thermal Overload Protector (TOP) | 55.0dB(A) | 33.00W | 1650 RPM | 3 Terminals | - | -40 ~ 158°F (-40 ~ 70°C) | CE, cUL, TUV, UL | 4.1 lbs (1.9 kg) |
|

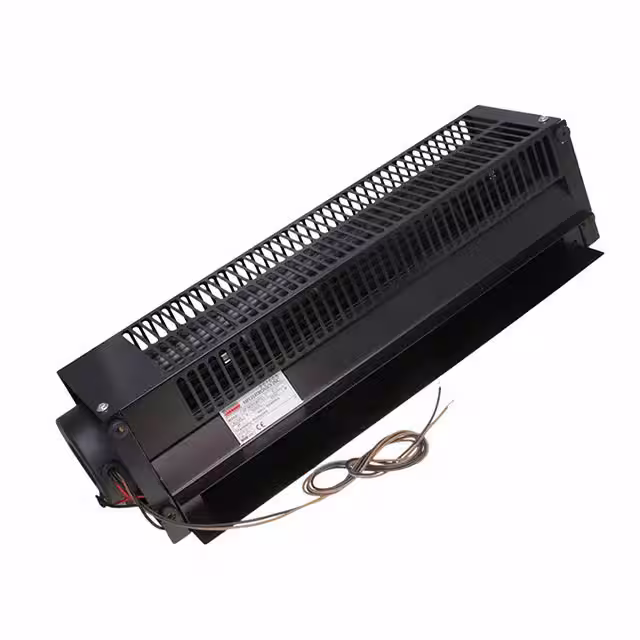

UF9439CBP12H-LFAN BLWR CF 120VAC 510X150X130MM |
4,103 | 115.98 |
|
Datasheet |
UF9439 | Bulk | Active | 120VAC | Rectangular - 510mm L x 130mm H | 125.0mm | 318.0 CFM (8.90m³/min) | 0.180 in H2O (44.8 Pa) | Ball | Blower, Cross Flow | Permanent Split Capacitor Motor, Thermal Overload Protector (TOP) | 53.0dB(A) | 50.0W | 1600 RPM | 2 Wire Leads | - | -40 ~ 158°F (-40 ~ 70°C) | CE, TUV | 7.7 lbs (3.5 kg) |
|
OA200EC-11-1WBFAN 250X76MM 115VAC DUAL SPEED E |
2,913 | 149.50 |
|
Datasheet |
OA200EC | Box | Active | 115VAC | Round - 250mm Dia | 76.10mm | 290.0 ~ 460.0 CFM (8.12 ~ 12.88m³/min) | 0.280/0.460 in H2O (69.7/114.6 Pa) | Ball | Tubeaxial | Dual Speed, Electronic Commutation (EC), Thermal Overload Protector (TOP) | 44/55dB | 8.10W, 26.00W | 1400/2200 RPM | 3 Wire Leads | IP55 - Dust Protected, Water Resistant | -13 ~ 122°F (-25 ~ 50°C) | cURus, TUV | 2.2 lbs (997.9 g) |
|
OAB190-11-1FAN IMP MTRZD 190X70 115V W/CAP |
3,911 | 90.63 |
|
Datasheet |
OAB190 | Bulk | Active | 120VAC | Round - 190mm Dia | 70.00mm | 370.0 CFM (10.36m³/min) | 1.200 in H2O (298.9 Pa) | Ball | Motorized Impellers | Permanent Split Capacitor Motor, Thermal Overload Protector (TOP) | 63.0dB | 65.0W | 2700 RPM | 4 Wire Leads | IP55 - Dust Protected, Water Resistant | -40 ~ 140°F (-40 ~ 60°C) | cURus, TUV | - |
|
OA254EC-UR-1TBEC FAN 254X89MM 95-264VAC TERM |
2,544 | 135.72 |
|
Datasheet |
OA254EC | Box | Active | 95 ~ 264VAC | Round - 254mm Dia | 89.00mm | 500.0 CFM (14.00m³/min) | 0.480 in H2O (119.6 Pa) | Ball | Tubeaxial | Electronic Commutation (EC) | 56.0dB | 22.00W | 1700 RPM | 2 Terminals | - | -4 ~ 158°F (-20 ~ 70°C) | CE, cURus, TUV, UR | 4.6 lbs (2.1 kg) |
|
UF225(99)APA23-H1C2FIMPELLER 225X99MM 230VAC RING |
2,979 | 140.32 |
|
Datasheet |
UF225(99)APA | Bulk | Active | 230VAC | Round - 259mm Dia | 117.0mm | 547.0 CFM (15.32m³/min) | 2.600 in H2O (647.7 Pa) | Ball | Motorized Impellers | Permanent Split Capacitor Motor, Thermal Overload Protector (TOP) | 71.0dB(A) | 157W | 2950 RPM | 4 Wire Leads | - | -40 ~ 122°F (-40 ~ 50°C) | CE, cUL, TUV, UL | 5.7 lbs (2.6 kg) |
|
W2E142-BB05-28FAN AXIAL 115VAC 172X150X38MM |
2,246 | 154.57 |
|
Datasheet |
W2E142 | Bulk | Active | 115VAC | Rectangular/Rounded - 172mm L x 150mm H | 38.00mm | - | - | Ball | Tubeaxial | - | - | 28.00W | 3350 RPM | 2 Terminals | IP22 | -13 ~ 150°F (-25 ~ 65°C) | CSA, UL | 1.8 lbs (816.5 g) |
|
OA225AP-11-1WB1869KAC FAN, IP69K, 225X225X80MM, 115 |
2,497 | 137.37 |
|
Datasheet |
OA225AP-IP69K | Box | Active | 115VAC | Square - 225mm L x 225mm H | 80.00mm | 620.0 CFM (17.36m³/min) | 0.740 in H2O (184.3 Pa) | Ball | Tubeaxial | Capacitor, Thermal Overload Protector (TOP) | 66.0dB | 80.0W | 3100 RPM | 2 Wire Leads | IP69K - Dust Tight, Water Resistant, Waterproof | -22 ~ 176°F (-30 ~ 80°C) | CE, cURus, TUV, UR | 4.8 lbs (2.2 kg) |
|
OA2543AP-22-1WB1869KAC FAN, IP69K, 254X254X89MM, 230 |
4,749 | 165.23 |
|
Datasheet |
OA2543AP-IP69K | Box | Active | 230VAC | Round - 254mm Dia | 89.00mm | 930.0 CFM (26.04m³/min) | 1.100 in H2O (274.0 Pa) | Ball | Tubeaxial | Capacitor, Thermal Overload Protector (TOP) | 67.0dB | 105W | 3300 RPM | 2 Wire Leads | IP69K - Dust Tight, Water Resistant, Waterproof | -22 ~ 176°F (-30 ~ 80°C) | CE, cURus, TUV, UR | 5.2 lbs (2.4 kg) |
|
R87T-A4A07HFAN AXIAL 150X55MM 200VAC WIRE |
2,265 | 191.74 |
|
Datasheet |
R87T | Bulk | Active | 200VAC | Round - 150mm Dia | 55.00mm | 207.0 CFM (5.80m³/min) | 0.353 in H2O (88.0 Pa) | Ball | Tubeaxial | - | 56.0dB | 40.00W | 3250 RPM | 2 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | CSA, UL | 2.6 lbs (1.2 kg) |
|
OA2547AP-22-1TB1869KAC FAN, IP69K, 254X254X89MM, 230 |
1,389 | 152.30 |
|
Datasheet |
OA2547AP-IP69K | Box | Active | 230VAC | Round - 254mm Dia | 89.00mm | 1000.0 CFM (28.00m³/min) | 0.600 in H2O (149.5 Pa) | Ball | Tubeaxial | Capacitor, Thermal Overload Protector (TOP) | 70.0dB | 105W | 3250 RPM | 2 Terminals | IP69K - Dust Tight, Water Resistant, Waterproof | -22 ~ 176°F (-30 ~ 80°C) | CE, cURus, TUV, UR | 5.6 lbs (2.5 kg) |
|

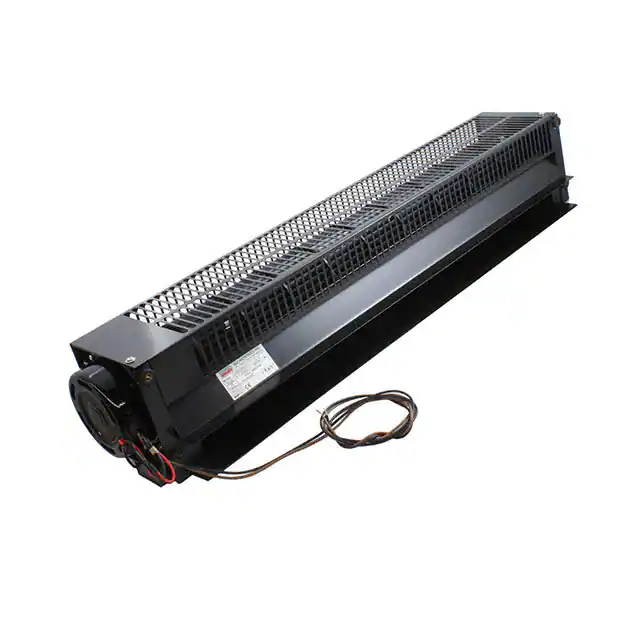

UF9060CBP12H-LFAN BLWR CF 120VAC 740X150X130MM |
3,150 | 192.40 |
|
Datasheet |
UF9060 | Bulk | Active | 120VAC | Rectangular - 740mm L x 130mm H | 125.0mm | 530.0 CFM (14.84m³/min) | 0.430 in H2O (107.1 Pa) | Ball | Blower, Cross Flow | Permanent Split Capacitor Motor, Thermal Overload Protector (TOP) | 54.0dB(A) | 160W | 2100 RPM | 2 Wire Leads | - | -40 ~ 158°F (-40 ~ 70°C) | CE, TUV | 11 lbs (5 kg) |
|
W4S250-CA02-01FAN AXIAL |
3,252 | 316.67 |
|
Datasheet |
W4S250 | Bulk | Active | 230VAC | Round - 320mm Dia | 85.00mm | - | 0.401 in H2O (100.0 Pa) | Ball | Tubeaxial | Thermal Overload Protector (TOP) | - | 75.0W | 1620 RPM | 3 Wire Leads with Splice Terminals | IP44 | -13 ~ 122°F (-25 ~ 50°C) | CE | - |
|
W2D250-CA06-52FAN AXIAL |
1,016 | 317.92 |
|
Datasheet |
W2D250 | Bulk | Active | 265/460VAC | Round - 320mm Dia | 85.00mm | - | 0.502 in H2O (125.0 Pa) | Ball | Tubeaxial, 3 Phase | Dual Voltage, Thermal Overload Protector (TOP) | - | 150W | 2900 RPM | 9 Wire Leads with Splice Terminals | IP44 | -13 ~ 149°F (-25 ~ 65°C) | CE, CSA, UL | - |
|
W2E300-CP02-37FAN AXIAL |
2,323 | 420.46 |
|
Datasheet |
W2E300 | Bulk | Active | 230VAC | Round - 397mm Dia | 113.5mm | - | 0.201 in H2O (50.0 Pa) | Ball | Tubeaxial | Capacitor, Thermal Overload Protector (TOP) | - | 350W | 3000 RPM | 4 Wire Leads with Splice Terminals | IP44 | -13 ~ 140°F (-25 ~ 60°C) | CCC, CE, CSA, EAC, UL | - |
|
G2E140-AL40-01MOTORIZED IMPELLER |
2,584 | 372.06 |
|
Datasheet |
G2E140 | Bulk | Active | 230VAC | Rectangular/Rounded - 226.8mm L x 247.5mm H | 130.0mm | - | 0.401 in H2O (100.0 Pa) | Ball | Blower, Centrifugal | Capacitor, Thermal Overload Protector (TOP) | - | 145W | 1700 RPM | 4 Wire Leads | IP44 | -13 ~ 104°F (-25 ~ 40°C) | CCC, CE, EAC | - |
|
OAB360-22-1FAN IMP MTRZD 360X167 230V W/CAP |
2,468 | 326.95 |
|
Datasheet |
OAB360 | Box | Active | 230VAC | Round - 360mm Dia | 167.3mm | 1645.0 CFM (46.06m³/min) | 2.200 in H2O (548.0 Pa) | Ball | Motorized Impellers | Permanent Split Capacitor Motor, Thermal Overload Protector (TOP) | 70.0dB | 265W | 1600 RPM | 4 Wire Leads | IP55 - Dust Protected, Water Resistant | -40 ~ 176°F (-40 ~ 80°C) | cURus, TUV | - |
