DIP Switches
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Circuit | Number of Positions | Current Rating (Amps) | Voltage Rating | Actuator Type | Actuator Level | Contact Material | Contact Finish | Height Above Board | Mounting Type | Termination Style | Pitch | Washable | Features | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

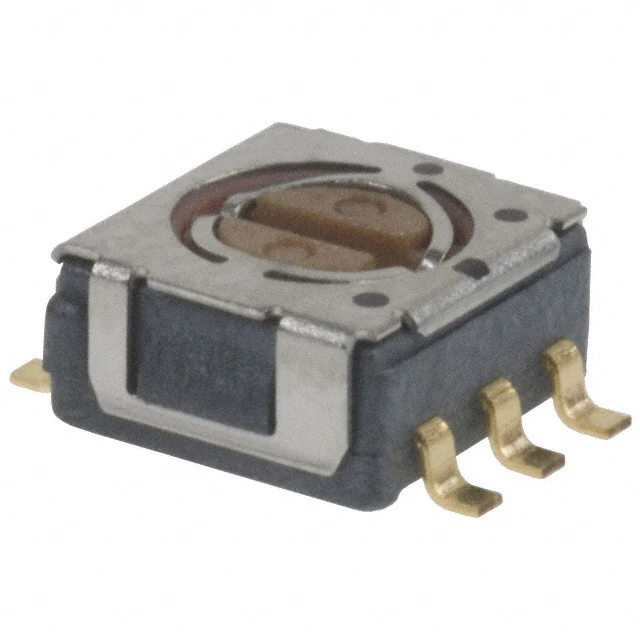

CS-4-14NTBSWITCH ROTARY DIP SP4T 0.1A 16V Nidec Components Corporation |
3,405 | 2.15 |
|
Datasheet |
CS-4 | Tape & Reel (TR) | Active | SP4T | 4 | 100mA | 16VDC | Rotary for Tool | Flush, Recessed | Copper Alloy | Gold | 0.091" (2.30mm) | Surface Mount | Gull Wing | 0.051" (1.30mm) | Yes | - | -25°C ~ 70°C |
|

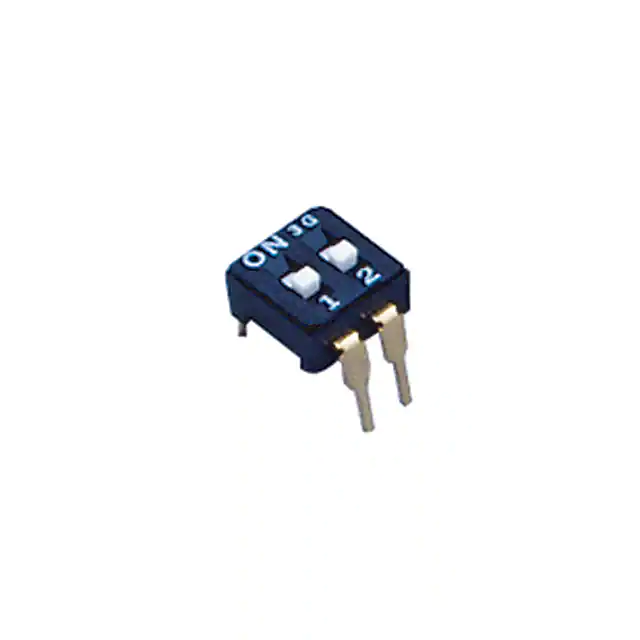

CFS-0202MCSWITCH SLIDE DIP SPST 0.1A 6V Nidec Components Corporation |
2,261 | 1.29 |
|
Datasheet |
CFS | Tube | Active | SPST | 2 | 100mA | 6VDC | Slide (Standard) | Raised | Copper Alloy | Gold | 0.201" (5.10mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | No | - | -40°C ~ 85°C |
|

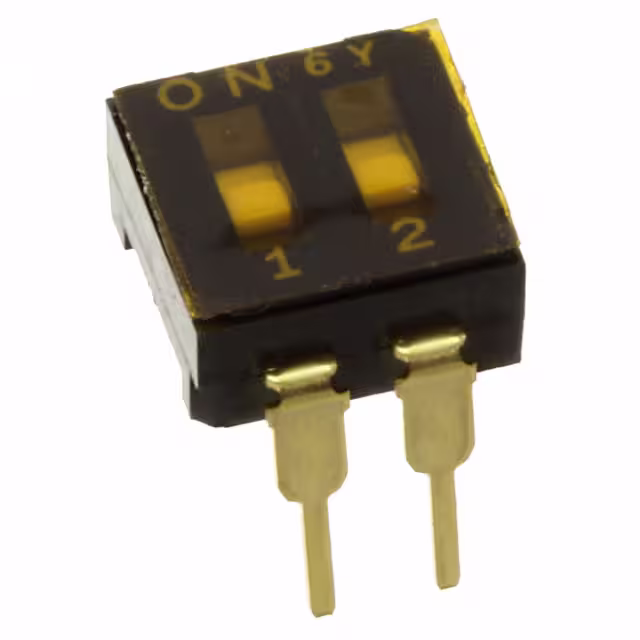

CFS-0200MCSWITCH SLIDE DIP SPST 0.1A 6V Nidec Components Corporation |
1,686 | 1.29 |
|
Datasheet |
CFS | Tube | Active | SPST | 2 | 100mA | 6VDC | Slide (Standard) | Flush, Recessed | Copper Alloy | Gold | 0.177" (4.50mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | Yes | Tape Seal | -40°C ~ 85°C |
|
CFS-0602MASWITCH SLIDE DIP SPST 0.1A 6V Nidec Components Corporation |
2,805 | 1.80 |
|
Datasheet |
CFS | Tube | Active | SPST | 6 | 100mA | 6VDC | Slide (Standard) | Raised | Copper Alloy | Gold | 0.178" (4.52mm) | Surface Mount | J Lead | 0.100" (2.54mm), Full | No | - | -40°C ~ 85°C |
|

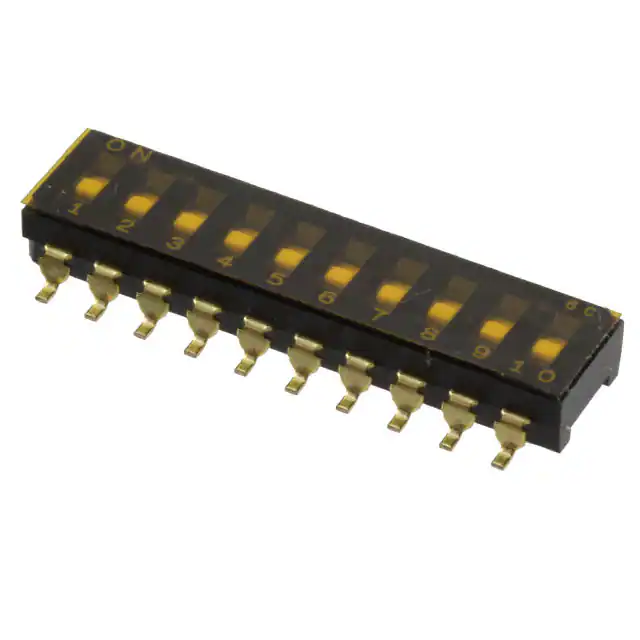

CFS-1000MBSWITCH SLIDE DIP SPST 0.1A 6V Nidec Components Corporation |
3,311 | 2.78 |
|
Datasheet |
CFS | Tube | Active | SPST | 10 | 100mA | 6VDC | Slide (Standard) | Flush, Recessed | Copper Alloy | Gold | 0.146" (3.70mm) | Surface Mount | Gull Wing | 0.100" (2.54mm), Full | Yes | Tape Seal | -40°C ~ 85°C |
|

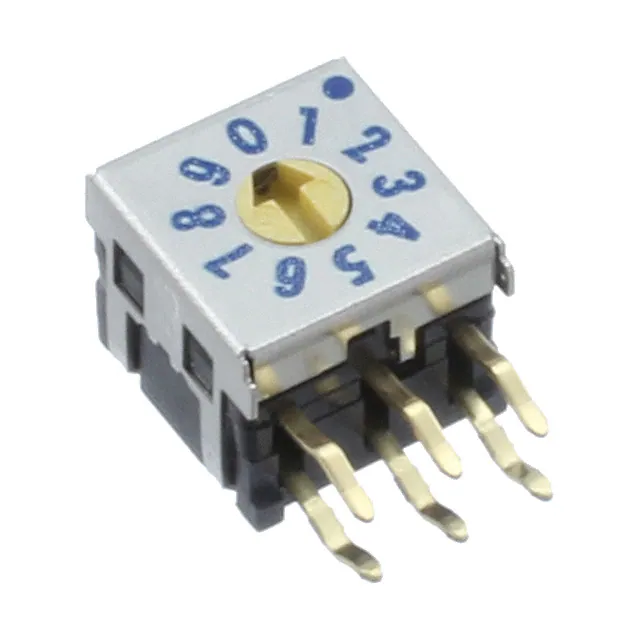

DRR7010CSWITCH ROTARY DIP BCD 0.03A 15V Nidec Components Corporation |
2,066 | 2.93 |
|
Datasheet |
DR | Tube | Active | BCD | 10 | 30mA | 15VDC | Rotary for Tool | Flush, Recessed | - | Gold | 0.311" (7.90mm) | Through Hole, Right Angle | PC Pin | 0.100" (2.54mm), Full | Yes | Process Sealed | -25°C ~ 85°C |
|
CFS-0201MBSWITCH SLIDE DIP SPST 0.1A 6V Nidec Components Corporation |
2,310 | 1.29 |
|
Datasheet |
CFS | Tube | Active | SPST | 2 | 100mA | 6VDC | Slide (Standard) | Flush, Recessed | Copper Alloy | Gold | 0.146" (3.70mm) | Surface Mount | Gull Wing | 0.100" (2.54mm), Full | No | - | -40°C ~ 85°C |
|

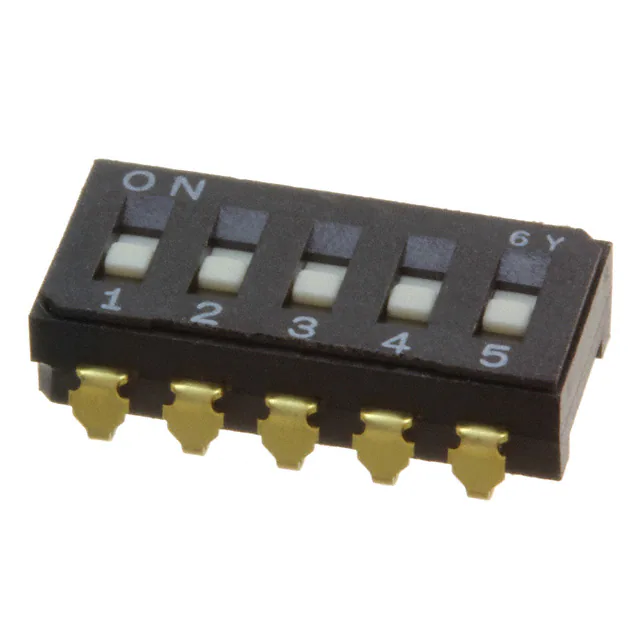

CFS-0501MASWITCH SLIDE DIP SPST 0.1A 6V Nidec Components Corporation |
2,650 | 1.67 |
|
Datasheet |
CFS | Tube | Active | SPST | 5 | 100mA | 6VDC | Slide (Standard) | Flush, Recessed | Copper Alloy | Gold | 0.154" (3.90mm) | Surface Mount | J Lead | 0.100" (2.54mm), Full | No | - | -40°C ~ 85°C |
|

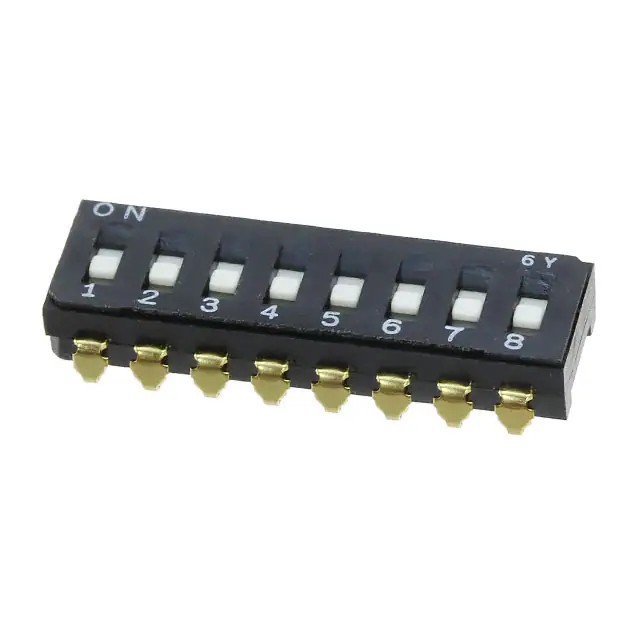

CFS-0801MASWITCH SLIDE DIP SPST 0.1A 6V Nidec Components Corporation |
4,584 | 2.29 |
|
Datasheet |
CFS | Tube | Active | SPST | 8 | 100mA | 6VDC | Slide (Standard) | Flush, Recessed | Copper Alloy | Gold | 0.154" (3.90mm) | Surface Mount | J Lead | 0.100" (2.54mm), Full | No | - | -40°C ~ 85°C |
|

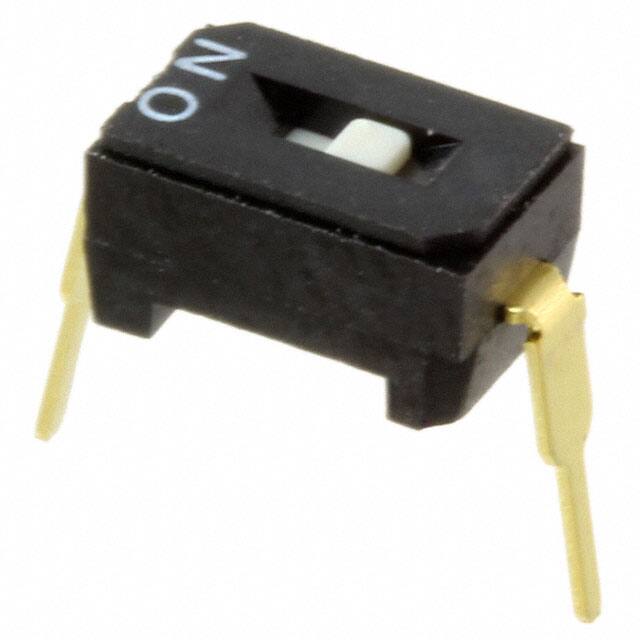

CFS-0101MCSWITCH SLIDE DIP SPST 0.1A 6V Nidec Components Corporation |
4,837 | 1.21 |
|
Datasheet |
CFS | Tube | Active | SPST | 1 | 100mA | 6VDC | Slide (Standard) | Flush, Recessed | Copper Alloy | Gold | 0.177" (4.50mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | No | - | -40°C ~ 85°C |
