0DIP Switches
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Circuit | Number of Positions | Current Rating (Amps) | Voltage Rating | Actuator Type | Actuator Level | Contact Material | Contact Finish | Height Above Board | Mounting Type | Termination Style | Pitch | Washable | Features | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
CFS-0800MBSWITCH SLIDE DIP SPST 0.1A 6V Nidec Components Corporation |
197 | 2.32 |
|
Datasheet |
CFS | Tube | Active | SPST | 8 | 100mA | 6VDC | Slide (Standard) | Flush, Recessed | Copper Alloy | Gold | 0.146" (3.70mm) | Surface Mount | Gull Wing | 0.100" (2.54mm), Full | Yes | Tape Seal | -40°C ~ 85°C |
|

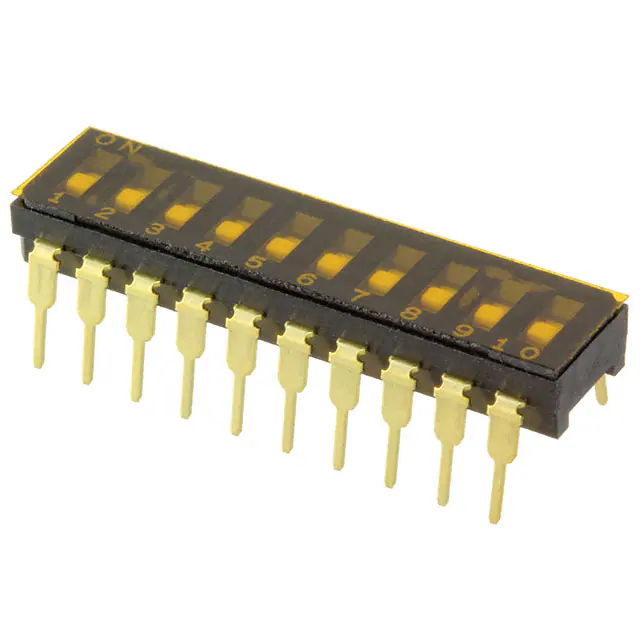

CFS-1000MCSWITCH SLIDE DIP SPST 0.1A 6V Nidec Components Corporation |
144 | 2.72 |
|
Datasheet |
CFS | Tube | Active | SPST | 10 | 100mA | 6VDC | Slide (Standard) | Flush, Recessed | Copper Alloy | Gold | 0.177" (4.50mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | Yes | Tape Seal | -40°C ~ 85°C |
|
SMR7010C-1ESWITCH ROTARY DIP BCD 0.03A 15V Nidec Components Corporation |
2,610 | 0.00 |
|
Datasheet |
SMR | Tape & Reel (TR) | Active | BCD | 10 | 30mA | 15VDC | Rotary for Tool | Flush, Recessed | - | Gold | 0.173" (4.40mm) | Surface Mount | Gull Wing | 0.100" (2.54mm), Full | Yes | - | -25°C ~ 85°C |
|

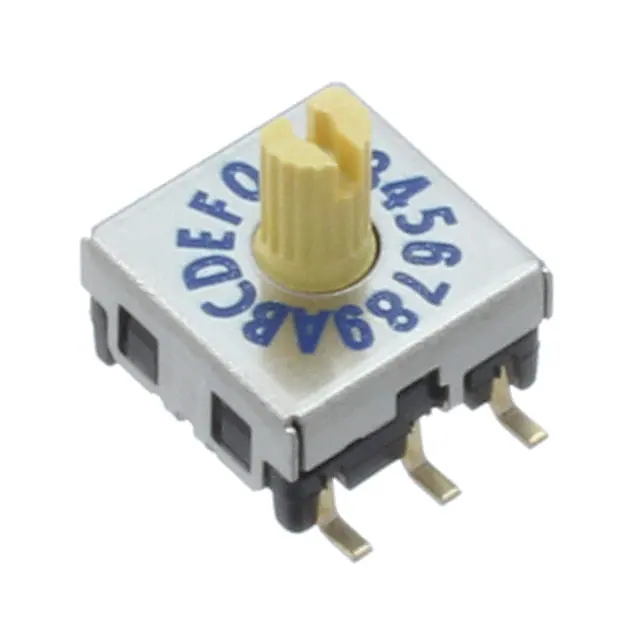

SMR8016C-1SWITCH ROTARY DIP HEX 0.03A 15V Nidec Components Corporation |
145 | 3.13 |
|
Datasheet |
SMR | Tube | Active | Hexadecimal | 16 | 30mA | 15VDC | Rotary with Shaft | Raised | - | Gold | 0.173" (4.40mm) | Surface Mount | Gull Wing | 0.100" (2.54mm), Full | Yes | - | -25°C ~ 85°C |
|
CFS-0100MASWITCH SLIDE DIP SPST 0.1A 6V Nidec Components Corporation |
254 | 1.23 |
|
Datasheet |
CFS | Tube | Active | SPST | 1 | 100mA | 6VDC | Slide (Standard) | Flush, Recessed | Copper Alloy | Gold | 0.154" (3.90mm) | Surface Mount | J Lead | 0.100" (2.54mm), Full | Yes | Tape Seal | -40°C ~ 85°C |
|
CS-4-12XTBSWITCH ROTARY DIP SPDT 0.1A 16V Nidec Components Corporation |
1,500 | 1.04 |
|
Datasheet |
CS-4 | Tape & Reel (TR) | Active | SPDT | 2 | 100mA | 16VDC | Rotary for Tool | Flush, Recessed | Copper Alloy | Gold | 0.091" (2.30mm) | Surface Mount | Gull Wing | - | Yes | - | -25°C ~ 70°C |
|

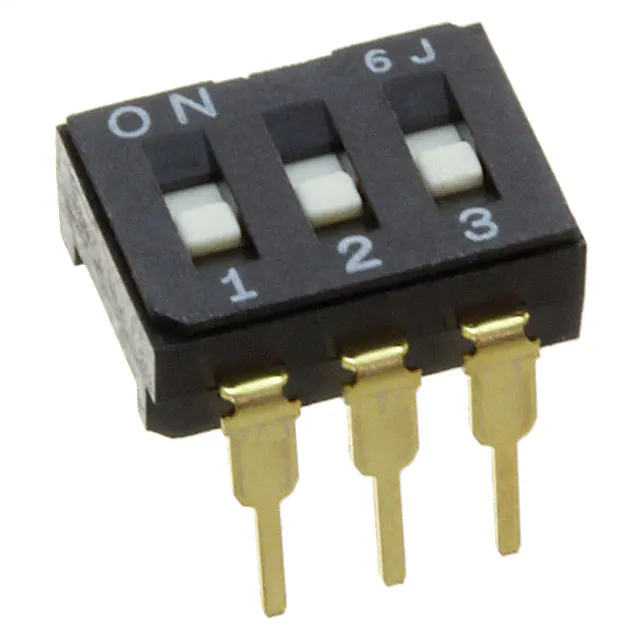

CFS-0301MCSWITCH SLIDE DIP SPST 0.1A 6V Nidec Components Corporation |
200 | 1.42 |
|
Datasheet |
CFS | Tube | Active | SPST | 3 | 100mA | 6VDC | Slide (Standard) | Flush, Recessed | Copper Alloy | Gold | 0.177" (4.50mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | No | - | -40°C ~ 85°C |
|

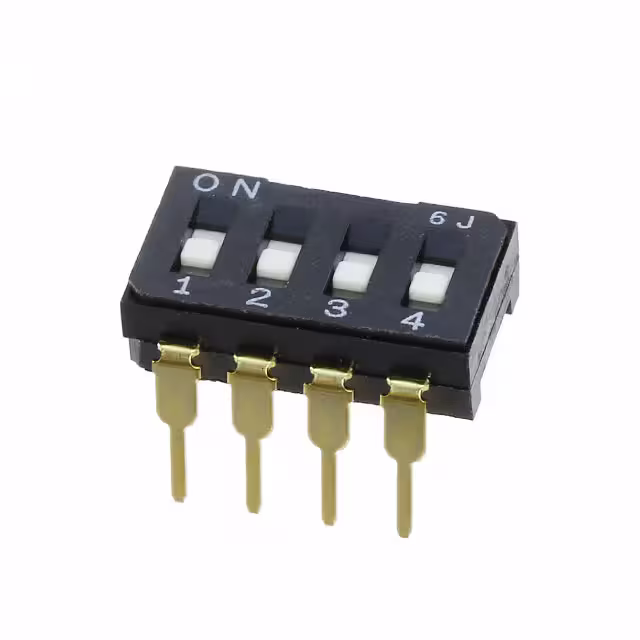

CFS-0401MCSWITCH SLIDE DIP SPST 0.1A 6V Nidec Components Corporation |
138 | 1.58 |
|
Datasheet |
CFS | Tube | Active | SPST | 4 | 100mA | 6VDC | Slide (Standard) | Flush, Recessed | Copper Alloy | Gold | 0.177" (4.50mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | No | - | -40°C ~ 85°C |
|

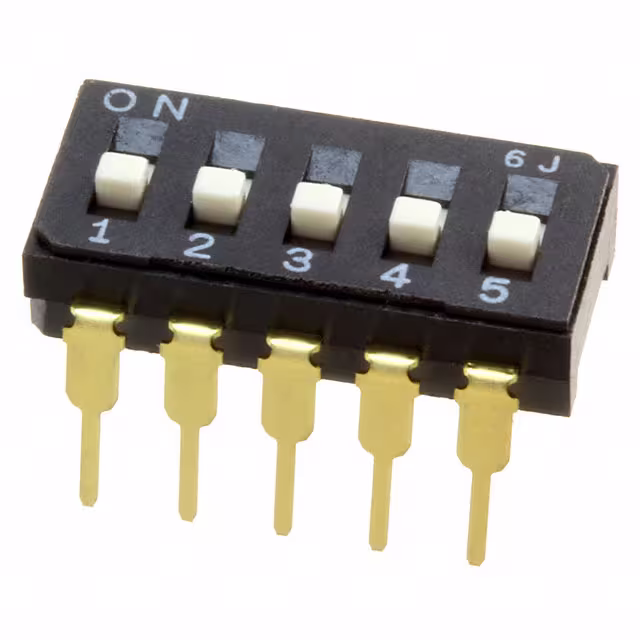

CFS-0502MCSWITCH SLIDE DIP SPST 0.1A 6V Nidec Components Corporation |
128 | 1.67 |
|
Datasheet |
CFS | Tube | Active | SPST | 5 | 100mA | 6VDC | Slide (Standard) | Raised | Copper Alloy | Gold | 0.201" (5.10mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | No | - | -40°C ~ 85°C |
|
CFS-0600MBSWITCH SLIDE DIP SPST 0.1A 6V Nidec Components Corporation |
114 | 1.77 |
|
Datasheet |
CFS | Tube | Active | SPST | 6 | 100mA | 6VDC | Slide (Standard) | Flush, Recessed | Copper Alloy | Gold | 0.146" (3.70mm) | Surface Mount | Gull Wing | 0.100" (2.54mm), Full | Yes | Tape Seal | -40°C ~ 85°C |
