Digital Isolators
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Technology | Type | Isolated Power | Number of Channels | Inputs - Side 1/Side 2 | Channel Type | Voltage - Isolation | Common Mode Transient Immunity (Min) | Data Rate | Propagation Delay tpLH / tpHL (Max) | Pulse Width Distortion (Max) | Rise / Fall Time (Typ) | Voltage - Supply | Grade | Qualification | Operating Temperature | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

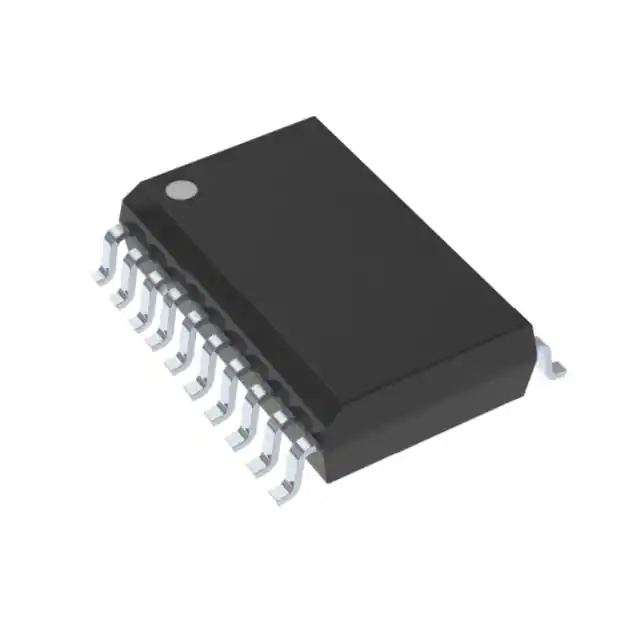

ADM3251EARWZ-REELDGTL ISO 2500VRMS RS232 20SOIC |
6,084 | 9.56 |
|
Datasheet |
IsoPower®, iCoupler® | 20-SOIC (0.295", 7.50mm Width) | Tape & Reel (TR) | Active | Magnetic Coupling | RS232 | Yes | 2 | 1/1 | Unidirectional | 2500Vrms | 25kV/µs | 460Kbps | 135ns, 190ns | - | 2.3ns, 2.3ns | 4.5V ~ 5.5V | - | - | -40°C ~ 85°C | Surface Mount | 20-SOIC |
|
|

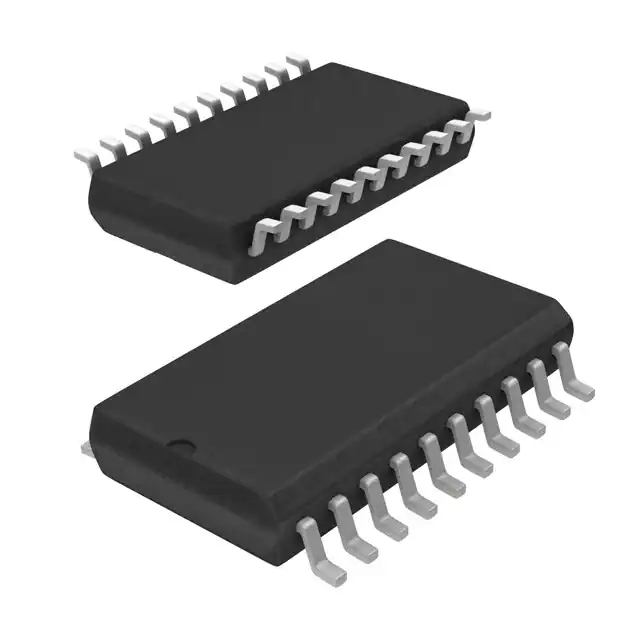

ADM3251EARWZDGTL ISO 2500VRMS RS232 20SOIC |
913 | 9.56 |
|
Datasheet |
IsoPower®, iCoupler® | 20-SOIC (0.295", 7.50mm Width) | Tube | Active | Magnetic Coupling | RS232 | Yes | 2 | 1/1 | Unidirectional | 2500Vrms | 25kV/µs | 460Kbps | 135ns, 190ns | - | 2.3ns, 2.3ns | 4.5V ~ 5.5V | - | - | -40°C ~ 85°C | Surface Mount | 20-SOIC |
|
ADUM5241ARZ-RL7DGTL ISO 2500VRMS 2CH GP 8SOIC |
3,361 | 1.00 |
|
Datasheet |
IsoPower®, iCoupler® | 8-SOIC (0.154", 3.90mm Width) | Tape & Reel (TR) | Active | Magnetic Coupling | General Purpose | Yes | 2 | 1/1 | Unidirectional | 2500Vrms | 25kV/µs | 1Mbps | 70ns, 70ns | 3ns | 2.5ns, 2.5ns | 2.7V ~ 4.0V, 4.5V ~ 5.5V | - | - | -40°C ~ 105°C | Surface Mount | 8-SOIC |
|
|
ADUM5242ARZ-RL7DGTL ISO 2500VRMS 2CH GP 8SOIC |
1,631 | 1.00 |
|
Datasheet |
IsoPower®, iCoupler® | 8-SOIC (0.154", 3.90mm Width) | Tape & Reel (TR) | Active | Magnetic Coupling | General Purpose | Yes | 2 | 0/2 | Unidirectional | 2500Vrms | 25kV/µs | 1Mbps | 70ns, 70ns | 3ns | 2.5ns, 2.5ns | 2.7V ~ 4.0V, 4.5V ~ 5.5V | - | - | -40°C ~ 105°C | Surface Mount | 8-SOIC |
|
|
ADUM5240ARZDGTL ISO 2500VRMS 2CH GP 8SOIC |
1,119 | 9.64 |
|
Datasheet |
IsoPower®, iCoupler® | 8-SOIC (0.154", 3.90mm Width) | Tube | Active | Magnetic Coupling | General Purpose | Yes | 2 | 2/0 | Unidirectional | 2500Vrms | 25kV/µs | 1Mbps | 70ns, 70ns | 3ns | 2.5ns, 2.5ns | 2.7V ~ 4.0V, 4.5V ~ 5.5V | - | - | -40°C ~ 105°C | Surface Mount | 8-SOIC |
|
ISOW1432BDFMRDGT ISO 5KV 4CH RS422/485 20SOIC |
1,057 | 7.63 |
|
Datasheet |
ISOW14x2 | 20-SOIC (0.295", 7.50mm Width) | Tape & Reel (TR) | Active | Magnetic Coupling | RS422, RS485 | Yes | 4 | 2/2 | Unidirectional | 5000Vrms | 100kV/µs (Typ) | 12Mbps | 610ns, 610ns | 40ns | 4ns, 4ns (Max) | 1.71V ~ 1.89V, 2.25V ~ 5.5V | - | - | -40°C ~ 125°C | Surface Mount | 20-SOIC |
|
|
ADUM5240ARZ-RL7DGTL ISO 2500VRMS 2CH GP 8SOIC |
1,044 | 7.33 |
|
Datasheet |
IsoPower®, iCoupler® | 8-SOIC (0.154", 3.90mm Width) | Tape & Reel (TR) | Active | Magnetic Coupling | General Purpose | Yes | 2 | 2/0 | Unidirectional | 2500Vrms | 25kV/µs | 1Mbps | 70ns, 70ns | 3ns | 2.5ns, 2.5ns | 2.7V ~ 4.0V, 4.5V ~ 5.5V | - | - | -40°C ~ 105°C | Surface Mount | 8-SOIC |
|
|
ADUM5241ARZDGTL ISO 2500VRMS 2CH GP 8SOIC |
967 | 1.00 |
|
Datasheet |
IsoPower®, iCoupler® | 8-SOIC (0.154", 3.90mm Width) | Tube | Active | Magnetic Coupling | General Purpose | Yes | 2 | 1/1 | Unidirectional | 2500Vrms | 25kV/µs | 1Mbps | 70ns, 70ns | 3ns | 2.5ns, 2.5ns | 2.7V ~ 4.0V, 4.5V ~ 5.5V | - | - | -40°C ~ 105°C | Surface Mount | 8-SOIC |
.jpg)
|
IL 715EDGTL ISO 2500VRMS 4CH GP 16SOIC |
4,781 | 10.14 |
|
Datasheet |
IsoLoop® | 16-SOIC (0.295", 7.50mm Width) | Tube | Active | GMR (Giant Magnetoresistive) | General Purpose | No | 4 | 4/0 | Unidirectional | 2500Vrms | 100kV/µs | 110Mbps | 15ns, 15ns | 3ns | 1ns, 1ns | 3V ~ 5.5V | - | - | -40°C ~ 100°C | Surface Mount | 16-SOIC |
|
IL 715-3EDGTL ISO 2500VRMS 4CH GP 16SOIC |
4,656 | 10.14 |
|
Datasheet |
IsoLoop® | 16-SOIC (0.154", 3.90mm Width) | Tube | Active | GMR (Giant Magnetoresistive) | General Purpose | No | 4 | 4/0 | Unidirectional | 2500Vrms | 100kV/µs | 110Mbps | 15ns, 15ns | 3ns | 1ns, 1ns | 3V ~ 5.5V | - | - | -40°C ~ 100°C | Surface Mount | 16-SOIC |
|
|
IL 717-3EDGTL ISO 2500VRMS 4CH GP 16SOIC |
4,121 | 10.14 |
|
Datasheet |
IsoLoop® | 16-SOIC (0.154", 3.90mm Width) | Tube | Active | GMR (Giant Magnetoresistive) | General Purpose | No | 4 | 3/1 | Unidirectional | 2500Vrms | 100kV/µs | 110Mbps | 15ns, 15ns | 3ns | 1ns, 1ns | 3V ~ 5.5V | - | - | -40°C ~ 100°C | Surface Mount | 16-SOIC |
|
|
IL 716-1EDGTL ISO 2500VRMS 4CH GP 16QSOP |
360 | 10.14 |
|
Datasheet |
IsoLoop® | 16-SSOP (0.154", 3.90mm Width) | Tube | Active | GMR (Giant Magnetoresistive) | General Purpose | No | 4 | 2/2 | Unidirectional | 2500Vrms | 100kV/µs | 110Mbps | 15ns, 15ns | 3ns | 1ns, 1ns | 3V ~ 5.5V | - | - | -40°C ~ 100°C | Surface Mount | 16-QSOP |
|
|
IL 717EDGTL ISO 2500VRMS 4CH GP 16SOIC |
1,681 | 10.14 |
|
Datasheet |
IsoLoop® | 16-SOIC (0.295", 7.50mm Width) | Tube | Active | GMR (Giant Magnetoresistive) | General Purpose | No | 4 | 3/1 | Unidirectional | 2500Vrms | 100kV/µs | 110Mbps | 15ns, 15ns | 3ns | 1ns, 1ns | 3V ~ 5.5V | - | - | -40°C ~ 100°C | Surface Mount | 16-SOIC |
|
|
IL 715-1EDGTL ISO 2500VRMS 4CH GP 16QSOP |
6,957 | 10.14 |
|
Datasheet |
IsoLoop® | 16-SSOP (0.154", 3.90mm Width) | Tube | Active | GMR (Giant Magnetoresistive) | General Purpose | No | 4 | 4/0 | Unidirectional | 2500Vrms | 100kV/µs | 110Mbps | 15ns, 15ns | 3ns | 1ns, 1ns | 3V ~ 5.5V | - | - | -40°C ~ 100°C | Surface Mount | 16-QSOP |
|
ISOW7742DFMRLOW-EMISSIONS, LOW-RIPPLE, QUAD- |
3,817 | 11.60 |
|
Datasheet |
ISOW774x | 20-SOIC (0.295", 7.50mm Width) | Tape & Reel (TR) | Active | Capacitive Coupling | General Purpose | Yes | 4 | 2/2 | Unidirectional | 5000Vrms | 85kV/µs | 100Mbps | 15.7ns, 15.7ns | 5ns | 2.5ns, 2.4ns | 2.97V ~ 3.63V, 4.5V ~ 5.5V | - | - | -40°C ~ 125°C | Surface Mount | 20-SOIC |
|
|
ISOW7741DFMRLOW-EMISSIONS, LOW-RIPPLE, QUAD- |
2,739 | 11.60 |
|
Datasheet |
ISOW774x | 20-SOIC (0.295", 7.50mm Width) | Tape & Reel (TR) | Active | Capacitive Coupling | General Purpose | Yes | 4 | 3/1 | Unidirectional | 5000Vrms | 85kV/µs | 100Mbps | 15.7ns, 15.7ns | 5ns | 2.5ns, 2.4ns | 2.97V ~ 3.63V, 4.5V ~ 5.5V | - | - | -40°C ~ 125°C | Surface Mount | 20-SOIC |
|
ADUM7642CRQZDGTL ISO 1000VRMS 6CH GP 20QSOP |
2,585 | 9.74 |
|
Datasheet |
iCoupler® | 20-SSOP (0.154", 3.90mm Width) | Tube | Active | Magnetic Coupling | General Purpose | No | 6 | 4/2 | Unidirectional | 1000Vrms | 15kV/µs | 25Mbps | 50ns, 50ns | 6ns | 2ns, 2ns | 3V ~ 5.5V | - | - | -40°C ~ 105°C | Surface Mount | 20-QSOP |
|
|
ADUM7642CRQZ-RL7DGTL ISO 1000VRMS 6CH GP 20QSOP |
1,261 | 9.74 |
|
Datasheet |
iCoupler® | 20-SSOP (0.154", 3.90mm Width) | Tape & Reel (TR) | Active | Magnetic Coupling | General Purpose | No | 6 | 4/2 | Unidirectional | 1000Vrms | 15kV/µs | 25Mbps | 50ns, 50ns | 6ns | 2ns, 2ns | 3V ~ 5.5V | - | - | -40°C ~ 105°C | Surface Mount | 20-QSOP |
|
|
ISOW7741FDFMRLOW-EMISSIONS, LOW-RIPPLE, QUAD- |
1,044 | 11.60 |
|
Datasheet |
ISOW774x | 20-SOIC (0.295", 7.50mm Width) | Tape & Reel (TR) | Active | Capacitive Coupling | General Purpose | Yes | 4 | 3/1 | Unidirectional | 5000Vrms | 85kV/µs | 100Mbps | 15.7ns, 15.7ns | 5ns | 2.5ns, 2.4ns | 2.97V ~ 3.63V, 4.5V ~ 5.5V | - | - | -40°C ~ 125°C | Surface Mount | 20-SOIC |
|
|
ISOW7742FDFMRLOW-EMISSIONS, LOW-RIPPLE, QUAD- |
457 | 11.60 |
|
Datasheet |
ISOW774x | 20-SOIC (0.295", 7.50mm Width) | Tape & Reel (TR) | Active | Capacitive Coupling | General Purpose | Yes | 4 | 2/2 | Unidirectional | 5000Vrms | 85kV/µs | 100Mbps | 15.7ns, 15.7ns | 5ns | 2.5ns, 2.4ns | 2.97V ~ 3.63V, 4.5V ~ 5.5V | - | - | -40°C ~ 125°C | Surface Mount | 20-SOIC |
