Digital Isolators
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Technology | Type | Isolated Power | Number of Channels | Inputs - Side 1/Side 2 | Channel Type | Voltage - Isolation | Common Mode Transient Immunity (Min) | Data Rate | Propagation Delay tpLH / tpHL (Max) | Pulse Width Distortion (Max) | Rise / Fall Time (Typ) | Voltage - Supply | Grade | Qualification | Operating Temperature | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
ADUM1400ARWZ-RLDGTL ISO 2500VRMS 4CH GP 16SOIC |
8,813 | 6.85 |
|
Datasheet |
iCoupler® | 16-SOIC (0.295", 7.50mm Width) | Tape & Reel (TR) | Active | Magnetic Coupling | General Purpose | No | 4 | 4/0 | Unidirectional | 2500Vrms | 25kV/µs | 1Mbps | 100ns, 100ns | 40ns | 2.5ns, 2.5ns | 2.7V ~ 5.5V | - | - | -40°C ~ 105°C | Surface Mount | 16-SOIC |
|
|
ADUM1410ARWZ-RLDGTL ISO 3750VRMS 4CH GP 16SOIC |
4,601 | 1.00 |
|
Datasheet |
iCoupler® | 16-SOIC (0.295", 7.50mm Width) | Tape & Reel (TR) | Active | Magnetic Coupling | General Purpose | No | 4 | 4/0 | Unidirectional | 3750Vrms | 25kV/µs | 1Mbps | 100ns, 100ns | 40ns | 2.5ns, 2.5ns | 2.7V ~ 5.5V | - | - | -40°C ~ 105°C | Surface Mount | 16-SOIC |
|
|
ADUM1410ARWZDGTL ISO 3750VRMS 4CH GP 16SOIC |
4,135 | 1.00 |
|
Datasheet |
iCoupler® | 16-SOIC (0.295", 7.50mm Width) | Tube | Active | Magnetic Coupling | General Purpose | No | 4 | 4/0 | Unidirectional | 3750Vrms | 25kV/µs | 1Mbps | 100ns, 100ns | 40ns | 2.5ns, 2.5ns | 2.7V ~ 5.5V | - | - | -40°C ~ 105°C | Surface Mount | 16-SOIC |
|
|
ADUM1401ARWZDGTL ISO 2500VRMS 4CH GP 16SOIC |
3,607 | 1.00 |
|
Datasheet |
iCoupler® | 16-SOIC (0.295", 7.50mm Width) | Tube | Active | Magnetic Coupling | General Purpose | No | 4 | 3/1 | Unidirectional | 2500Vrms | 25kV/µs | 1Mbps | 100ns, 100ns | 40ns | 2.5ns, 2.5ns | 2.7V ~ 5.5V | - | - | -40°C ~ 105°C | Surface Mount | 16-SOIC |
|
|
ADUM1402ARWZ-RLDGTL ISO 2500VRMS 4CH GP 16SOIC |
2,718 | 1.00 |
|
Datasheet |
iCoupler® | 16-SOIC (0.295", 7.50mm Width) | Tape & Reel (TR) | Active | Magnetic Coupling | General Purpose | No | 4 | 2/2 | Unidirectional | 2500Vrms | 25kV/µs | 1Mbps | 100ns, 100ns | 40ns | 2.5ns, 2.5ns | 2.7V ~ 5.5V | - | - | -40°C ~ 105°C | Surface Mount | 16-SOIC |
|
|
ADUM1400ARWZDGTL ISO 2500VRMS 4CH GP 16SOIC |
2,431 | 6.85 |
|
Datasheet |
iCoupler® | 16-SOIC (0.295", 7.50mm Width) | Tube | Active | Magnetic Coupling | General Purpose | No | 4 | 4/0 | Unidirectional | 2500Vrms | 25kV/µs | 1Mbps | 100ns, 100ns | 40ns | 2.5ns, 2.5ns | 2.7V ~ 5.5V | - | - | -40°C ~ 105°C | Surface Mount | 16-SOIC |
|
|
ADUM1401ARWZ-RLDGTL ISO 2500VRMS 4CH GP 16SOIC |
2,159 | 1.00 |
|
Datasheet |
iCoupler® | 16-SOIC (0.295", 7.50mm Width) | Tape & Reel (TR) | Active | Magnetic Coupling | General Purpose | No | 4 | 3/1 | Unidirectional | 2500Vrms | 25kV/µs | 1Mbps | 100ns, 100ns | 40ns | 2.5ns, 2.5ns | 2.7V ~ 5.5V | - | - | -40°C ~ 105°C | Surface Mount | 16-SOIC |
|
|
ADUM1402ARWZDGTL ISO 2500VRMS 4CH GP 16SOIC |
1,810 | 1.00 |
|
Datasheet |
iCoupler® | 16-SOIC (0.295", 7.50mm Width) | Tube | Active | Magnetic Coupling | General Purpose | No | 4 | 2/2 | Unidirectional | 2500Vrms | 25kV/µs | 1Mbps | 100ns, 100ns | 40ns | 2.5ns, 2.5ns | 2.7V ~ 5.5V | - | - | -40°C ~ 105°C | Surface Mount | 16-SOIC |
|
ADUM3154ARSZ-RL7DGT ISOL 3750VRMS 4CH SPI 20SSOP |
2,556 | 6.79 |
|
Datasheet |
iCoupler®, SPIsolator™ | 20-SSOP (0.209", 5.30mm Width) | Tape & Reel (TR) | Active | Magnetic Coupling | SPI | No | 4 | 3/1 | Unidirectional | 3750Vrms | 25kV/µs | 2Mbps | 25ns, 25ns | 2ns | 2.5ns, 2.5ns | 3V ~ 5.5V | - | - | -40°C ~ 125°C | Surface Mount | 20-SSOP |
|

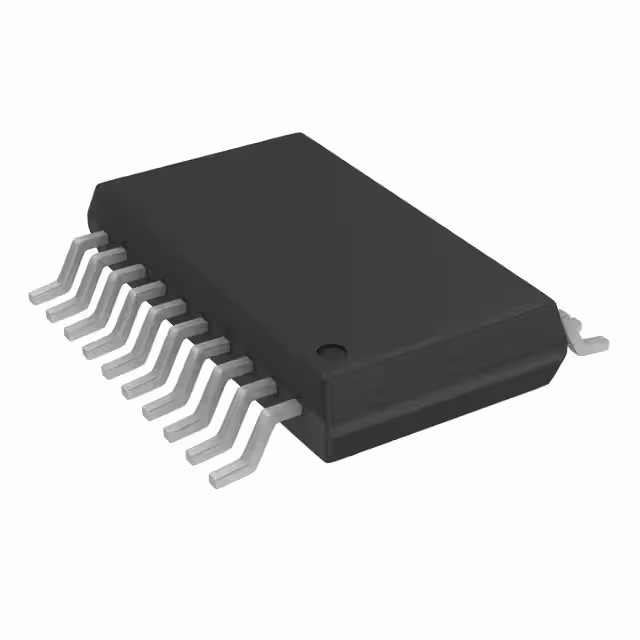

ADUM7642ARQZDGTL ISO 1000VRMS 6CH GP 20QSOP |
1,831 | 6.81 |
|
Datasheet |
iCoupler® | 20-SSOP (0.154", 3.90mm Width) | Tube | Active | Magnetic Coupling | General Purpose | No | 6 | 4/2 | Unidirectional | 1000Vrms | 15kV/µs | 1Mbps | 75ns, 75ns | 25ns | 2ns, 2ns | 3V ~ 5.5V | - | - | -40°C ~ 105°C | Surface Mount | 20-QSOP |
|
ADUM1441ARQZDGTL ISO 2500VRMS 4CH GP 16QSOP |
1,293 | 6.81 |
|
Datasheet |
iCoupler® | 16-SSOP (0.154", 3.90mm Width) | Tube | Active | Magnetic Coupling | General Purpose | No | 4 | 3/1 | Unidirectional | 2500Vrms | 25kV/µs | 2Mbps | 180ns, 180ns | 8ns | 2ns, 2ns | 2.25V ~ 3.6V | - | - | -40°C ~ 125°C | Surface Mount | 16-QSOP |
|
|
ADUM1442ARQZDGTL ISO 2500VRMS 4CH GP 16QSOP |
591 | 6.81 |
|
Datasheet |
iCoupler® | 16-SSOP (0.154", 3.90mm Width) | Tube | Active | Magnetic Coupling | General Purpose | No | 4 | 2/2 | Unidirectional | 2500Vrms | 25kV/µs | 2Mbps | 180ns, 180ns | 8ns | 2ns, 2ns | 2.25V ~ 3.6V | - | - | -40°C ~ 125°C | Surface Mount | 16-QSOP |
|
|
ADUM7641ARQZDGTL ISO 1000VRMS 6CH GP 20QSOP |
452 | 6.81 |
|
Datasheet |
iCoupler® | 20-SSOP (0.154", 3.90mm Width) | Tube | Active | Magnetic Coupling | General Purpose | No | 6 | 5/1 | Unidirectional | 1000Vrms | 15kV/µs | 1Mbps | 75ns, 75ns | 25ns | 2ns, 2ns | 3V ~ 5.5V | - | - | -40°C ~ 105°C | Surface Mount | 20-QSOP |
|
|
ADUM7640ARQZDGTL ISO 1000VRMS 6CH GP 20QSOP |
278 | 6.81 |
|
Datasheet |
iCoupler® | 20-SSOP (0.154", 3.90mm Width) | Tube | Active | Magnetic Coupling | General Purpose | No | 6 | 6/0 | Unidirectional | 1000Vrms | 15kV/µs | 1Mbps | 75ns, 75ns | 25ns | 2ns, 2ns | 3V ~ 5.5V | - | - | -40°C ~ 105°C | Surface Mount | 20-QSOP |
|
|
ADUM7643ARQZ-RL7DGTL ISO 1000VRMS 6CH GP 20QSOP |
254 | 5.75 |
|
Datasheet |
iCoupler® | 20-SSOP (0.154", 3.90mm Width) | Tape & Reel (TR) | Active | Magnetic Coupling | General Purpose | No | 6 | 3/3 | Unidirectional | 1000Vrms | 15kV/µs | 1Mbps | 75ns, 75ns | 25ns | 2ns, 2ns | 3V ~ 5.5V | - | - | -40°C ~ 105°C | Surface Mount | 20-QSOP |
|
MAX12931BAWE+DGTL ISO 5000VRMS 2CH GP 16SOIC |
134 | 6.17 |
|
Datasheet |
- | 16-SOIC (0.295", 7.50mm Width) | Tube | Active | Capacitive Coupling | General Purpose | No | 2 | 1/1 | Unidirectional | 5000Vrms | 50kV/µs (Typ) | 25Mbps | 32.5ns, 33.6ns | 4ns | 1.6ns, 1.4ns (Max) | 1.71V ~ 5.5V | - | - | -40°C ~ 125°C | Surface Mount | 16-SOIC |
|
SI8600AC-B-ISDGTL ISOL 3750VRMS 2CH I2C 8SOIC |
2,828 | 6.89 |
|
Datasheet |
- | 8-SOIC (0.154", 3.90mm Width) | Tube | Active | Capacitive Coupling | I2C | No | 2 | 2/2 | Bidirectional | 3750Vrms | 35kV/µs | - | - | - | - | 3V ~ 5.5V | - | - | -40°C ~ 125°C | Surface Mount | 8-SOIC |
.jpg)
|
IL 3585EDGT ISO 2.5KV RS422/RS485 16SOIC |
3,774 | 14.62 |
|
Datasheet |
IsoLoop® | 16-SOIC (0.295", 7.50mm Width) | Tube | Active | GMR (Giant Magnetoresistive) | RS422, RS485 | No | 3 | 2/1 | Unidirectional | 2500Vrms | 30kV/µs | 40Mbps | 35ns, 35ns | - | - | 3V ~ 5.5V, 4.5V ~ 5.5V | - | - | -40°C ~ 85°C | Surface Mount | 16-SOIC |
|
|
IL 3685EDGT ISO 2.5KV RS422/RS485 16SOIC |
3,442 | 14.62 |
|
Datasheet |
IsoLoop® | 16-SOIC (0.295", 7.50mm Width) | Tube | Active | GMR (Giant Magnetoresistive) | RS422, RS485 | No | 3 | 2/1 | Unidirectional | 2500Vrms | 30kV/µs | 40Mbps | 30ns, 30ns | - | - | 3V ~ 5.5V, 4.5V ~ 5.5V | - | - | -40°C ~ 85°C | Surface Mount | 16-SOIC |
|
|
ADUM3152ARSZ-RL7DGT ISOL 3750VRMS 7CH SPI 20SSOP |
1,181 | 7.04 |
|
Datasheet |
iCoupler®, SPIsolator™ | 20-SSOP (0.209", 5.30mm Width) | Tape & Reel (TR) | Active | Magnetic Coupling | SPI | No | 7 | 4/3 | Unidirectional | 3750Vrms | 25kV/µs | 2Mbps | 25ns, 25ns | 3ns | 2.5ns, 2.5ns | 3V ~ 5.5V | - | - | -40°C ~ 125°C | Surface Mount | 20-SSOP |
