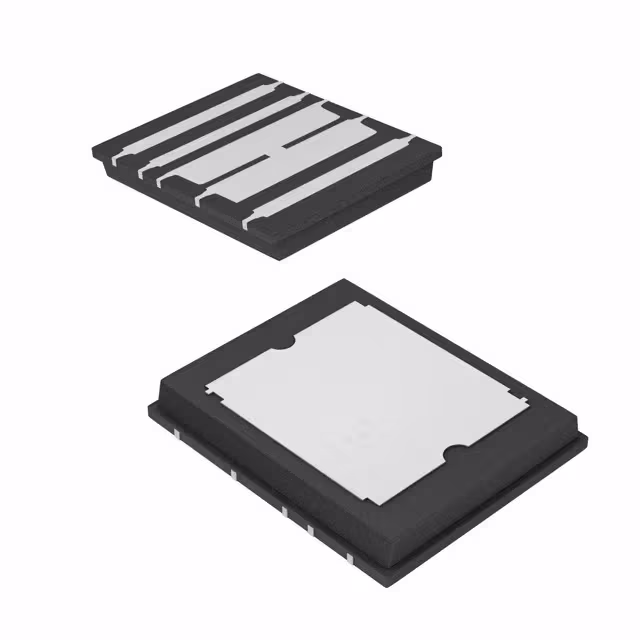

Vishay Siliconix SIE822DF-T1-E3
- Part No.:
- SIE822DF-T1-E3
- Manufacturer:
- Vishay Siliconix
- Category:
- FETs, MOSFETs
- Package:
- 10-PolarPAK® (S)
- Datasheet:
-
SIE822DF-T1-E3.pdf
- Description:
- MOSFET N-CH 20V 50A 10POLARPAK
- Quantity:
Unit Price:$0
Ext Price:$0
- Payment:
- Shipping:
Product details
- Specifications
- FAQ
- Comparison
- Tags
- Product attributes
- Attribute value
- Manufacturer:
- Vishay Siliconix
- Series:
- TrenchFET®
- Package/Case:
- 10-PolarPAK® (S)
- Packaging:
- Tape & Reel (TR)
- Product Status:
- Obsolete
- FET Type:
- N-Channel
- Technology:
- MOSFET (Metal Oxide)
- Drain to Source Voltage (Vdss):
- 20 V
- Current - Continuous Drain (Id) @ 25°C:
- 50A (Tc)
- Drive Voltage (Max Rds On, Min Rds On):
- 4.5V, 10V
- Rds On (Max) @ Id, Vgs:
- 3.4mOhm @ 18.3A, 10V
- Vgs(th) (Max) @ Id:
- 3V @ 250µA
- Gate Charge (Qg) (Max) @ Vgs:
- 78 nC @ 10 V
- Vgs (Max):
- ±20V
- Input Capacitance (Ciss) (Max) @ Vds:
- 4200 pF @ 10 V
- FET Feature:
- -
- Power Dissipation (Max):
- 5.2W (Ta), 104W (Tc)
- Operating Temperature:
- -55°C ~ 150°C (TJ)
- Grade:
- -
- Qualification:
- -
- Mounting Type:
- Surface Mount
- Supplier Device Package:
- 10-PolarPAK® (S)
- Datasheet:
-
SIE822DF-T1-E3.pdf
