Littelfuse Inc. LSIC1MO120G0080

Part No.:
LSIC1MO120G0080
Manufacturer:
Littelfuse Inc.
Category:
FETs, MOSFETs
Package:
TO-247-4
Datasheet:
Chuangxin CloudLSIC1MO120G0080.pdf
Description:
MOSFET SIC 1200V 25A TO247-4L
Quantity:

Unit Price:$0

Ext Price:$0

Payment:
Payment
Shipping:
Shipping

Product details

  • Specifications
  • FAQ
  • Comparison
  • Tags
Product attributes
Attribute value
Manufacturer:
Littelfuse Inc.
Series:
-
Package/Case:
TO-247-4
Packaging:
Tube
Product Status:
Active
FET Type:
N-Channel
Technology:
SiCFET (Silicon Carbide)
Drain to Source Voltage (Vdss):
1200 V
Current - Continuous Drain (Id) @ 25°C:
39A (Tc)
Drive Voltage (Max Rds On, Min Rds On):
20V
Rds On (Max) @ Id, Vgs:
100mOhm @ 20A, 20V
Vgs(th) (Max) @ Id:
4V @ 10mA
Gate Charge (Qg) (Max) @ Vgs:
92 nC @ 20 V
Vgs (Max):
+22V, -6V
Input Capacitance (Ciss) (Max) @ Vds:
170 pF @ 800 V
FET Feature:
-
Power Dissipation (Max):
214W (Tc)
Operating Temperature:
-55°C ~ 175°C (TJ)
Grade:
-
Qualification:
-
Mounting Type:
Through Hole
Supplier Device Package:
TO-247-4L
Datasheet:
Chuangxin CloudLSIC1MO120G0080.pdf

1. How to order LSIC1MO120G0080 on Chuangxin Cloud?

Currently, Chuangxin Cloud only provide peer-to-peer order processing. While you submit the RFQ, our professional agent will contact you with the competitive prices in the global market, and our agent will prompt you to finish the order if you accept our offers.

2. How does Chuangxin Cloud guarantee that LSIC1MO120G0080 is from the original manufacturer or authorized agents?

We have a professional and experienced quality control team to strictly verify and test the LSIC1MO120G0080. All suppliers must pass our qualification reviews before they can publish their products including LSIC1MO120G0080 on Chuangxin Cloud; we pay more attention to the channels and quality of LSIC1MO120G0080 products than any other customer. We strictly implement supplier audits, so you can purchase with confidence.

3. Are the LSIC1MO120G0080 price and inventory displayed accurate?

The price and inventory of LSIC1MO120G0080 fluctuates frequently and cannot be updated in time, it will be updated periodically within 24 hours. And, our quotation usually expires after 5 days.

4. What forms of payment are accepted?

Wire Transfer, PayPal, Alipay, Wechat, Credit Card, Western Union, MoneyGram, and Escrow are all acceptable.

Warm Tips: Some orders in certain payment forms may require handling fee.

5. How is the shipping arranged?

Customers can choose industry-leading freight companies, including DHL, UPS, FedEx, TNT, and Registered Mail. Shipping insurance is also available.

Once your order has been processed for shipment, our salesperson will send you an email advising you of the shipping status and tracking number.

Warm Tips: It may take up to 24 hours for the carriers to display tracking information. Usually, express delivery takes 3-5 days, and registered mail takes 25-60 days.

6. What is the process for return or replacement of LSIC1MO120G0080?

All goods will implement Pre-Shipment Inspection (PSI), selected at random from all batches of your order to do a systematic inspection before arranging the shipment. If there is something wrong with the LSIC1MO120G0080 we delivered, we will accept the replacement or return of the LSIC1MO120G0080 only when all of the below conditions are fulfilled:

(1)Such as a deficiency in quantity, delivery of wrong items, and apparent external defects (breakage and rust, etc.), and we acknowledge such problems.

(2)We are informed of the defect described above within 90 days after the delivery of LSIC1MO120G0080.

(3)The PartNo is unused and only in the original unpacked packaging.

Two processes to return the products:

(1)Inform us within 90 days

(2)Obtain Requesting Return Authorizations

7.How to contact us to get technical supports, such as LSIC1MO120G0080 pin diagram, LSIC1MO120G0080 datasheet?

If you need any after-sales service, please do not hesitate to contact us.

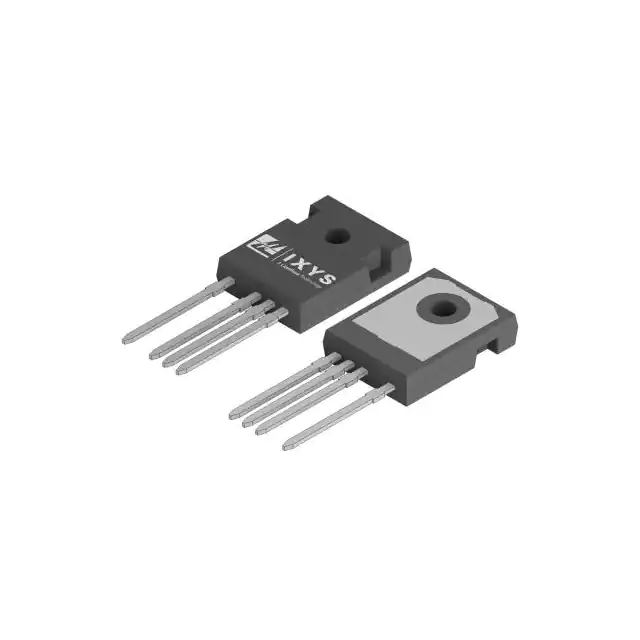

Image LSIC1MO120G0080
Part Number LSIC1MO120G0080
Manufacturer Littelfuse Inc.
Series -
Package/Case TO-247-4
Packaging Tube
Product Status Active
FET Type N-Channel
Technology SiCFET (Silicon Carbide)
Drain to Source Voltage (Vdss) 1200 V
Current - Continuous Drain (Id) @ 25°C 39A (Tc)
Drive Voltage (Max Rds On, Min Rds On) 20V
Rds On (Max) @ Id, Vgs 100mOhm @ 20A, 20V
Vgs(th) (Max) @ Id 4V @ 10mA
Gate Charge (Qg) (Max) @ Vgs 92 nC @ 20 V
Vgs (Max) +22V, -6V
Input Capacitance (Ciss) (Max) @ Vds 170 pF @ 800 V
FET Feature -
Power Dissipation (Max) 214W (Tc)
Operating Temperature -55°C ~ 175°C (TJ)
Grade -
Qualification -
Mounting Type Through Hole
Supplier Device Package TO-247-4L
