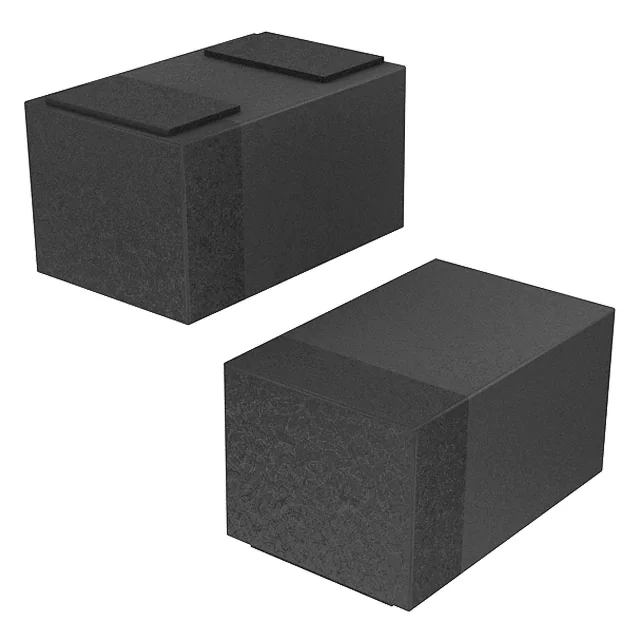

Comchip Technology CPDQR3-5V0UP

Part No.:
CPDQR3-5V0UP
Manufacturer:
Comchip Technology
Category:
TVS Diodes
Package:
0402 (1006 Metric)
Datasheet:
Chuangxin CloudCPDQR3-5V0UP.pdf
Description:
TVS DIODE 5VWM 12.5VC 0402-3P
Quantity:

Unit Price:$0

Ext Price:$0

Payment:
Payment
Shipping:
Shipping

Product details

  • Specifications
  • FAQ
  • Comparison
  • Tags
Product attributes
Attribute value
Manufacturer:
Comchip Technology
Package/Case:
0402 (1006 Metric)
Series:
-
Packaging:
Tape & Reel (TR)
Product Status:
Obsolete
Type:
Steering (Rail to Rail)
Unidirectional Channels:
1
Bidirectional Channels:
-
Voltage - Reverse Standoff (Typ):
5V
Voltage - Breakdown (Min):
6V
Voltage - Clamping (Max) @ Ipp:
12.5V
Current - Peak Pulse (10/1000µs):
2A (8/20µs)
Power - Peak Pulse:
25W
Power Line Protection:
No
Applications:
General Purpose
Capacitance @ Frequency:
10pF @ 1MHz
Operating Temperature:
-55°C ~ 125°C (TJ)
Grade:
-
Qualification:
-
Mounting Type:
Surface Mount
Supplier Device Package:
0402-3P
Datasheet:
Chuangxin CloudCPDQR3-5V0UP.pdf

1. How to order CPDQR3-5V0UP on Chuangxin Cloud?

Currently, Chuangxin Cloud only provide peer-to-peer order processing. While you submit the RFQ, our professional agent will contact you with the competitive prices in the global market, and our agent will prompt you to finish the order if you accept our offers.

2. How does Chuangxin Cloud guarantee that CPDQR3-5V0UP is from the original manufacturer or authorized agents?

We have a professional and experienced quality control team to strictly verify and test the CPDQR3-5V0UP. All suppliers must pass our qualification reviews before they can publish their products including CPDQR3-5V0UP on Chuangxin Cloud; we pay more attention to the channels and quality of CPDQR3-5V0UP products than any other customer. We strictly implement supplier audits, so you can purchase with confidence.

3. Are the CPDQR3-5V0UP price and inventory displayed accurate?

The price and inventory of CPDQR3-5V0UP fluctuates frequently and cannot be updated in time, it will be updated periodically within 24 hours. And, our quotation usually expires after 5 days.

4. What forms of payment are accepted?

Wire Transfer, PayPal, Alipay, Wechat, Credit Card, Western Union, MoneyGram, and Escrow are all acceptable.

Warm Tips: Some orders in certain payment forms may require handling fee.

5. How is the shipping arranged?

Customers can choose industry-leading freight companies, including DHL, UPS, FedEx, TNT, and Registered Mail. Shipping insurance is also available.

Once your order has been processed for shipment, our salesperson will send you an email advising you of the shipping status and tracking number.

Warm Tips: It may take up to 24 hours for the carriers to display tracking information. Usually, express delivery takes 3-5 days, and registered mail takes 25-60 days.

6. What is the process for return or replacement of CPDQR3-5V0UP?

All goods will implement Pre-Shipment Inspection (PSI), selected at random from all batches of your order to do a systematic inspection before arranging the shipment. If there is something wrong with the CPDQR3-5V0UP we delivered, we will accept the replacement or return of the CPDQR3-5V0UP only when all of the below conditions are fulfilled:

(1)Such as a deficiency in quantity, delivery of wrong items, and apparent external defects (breakage and rust, etc.), and we acknowledge such problems.

(2)We are informed of the defect described above within 90 days after the delivery of CPDQR3-5V0UP.

(3)The PartNo is unused and only in the original unpacked packaging.

Two processes to return the products:

(1)Inform us within 90 days

(2)Obtain Requesting Return Authorizations

7.How to contact us to get technical supports, such as CPDQR3-5V0UP pin diagram, CPDQR3-5V0UP datasheet?

If you need any after-sales service, please do not hesitate to contact us.

Image CPDQR3-5V0UP CPDQR3V3U-HF
Part Number CPDQR3-5V0UP CPDQR3V3U-HF
Manufacturer Comchip Technology Comchip Technology
Package/Case 0402 (1006 Metric) 0402 (1006 Metric)
Series - -
Packaging Tape & Reel (TR) Tape & Reel (TR)
Product Status Obsolete Obsolete
Type Steering (Rail to Rail) Steering (Rail to Rail)
Unidirectional Channels 1 1
Bidirectional Channels - -
Voltage - Reverse Standoff (Typ) 5V 5V
Voltage - Breakdown (Min) 6V 6V
Voltage - Clamping (Max) @ Ipp 12.5V 12.5V
Current - Peak Pulse (10/1000µs) 2A (8/20µs) 2A (8/20µs)
Power - Peak Pulse 25W 25W
Power Line Protection No No
Applications General Purpose General Purpose
Capacitance @ Frequency 10pF @ 1MHz 10pF @ 1MHz
Operating Temperature -55°C ~ 125°C (TJ) -55°C ~ 125°C (TJ)
Grade - -
Qualification - -
Mounting Type Surface Mount Surface Mount
Supplier Device Package 0402-3P 0402-3P
