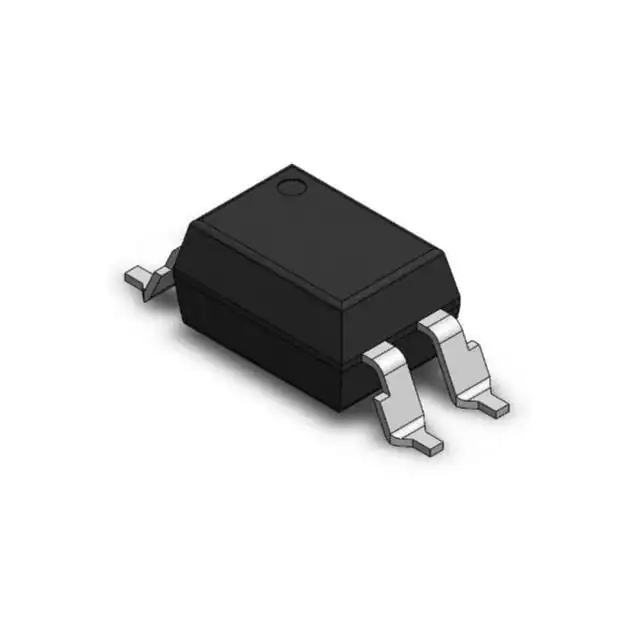

American Bright Optoelectronics Corporation APC-817A1-SL
- Part No.:
- APC-817A1-SL
- Manufacturer:
- American Bright Optoelectronics Corporation
- Package:
- 4-SMD, Gull Wing
- Datasheet:
-
APC-817A1-SL.pdf
- Description:
- OPTOISOLATOR 5KV 1CH TRANS 4SMD
- Quantity:
Unit Price:$0
Ext Price:$0
- Payment:
- Shipping:
Product details
- Specifications
- FAQ
- Comparison
- Tags
- Product attributes
- Attribute value
- Manufacturer:
- American Bright Optoelectronics Corporation
- Series:
- APC-817
- Package/Case:
- 4-SMD, Gull Wing
- Packaging:
- Tape & Reel (TR)
- Product Status:
- Active
- Number of Channels:
- 1
- Voltage - Isolation:
- 5000Vrms
- Current Transfer Ratio (Min):
- 80% @ 5mA
- Current Transfer Ratio (Max):
- 160% @ 5mA
- Turn On / Turn Off Time (Typ):
- -
- Rise / Fall Time (Typ):
- 3µs, 4µs
- Input Type:
- DC
- Output Type:
- Transistor
- Voltage - Output (Max):
- 35V
- Current - Output / Channel:
- 50mA
- Voltage - Forward (Vf) (Typ):
- 1.24V
- Current - DC Forward (If) (Max):
- 60 mA
- Vce Saturation (Max):
- 200mV
- Grade:
- -
- Qualification:
- -
- Operating Temperature:
- -55°C ~ 110°C
- Mounting Type:
- Surface Mount
- Supplier Device Package:
- 4-SMD
- Datasheet:
-
APC-817A1-SL.pdf
