Name: AEMIF-0603-401M-16-T
Brand: Abracon LLC
SKU: AEMIF-0603-401M-16-T
Price: 2.40 USD
Availability: InStock
Rating: 5 (2 reviews)

All Categories

Language

Home > Products > Filters > EMI/RFI Filters (LC, RC Networks)

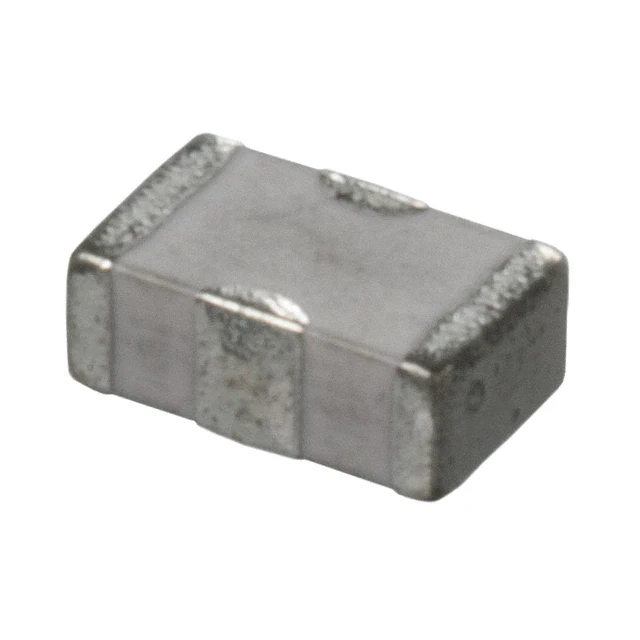

Abracon LLC AEMIF-0603-401M-16-T

Compare

Part No.:: AEMIF-0603-401M-16-T

Manufacturer:: Abracon LLC

Category:: EMI/RFI Filters (LC, RC Networks)

Package:: 0603 (1608 Metric)

Description:: FILTER RC(PI) 0.8 OHM SMD

Quantity:: RFQ Add To RFQ list Buy Now Add To Cart

Unit Price:$0

Ext Price:$0

Payment:

Shipping:

Product details

Specifications
FAQ
Comparison
Tags

Product attributes: Attribute value

Manufacturer:: Abracon LLC

Series:: AEMIF-0603

Package/Case:: 0603 (1608 Metric)

Packaging:: Tape & Reel (TR)

Product Status:: Obsolete

Type:: Low Pass

Filter Order:: 2nd

Technology:: RC (Pi)

Number of Channels:: 1

Center / Cutoff Frequency:: 400MHz (Cutoff)

Attenuation Value:: 20dB @ 800MHz ~ 2GHz

Resistance - Channel (Ohms):: 0.8

Current:: 300 mA

Values:: R = 0.8Ohms

ESD Protection:: No

Operating Temperature:: -40°C ~ 85°C

Applications:: General Purpose

Voltage - Rated:: 16V

Grade:: -

Qualification:: -

Mounting Type:: Surface Mount

Size / Dimension:: 0.063" L x 0.032" W (1.60mm x 0.80mm)

Height:: 0.031" (0.79mm)
