Toggle Switches
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Actuator Length | Illumination | Illumination Type, Color | Illumination Voltage (Nominal) | Termination Style | Panel Cutout Dimensions | Bushing Thread | Ingress Protection | Features | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
T101S1TABESWITCH TOGGLE SPDT 0.4VA 20V |
1,669 | 10.20 |
|
Datasheet |
T | Tray | Active | Panel Mount, Right Angle | SPDT | On-On | 0.4VA (AC/DC) | 20 V | 20 V | Standard Round | 10.41mm | Non-Illuminated | - | - | PC Pin | Circular - 6.35mm Dia | 1/4-40 | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|

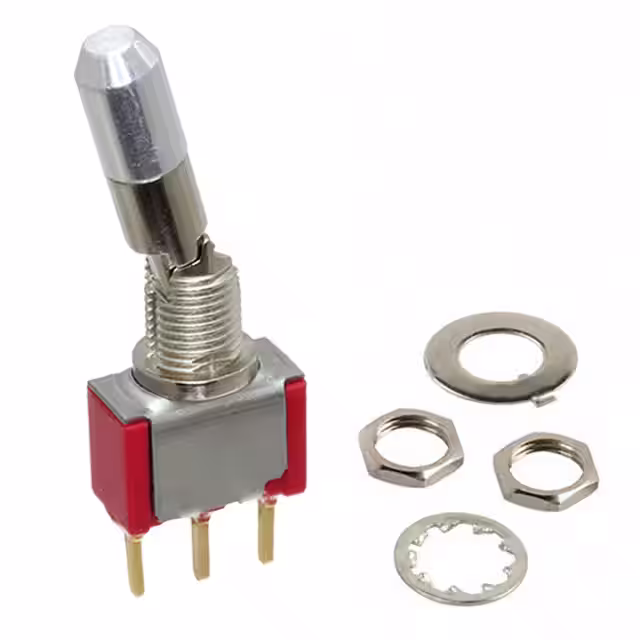

7101K12CGESWITCH TOGGLE SPDT 5A 120V |
1,875 | 13.93 |
|
Datasheet |
7000 | Bulk | Active | Panel Mount | SPDT | On-On | 5A (AC/DC) | 120 V | 28 V | Locking Lever | 18.59mm | Non-Illuminated | - | - | PC Pin | Circular - 6.35mm Dia | 1/4-40 | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
E103MD1ABESWITCH TOGGLE SPDT 0.4VA 20V |
3,367 | 9.69 |
|
Datasheet |
E | Tray | Active | Through Hole, Right Angle | SPDT | On-Off-On | 0.4VA (AC/DC) | 20 V | 20 V | Standard Round | 7.62mm | Non-Illuminated | - | - | PC Pin | - | Unthreaded | IP57 - Dust Protected, Waterproof | Epoxy Sealed Terminals | -30°C ~ 85°C |
|

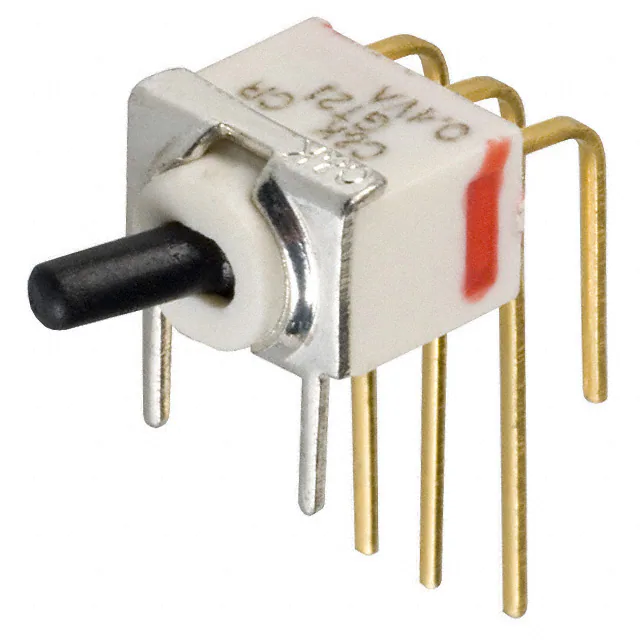

GT21MABESWITCH TOGGLE DPDT 0.4VA 20V |
4,214 | 9.82 |
|
Datasheet |
GT | Tray | Active | Through Hole, Right Angle | DPDT | On-On | 0.4VA (AC/DC) | 20 V | 20 V | Standard Round | 3.81mm | Non-Illuminated | - | - | PC Pin | - | Unthreaded | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
T103MHZBESWITCH TOGGLE SPDT 0.4VA 20V |
2,212 | 9.25 |
|
Datasheet |
T | Tray | Active | Panel Mount | SPDT | On-Off-On | 0.4VA (AC/DC) | 20 V | 20 V | Standard Round | 5.44mm | Non-Illuminated | - | - | Solder Lug | Circular - 4.95mm Dia | 10-48 | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
T201MH9AGESWITCH TOGGLE DPDT 3A 120V |
3,959 | 18.36 |
|
Datasheet |
T | Bulk | Active | Through Hole, Right Angle | DPDT | On-On | 3A (AC/DC) | 120 V | 28 V | Standard Round | 5.33mm | Non-Illuminated | - | - | PC Pin | - | Unthreaded | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|

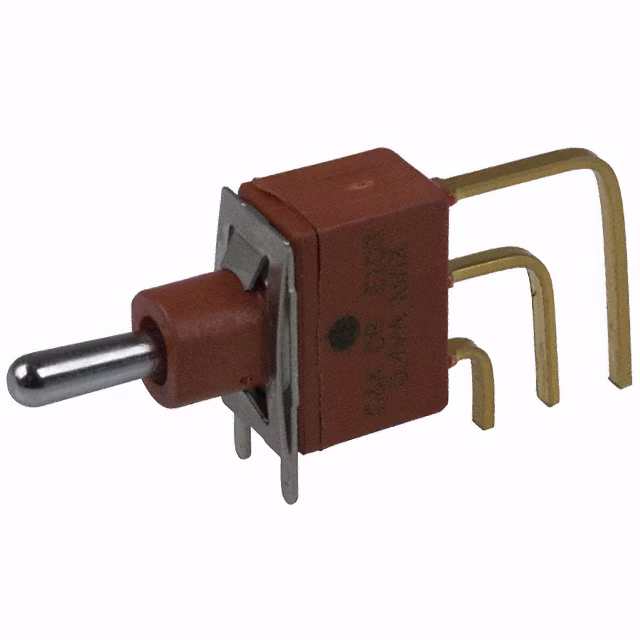

E103MD1AV2BESWITCH TOGGLE SPDT 0.4VA 20V |
4,161 | 11.98 |
|
Datasheet |
E | Tray | Active | Through Hole, Right Angle, Vertical | SPDT | On-Off-On | 0.4VA (AC/DC) | 20 V | 20 V | Standard Round | 7.62mm | Non-Illuminated | - | - | PC Pin | - | Unthreaded | IP57 - Dust Protected, Waterproof | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
7215SYZQESWITCH TOGGLE SP3T 5A 120V |
3,929 | 14.03 |
|
Datasheet |
7000 | Bulk | Active | Panel Mount | SP3T | Mom-On-Mom | 5A (AC/DC) | 120 V | 28 V | Standard Round | 10.67mm | Non-Illuminated | - | - | Solder Lug | Circular - 6.35mm Dia | 1/4-40 | - | Jumper needed to achieve triple throw | -30°C ~ 85°C |
|

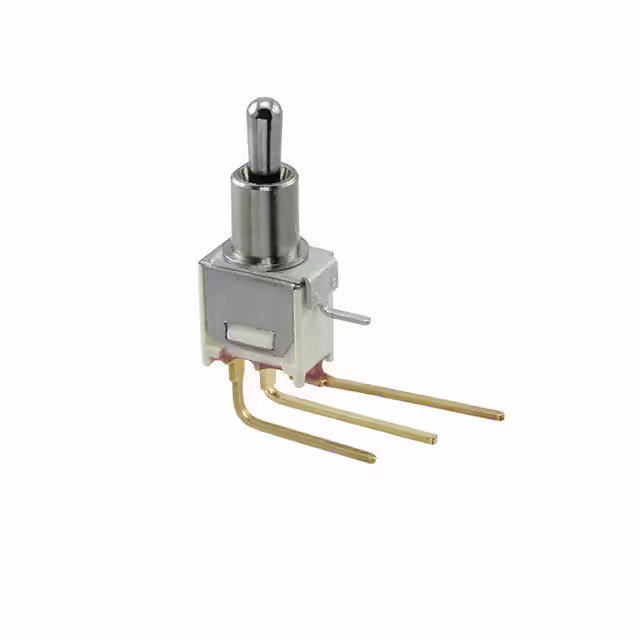

T107MH9AVBESWITCH TOGGLE SPDT 0.4VA 20V |
2,160 | 12.75 |
|
Datasheet |
T | Tray | Active | Through Hole, Right Angle, Vertical | SPDT | On-Off-Mom | 0.4VA (AC/DC) | 20 V | 20 V | Standard Round | 5.44mm | Non-Illuminated | - | - | PC Pin | - | Unthreaded | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
|
T201MH9ABESWITCH TOGGLE DPDT 0.4VA 20V |
2,014 | 14.28 |
|
Datasheet |
T | Bulk | Active | Through Hole, Right Angle | DPDT | On-On | 0.4VA (AC/DC) | 20 V | 20 V | Standard Round | 5.33mm | Non-Illuminated | - | - | PC Pin | - | Unthreaded | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
7201K2CQEGSWITCH TOGGLE DPDT 5A 120V |
2,589 | 17.98 |
|
Datasheet |
7000 | Bag | Active | Panel Mount | DPDT | On-On | 5A (AC/DC) | 120 V | 28 V | Locking Lever | 17.88mm | Non-Illuminated | - | - | PC Pin | Circular - 6.35mm Dia | 1/4-40 | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
7211P3YZBESWITCH TOGGLE SP3T 0.4VA 20V |
1,906 | 16.34 |
|
Datasheet |
7000 | Bulk | Active | Panel Mount | SP3T | On-On-On | 0.4VA (AC/DC) | 20 V | 20 V | Flat Anti-Rotation | 11.43mm | Non-Illuminated | - | - | Solder Lug | Circular - 6.35mm Dia | 1/4-40 | - | Jumper needed to achieve triple throw | -30°C ~ 85°C |
|
E211SD1V3BESWITCH TOGGLE SP3T 0.4VA 20V |
4,765 | 18.18 |
|
Datasheet |
E | Bulk | Active | Through Hole | SP3T | On-On-On | 0.4VA (AC/DC) | 20 V | 20 V | Standard Round | 12.70mm | Non-Illuminated | - | - | PC Pin | - | Unthreaded | IP57 - Dust Protected, Waterproof | Jumper needed to achieve triple throw | -30°C ~ 85°C |
|

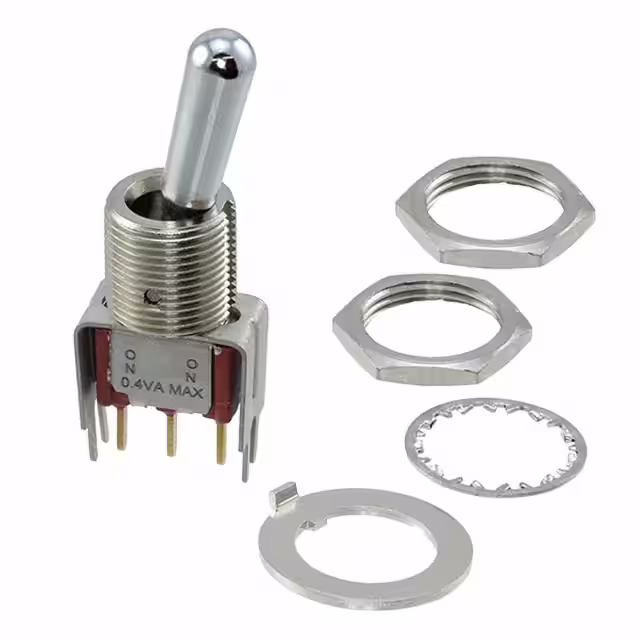

7101TPV3BESWITCH TOGGLE SPDT 0.4VA 20V |
1,104 | 17.97 |
|
Datasheet |
7000 | Bulk | Active | Panel Mount | SPDT | On-On | 0.4VA (AC/DC) | 20 V | 20 V | Anti-Rotation | 17.45mm | Non-Illuminated | - | - | PC Pin | Circular - 11.91mm Dia | 15/32-32 | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
E211SD1V31BESWITCH TOGGLE SP3T 0.4VA 20V |
2,227 | 18.47 |
|
Datasheet |
E | Bulk | Active | Through Hole | SP3T | On-On-On | 0.4VA (AC/DC) | 20 V | 20 V | Standard Round | 12.70mm | Non-Illuminated | - | - | PC Pin | - | Unthreaded | IP57 - Dust Protected, Waterproof | Jumper needed to achieve triple throw | -30°C ~ 85°C |
|
|
7201SH3ZQESWITCH TOGGLE DPDT 5A 120V |
2,824 | 13.55 |
|
Datasheet |
7000 | Tray | Active | Panel Mount | DPDT | On-On | 5A (AC/DC) | 120 V | 28 V | Standard Round | 10.16mm | Non-Illuminated | - | - | Solder Lug | Circular - 6.35mm Dia | 1/4-40 | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
7101P4CWAQE22SWITCH TOGGLE SPDT 5A 120V |
2,438 | 17.31 |
|
Datasheet |
7000 | Bulk | Active | Panel Mount, Right Angle | SPDT | On-On | 5A (AC/DC) | 120 V | 28 V | Flat Anti-Rotation | 6.35mm | Non-Illuminated | - | - | PC Pin | Circular - 6.35mm Dia | 1/4-40 | IP67 - Dust Tight, Waterproof | Black Actuator | -30°C ~ 85°C |
|
|
T201MH9CBESWITCH TOGGLE DPDT 0.4VA 20V |
2,719 | 14.12 |
|
Datasheet |
T | Tray | Active | Through Hole | DPDT | On-On | 0.4VA (AC/DC) | 20 V | 20 V | Standard Round | 5.44mm | Non-Illuminated | - | - | PC Pin | - | Unthreaded | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|

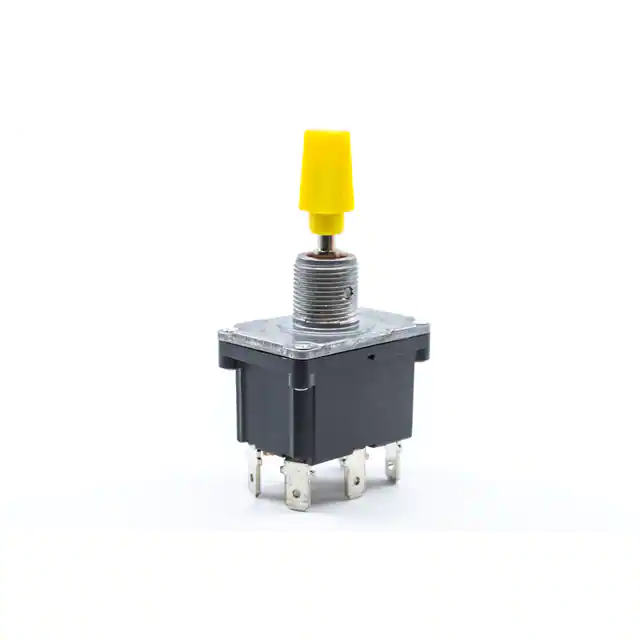

ST5DP104T2C1SWITCH TOGGLE DPDT 20A 125V |
1,282 | 22.32 |
|
Datasheet |
ST5 | Bulk | Active | Panel Mount | DPDT | Mom-Off-Mom | 20A (AC/DC) | 125 V | 30 V | Flatted | 22.20mm | Non-Illuminated | - | - | Quick Connect - 0.187" (4.7mm) | Circular - 12.00mm Dia | 15/32-32 | IP40 | - | -10°C ~ 125°C |
|
7201P4YCQESWITCH TOGGLE DPDT 5A 120V |
1,253 | 14.53 |
|
Datasheet |
7000 | Tray | Active | Panel Mount | DPDT | On-On | 5A (AC/DC) | 120 V | 28 V | Flat Anti-Rotation | 6.35mm | Non-Illuminated | - | - | PC Pin | Circular - 6.35mm Dia | 1/4-40 | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
