| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Type | Number of Positions | Pitch | Outer Dimension | Inner Dimension | Thermal Center Pad | Material |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
PA0040-STSSOP-48 STENCIL |
3,061 | 11.59 |
|
Datasheet |
Proto-Advantage PA | Bulk | Active | TSSOP | 48 | 0.020" (0.50mm) | 1.300" L x 0.900" W (33.02mm x 22.86mm) | - | - | Stainless Steel |
|

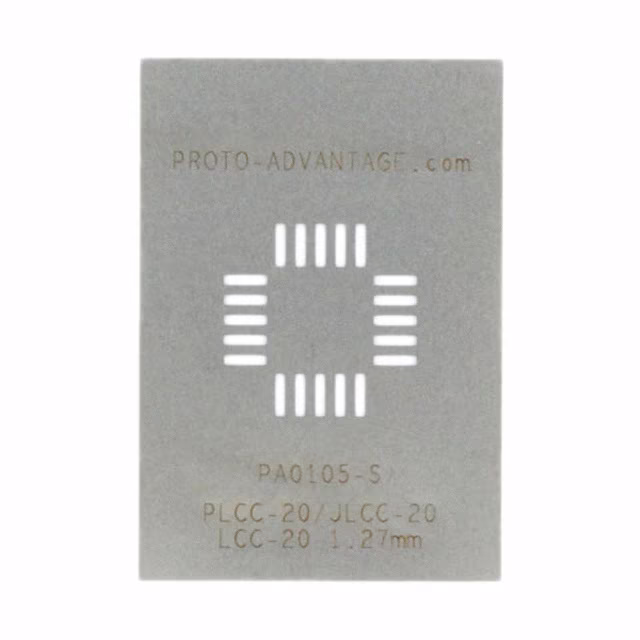

PA0105-SPLCC-20/LCC-20/JLCC-20 STENCIL |
4,173 | 11.59 |
|
Datasheet |
Proto-Advantage PA | Bulk | Active | PLCC/JLCC | 20 | 0.050" (1.27mm) | 1.300" L x 0.900" W (33.02mm x 22.86mm) | 0.394" L x 0.394" W (10.00mm x 10.00mm) | - | Stainless Steel |
|
PA0064-SQFN-24-THIN STENCIL |
2,682 | 11.59 |
|
Datasheet |
Proto-Advantage PA | Bulk | Active | QFN/LFCSP | 24 | 0.020" (0.50mm) | 1.300" L x 0.900" W (33.02mm x 22.86mm) | 0.157" L x 0.157" W (4.00mm x 4.00mm) | - | Stainless Steel |
|

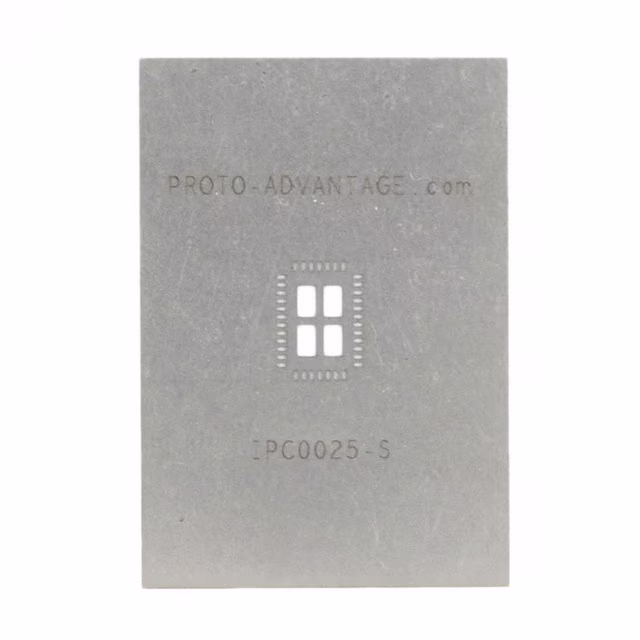

IPC0025-SQFN-38 STENCIL |
3,892 | 11.59 |
|
Datasheet |
Proto-Advantage IPC | Bulk | Active | QFN/LFCSP | 38 | 0.020" (0.50mm) | 1.300" L x 0.900" W (33.02mm x 22.86mm) | 0.276" L x 0.197" W (7.00mm x 5.00mm) | 0.217" L x 0.138" W (5.50mm x 3.50mm) | Stainless Steel |
|

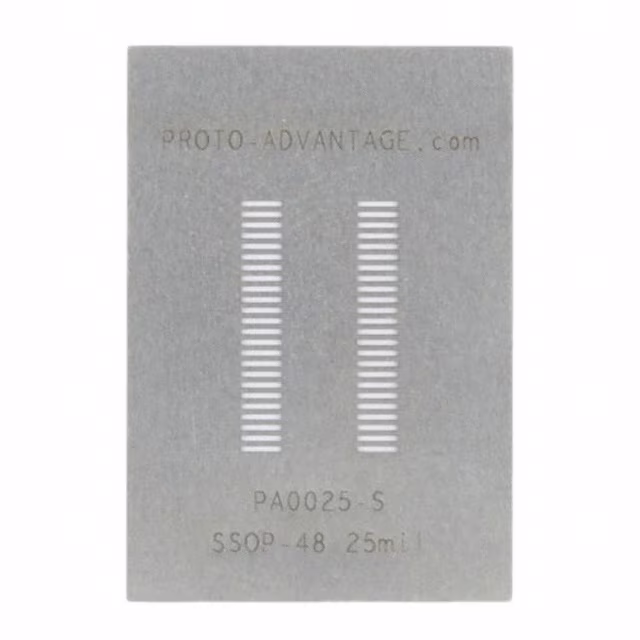

PA0025-SSSOP-48 STENCIL |
2,414 | 11.59 |
|
Datasheet |
Proto-Advantage PA | Bulk | Active | SSOP | 48 | 0.025" (0.64mm) | 1.300" L x 0.900" W (33.02mm x 22.86mm) | - | - | Stainless Steel |
|

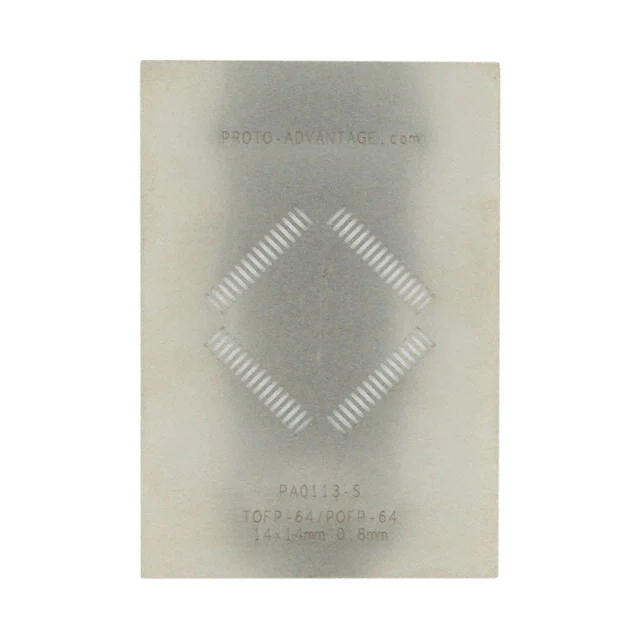

PA0113-STQFP-64/QFP-64 STENCIL |
3,394 | 11.59 |
|
Datasheet |
Proto-Advantage PA | Bulk | Active | TQFP | 64 | 0.031" (0.80mm) | 1.300" L x 0.900" W (33.02mm x 22.86mm) | 0.551" L x 0.551" W (14.00mm x 14.00mm) | - | Stainless Steel |
|

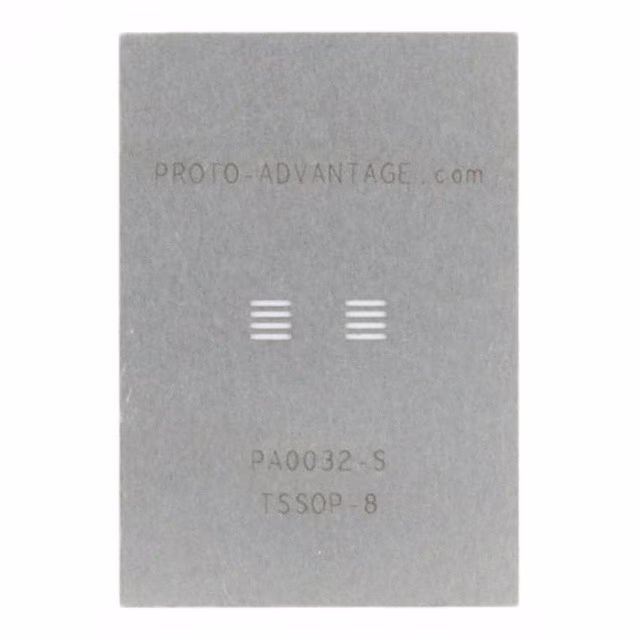

PA0032-STSSOP-8 STENCIL |
4,730 | 11.59 |
|
Datasheet |
Proto-Advantage PA | Bulk | Active | TSSOP | 8 | 0.026" (0.65mm) | 1.300" L x 0.900" W (33.02mm x 22.86mm) | - | - | Stainless Steel |
|
IPC0072-SDFN-14 STENCIL |
4,469 | 11.59 |
|
Datasheet |
Proto-Advantage IPC | Bulk | Active | DFN | 14 | 0.020" (0.50mm) | 1.300" L x 0.900" W (33.02mm x 22.86mm) | 0.157" L x 0.118" W (4.00mm x 3.00mm) | 0.128" L x 0.065" W (3.25mm x 1.65mm) | Stainless Steel |
|
PA0202-SQFP-208/QFP-208/RQFP-208 STENCI |
3,153 | 11.59 |
|
Datasheet |
Proto-Advantage PA | Bulk | Active | PQFP | 208 | 0.020" (0.50mm) | 2.600" L x 1.800" W (66.04mm x 45.72mm) | 1.102" L x 1.102" W (28.00mm x 28.00mm) | - | Stainless Steel |
|

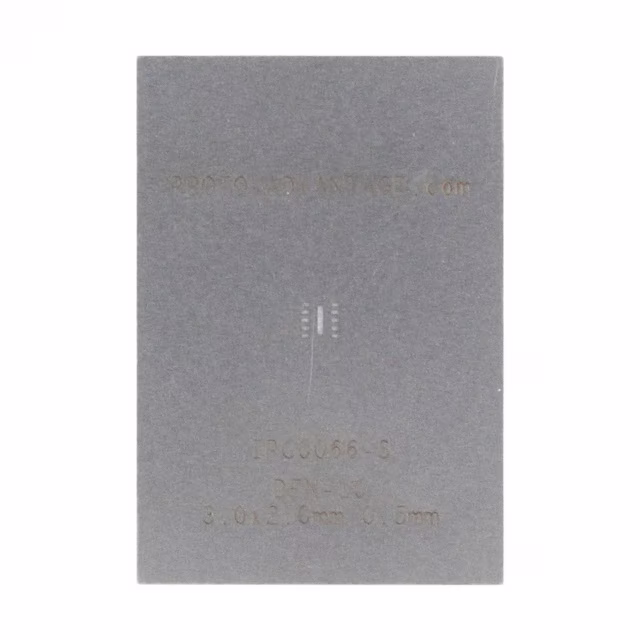

IPC0066-SDFN-10 STENCIL |
1,358 | 11.59 |
|
Datasheet |
Proto-Advantage IPC | Bulk | Active | DFN | 10 | 0.020" (0.50mm) | 1.300" L x 0.900" W (33.02mm x 22.86mm) | 0.118" L x 0.079" W (3.00mm x 2.00mm) | 0.094" L x 0.033" W (2.40mm x 0.85mm) | Stainless Steel |
|
IPC0062-SDFN-8 STENCIL |
4,335 | 11.59 |
|
Datasheet |
Proto-Advantage IPC | Bulk | Active | DFN | 8 | 0.020" (0.50mm) | 1.300" L x 0.900" W (33.02mm x 22.86mm) | 0.118" L x 0.079" W (3.00mm x 2.00mm) | 0.053" L x 0.057" W (1.35mm x 1.45mm) | Stainless Steel |
|

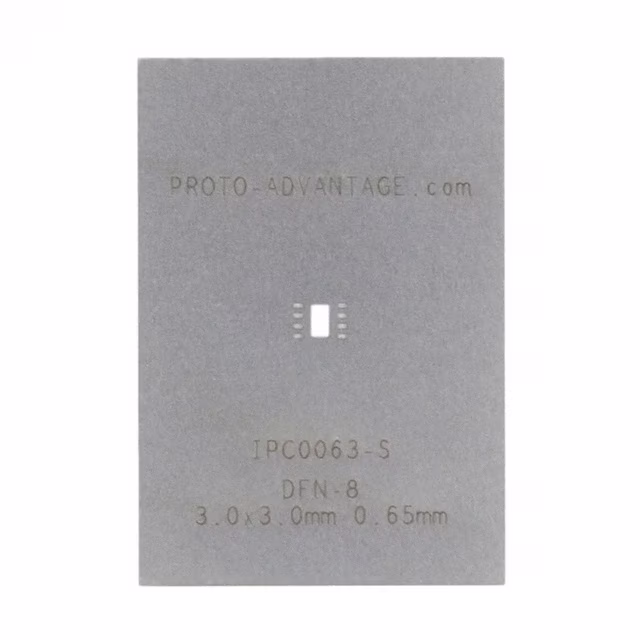

IPC0063-SDFN-8 STENCIL |
4,599 | 11.59 |
|
Datasheet |
Proto-Advantage IPC | Bulk | Active | DFN | 8 | 0.026" (0.65mm) | 1.300" L x 0.900" W (33.02mm x 22.86mm) | 0.118" L x 0.118" W (3.00mm x 3.00mm) | 0.091" L x 0.055" W (2.30mm x 1.40mm) | Stainless Steel |
|

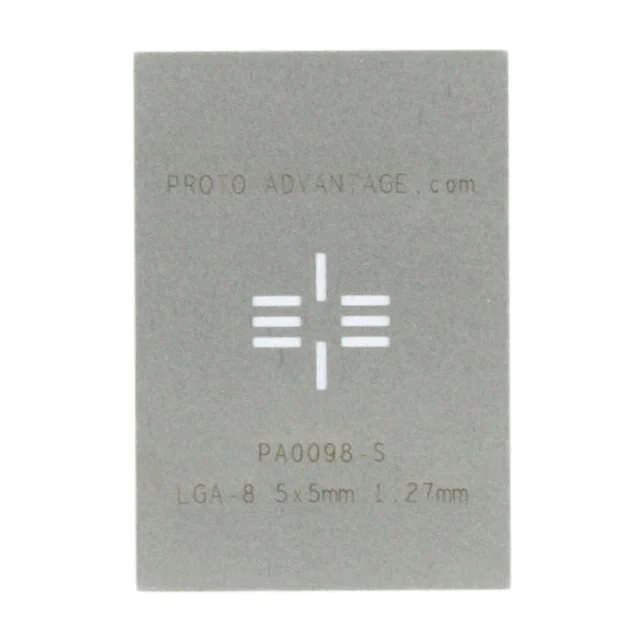

PA0098-SLGA-8 STENCIL |
4,991 | 11.59 |
|
Datasheet |
Proto-Advantage PA | Bulk | Active | LGA | 8 | 0.050" (1.27mm) | 1.300" L x 0.900" W (33.02mm x 22.86mm) | 0.197" L x 0.197" W (5.00mm x 5.00mm) | - | Stainless Steel |
|
IPC0080-SQFN-28 STENCIL |
2,157 | 11.59 |
|
Datasheet |
Proto-Advantage IPC | Bulk | Active | QFN/LFCSP | 28 | 0.018" (0.45mm) | 1.300" L x 0.900" W (33.02mm x 22.86mm) | 0.157" L x 0.157" W (4.00mm x 4.00mm) | 0.094" L x 0.094" W (2.40mm x 2.40mm) | Stainless Steel |
|
IPC0022-SQFN-32 STENCIL |
2,812 | 11.59 |
|
Datasheet |
Proto-Advantage IPC | Bulk | Active | QFN/LFCSP | 32 | 0.026" (0.65mm) | 1.300" L x 0.900" W (33.02mm x 22.86mm) | 0.276" L x 0.276" W (7.00mm x 7.00mm) | 0.185" L x 0.185" W (4.70mm x 4.70mm) | Stainless Steel |
|
PA0007-SSOIC-18 STENCIL |
2,590 | 11.59 |
|
Datasheet |
Proto-Advantage PA | Bulk | Active | SOIC | 18 | 0.050" (1.27mm) | 1.300" L x 0.900" W (33.02mm x 22.86mm) | - | - | Stainless Steel |
|

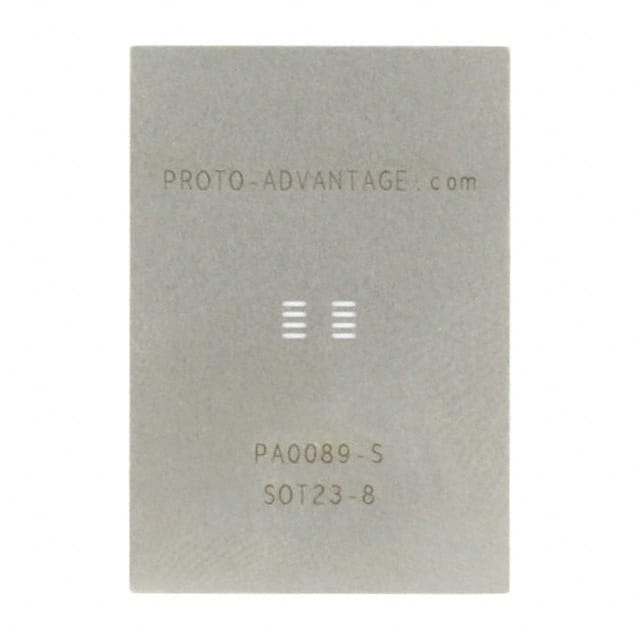

PA0089-SSOT23-8/TSOT-8 STENCIL |
3,517 | 11.59 |
|
Datasheet |
Proto-Advantage PA | Bulk | Active | SOT/SC | 8 | 0.026" (0.65mm) | 1.300" L x 0.900" W (33.02mm x 22.86mm) | - | - | Stainless Steel |
|

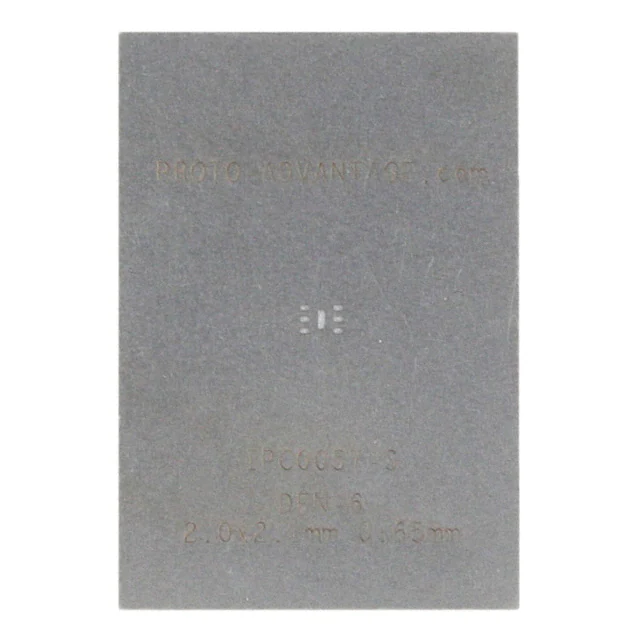

IPC0057-SDFN-6 STENCIL |
4,814 | 11.59 |
|
Datasheet |
Proto-Advantage IPC | Bulk | Active | DFN | 6 | 0.026" (0.65mm) | 1.300" L x 0.900" W (33.02mm x 22.86mm) | 0.083" L x 0.079" W (2.10mm x 2.00mm) | 0.053" L x 0.026" W (1.35mm x 0.65mm) | Stainless Steel |
|

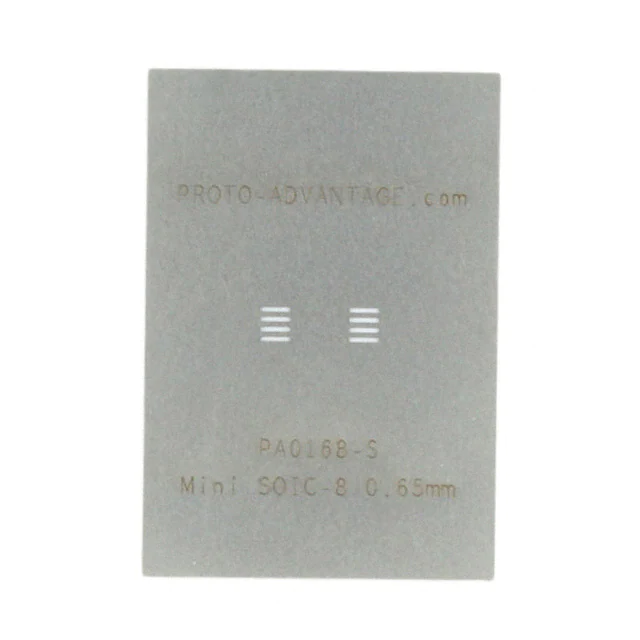

PA0168-SMINI SOIC-8 STENCIL |
4,520 | 11.59 |
|
Datasheet |
Proto-Advantage PA | Bulk | Active | Mini SOIC | 8 | 0.026" (0.65mm) | 1.300" L x 0.900" W (33.02mm x 22.86mm) | 0.118" L x 0.118" W (3.00mm x 3.00mm) | - | Stainless Steel |
|
IPC0077-SMSOP-10 STENCIL |
3,160 | 11.59 |
|
Datasheet |
Proto-Advantage IPC | Bulk | Active | MSOP | 10 | 0.020" (0.50mm) | 1.300" L x 0.900" W (33.02mm x 22.86mm) | 0.118" L x 0.118" W (3.00mm x 3.00mm) | 0.110" L x 0.079" W (2.80mm x 2.00mm) | Stainless Steel |
