Signal Relays, Up to 2 Amps
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Coil Voltage | Contact Form | Contact Rating (Current) | Switching Voltage | Load - Max Switching | Coil Current | Coil Type | Features | Termination Style | Seal Rating | Coil Insulation | Must Operate Voltage | Must Release Voltage | Operate Time | Release Time | Operating Temperature | Contact Material | Relay Type | Grade | Qualification |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SMGSD-12RELAY GEN PURPOSE DPDT 1A 12V TE Connectivity Aerospace, Defense and Marine |
2,277 | 77.01 |
|
Datasheet |
SMGSD, CII | Bulk | Active | Surface Mount | 12VDC | DPDT (2 Form C) | 1 A | - | - | 15 mA | Non Latching | - | Gull Wing | Sealed - Hermetically | - | 7 VDC | 0.64 VDC | 4 ms | 7.5 ms | -65°C ~ 125°C | Silver Palladium (AgPd), Gold (Au) | General Purpose | - | - |
|
|
SMGSD-18RELAY GEN PURPOSE DPDT 1A 18V TE Connectivity Aerospace, Defense and Marine |
4,852 | 91.81 |
|
- |
SMGSD, CII | Bulk | Active | Surface Mount | 18VDC | DPDT (2 Form C) | 1 A | - | - | 11.3 mA | Non Latching | - | Gull Wing | Sealed - Hermetically | - | 9.8 VDC | 0.92 VDC | 4 ms | 7.5 ms | -65°C ~ 125°C | Silver Palladium (AgPd), Gold (Au) | General Purpose | - | - |
|
|
MAWD-26RELAY DPDT 1A 26.5V TE Connectivity Aerospace, Defense and Marine |
3,823 | 58.85 |
|
Datasheet |
MAT, CII | Bulk | Active | Through Hole | 26.5VDC | DPDT (2 Form C) | 1 A | - | 115VA, 28W | 17 mA | Non Latching | - | PC Pin | - | - | 14.2 VDC | 8 VDC | 2 ms | 4 ms | -65°C ~ 125°C | - | - | - | - |
|

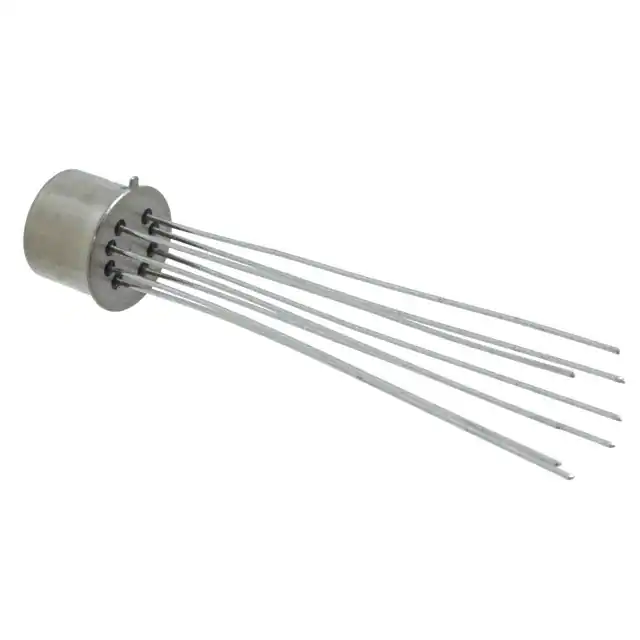

JMAC-26XLRELAY GEN PURPOSE DPDT 1A 26.5V TE Connectivity Aerospace, Defense and Marine |
3,890 | 60.71 |
|
Datasheet |
MA, CII | Bulk | Active | Through Hole | 26.5VDC | DPDT (2 Form C) | 1 A | 115VAC, 28VDC - Max | 115VA, 28W | 17 mA | Non Latching | Diode | PC Pin | Sealed - Hermetically | - | 14.2 VDC | 1.37 VDC | 2 ms | 1.5 ms | -65°C ~ 125°C | Silver Palladium (AgPd), Gold (Au) | General Purpose | Military | MIL-R-39016/9 |
|
|
JMAWD-18XLRELAY GEN PURPOSE DPDT 1A 18V TE Connectivity Aerospace, Defense and Marine |
2,978 | 64.30 |
|
Datasheet |
MAD, CII | Bulk | Active | Through Hole | 18VDC | DPDT (2 Form C) | 1 A | 115VAC, 28VDC - Max | 115VA, 28W | 20.5 mA | Non Latching | Diode | PC Pin | Sealed - Hermetically | - | 10.5 VDC | 0.91 VDC | 2 ms | 4 ms | -65°C ~ 125°C | Silver Palladium (AgPd), Gold (Au) | General Purpose | Military | MIL-R-39016/15 |
|
|
HFW1130G01MRELAY GEN PURPOSE DPDT 2A 12V TE Connectivity Aerospace, Defense and Marine |
2,224 | 109.25 |
|
Datasheet |
HFW, CII | Bulk | Active | Chassis Mount | 12VDC | DPDT (2 Form C) | 2 A | - | - | 75 mA | Non Latching | - | Solder Hook | Sealed - Hermetically | - | 6.4 VDC | 0.7 VDC | 4 ms | 4 ms | -65°C ~ 125°C | Silver (Ag), Gold (Au) | General Purpose | - | - |
|
|
JMGAPD-26LRELAY GEN PURPOSE DPDT 1A 26.5V TE Connectivity Aerospace, Defense and Marine |
1,183 | 66.24 |
|
Datasheet |
MGAD, CII | Bulk | Active | Through Hole | 26.5VDC | DPDT (2 Form C) | 1 A | 115VAC, 28VDC - Max | 115VA, 28W | 17 mA | Non Latching | Diode | PC Pin | Sealed - Hermetically | - | 14.2 VDC | 1.37 VDC | 2 ms | 4 ms | -65°C ~ 125°C | Silver Palladium (AgPd), Gold (Au) | General Purpose | Military | MIL-R-39016/18 |
|
|
JMGACD-26MRELAY GEN PURPOSE DPDT 1A 26.5V TE Connectivity Aerospace, Defense and Marine |
2,246 | 66.24 |
|
Datasheet |
MGAD, CII | Bulk | Active | Through Hole | 26.5VDC | DPDT (2 Form C) | 1 A | 115VAC, 28VDC - Max | 115VA, 28W | 17 mA | Non Latching | Diode | PC Pin | Sealed - Hermetically | - | 14.2 VDC | 1.37 VDC | 2 ms | 4 ms | -65°C ~ 125°C | Silver Palladium (AgPd), Gold (Au) | General Purpose | Military | MIL-R-39016/18 |
|
|
2-1617033-6RELAY GEN PURPOSE DPDT 2A 12V TE Connectivity Aerospace, Defense and Marine |
2,683 | 107.38 |
|
Datasheet |
HFW, CII | Bulk | Active | Through Hole | 12VDC | DPDT (2 Form C) | 2 A | 115VAC, 28VDC - Max | 230VA, 56W | 75 mA | Non Latching | - | PC Pin | Sealed - Hermetically | - | 6.4 VDC | 0.7 VDC | 4 ms | 4 ms | -65°C ~ 125°C | Silver (Ag), Gold (Au) | General Purpose | - | - |
|
|
HFW1130G01RELAY GEN PURPOSE DPDT 2A 12V TE Connectivity Aerospace, Defense and Marine |
1,675 | 109.25 |
|
Datasheet |
HFW, CII | Bulk | Active | Chassis Mount | 12VDC | DPDT (2 Form C) | 2 A | - | - | 75 mA | Non Latching | - | Solder Hook | Sealed - Hermetically | - | 6.4 VDC | 0.7 VDC | 4 ms | 4 ms | -65°C ~ 125°C | Silver (Ag), Gold (Au) | General Purpose | - | - |
