Rotary Switches
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Number of Positions | Index Stops | Number of Decks | Number of Poles per Deck | Circuit per Deck | Contact Timing | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Actuator Length | Angle of Throw | Contact Material | Contact Finish | Mounting Type | Termination Style | Features | Depth Behind Panel |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
56SP36-01-2-05SSWITCH ROTARY 5POS 200MA 115V |
1,470 | 14.66 |
|
Datasheet |
56 | Bulk | Active | 5 | Fixed | 1 | 2 | DP5T | Shorting (MBB) | 200mA (AC/DC) | 115 V | 30 V | Flatted (3.17mm Dia) | 9.53mm | 36° | Brass | Silver | Panel Mount, Through Hole | PC Pin | Shaft and Panel Sealed | 9.58mm |
|
|
56S30S-01-2-03NSWITCH ROTARY 3POS 200MA 115V |
1,940 | 0.00 |
|
Datasheet |
56 | Bulk | Active | 3 | Continuous | 1 | 2 | DP3T | Non-Shorting (BBM) | 200mA (AC/DC) | 115 V | 30 V | Flatted (3.17mm Dia) | 9.53mm | 30° | Brass | Silver | Panel Mount | Solder Lug | Shaft and Panel Sealed | 12.19mm |
|
|
50AT36-01-1-02NSWITCH ROTARY 2POS 150MA 115V |
4,290 | 14.95 |
|
Datasheet |
50 | Bulk | Active | 2 | Fixed | 1 | 1 | SPDT | Non-Shorting (BBM) | 150mA (AC), 200mA (DC) | 115 V | 28 V | Flatted (3.17mm Dia) | 9.53mm | 36° | - | Gold | Panel Mount | Solder Lug | Process Sealed | 18.77mm |
|
|
50AT36-01-1-03NSWITCH ROTARY 3POS 150MA 115V |
2,631 | 14.95 |
|
Datasheet |
50 | Bulk | Active | 3 | Fixed | 1 | 1 | SP3T | Non-Shorting (BBM) | 150mA (AC), 200mA (DC) | 115 V | 28 V | Flatted (3.17mm Dia) | 9.53mm | 36° | - | Gold | Panel Mount | Solder Lug | Process Sealed | 18.77mm |
|
|
50AT36-01-1-04NSWITCH ROTARY 4POS 150MA 115V |
3,286 | 14.95 |
|
Datasheet |
50 | Bulk | Active | 4 | Fixed | 1 | 1 | SP4T | Non-Shorting (BBM) | 150mA (AC), 200mA (DC) | 115 V | 28 V | Flatted (3.17mm Dia) | 9.53mm | 36° | - | Gold | Panel Mount | Solder Lug | Process Sealed | 18.77mm |
|
|
50AT36-01-1-05NSWITCH ROTARY 5POS 150MA 115V |
3,535 | 14.95 |
|
Datasheet |
50 | Bulk | Active | 5 | Fixed | 1 | 1 | SP5T | Non-Shorting (BBM) | 150mA (AC), 200mA (DC) | 115 V | 28 V | Flatted (3.17mm Dia) | 9.53mm | 36° | - | Gold | Panel Mount | Solder Lug | Process Sealed | 18.77mm |
|
|
50AT36-01-1-08NSWITCH ROTARY 8POS 150MA 115V |
2,820 | 14.95 |
|
Datasheet |
50 | Bulk | Active | 8 | Fixed | 1 | 1 | SP8T | Non-Shorting (BBM) | 150mA (AC), 200mA (DC) | 115 V | 28 V | Flatted (3.17mm Dia) | 9.53mm | 36° | - | Gold | Panel Mount | Solder Lug | Process Sealed | 18.77mm |
|
|
50AT36-01-1-10N-FSWITCH ROTARY 10POS 150MA 115V |
2,496 | 14.95 |
|
Datasheet |
50 | Bulk | Active | 10 | Fixed | 1 | 1 | SP10T | Non-Shorting (BBM) | 150mA (AC), 200mA (DC) | 115 V | 28 V | Flatted (3.17mm Dia) | 9.53mm | 36° | - | Gold | Panel Mount | Solder Lug | Process Sealed | 18.77mm |
|
|
50BT36-01-1-10N-FSWITCH ROTARY 10POS 150MA 115V |
3,022 | 14.95 |
|
Datasheet |
50 | Bulk | Active | 10 | Fixed | 1 | 1 | SP10T | Non-Shorting (BBM) | 150mA (AC), 200mA (DC) | 115 V | 28 V | Screwdriver Slot | 3.18mm | 36° | - | Gold | Panel Mount | Solder Lug | Process Sealed | 18.77mm |
|

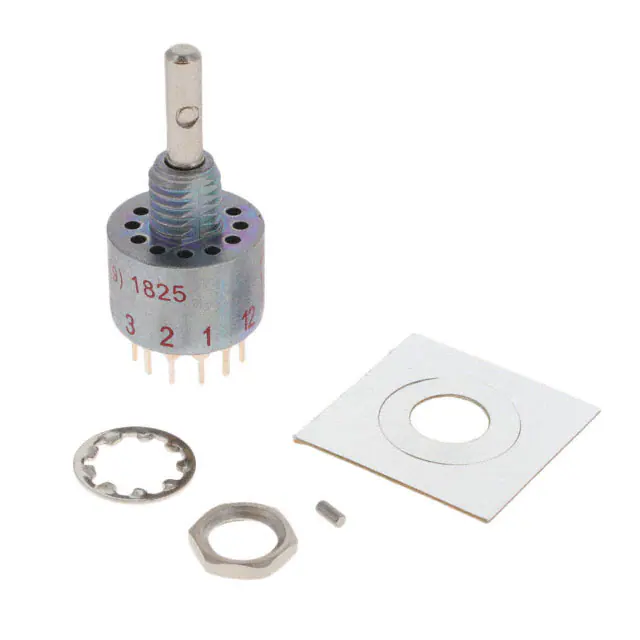

MC00L3NCQDSWITCH ROTARY 12POS 250MA 125V |
2,846 | 18.98 |
|
Datasheet |
M | Tray | Active | 12 | Continuous | 1 | 1 | SP12T | Non-Shorting (BBM) | 250mA (AC/DC) | 125 V | 28 V | Round (3.17mm Dia) | 10.16mm | 30° | Copper Alloy | Silver | Panel Mount, Through Hole | PC Pin | - | 10.42mm |
|
|
50P60-01-1-03NSWITCH ROTARY 3POS 150MA 115V |
2,619 | 15.25 |
|
Datasheet |
50 | Bulk | Active | 3 | Fixed | 1 | 1 | SP3T | Non-Shorting (BBM) | 150mA (AC), 200mA (DC) | 115 V | 28 V | Flatted (3.17mm Dia) | 9.53mm | 60° | - | Gold | Panel Mount, Through Hole | PC Pin | - | 13.64mm |
|
|
51P30-01-1-09NSWITCH ROTARY 9POS 150MA 115V |
3,032 | 0.00 |
|
- |
51 | Bulk | Active | 9 | Fixed | 1 | 1 | SP9T | Non-Shorting (BBM) | 150mA (AC), 200mA (DC) | 115 V | 28 V | Flatted (3.17mm Dia) | 9.53mm | 30° | - | Gold | Panel Mount, Through Hole | PC Pin | - | 13.64mm |
|
|
56SP30-01-1-12S-FSWITCH ROTARY 12POS 200MA 115V |
2,301 | 14.73 |
|
Datasheet |
56 | Bulk | Active | 12 | Fixed | 1 | 1 | SP12T | Shorting (MBB) | 200mA (AC/DC) | 115 V | 30 V | Flatted (3.17mm Dia) | 9.53mm | 30° | Brass | Silver | Panel Mount, Through Hole | PC Pin | Shaft and Panel Sealed | 9.58mm |
|
|
56SP30-01-1-11SSWITCH ROTARY 11POS 200MA 115V |
1,409 | 14.76 |
|
Datasheet |
56 | Bulk | Active | 11 | Fixed | 1 | 1 | SP11T | Shorting (MBB) | 200mA (AC/DC) | 115 V | 30 V | Flatted (3.17mm Dia) | 9.53mm | 30° | Brass | Silver | Panel Mount, Through Hole | PC Pin | Shaft and Panel Sealed | 9.58mm |
|
56D36-01-2-AJSSWITCH ROTARY 2-5POS 200MA 115V |
3,144 | 14.77 |
|
Datasheet |
56 | Bulk | Active | 2 ~ 5 | Adjustable | 1 | 2 | DP5T | Shorting (MBB) | 200mA (AC/DC) | 115 V | 30 V | Flatted (3.17mm Dia) | 9.53mm | 36° | Brass | Silver | Panel Mount | Solder Lug | - | 12.19mm |
|
MA00L2NCGFSWITCH ROTARY 10POS 250MA 125V |
2,493 | 18.68 |
|
Datasheet |
M | Tray | Active | 10 | Continuous | 1 | 1 | SP10T | Non-Shorting (BBM) | 250mA (AC/DC) | 125 V | 28 V | Screwdriver Slot | Flush | 36° | Copper Alloy | Gold | Panel Mount, Through Hole | PC Pin | IP67 - Dust Tight, Waterproof | 10.42mm |
|
MA00L3NCGFSWITCH ROTARY 10POS 250MA 125V |
2,034 | 18.68 |
|
Datasheet |
M | Tray | Active | 10 | Continuous | 1 | 1 | SP10T | Non-Shorting (BBM) | 250mA (AC/DC) | 125 V | 28 V | Round (3.17mm Dia) | 10.16mm | 36° | Copper Alloy | Gold | Panel Mount, Through Hole | PC Pin | IP67 - Dust Tight, Waterproof | 10.42mm |
|
|
56P30-01-2-06NSWITCH ROTARY 6POS 200MA 115V |
1,692 | 20.04 |
|
Datasheet |
56 | Bulk | Active | 6 | Fixed | 1 | 2 | DP6T | Non-Shorting (BBM) | 200mA (AC/DC) | 115 V | 30 V | Flatted (3.17mm Dia) | 9.53mm | 30° | Brass | Silver | Panel Mount, Through Hole | PC Pin | - | 9.58mm |
|
|
56A36-01-2-05SSWITCH ROTARY 5POS 200MA 115V |
1,356 | 17.63 |
|
Datasheet |
56 | Bulk | Active | 5 | Fixed | 1 | 2 | DP5T | Shorting (MBB) | 200mA (AC/DC) | 115 V | 30 V | Flatted (3.17mm Dia) | 9.53mm | 36° | Brass | Silver | Panel Mount | Solder Lug | - | 12.19mm |
|
|
56P30-01-2-03NSWITCH ROTARY 3POS 200MA 115V |
4,706 | 14.78 |
|
Datasheet |
56 | Bulk | Active | 3 | Fixed | 1 | 2 | DP3T | Non-Shorting (BBM) | 200mA (AC/DC) | 115 V | 30 V | Flatted (3.17mm Dia) | 9.53mm | 30° | Brass | Silver | Panel Mount, Through Hole | PC Pin | - | 9.58mm |
