Reed Relays
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Coil Voltage | Contact Form | Contact Rating (Current) | Switching Voltage | Coil Current | Coil Type | Features | Termination Style | Seal Rating | Must Operate Voltage | Must Release Voltage | Operate Time | Release Time | Operating Temperature | Contact Material |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
2974-05-00RELAY REED SPST 500MA 5V |
2,097 | 14.76 |
|
Datasheet |
2970 | Tube | Obsolete | Through Hole | 5VDC | SPST-NO (1 Form A) | 500 mA | 200VAC, 200VDC - Max | 21.7 mA | Non Latching | - | PC Pin | - | 2.5 VDC | 0.4 VDC | 0.5 ms | 0.1 ms | -40°C ~ 125°C | - |
|
8200-0075RELAY REED SPST 1A 5V |
2,471 | 0.00 |
|
- |
8200 | Tube | Obsolete | Through Hole | 5VDC | SPST-NO (1 Form A) | 1 A | - | 14.3 mA | Non Latching | - | PC Pin | - | 3.8 VDC | 0.7 VDC | - | - | - | - |
|

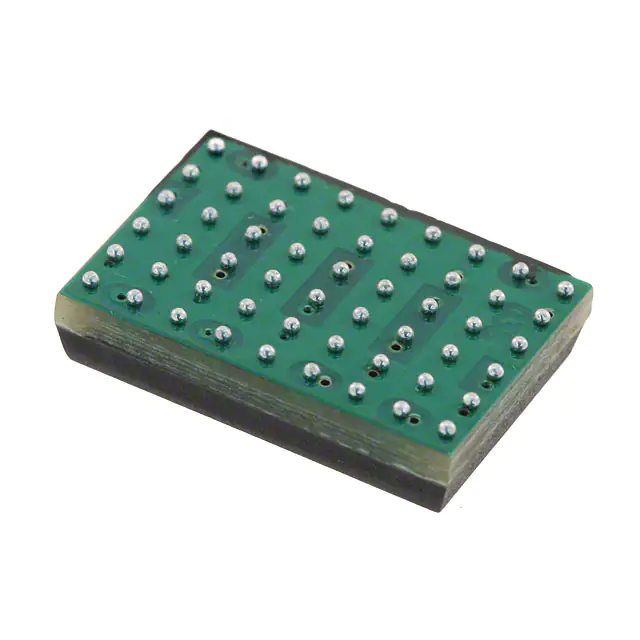

RM05-4AS-4/2RELAY REED 4PST 300MA 5V |
1,064 | 0.00 |
|
Datasheet |
RM | Tray | Obsolete | Surface Mount | 5VDC | SPST-NO (1 Form A) x 4 | 300 mA | 180VAC, 180VDC - Max | 27 mA | Non Latching | - | BGA | - | 3.75 VDC | 0.5 VDC | 0.6 ms | 0.05 ms | -20°C ~ 85°C | - |
|
|
RM05-4AS-4/4RELAY REED 4PST 300MA 5V |
4,905 | 0.00 |
|
Datasheet |
RM | Tray | Obsolete | Surface Mount | 5VDC | SPST-NO (1 Form A) x 4 | 300 mA | 180VAC, 180VDC - Max | 27 mA | Non Latching | - | BGA | - | 3.75 VDC | 0.5 VDC | 0.6 ms | 0.05 ms | -20°C ~ 85°C | - |
|
SIL05-1A85-76D3KRELAY REED SPST 1A 5V |
4,335 | 0.00 |
|
Datasheet |
SIL HV | Tube | Obsolete | Through Hole | 5VDC | SPST-NO (1 Form A) | 1 A | 1000VAC, 1000VDC - Max | 22.8 mA | Non Latching | Diode | PC Pin | - | 3 VDC | 0.5 VDC | 1.1 ms | 0.1 ms | -20°C ~ 70°C | - |
|
|
SIL05-1A85-76D4KRELAY REED SPST 1A 5V |
1,962 | 0.00 |
|
Datasheet |
SIL HV | Tube | Obsolete | Through Hole | 5VDC | SPST-NO (1 Form A) | 1 A | 1000VAC, 1000VDC - Max | 22.8 mA | Non Latching | Diode | PC Pin | - | 3 VDC | 0.5 VDC | 1.1 ms | 0.1 ms | -20°C ~ 70°C | - |
|
|
SIL05-1A85-76L4KRELAY REED SPST 1A 5V |
3,803 | 0.00 |
|
Datasheet |
SIL HV | Tube | Obsolete | Through Hole | 5VDC | SPST-NO (1 Form A) | 1 A | 1000VAC, 1000VDC - Max | 22.8 mA | Non Latching | - | PC Pin | - | 3 VDC | 0.5 VDC | 1.1 ms | 0.1 ms | -20°C ~ 70°C | - |
|
|
SIL12-1A85-76D3KRELAY REED SPST 1A 12V |
4,132 | 0.00 |
|
Datasheet |
SIL HV | Tube | Obsolete | Through Hole | 12VDC | SPST-NO (1 Form A) | 1 A | 1000VAC, 1000VDC - Max | 24 mA | Non Latching | Diode | PC Pin | - | 8.4 VDC | 1.8 VDC | 1.1 ms | 0.1 ms | -20°C ~ 70°C | - |
|
|
BE12-2A66-PRELAY REED DPST 0.5A 12V |
4,250 | 0.00 |
|
Datasheet |
BE | Tube | Obsolete | Through Hole | 12VDC | DPST-NO (2 Form A) | 500 mA | 200VAC, 200VDC - Max | 27 mA | Non Latching | - | PC Pin | Sealed - Fully | 8.4 VDC | 1.8 VDC | 0.5 ms | 0.1 ms | -20°C ~ 70°C | - |
|

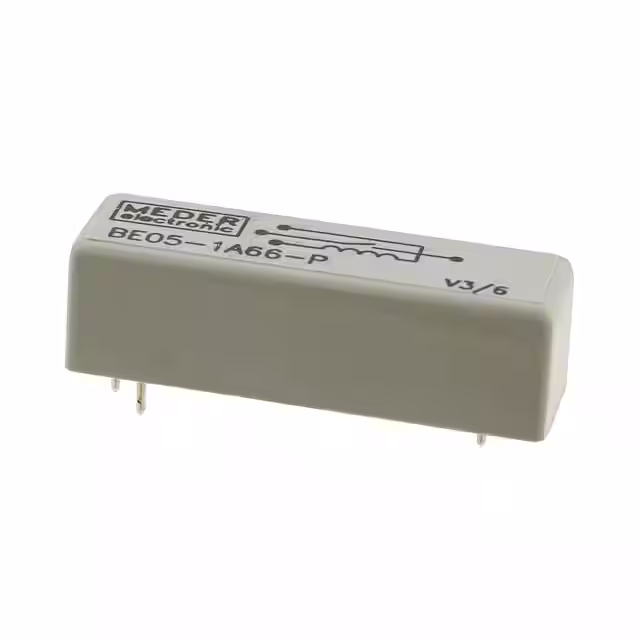

BE05-1A66-PRELAY REED SPST 0.5A 5V |
3,856 | 0.00 |
|
Datasheet |
BE | Tube | Obsolete | Through Hole | 5VDC | SPST-NO (1 Form A) | 500 mA | 200VAC, 200VDC - Max | 35.8 mA | Non Latching | - | PC Pin | Sealed - Fully | 3.5 VDC | 0.75 VDC | 0.5 ms | 0.1 ms | -20°C ~ 70°C | - |
|

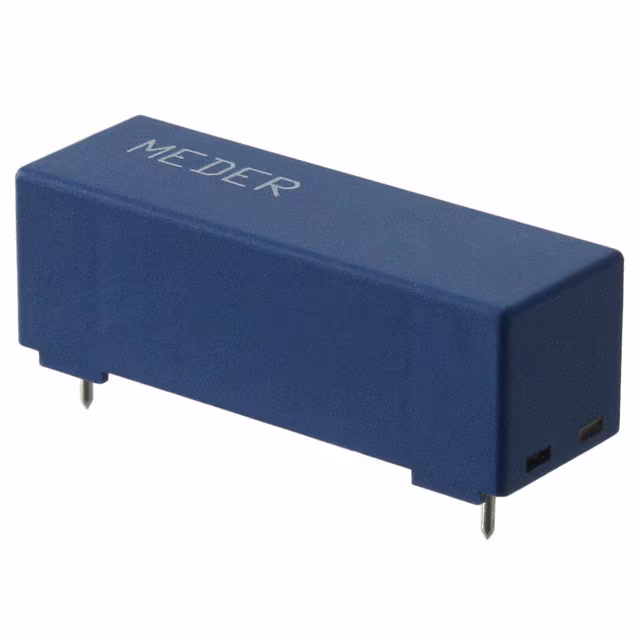

LI12-1A79RELAY REED SPST 1A 12V |
1,532 | 0.00 |
|
Datasheet |
LI | Tube | Obsolete | Through Hole | 12VDC | SPST-NO (1 Form A) | 1 A | 1000VDC - Max | 17.5 mA | Non Latching | - | PC Pin | Sealed - Fully | 8.4 VDC | 1.8 VDC | 0.8 ms | 0.4 ms | -20°C ~ 70°C | - |
|
HE3671A0510RELAY REED SPST 500MA 5V |
3,090 | 0.00 |
|
Datasheet |
HE3600 | Bulk | Obsolete | Through Hole | 5VDC | SPST-NO (1 Form A) | 500 mA | 200VDC - Max | 10 mA | Non Latching | Diode | PC Pin | - | 3.75 VDC | 0.5 VDC | 1 ms | 1 ms | -40°C ~ 85°C | - |
|
HE722A0520RELAY REED DPST 500MA 5V |
1,855 | 0.00 |
|
Datasheet |
HE700 | Tube | Active | Through Hole | 5VDC | DPST-NO (2 Form A) | 500 mA | 200VDC - Max | 25 mA | Non Latching | Electrostatic Shield | PC Pin | - | 3.75 VDC | 0.5 VDC | 1 ms | 1 ms | -40°C ~ 85°C | - |
|
|
HE722A0540RELAY REED DPST 500MA 5V |
3,005 | 0.00 |
|
Datasheet |
HE700 | Tube | Active | Through Hole | 5VDC | DPST-NO (2 Form A) | 500 mA | 200VDC - Max | 25 mA | Non Latching | EMI Shielded | PC Pin | - | 3.75 VDC | 0.5 VDC | 1 ms | 1 ms | -40°C ~ 85°C | - |
|
|
HE722A2430RELAY REED DPST 500MA 24V |
4,460 | 0.00 |
|
Datasheet |
HE700 | Tube | Active | Through Hole | 24VDC | DPST-NO (2 Form A) | 500 mA | 200VDC - Max | 11.1 mA | Non Latching | Diode, Electrostatic Shield | PC Pin | - | 16 VDC | 2 VDC | 1 ms | 1 ms | -40°C ~ 85°C | - |
|
|
HE722A2440RELAY REED DPST 500MA 24V |
4,285 | 0.00 |
|
Datasheet |
HE700 | Tube | Active | Through Hole | 24VDC | DPST-NO (2 Form A) | 500 mA | 200VDC - Max | 11.1 mA | Non Latching | EMI Shielded | PC Pin | - | 16 VDC | 2 VDC | 1 ms | 1 ms | -40°C ~ 85°C | - |
|
|
HE722A2450RELAY REED DPST 500MA 24V |
3,048 | 0.00 |
|
Datasheet |
HE700 | Tube | Active | Through Hole | 24VDC | DPST-NO (2 Form A) | 500 mA | 200VDC - Max | 11.1 mA | Non Latching | Diode, EMI Shielded | PC Pin | - | 16 VDC | 2 VDC | 1 ms | 1 ms | -40°C ~ 85°C | - |
|
HE3621A1240RELAY REED SPST 500MA 12V |
1,386 | 0.00 |
|
Datasheet |
HE3600 | Tube | Active | Through Hole | 12VDC | SPST-NO (1 Form A) | 500 mA | 200VDC - Max | 12 mA | Non Latching | EMI Shielded | PC Pin | - | 8 VDC | 1 VDC | 1 ms | 1 ms | -40°C ~ 85°C | - |
|
|
HE3621A2440RELAY REED SPST 500MA 24V |
4,785 | 0.00 |
|
Datasheet |
HE3600 | Tube | Active | Through Hole | 24VDC | SPST-NO (1 Form A) | 500 mA | 200VDC - Max | 11.1 mA | Non Latching | EMI Shielded | PC Pin | - | 16 VDC | 2 VDC | 1 ms | 1 ms | -40°C ~ 85°C | - |
|
|
HE3621A2450RELAY REED SPST 500MA 24V |
2,768 | 0.00 |
|
Datasheet |
HE3600 | Tube | Active | Through Hole | 24VDC | SPST-NO (1 Form A) | 500 mA | 200VDC - Max | 11.1 mA | Non Latching | Diode, EMI Shielded | PC Pin | - | 16 VDC | 2 VDC | 1 ms | 1 ms | -40°C ~ 85°C | - |
