Reed Relays
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Coil Voltage | Contact Form | Contact Rating (Current) | Switching Voltage | Coil Current | Coil Type | Features | Termination Style | Seal Rating | Must Operate Voltage | Must Release Voltage | Operate Time | Release Time | Operating Temperature | Contact Material |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
8L02-05-10RELAY REED DPST 500MA 5V Coto Technology |
7,643 | 6.73 |
|
Datasheet |
8L | Tube | Active | Through Hole | 5VDC | DPST-NO (2 Form A) | 500 mA | 200VAC, 200VDC - Max | 25 mA | Non Latching | Electrostatic Shield | PC Pin | - | 3.8 VDC | 0.5 VDC | 0.5 ms | 0.5 ms | -20°C ~ 85°C | - |
|
|
8L02-12-11RELAY REED DPST 500MA 12V Coto Technology |
17,353 | 7.18 |
|
Datasheet |
8L | Tube | Active | Through Hole | 12VDC | DPST-NO (2 Form A) | 500 mA | 200VAC, 200VDC - Max | 24 mA | Non Latching | Diode, Electrostatic Shield | PC Pin | - | 9.6 VDC | 1 VDC | 0.5 ms | 0.5 ms | -20°C ~ 85°C | - |
|
|
8L02-24-11RELAY REED DPST 500MA 24V Coto Technology |
1,020 | 7.33 |
|
Datasheet |
8L | Tube | Active | Through Hole | 24VDC | DPST-NO (2 Form A) | 500 mA | 200VAC, 200VDC - Max | 12 mA | Non Latching | Diode, Electrostatic Shield | PC Pin | - | 19.2 VDC | 2 VDC | 0.5 ms | 0.5 ms | -20°C ~ 85°C | - |
|
|
8L02-12-00RELAY REED DPST 500MA 12V Coto Technology |
638 | 6.33 |
|
Datasheet |
8L | Tube | Active | Through Hole | 12VDC | DPST-NO (2 Form A) | 500 mA | 200VAC, 200VDC - Max | 24 mA | Non Latching | - | PC Pin | - | 9.6 VDC | 1 VDC | 0.5 ms | 0.5 ms | -20°C ~ 85°C | - |
|

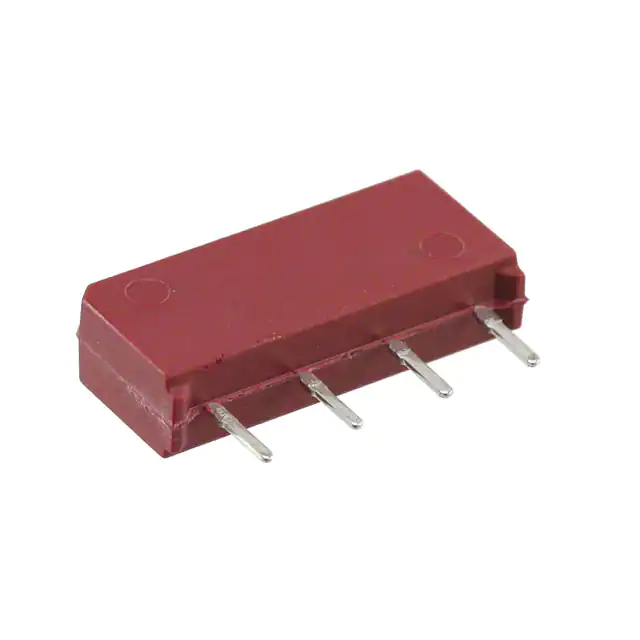

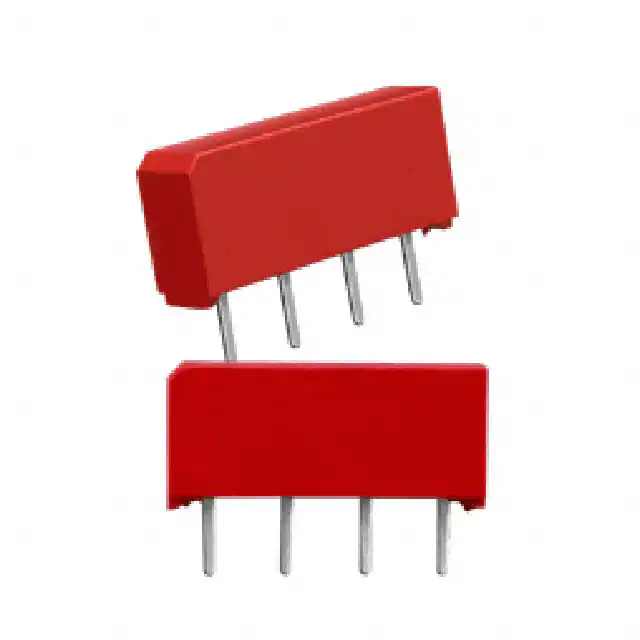

9094-05-00RELAY REED SPST 500MA 5V Coto Technology |
1,703 | 6.90 |
|
Datasheet |
9094 | Tube | Active | Through Hole | 5VDC | SPST-NO (1 Form A) | 500 mA | 200VAC, 200VDC - Max | 40 mA | Non Latching | - | PC Pin | - | 3.75 VDC | 0.4 VDC | 0.5 ms | 0.3 ms | -20°C ~ 85°C | - |
|
9094-05-01RELAY REED SPST 500MA 5V Coto Technology |
3,067 | 7.03 |
|
Datasheet |
9094 | Tube | Active | Through Hole | 5VDC | SPST-NO (1 Form A) | 500 mA | 200VAC, 200VDC - Max | 40 mA | Non Latching | Diode | PC Pin | - | 3.75 VDC | 0.4 VDC | 0.5 ms | 0.3 ms | -20°C ~ 85°C | - |
|

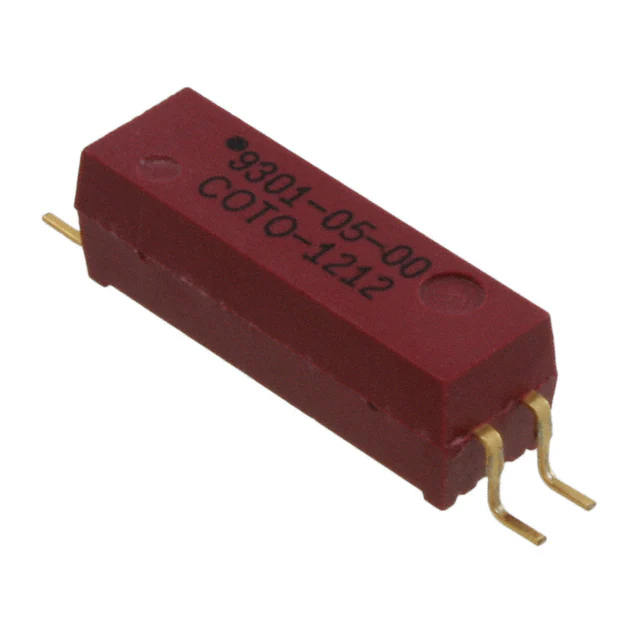

9301-05-00RELAY REED SPST 500MA 5V Coto Technology |
806 | 9.70 |
|
Datasheet |
9300 | Bulk | Active | Surface Mount | 5VDC | SPST-NO (1 Form A) | 500 mA | 200VAC, 200VDC - Max | 14.3 mA | Non Latching | - | Gull Wing | - | 3.75 VDC | 0.4 VDC | 0.4 ms | 0.1 ms | -20°C ~ 85°C | - |
|
9011-12-10RELAY REED SPST 250MA 12V Coto Technology |
594 | 10.79 |
|
Datasheet |
9011 | Bulk | Active | Through Hole | 12VDC | SPST-NO (1 Form A) | 250 mA | 100VAC, 100VDC - Max | 16 mA | Non Latching | EMI Shielded | PC Pin | - | 9 VDC | 1 VDC | 0.35 ms | 0.1 ms | -20°C ~ 85°C | - |
|
8L61-05-101RELAY REED SPDT 250MA 5V Coto Technology |
954 | 11.37 |
|
Datasheet |
8L | Bulk | Active | Surface Mount | 5VDC | SPDT (1 Form C) | 250 mA | 100VAC, 100VDC - Max | 25 mA | Non Latching | Electrostatic Shield | J Lead | - | 3.8 VDC | 0.5 VDC | 1 ms | 1 ms | -20°C ~ 85°C | - |
|
|
8L41-12-011RELAY REED SPDT 250MA 12V Coto Technology |
3,249 | 10.51 |
|
Datasheet |
8L | Tube | Active | Through Hole | 12VDC | SPDT (1 Form C) | 250 mA | 100VAC, 100VDC - Max | 24 mA | Non Latching | Diode | PC Pin | - | 9.6 VDC | 1 VDC | 1 ms | 1 ms | -20°C ~ 85°C | - |
