Reed Relays
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Coil Voltage | Contact Form | Contact Rating (Current) | Switching Voltage | Coil Current | Coil Type | Features | Termination Style | Seal Rating | Must Operate Voltage | Must Release Voltage | Operate Time | Release Time | Operating Temperature | Contact Material |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

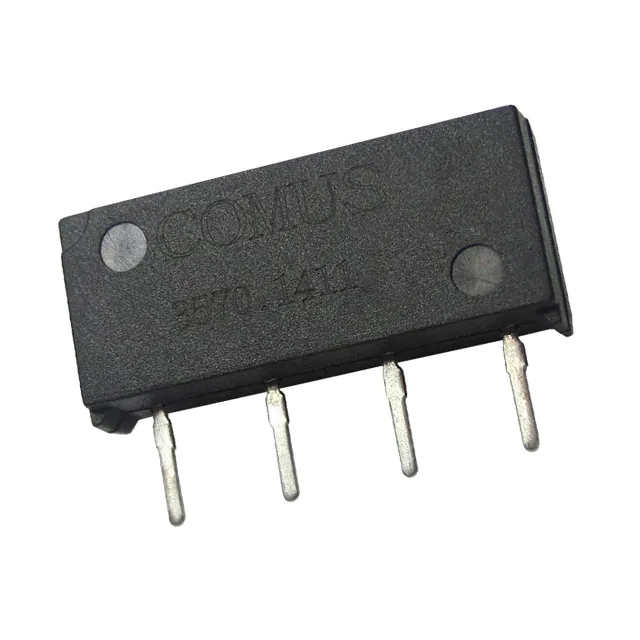

3570-1411-053RELAY REED SIP SPST .5A 5V W/DIO Comus International |
194 | 3.07 |
|
Datasheet |
3570 | Tube | Active | Through Hole | 5VDC | SPST-NO (1 Form A) | 500 mA | 200VDC - Max | 10 mA | Non Latching | Diode | PC Pin | - | 3.75 VDC | 0.4 VDC | 0.35 ms | 0.1 ms | -40°C ~ 85°C | - |
|
3563-1231-121RELAY REED DIP SPDT .4A 12V Comus International |
691 | 6.22 |
|
Datasheet |
3563 | Tube | Active | Through Hole | 12VDC | SPDT (1 Form C) | 400 mA | 100VDC - Max | 24 mA | Non Latching | - | PC Pin | - | 9 VDC | 1 VDC | 1 ms | 1.5 ms | -20°C ~ 85°C | - |
|
|
3563-1231-124RELAY REED DIP SPDT .4A 12V W/DI Comus International |
105 | 6.84 |
|
Datasheet |
3563 | Tube | Active | Through Hole | 12VDC | SPDT (1 Form C) | 400 mA | 100VDC - Max | 24 mA | Non Latching | Diode, Electrostatic Shield | PC Pin | - | 9 VDC | 1 VDC | 1 ms | 1.5 ms | -20°C ~ 85°C | - |
|
BFH-1C-05REED RELAY SPDT .5A 5V Comus International |
147 | 11.59 |
|
Datasheet |
BFH | Tube | Active | Through Hole | 5VDC | SPDT (1 Form C) | 500 mA | 200VDC - Max | 21.7 mA | Non Latching | - | PC Pin | - | 3.8 VDC | 0.4 VDC | 0.5 ms | 0.5 ms | -20°C ~ 85°C | Ruthenium (Ru) |
|
|
BFH-1C-05CREED RELAY SPDT .5A 5V Comus International |
134 | 12.36 |
|
Datasheet |
BFH | Tube | Active | Through Hole | 5VDC | SPDT (1 Form C) | 500 mA | 200VDC - Max | 21.7 mA | Non Latching | - | PC Pin | - | 3.8 VDC | 0.4 VDC | 0.5 ms | 0.5 ms | -20°C ~ 85°C | Ruthenium (Ru) |
|

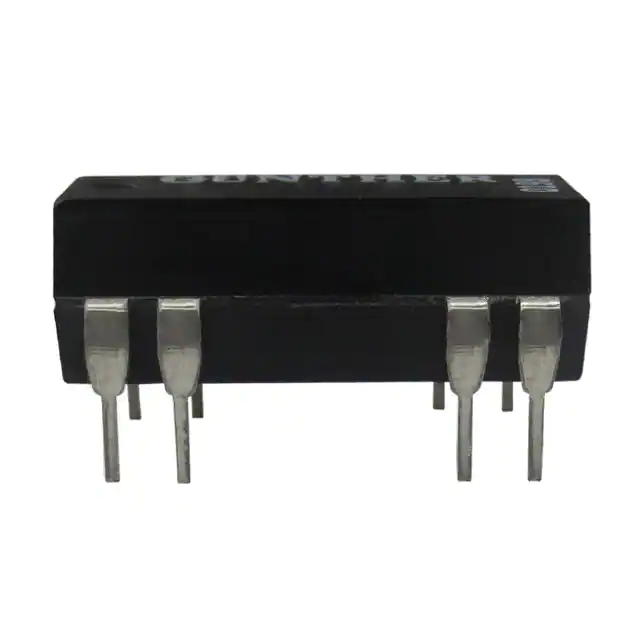

3572-1220-124RELAY REED DIP DPST .5A 12V W/DI Comus International |
128 | 3.30 |
|
Datasheet |
3572 | Tube | Active | Through Hole | 12VDC | DPST-NO (2 Form A) | 500 mA | 150VDC - Max | 24 mA | Non Latching | Diode, Electrostatic Shield | PC Pin | - | 9 VDC | 1 VDC | 0.5 ms | 0.5 ms | -20°C ~ 85°C | - |
|
3570-1421-122RELAY REED SIP DPST .5A 12V W/EM Comus International |
166 | 6.01 |
|
Datasheet |
3570 | Tube | Active | Through Hole | 12VDC | DPST-NO (2 Form A) | 500 mA | 200VDC - Max | 16 mA | Non Latching | EMI Shielded | PC Pin | - | 9 VDC | 1 VDC | 0.75 ms | 0.5 ms | -40°C ~ 85°C | - |
|

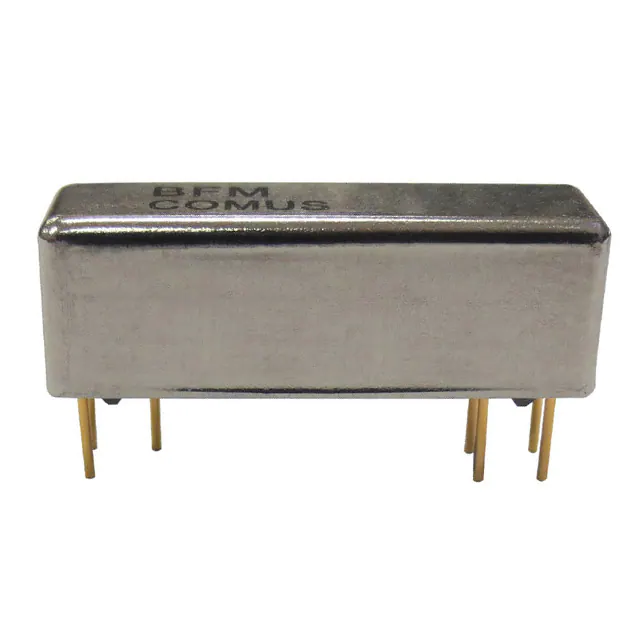

BFM-1C-12CWRELAY REED SPDT .25A 12V Comus International |
107 | 14.77 |
|
Datasheet |
BFM-CW | Tube | Active | Through Hole | 12VDC | SPDT (1 Form C) | 250 mA | 150VDC - Max | 8 mA | Non Latching | - | PC Pin | - | 6.7 VDC | 1 VDC | 1 ms | 2 ms | -25°C ~ 85°C | Ruthenium (Ru) |
|
3570-1210-241RELAY REED DIP SPST .5A 24V Comus International |
3,862 | 1.99 |
|
Datasheet |
3570 | Tube | Active | Through Hole | 24VDC | SPST-NO (1 Form A) | 500 mA | 150VDC - Max | 11 mA | Non Latching | - | PC Pin | - | 18 VDC | 2 VDC | 0.5 ms | 0.5 ms | -20°C ~ 85°C | - |
|
3570-1419-052RELAY REED SIP SPST 1A 5V W/EMI Comus International |
1,337 | 3.70 |
|
Datasheet |
3570 | Tube | Active | Through Hole | 5VDC | SPST-NO (1 Form A) | 1 A | 200VDC - Max | 10 mA | Non Latching | EMI Shielded | PC Pin | - | 3.75 VDC | 0.4 VDC | 0.35 ms | 0.1 ms | -40°C ~ 85°C | - |
