Reed Relays
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Coil Voltage | Contact Form | Contact Rating (Current) | Switching Voltage | Coil Current | Coil Type | Features | Termination Style | Seal Rating | Must Operate Voltage | Must Release Voltage | Operate Time | Release Time | Operating Temperature | Contact Material |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
MS05-1A87-75DGENERAL PURPOSE REED RELAY, FORM Standex-Meder Electronics |
160 | 0.00 |
|
Datasheet |
MS | Tube | Active | Through Hole | 5VDC | SPST-NO (1 Form A) | 500 mA | 200VAC, 200VDC - Max | 17.9 mA | Non Latching | - | PC Pin | - | 3.75 VDC | 0.5 VDC | 0.5 ms | 100 µs | -20°C ~ 70°C | - |
|
MS12-1A87-75LRELAY REED SPST 500MA 12V Standex-Meder Electronics |
305 | 4.57 |
|
Datasheet |
MS | Tube | Active | Through Hole | 12VDC | SPST-NO (1 Form A) | 500 mA | 200VAC, 200VDC - Max | 17.1 mA | Non Latching | - | PC Pin | - | 8.4 VDC | 1.8 VDC | 0.5 ms | 0.1 ms | -20°C ~ 70°C | - |
|
DIP24-1A72-12LRELAY REED SPST 1A 24V Standex-Meder Electronics |
164 | 3.29 |
|
Datasheet |
DIP | Tube | Active | Through Hole | 24VDC | SPST-NO (1 Form A) | 1 A | 200VAC, 200VDC - Max | 12 mA | Non Latching | - | PC Pin | - | 16.8 VDC | 3.6 VDC | 0.5 ms | 0.1 ms | -20°C ~ 70°C | - |
|
|
DIP24-1C90-51DRELAY REED SPDT 500MA 24V Standex-Meder Electronics |
158 | 6.78 |
|
Datasheet |
DIP | Tube | Active | Through Hole | 24VDC | SPDT (1 Form C) | 500 mA | 175VAC, 175VDC - Max | 12 mA | Non Latching | Diode | PC Pin | - | 16.8 VDC | 3.6 VDC | 0.7 ms | 1.5 ms | -20°C ~ 70°C | - |
|
|
SIL05-1C90-51DGENERAL PURPOSE REED RELAY, FORM Standex-Meder Electronics |
391 | 0.00 |
|
Datasheet |
SIL | Tube | Active | Through Hole | 5VDC | SPDT (1 Form C) | 500 mA | 175VAC, 175VDC - Max | 25 mA | Non Latching | Diode | PC Pin | - | 3.5 VDC | 0.75 VDC | 700 µs | 1.5 ms | -20°C ~ 70°C | - |
|
|
SIL05-1C90-51QGENERAL PURPOSE REED RELAY, FORM Standex-Meder Electronics |
375 | 0.00 |
|
Datasheet |
SIL | Tube | Active | Through Hole | 5VDC | SPDT (1 Form C) | 500 mA | 175VAC, 175VDC - Max | 25 mA | Non Latching | Diode | PC Pin | - | 3.5 VDC | 0.75 VDC | 700 µs | 1.5 ms | -20°C ~ 70°C | - |
|

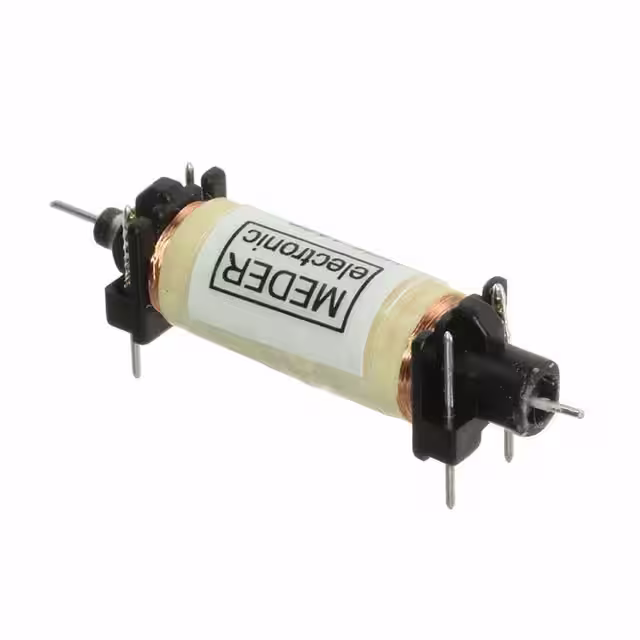

HI05-1A66REED RELAY SPST-NO 5V PCB Standex-Meder Electronics |
470 | 0.00 |
|
Datasheet |
HI | Bulk | Active | Through Hole | 5VDC | SPST-NO (1 Form A) | 500 mA | 200VAC, 200VDC - Max | 8.3 mA | Non Latching | - | PC Pin | Sealed - Fully | 3.5 VDC | 0.75 VDC | 0.7 ms | 0.05 ms | -20°C ~ 70°C | - |
|
|
SHV24-1A85-78L3KHIGH VOLTAGE REED RELAY, FORM 1A Standex-Meder Electronics |
238 | 0.00 |
|
Datasheet |
SHV | Tube | Active | Through Hole | 24VDC | SPST-NO (1 Form A) | 1 A | 1000VAC, 1000VDC - Max | 12 mA | Non Latching | - | PC Pin | - | 16.4 VDC | 3.6 VDC | 1.1 ms | 100 µs | -40°C ~ 105°C | - |
|
|
SIL05-1C90-51LGENERAL PURPOSE REED RELAY, FORM Standex-Meder Electronics |
400 | 0.00 |
|
Datasheet |
SIL | Tube | Active | Through Hole | 5VDC | SPDT (1 Form C) | 500 mA | 175VAC, 175VDC - Max | 25 mA | Non Latching | - | PC Pin | - | 3.5 VDC | 0.75 VDC | 700 µs | 1.5 ms | -20°C ~ 70°C | - |
|
|
SHV24-1A85-78D4KHIGH VOLTAGE REED RELAY, FORM 1A Standex-Meder Electronics |
143 | 0.00 |
|
Datasheet |
SHV | Tube | Active | Through Hole | 24VDC | SPST-NO (1 Form A) | 1 A | 1000VAC, 1000VDC - Max | 12 mA | Non Latching | Diode | PC Pin | - | 16.4 VDC | 3.6 VDC | 1.1 ms | 100 µs | -40°C ~ 105°C | - |
