0Logic Output Optoisolators
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Number of Channels | Inputs - Side 1/Side 2 | Voltage - Isolation | Common Mode Transient Immunity (Min) | Input Type | Output Type | Current - Output / Channel | Data Rate | Propagation Delay tpLH / tpHL (Max) | Rise / Fall Time (Typ) | Voltage - Forward (Vf) (Typ) | Current - DC Forward (If) (Max) | Voltage - Supply | Grade | Qualification | Operating Temperature | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
-V.jpg)
|
EL2631S(TA)-VOPTOISO 5KV 2CH OPN COLL 8-SMD Everlight Electronics Co Ltd |
2,623 | 2.67 |
|
Datasheet |
- | 8-SMD, Gull Wing | Tape & Reel (TR) | Active | 2 | 2/0 | 5000Vrms | 10kV/µs | DC | Open Collector | 50 mA | 10Mbps | 100ns, 100ns | 40ns, 10ns | 1.4V | 20mA | 7V | - | - | -40°C ~ 100°C | Surface Mount | 8-SMD |
|
H11L3OPTOISO 5KV OPEN COLLECTOR 6DIP Everlight Electronics Co Ltd |
1,437 | 0.00 |
|
Datasheet |
- | 6-DIP (0.300", 7.62mm) | Tube | Active | 1 | 1/0 | 5000Vrms | - | DC | Open Collector | 50 mA | 1MHz | 4µs, 4µs | 100ns, 100ns | 1.15V | 60mA | 3V ~ 16V | - | - | -55°C ~ 100°C | Through Hole | 6-DIP |
|
EL2630OPTOISO 5KV OPEN COLLECTOR 8DIP Everlight Electronics Co Ltd |
3,726 | 2.58 |
|
Datasheet |
- | 8-DIP (0.300", 7.62mm) | Tube | Active | 2 | 2/0 | 5000Vrms | 5kV/µs | DC | Open Collector | 50 mA | 10Mbps | 100ns, 100ns | 40ns, 10ns | 1.4V | 20mA | 7V | - | - | -40°C ~ 100°C | Through Hole | 8-DIP |
|

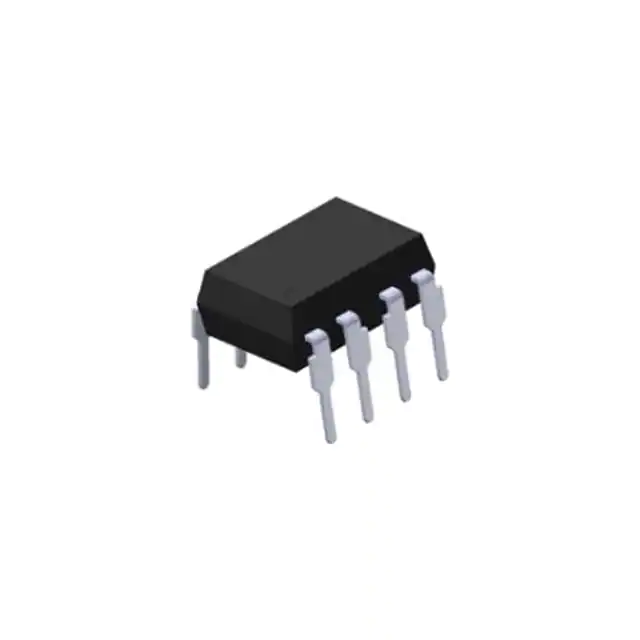

EL2630-VOPTOISO 5KV OPEN COLLECTOR 8DIP Everlight Electronics Co Ltd |
1,429 | 2.37 |
|
Datasheet |
- | 8-DIP (0.300", 7.62mm) | Tube | Active | 2 | 2/0 | 5000Vrms | 5kV/µs | DC | Open Collector | 50 mA | 10Mbps | 100ns, 100ns | 40ns, 10ns | 1.4V | 20mA | 7V | - | - | -40°C ~ 100°C | Through Hole | 8-DIP |
|

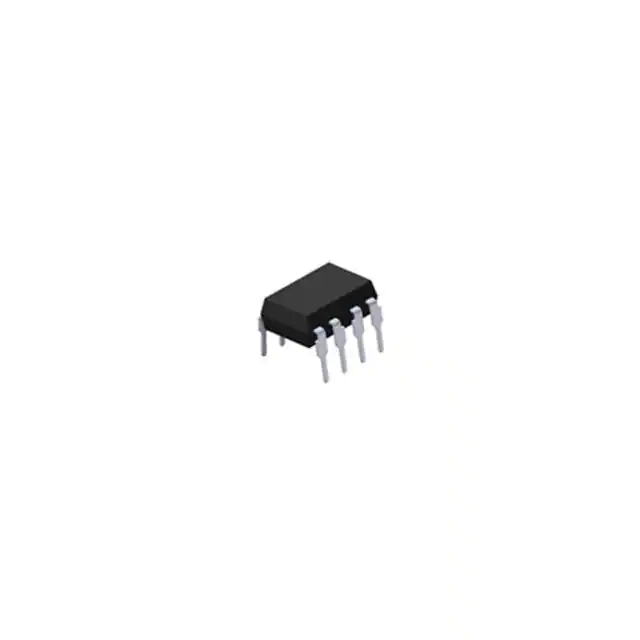

EL2601OPTOISO 5KV OPEN COLLECTOR 8DIP Everlight Electronics Co Ltd |
2,009 | 1.31 |
|
Datasheet |
- | 8-DIP (0.300", 7.62mm) | Tube | Active | 1 | 1/0 | 5000Vrms | 5kV/µs | DC | Open Collector | 50 mA | 10Mbps | 75ns, 75ns | 40ns, 10ns | 1.4V | 50mA | 7V | - | - | -40°C ~ 85°C | Through Hole | 8-DIP |
|
EL2631OPTOISO 5KV 2CH OPN COLL 8-DIP Everlight Electronics Co Ltd |
3,330 | 2.58 |
|
Datasheet |
- | 8-DIP (0.300", 7.62mm) | Tube | Active | 2 | 2/0 | 5000Vrms | 10kV/µs | DC | Open Collector | 50 mA | 10Mbps | 100ns, 100ns | 40ns, 10ns | 1.4V | 20mA | 7V | - | - | -40°C ~ 100°C | Through Hole | 8-DIP |
|
ELW137OPTOISO 5KV OPEN COLLECTOR 8DIP Everlight Electronics Co Ltd |
3,578 | 2.86 |
|
Datasheet |
- | 8-DIP (0.400", 10.16mm) | Tube | Active | 1 | 1/0 | 5000Vrms | - | DC | Open Collector | 50 mA | 10Mbps | 100ns, 100ns | 40ns, 10ns | 1.4V | 50mA | 7V | - | - | -40°C ~ 85°C | Through Hole | 8-DIP |
|
ELW2601OPTOISO 5KV OPEN COLLECTOR 8DIP Everlight Electronics Co Ltd |
4,149 | 2.86 |
|
Datasheet |
- | 8-DIP (0.400", 10.16mm) | Tube | Active | 1 | 1/0 | 5000Vrms | 5kV/µs | DC | Open Collector | 50 mA | 10Mbps | 100ns, 100ns | 40ns, 10ns | 1.4V | 50mA | 7V | - | - | -40°C ~ 85°C | Through Hole | 8-DIP |
|
|
EL2630S(TA)OPTOISO 5KV 2CH OPN COLL 8-SMD Everlight Electronics Co Ltd |
1,014 | 2.37 |
|
Datasheet |
- | 8-SMD, Gull Wing | Tape & Reel (TR) | Active | 2 | 2/0 | 5000Vrms | 5kV/µs | DC | Open Collector | 50 mA | 10Mbps | 100ns, 100ns | 40ns, 10ns | 1.4V | 20mA | 7V | - | - | -40°C ~ 100°C | Surface Mount | 8-SMD |
.JPG)
|
H11L3S(TA)OPTOISO 5KV OPEN COLLECTOR 6SMD Everlight Electronics Co Ltd |
1,372 | 0.47 |
|
Datasheet |
- | 6-SMD, Gull Wing | Tape & Reel (TR) | Active | 1 | 1/0 | 5000Vrms | - | DC | Open Collector | 50 mA | 1MHz | 4µs, 4µs | 100ns, 100ns | 1.15V | 60mA | 3V ~ 16V | - | - | -55°C ~ 100°C | Surface Mount | 6-SMD |
