Logic Output Optoisolators
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Number of Channels | Inputs - Side 1/Side 2 | Voltage - Isolation | Common Mode Transient Immunity (Min) | Input Type | Output Type | Current - Output / Channel | Data Rate | Propagation Delay tpLH / tpHL (Max) | Rise / Fall Time (Typ) | Voltage - Forward (Vf) (Typ) | Current - DC Forward (If) (Max) | Voltage - Supply | Grade | Qualification | Operating Temperature | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
PS9851-2-AXOPTOISO 2.5KV 2CH PSH PULL 8SSOP |
3,882 | 12.80 |
|
Datasheet |
NEPOC | 8-SOIC (0.154", 3.90mm Width) | Bulk | Discontinued at Digi-Key | 2 | 2/0 | 2500Vrms | 10kV/µs | DC | Push-Pull, Totem Pole | 2 mA | 15Mbps | 60ns, 60ns | 4ns, 4ns | 1.6V | 20mA | 4.5V ~ 5.5V | - | - | -40°C ~ 100°C | Surface Mount | 8-SSOP |
|
OPI1290-032OPTOISO PUSH PULL |
3,156 | 6.77 |
|
- |
- | Nonstandard, 5 Lead | Bulk | Active | 1 | 1/0 | - | - | DC | Push-Pull, Totem Pole | - | - | 5µs, 5µs (Typ) | 25ns, 25ns | 2.3V (Max) | - | 4.5V ~ 16V | - | - | -20°C ~ 75°C | Through Hole | - |
|
HCPL-2430-020EOPTOISO 5KV 2CH PUSH PULL 8DIP |
3,133 | 7.71 |
|
Datasheet |
- | 8-DIP (0.300", 7.62mm) | Tube | Active | 2 | 2/0 | 5000Vrms | 1kV/µs | DC | Push-Pull, Totem Pole | 25 mA | 40MBd | 55ns, 55ns | 20ns, 10ns | 1.3V | 10mA | 4.75V ~ 5.25V | - | - | -40°C ~ 85°C | Through Hole | 8-DIP |
|
|
HCPL-2430-060EOPTOISO 3.75KV 2CH PSH PULL 8DIP |
1,199 | 7.71 |
|
Datasheet |
- | 8-DIP (0.300", 7.62mm) | Tube | Active | 2 | 2/0 | 3750Vrms | 1kV/µs | DC | Push-Pull, Totem Pole | 25 mA | 40MBd | 55ns, 55ns | 20ns, 10ns | 1.3V | 10mA | 4.75V ~ 5.25V | - | - | -40°C ~ 85°C | Through Hole | 8-DIP |
|
HCPL-2232#500OPTOISO 3.75KV PUSH PULL 8DIP GW |
3,597 | 7.92 |
|
Datasheet |
- | 8-SMD, Gull Wing | Tape & Reel (TR) | Active | 2 | 2/0 | 3750Vrms | 10kV/µs | DC | Push-Pull, Totem Pole | 25 mA | 5MBd | 300ns, 300ns | 30ns, 7ns | 1.5V | 10mA | 4.5V ~ 20V | - | - | -40°C ~ 85°C | Surface Mount | 8-DIP Gull Wing |
|
|
OPI127OPTOISO 15KV PUSH PULL |
1,387 | 0.00 |
|
Datasheet |
- | - | Bulk | Obsolete | 1 | 1/0 | 15000VDC | - | DC | Push-Pull, Totem Pole | - | 250kbps | 5µs, 5µs (Typ) | 100ns, 100ns | 1.5V (Max) | 25mA | 4.5V ~ 5.5V | - | - | -55°C ~ 100°C | Through Hole | - |
|
|
OPI128OPTOISO 15KV OPEN COLLECTOR |
3,145 | 8.59 |
|
Datasheet |
- | - | Bulk | Active | 1 | 1/0 | 15000VDC | - | DC | Open Collector | - | 250kbps | 5µs, 5µs (Typ) | 100ns, 100ns | 1.5V (Max) | 25mA | 4.5V ~ 5.5V | - | - | -55°C ~ 100°C | Through Hole | - |
|

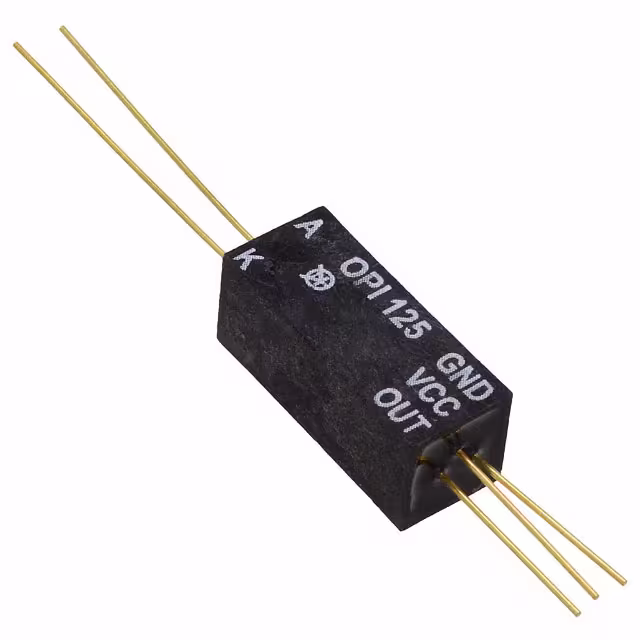

OPI125OPTOISO 15KV PUSH PULL |
2,564 | 0.00 |
|
- |
- | Axial - 5 Leads | Bulk | Obsolete | 1 | 1/0 | 15000VDC | - | DC | Push-Pull, Totem Pole | - | 250kbps | 5µs, 5µs (Typ) | 100ns, 100ns | 1.5V (Max) | 25mA | 4.5V ~ 5.5V | - | - | -55°C ~ 100°C | Through Hole | - |
|
|
HCPL-2430#500OPTOISO 3.75KV PUSH PULL 8DIP GW |
2,387 | 10.40 |
|
Datasheet |
- | 8-SMD, Gull Wing | Tape & Reel (TR) | Active | 2 | 2/0 | 3750Vrms | 1kV/µs | DC | Push-Pull, Totem Pole | 25 mA | 40MBd | 55ns, 55ns | 20ns, 10ns | 1.3V | 10mA | 4.75V ~ 5.25V | - | - | -40°C ~ 85°C | Surface Mount | 8-DIP Gull Wing |
|
|
HCPL-2430#300OPTOISO 3.75KV PUSH PULL 8DIP GW |
3,245 | 11.99 |
|
Datasheet |
- | 8-SMD, Gull Wing | Tube | Active | 2 | 2/0 | 3750Vrms | 1kV/µs | DC | Push-Pull, Totem Pole | 25 mA | 40MBd | 55ns, 55ns | 20ns, 10ns | 1.3V | 10mA | 4.75V ~ 5.25V | - | - | -40°C ~ 85°C | Surface Mount | 8-DIP Gull Wing |
|
OPI127-032OPTOISO 15KV PUSH PULL |
4,062 | 11.42 |
|
- |
- | Axial - 4 Leads | Bulk | Active | 1 | 1/0 | 15000VDC | - | DC | Push-Pull, Totem Pole | - | 250kbps | 5µs, 5µs (Typ) | 100ns, 100ns | 1.5V (Max) | 25mA | 4.5V ~ 5.5V | - | - | -55°C ~ 100°C | Through Hole | Axial |
|
|
HCPL-5600#100OPTOISO 1.5KV OPEN COLL 8SMD |
1,576 | 77.20 |
|
Datasheet |
- | 8-SMD Butt Joint | Tube | Active | 1 | 1/0 | 1500VDC | 1kV/µs | DC | Open Collector, Schottky Clamped | 25 mA | 10MBd | 100ns, 100ns | 35ns, 35ns | 1.5V | 20mA | 4.5V ~ 5.5V | - | - | -55°C ~ 125°C | Surface Mount | 8-DIP Butt Joint |
|
|
HCPL-5600#200OPTOISO 1.5KV OPN COLLECTOR 8DIP |
2,695 | 77.20 |
|
Datasheet |
- | 8-DIP (0.300", 7.62mm) | Tube | Active | 1 | 1/0 | 1500VDC | 1kV/µs | DC | Open Collector, Schottky Clamped | 25 mA | 10MBd | 100ns, 100ns | 35ns, 35ns | 1.5V | 20mA | 4.5V ~ 5.5V | - | - | -55°C ~ 125°C | Through Hole | 8-DIP |
|
|
ACPL-5600LOPTOISO 1.5KV OPN COLLECTOR 8DIP |
3,749 | 80.62 |
|
Datasheet |
- | 8-DIP (0.300", 7.62mm) | Tube | Active | 1 | 1/0 | 1500VDC | 1kV/µs | DC | Open Collector, Schottky Clamped | 25 mA | 10MBd | 100ns, 100ns | 20ns, 8ns | 1.55V | 20mA | 3V ~ 3.6V | - | - | -55°C ~ 125°C | Through Hole | 8-DIP |
|
|
ACPL-5600L-100OPTOISO 1.5KV OPEN COLL 8SMD |
1,657 | 81.03 |
|
Datasheet |
- | 8-SMD Butt Joint | Tube | Active | 1 | 1/0 | 1500VDC | 1kV/µs | DC | Open Collector, Schottky Clamped | 25 mA | 10MBd | 100ns, 100ns | 20ns, 8ns | 1.55V | 20mA | 3V ~ 3.6V | - | - | -55°C ~ 125°C | Surface Mount | 8-DIP Butt Joint |
|
|
ACPL-5600L-200OPTOISO 1.5KV OPN COLLECTOR 8DIP |
4,042 | 81.03 |
|
Datasheet |
- | 8-CDIP (0.300", 7.62mm) | Tube | Active | 1 | 1/0 | 1500VDC | 1kV/µs | DC | Open Collector, Schottky Clamped | 25 mA | 10MBd | 100ns, 100ns | 20ns, 8ns | 1.55V | 20mA | 3V ~ 3.6V | - | - | -55°C ~ 125°C | Through Hole | 8-DIP |
|
|
HCPL-5600#300OPTOISO 1.5KV OPEN COLL 8DIP GW |
2,237 | 78.42 |
|
Datasheet |
- | 8-CSMD, Gull Wing | Tube | Active | 1 | 1/0 | 1500VDC | 1kV/µs | DC | Open Collector, Schottky Clamped | 25 mA | 10MBd | 100ns, 100ns | 35ns, 35ns | 1.5V | 20mA | 4.5V ~ 5.5V | - | - | -55°C ~ 125°C | Surface Mount | 8-DIP Gull Wing |
|
|
ACPL-5600L-300OPTOISO 1.5KV OPEN COLL 8DIP GW |
2,061 | 82.25 |
|
Datasheet |
- | 8-CSMD, Gull Wing | Tube | Active | 1 | 1/0 | 1500VDC | 1kV/µs | DC | Open Collector, Schottky Clamped | 25 mA | 10MBd | 100ns, 100ns | 20ns, 8ns | 1.55V | 20mA | 3V ~ 3.6V | - | - | -55°C ~ 125°C | Surface Mount | 8-DIP Gull Wing |
|

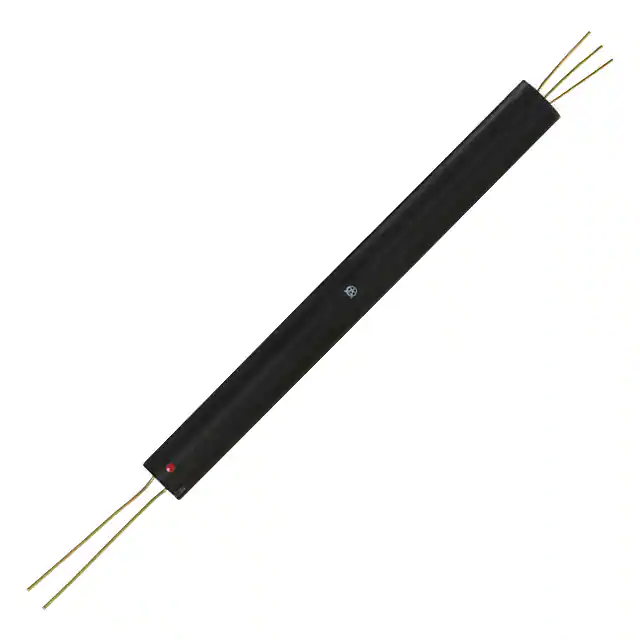

OPI155OPTOISO 50KV OPEN COLLECTOR |
2,592 | 74.92 |
|
- |
- | - | Bulk | Active | 1 | 1/0 | 50000VDC | - | DC | Open Collector, Schottky Clamped | 25 mA | 5Mbps | 70ns, 120ns | - | 1.2V | 50mA | 7V | - | - | -40°C ~ 85°C | Through Hole | - |
|
|
HCPL-5601OPTOISO 1.5KV OPN COLLECTOR 8DIP |
1,780 | 82.66 |
|
Datasheet |
- | 8-DIP (0.300", 7.62mm) | Bulk | Active | 1 | 1/0 | 1500VDC | 1kV/µs | DC | Open Collector, Schottky Clamped | 25 mA | 10MBd | 100ns, 100ns | 35ns, 35ns | 1.5V | 20mA | 4.5V ~ 5.5V | - | - | -55°C ~ 125°C | Through Hole | 8-DIP |
